Metal Water Level Sensor 100mm

     It is used to detect the liquid level in tanks filled with liquid. It can activate devices such as a pump, indicator, alarm and the like. With the liquid level sensor you can detect whether your tanks are full or empty. The sensor gives output as a dry contact. Depending on the position where you place it, it can be normally open or normally closed. It is used for detecting the liquid level in applications such as Aquariums, Hydroponic Systems, Salt Water Tanks, Washing/Dishwashing Machines, Filtration Systems and similar.

     The stainless water level float triggers the reed relay inside the product depending on the movement of the float relative to the liquid height, making use of the buoyancy force of liquids. It is highly reliable with its light, simple operating principle. It is mounted vertically to the liquid tank. It is easily mounted to surfaces with an M10 type connection.

•     Metal liquid level sensor vertical type 100mm
•     Switching power max: 10W  SPST
•     Maximum switching voltage: 100V ( AC /DC )
•     Maximum switching current: 0.5A  (The product is damaged at high current.)
•     Temperature range:  -30C  /   +125C

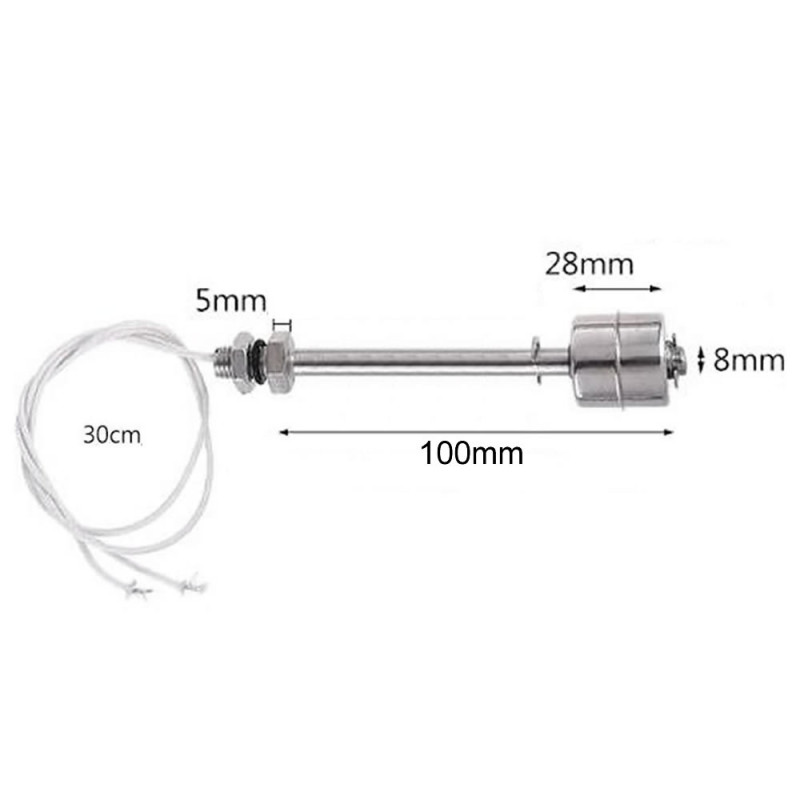

•     Cable length:  30cm
•     Suitable for Metric 10 connection
•     Mounting type:  Vertical
•     Mounting hole: 10mm
•     Color: Silver

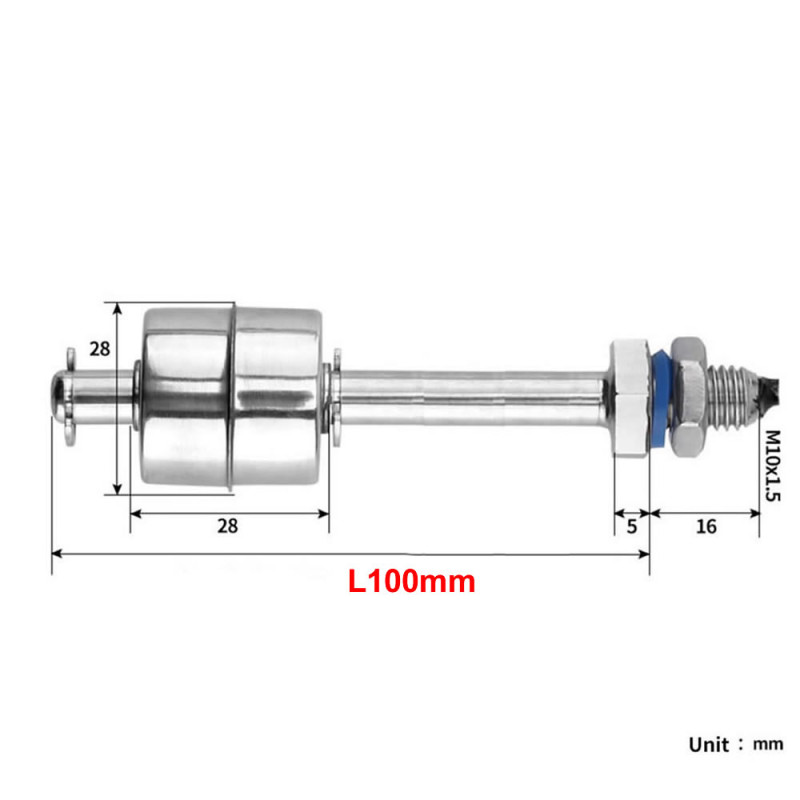

•     Body length:  100mm
•     Dimensions: 12cm x 2.8cm
•     Weight:  45gr

Package Contents:

•      1 Piece Metal Water Level Sensor 100mm
