- Stok Durumu: Stok Var
- Marka: OEM
- Model: TTP224 Modül
- SKU: RBZ.100.817

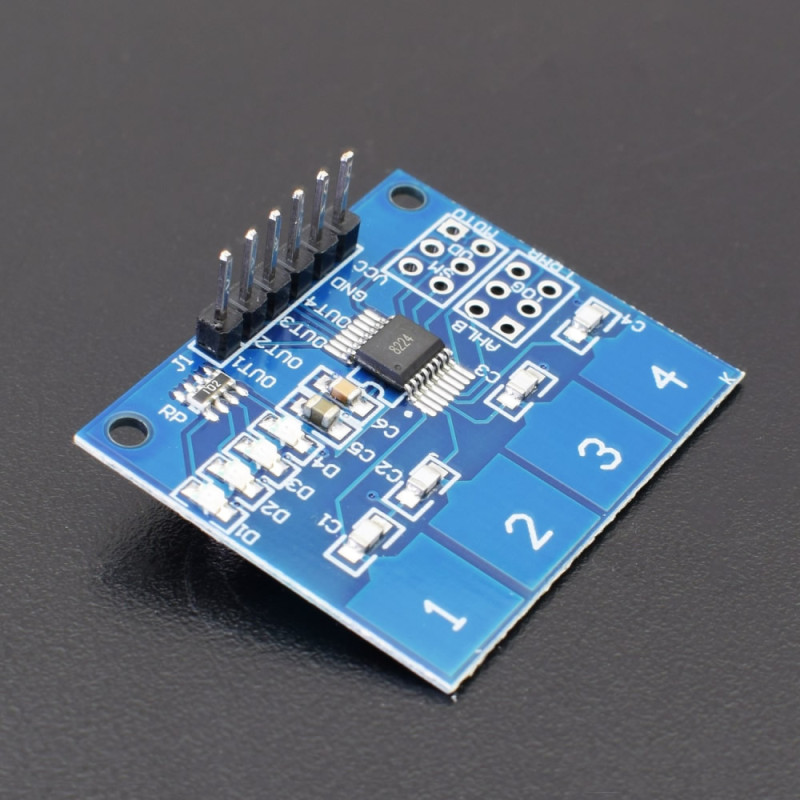

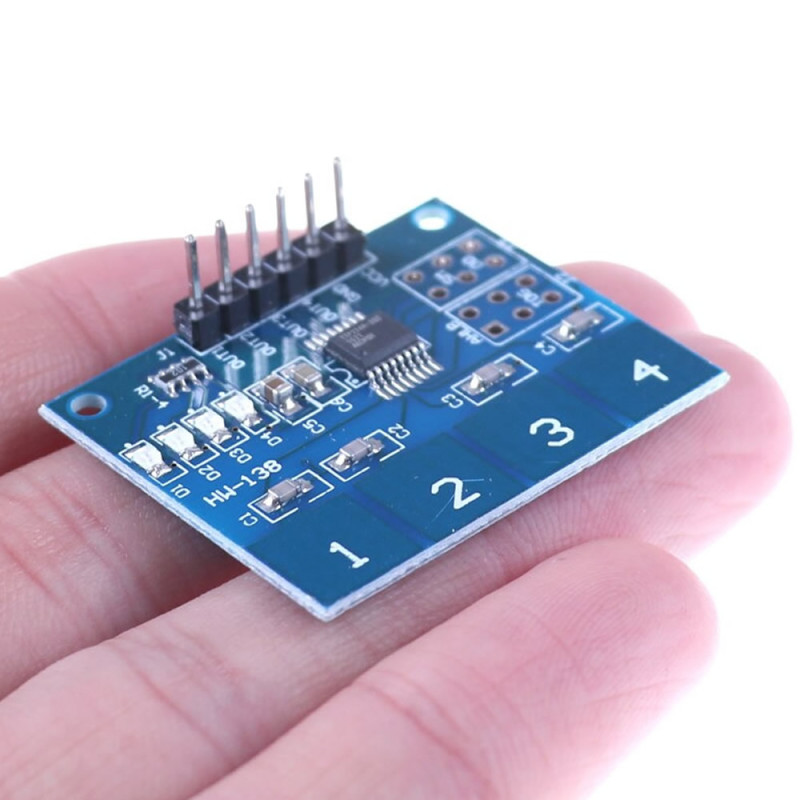

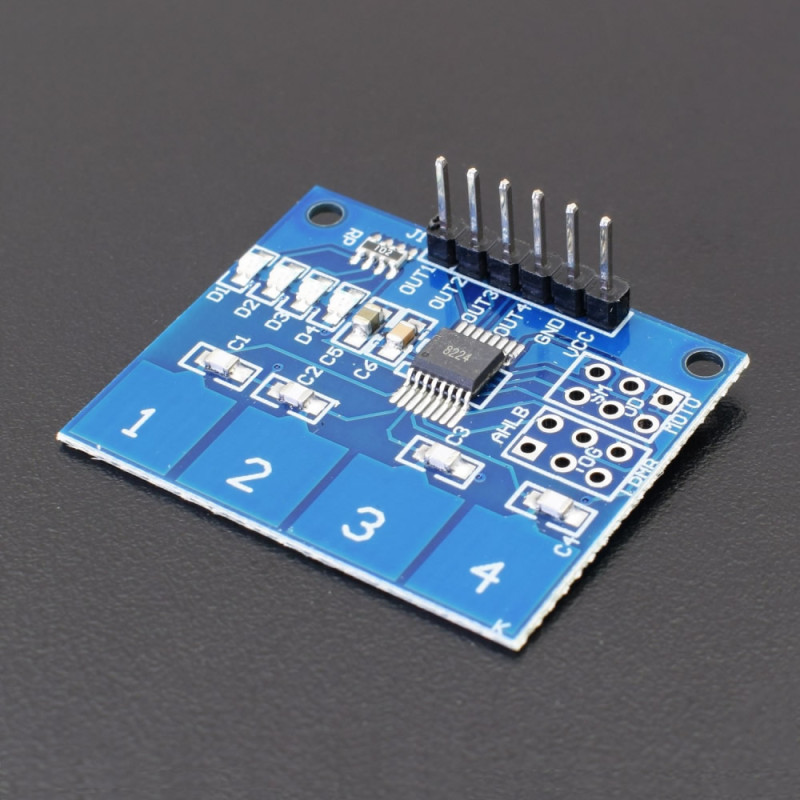

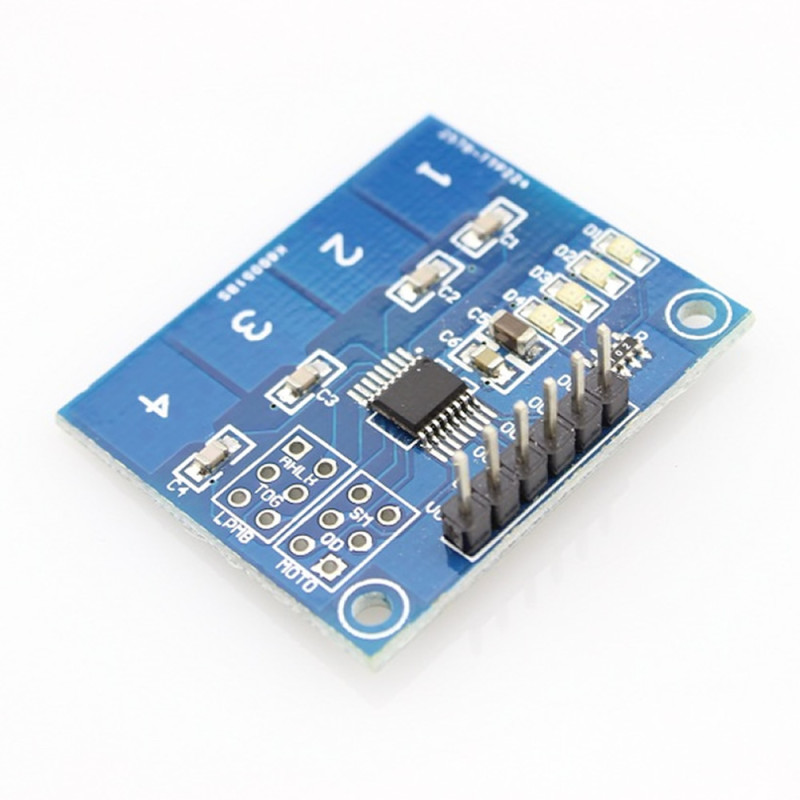

TTP224 4 Channel Touch Button Sensor Module
Capacitive Digital Key Detector Switch Keypad Keyboard HMI Menu Automation Smart Home Machine Control
This module is built with the TTP224 capacitive touch IC. It contains 4 digital touch detector buttons and the touch pads can be extended with wire or conductive materials. It can be used as an alternative to mechanical type keypads. It stands out for being more durable in dusty environments.
When a capacitive load approaches the touch pad, the sensor detects the capacitance change and activates the switch. It can detect touch through thin layers of non-conductive materials such as glass, plastic, fabric or even wood. This way you can hide this sensor in the wall, on the desktop and in other places and get rid of the problems caused by the use of traditional buttons.
It can be used with Arduino or a microcontroller and allows you to easily add capacitive touch input to your project. It can also be used independently without a kit. It is an ideal option for providing touch control in your projects and it is easy to use. It can be used in HMI (Human Machine Interface) applications, mechanical button key replacement projects and other automation projects.
Features:
- TTP224 4 button capacitive touch sensor IC
- Operating voltage: DC 2.4V / 5.5V
- Detection type: Capacitive
- 4 button pads
- 4 button status indicator leds
- Response Time: 60ms fast mode or 160ms low power mode
- Adjustable output mode.
- Sensitive touch detection support

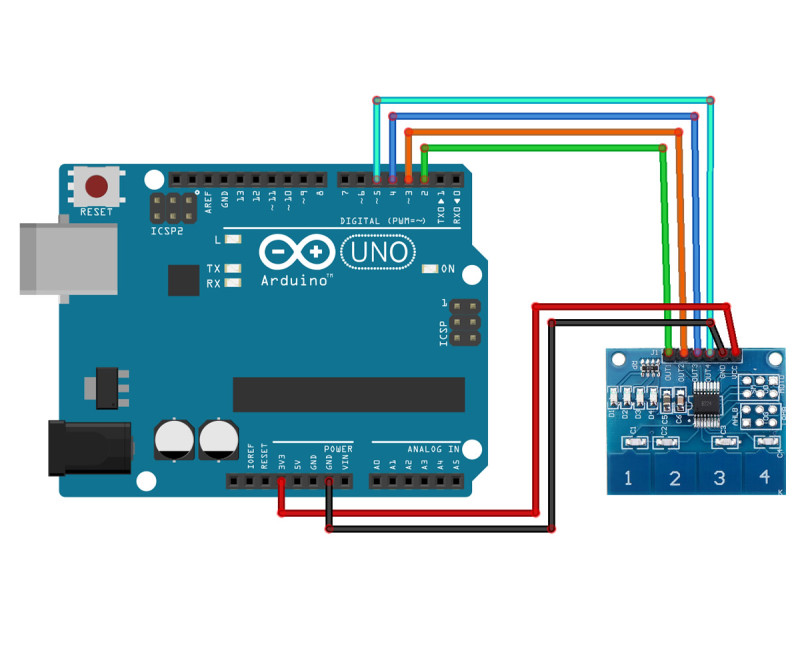

- Can be used with a microcontroller or arduino
- Able to operate independently as well
- Can be easily integrated into projects
- It can detect through non-conductive materials.( Thin glass, plastic, fabric, wood etc. )
- Color: Blue
- Operating temperature: -20C / +85C
- 2 Piece mounting holes

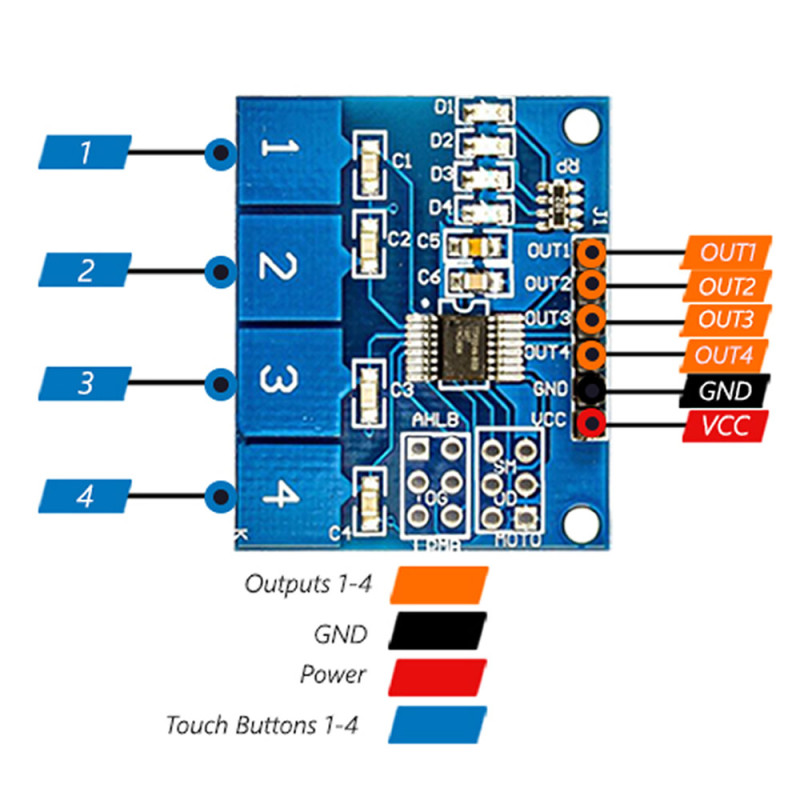

- 6 pin male header connection socket

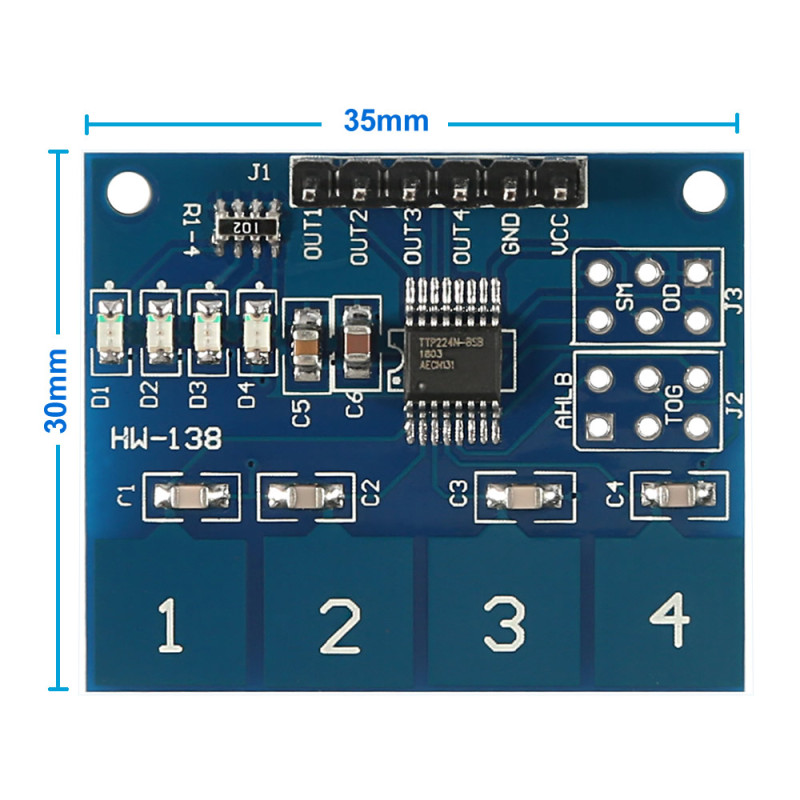

- Dimensions: 30mm x 35mm
- Weight: 3.5gr
Package Contents:
- 1 Piece TTP224 4 Button Touch Sensor Module
.
