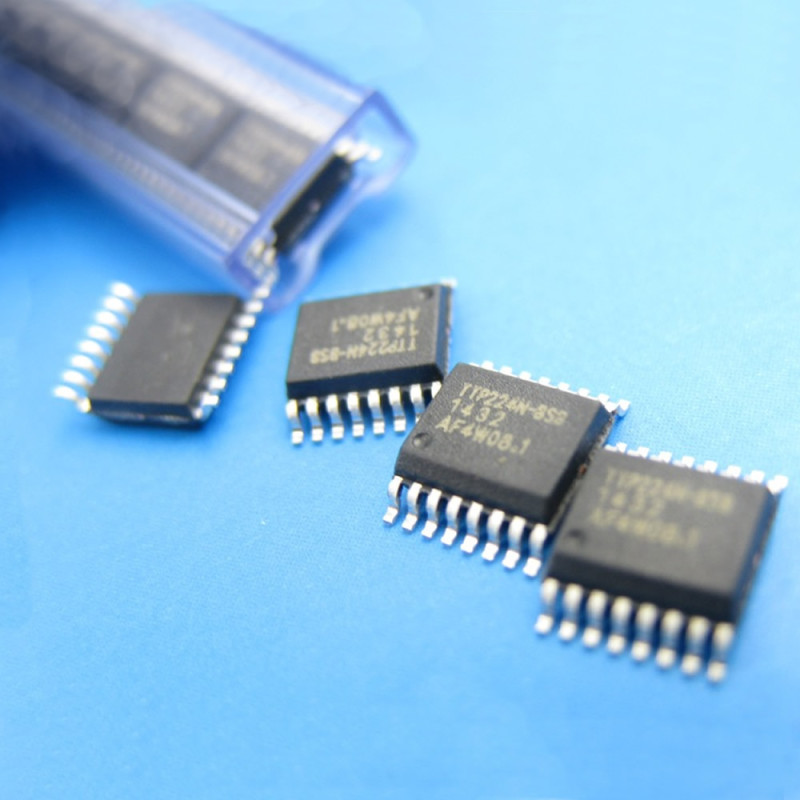

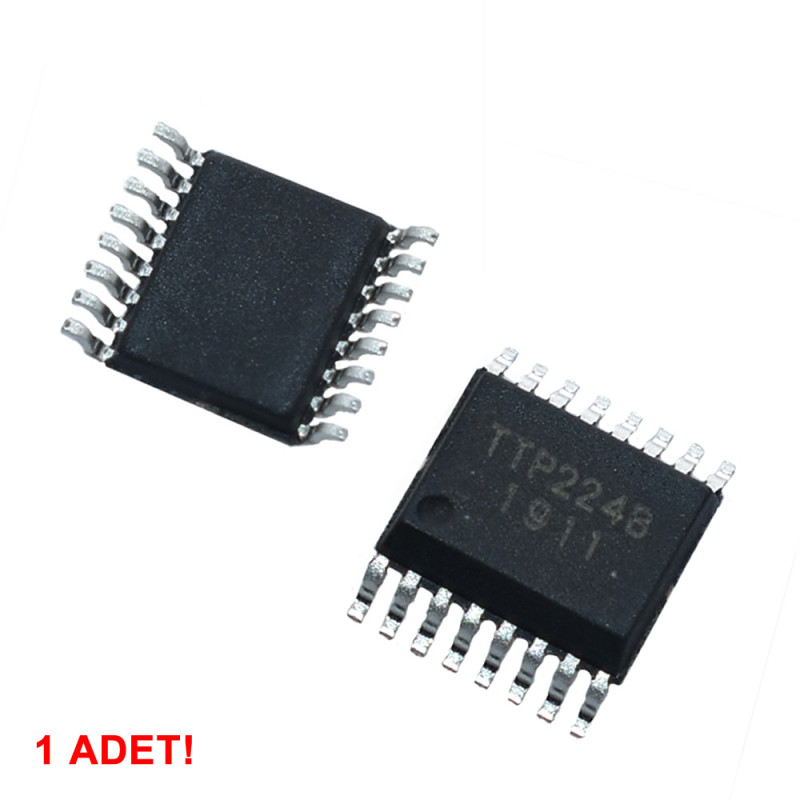

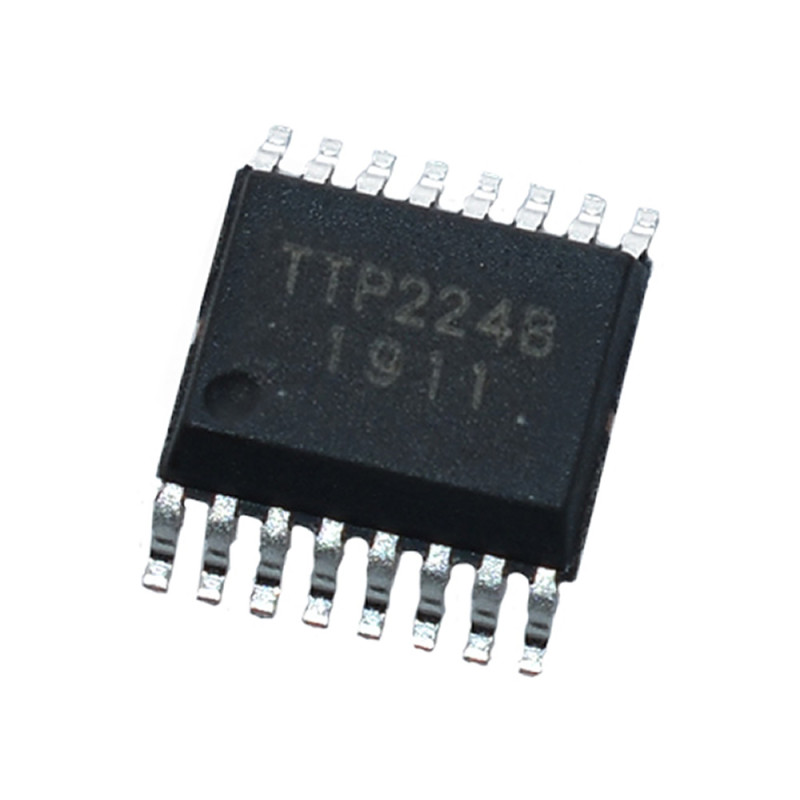

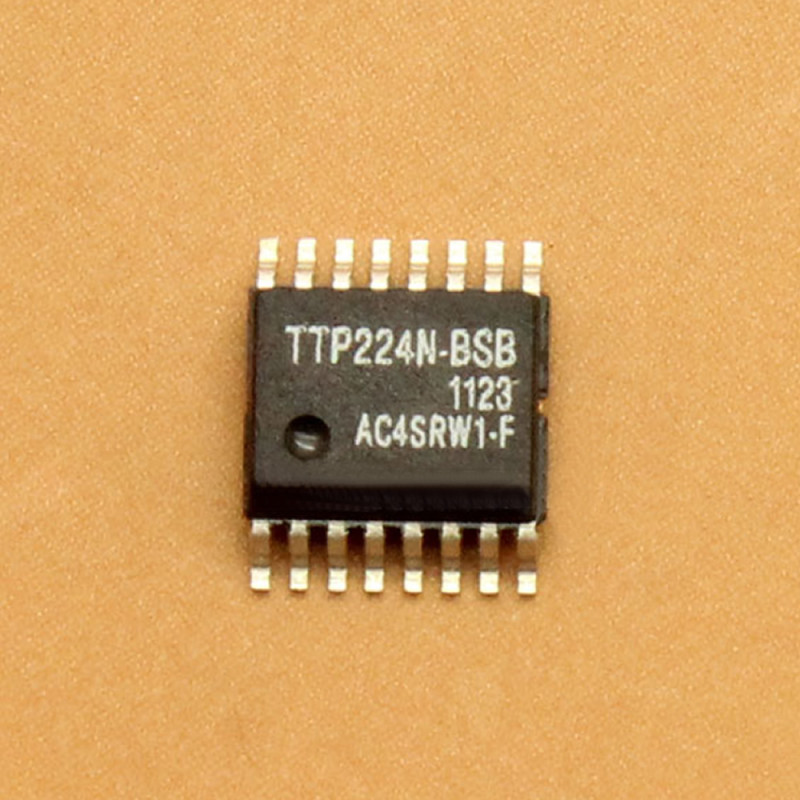

TTP224N-BSB 4 Button Touch Sensor IC
17.82TL
14.85TL + KDV
10 or more 15.15TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.101.307
TTP224N-BSB 4 Button Capacitive Touch Sensor IC
SSOP16 Detector Light Lamp Ventilator Fan Air Conditioner Switch Touch Industrial Automation Control
The TTP224N-BSB has a capacitive sensing design developed especially for touch panel controls. It can read 4 touch buttons. It can perform touch detection stably even under various conditions. It serves as a switch in devices controlled by people. It allows replacing mechanical buttons.
Adding the TTP224N-BSB capacitive touch switch IC to your project is quite easy. It detects touch capacitively over 4 touch pads. The IC contains an internal regulator for the touch sensor. It transfers the button state to the outside with 4 outputs.
- Capacitive Touch Technology: The TTP224N-BSB offers a user-friendly experience by using capacitive touch technology.
- Touch Detection: Thanks to this module you can add touch detection functionality to your projects.
- High Sensitivity: Precise touch detection is combined with fast response time, thus offering your users an excellent experience.
- Multiple Button Support: The module supports multiple buttons as well as a single touch button, which provides more functionality in your projects.
- Compact Design: Its small size increases the ease of integration into your projects.
- Simple Connection: The connections required to integrate the module into your project are simple and clear.
- Wide Application Area: The TTP224N-BSB is ideal for many different applications, from home automation to fun DIY projects.
FEATURES
- IC: TTP224N-BSB
- Number of touch buttons: 4
- Operating voltage: DC 2.4V / 5.5V
- Contains an internal regulator.
- Operating current: 2.5uA In fast mode: 9uA
- Response time: 60ms in fast mode / 160ms in low power mode
- Sensitivity: 0/50pF For each pad / adjustable.
- Easy integration.
- Automatic calibration support
- Fast and low power mode selection pin.
- Push or toggle operating mode support.
- Initial operating delay: 0.5s
- Operating temperature: -40C / 85C

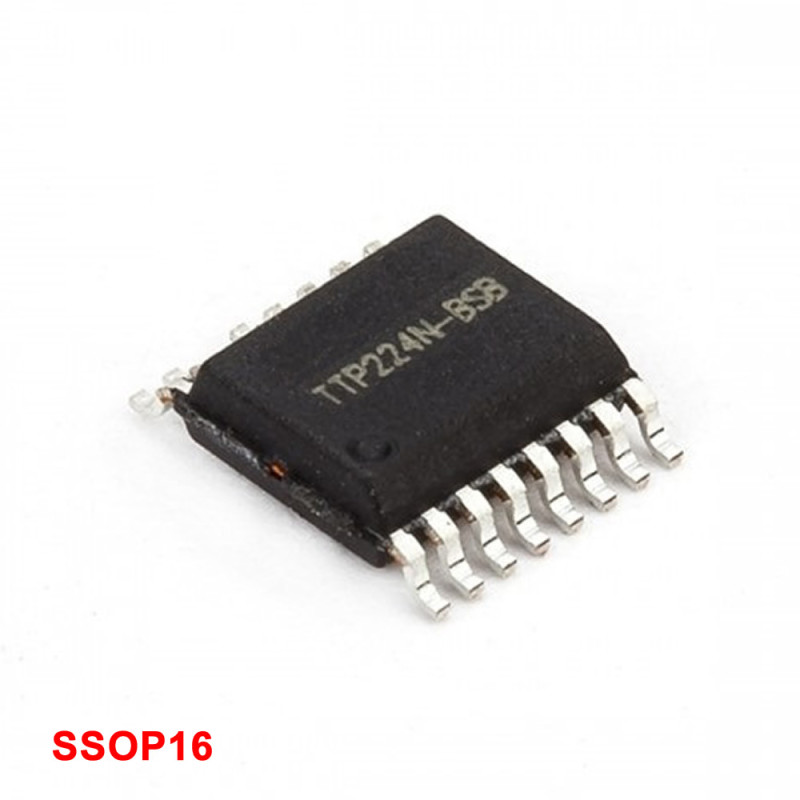

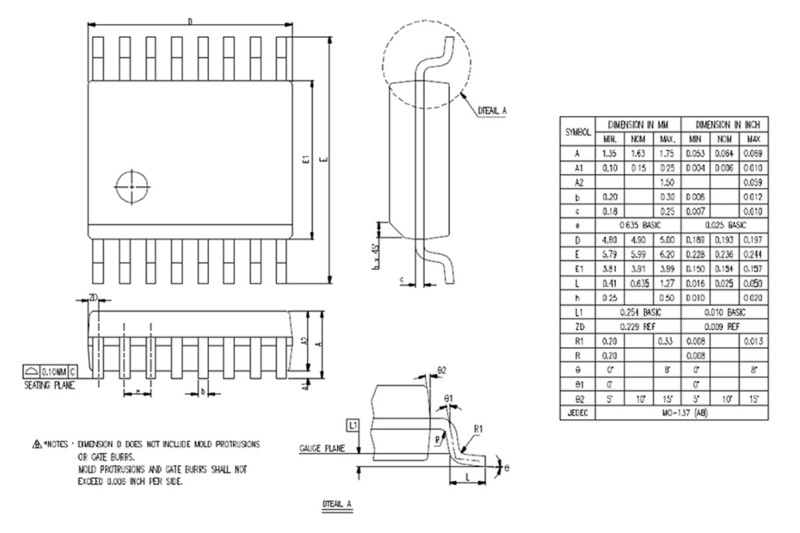

- Package: SSOP16
Package Contents:
- 1 Piece TTP224N-BSB 4 IC
.
