40 Pin Rainbow Ribbon IDC Cable 1 Meter

40 Pin Rainbow Ribbon IDC Cable 1 Meter

1.27mm 10 Color Flat Ribbon

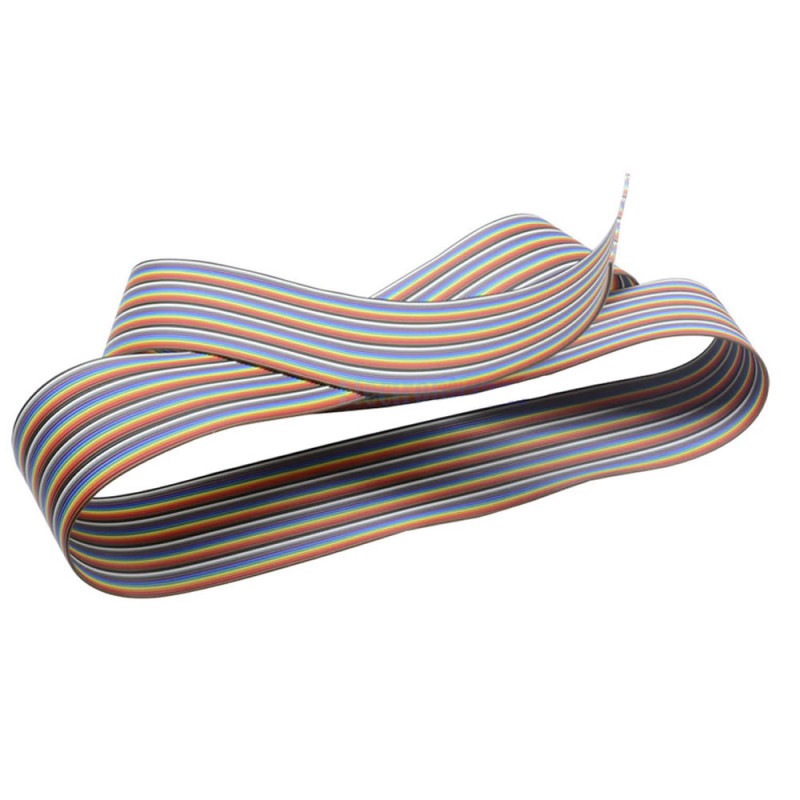

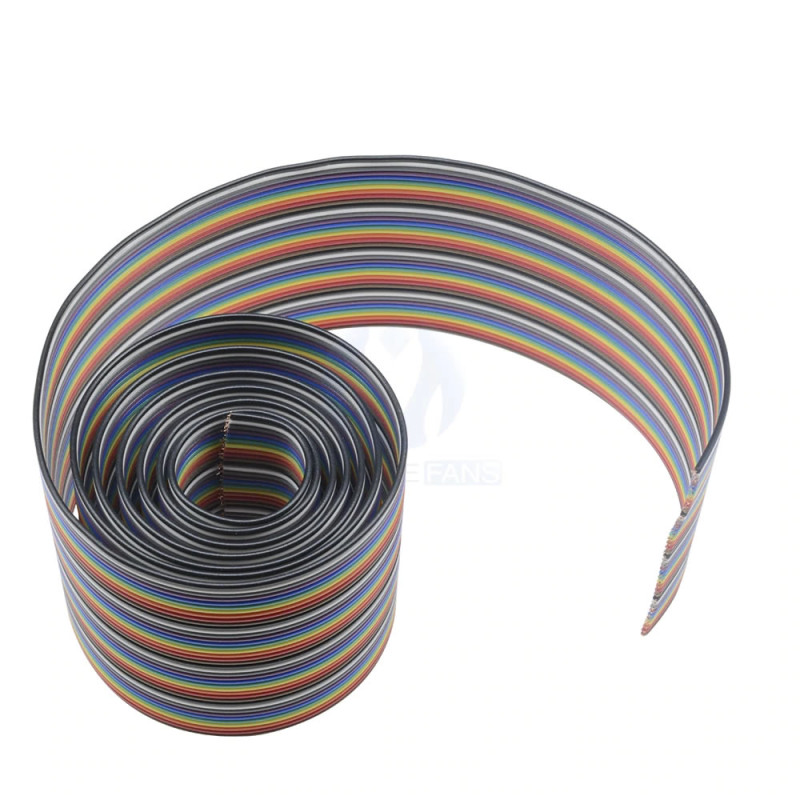

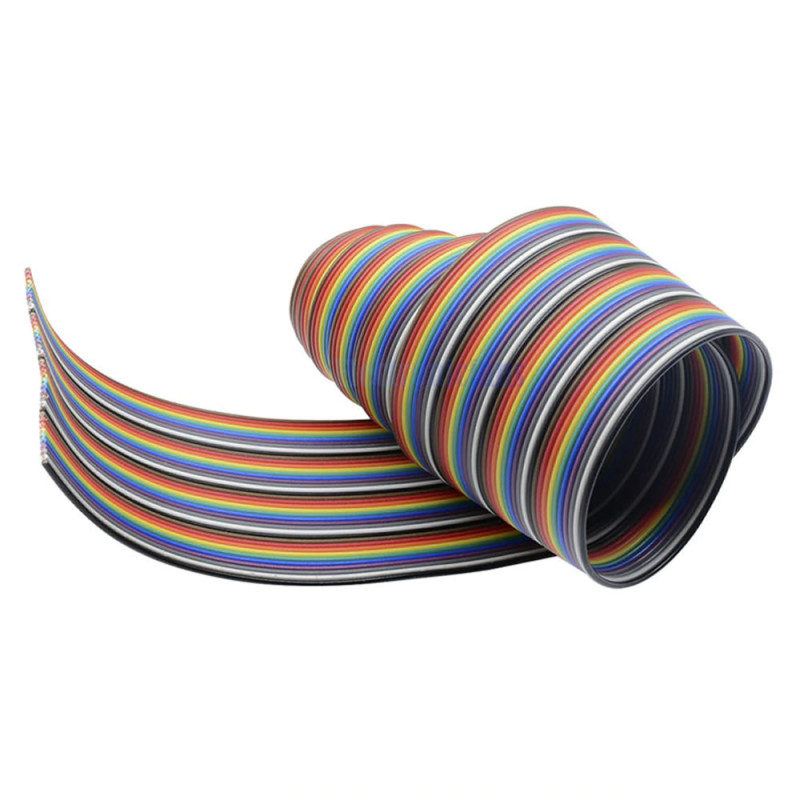

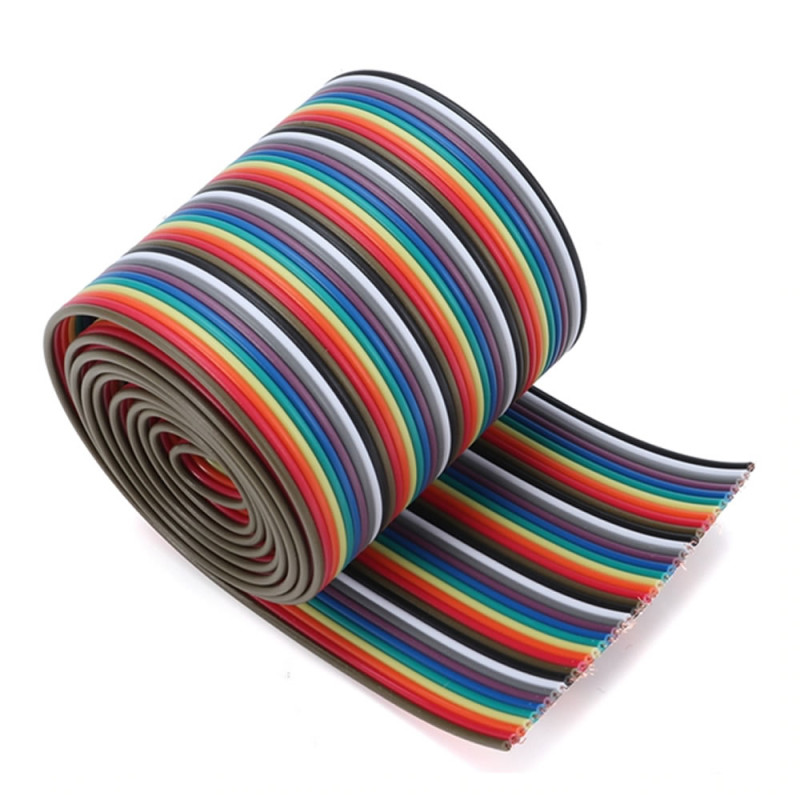

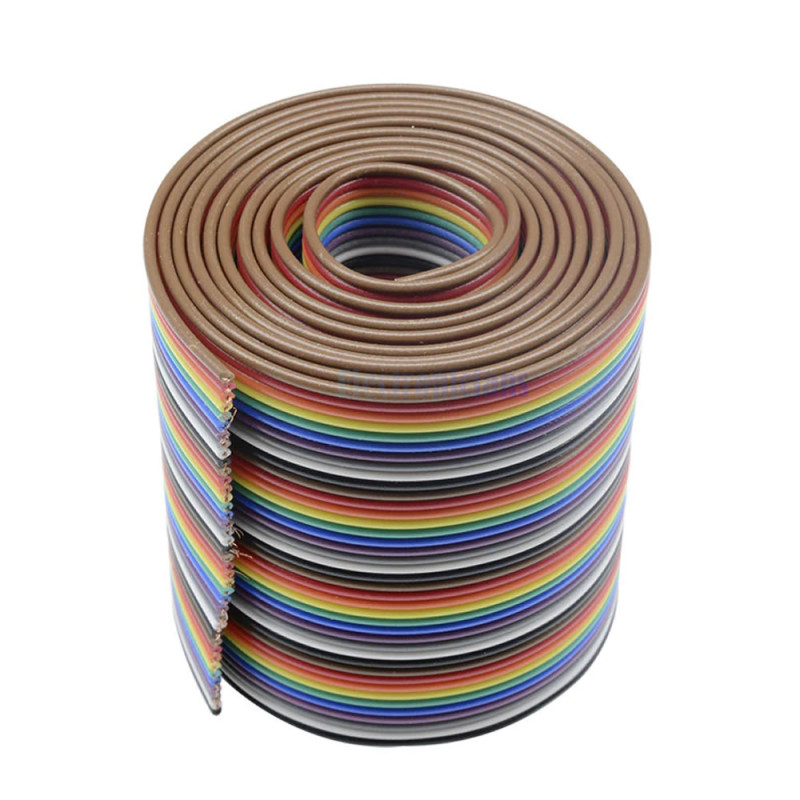

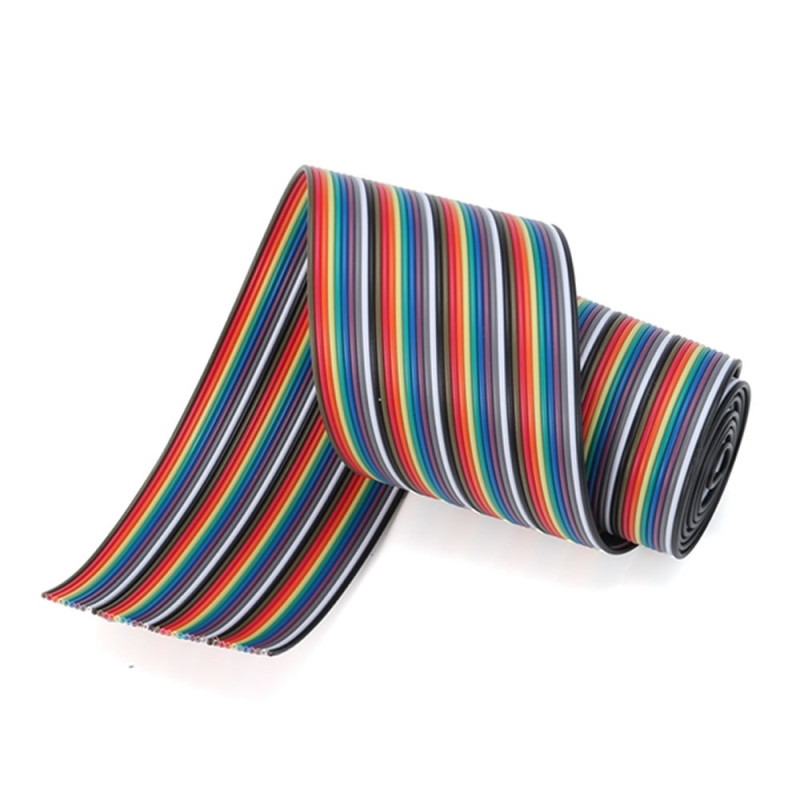

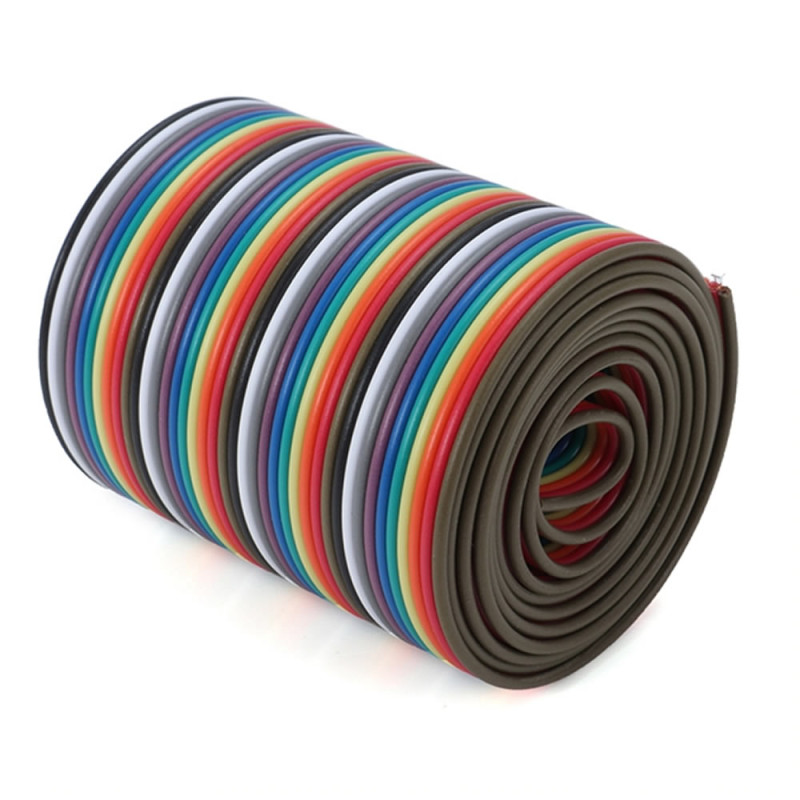

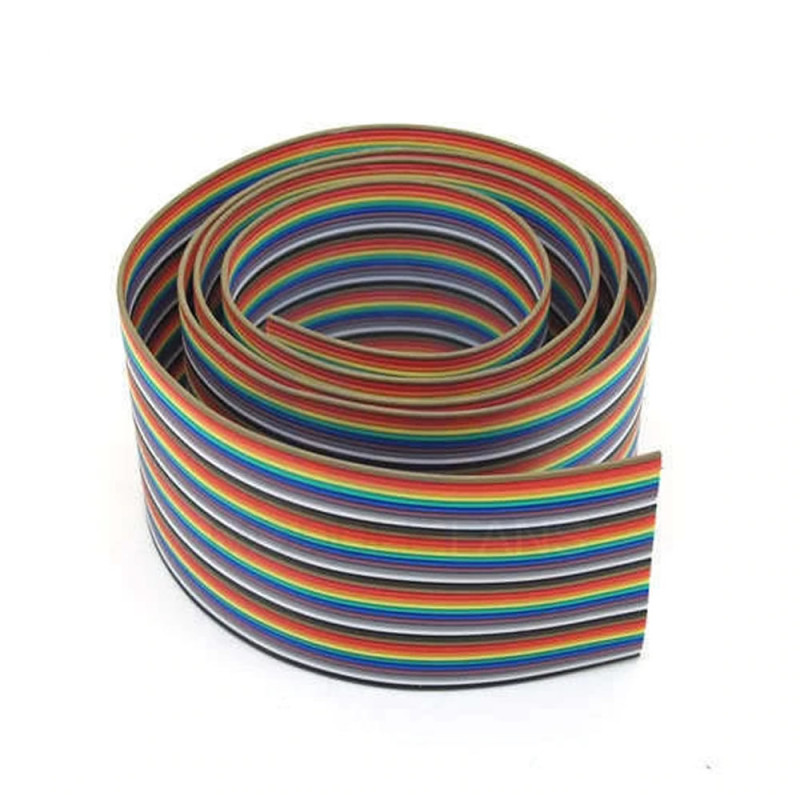

     40 Pin Rainbow Ribbon IDC Cable 1 Meter is a colored flat cable made of 40 cores laid side by side with 1.27mm core pitch. The cores repeat in 10 colors in sequence; the colors make it easy to tell which line goes to which pin while connecting and troubleshooting. Each core is a 28AWG, 7 strand (7x0.127mm) tinned copper conductor with PVC insulation; the total width of the cable is about 50.8mm.

     The cable is shipped without connectors, 1 meter long. The 1.27mm pitch fits 2.54mm pitch dual row IDC female sockets; the socket is pressed onto the cable for a solderless connection. The 40 cores can be separated into any number: strips of 2, 4, 10 or 20 cores can be prepared to make neat, colored jumper cables in circuits.

Key features:

     Easy line tracking: Brown, red, orange, yellow, green, blue, purple, grey, white and black cores repeat in sequence; each line is followed by its color and connection errors are reduced.

     1.27mm pitch for IDC sockets: 2.54mm pitch dual row IDC female sockets (e.g. 2x20 40 pin) are pressed onto the cable and fitted without soldering.

     Splits into any number: The cores are separated from each other by pulling by hand; single wires or strips of 2, 4, 10 cores are prepared.

     Flexible stranded conductor: Each core is 7 strand 28AWG tinned copper; in bent and moving connections it breaks later than solid core wire.

Features:

• Product type: Colored flat ribbon cable, without connectors
• Number of cores: 40
• Core pitch: 1.27mm
• Compatible socket: 2.54mm pitch dual row IDC female socket (e.g. 2x20 40 pin)
• Conductor size: 28AWG
• Conductor structure: 7 strand (7x0.127mm) tinned copper
• Insulation: PVC
• Voltage rating: 300V
• Number of colors: 10 colors, repeating in sequence
• Cores can be separated by hand, split into any number
• Provides quick solutions in repair work
• Operating temperature: up to 80C
• Material: PVC insulation, tinned copper conductor
• Color: Rainbow, 10 colors in sequence (brown, red, orange, yellow, green, blue, purple, grey, white, black)
• Cable width: about 50.8mm
• Length: 1 meter

Usage information:

• Separate the required number of cores by pulling slowly by hand starting from the end of the cable; if you use a utility knife, cut only the thin joining line between the cores and do not damage the insulation.
• When fitting an IDC socket, align core 1 of the cable (the brown core at the edge) with pin 1 marked with a triangle on the socket; place the cable square to the socket and press it with even force using a press or vise.
• For soldered connections, strip the core end short, twist the strands and tin them; the thin insulation melts if the soldering iron touches it for a long time.

Application areas:

•  Making board to board connection cables with 40 pin IDC sockets
•  Making extension cables for boards with a 40 pin GPIO header such as Raspberry Pi
•  Use as colored jumper wires on breadboards and test circuits with tinned ends
•  Neat multi line wiring in robot and vehicle projects
•  Connecting LED matrices and display panels
•  Multi channel connections in test fixtures and measurement setups
•  Repairing broken traces and jumper work in electronic repair
•  Separating many lines by color in logic analyzer connections
•  Repairing 40 pin IDE disk cables and making cables of custom length


Points to consider:

•  The product is only the cable; IDC sockets, dupont terminals and connectors are not included in the package.
•  The core pitch is 1.27mm; check that the IDC socket fits flat cable of this pitch.
•  Each core is a thin (28AWG) conductor; do not use it for power lines carrying high current.
•  The cable is for low voltage signal lines; although the insulation voltage rating is 300V, do not use this thinly insulated cable for mains (220V) connections.
•  A stranded core end does not sit firmly in a breadboard hole by itself; tin the end or fit a male pin.

Package contents:

•  1 Piece 40 Pin Rainbow Ribbon IDC Cable 1 Meter
•  Note: IDC sockets and connectors are not included in the package.
