Rigol DS1052E 50Mhz 2 Channel Oscilloscope

Rigol DS1052E 50Mhz 2 Channel Oscilloscope

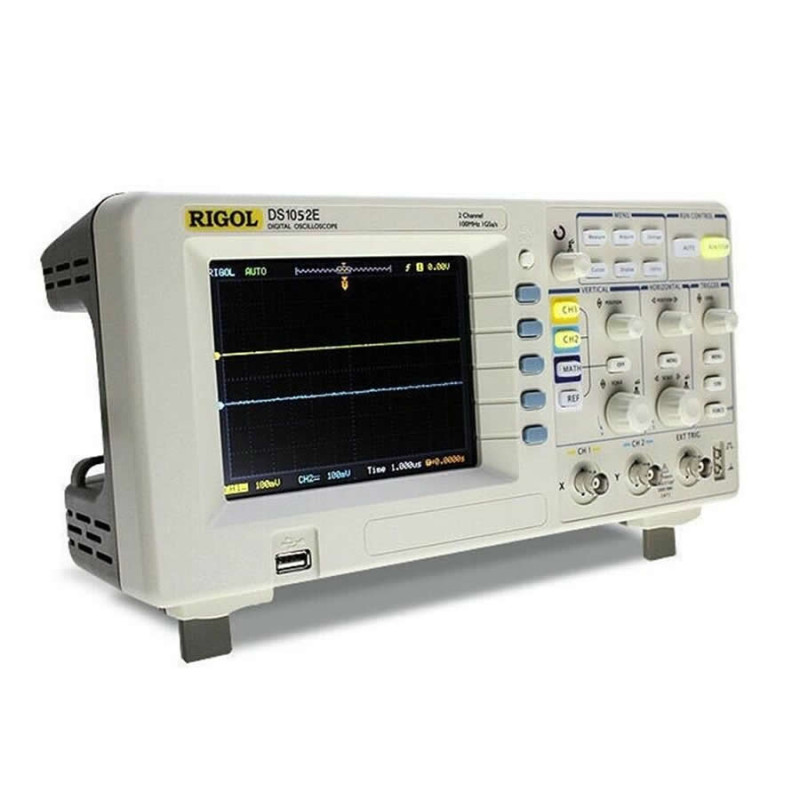

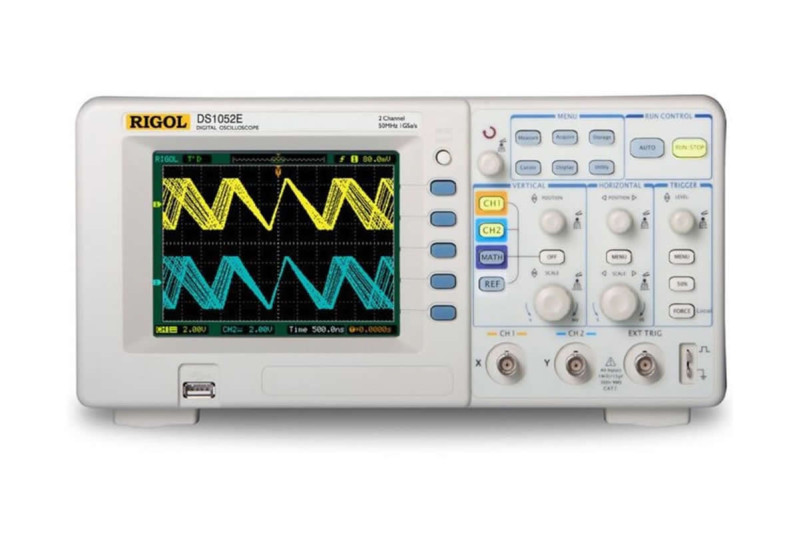

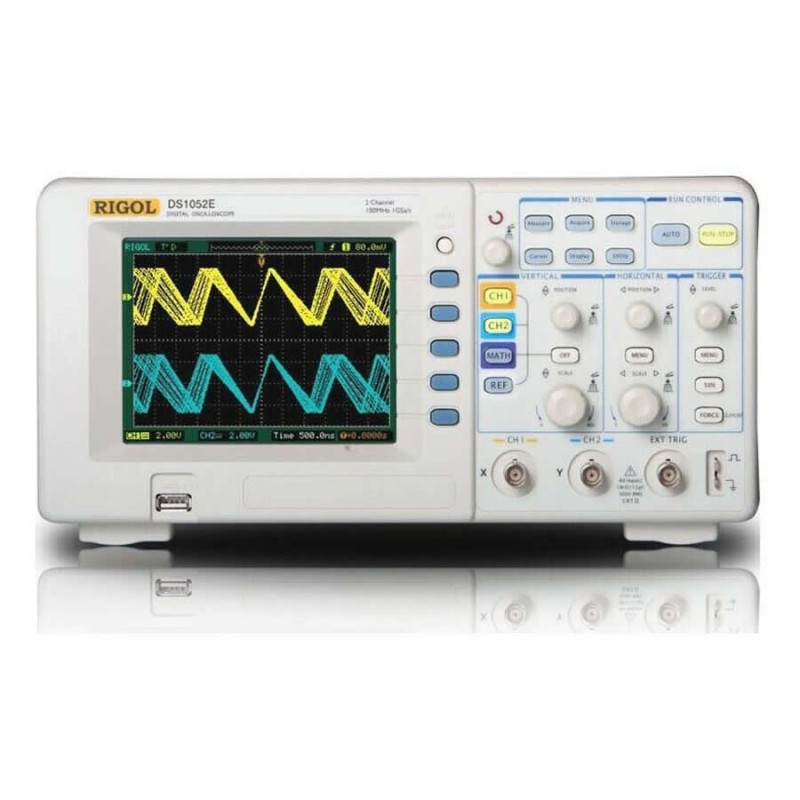

      Rigol DS1052E; It is a high quality, 50MHz, 2 Channel, Digital Storage Oscilloscope. The Rigol DS1052E has not only a small sized design and color LCD, but also very useful and powerful functions.

      Rigol DS1052E; It is a high quality, 50MHz, 2 Channel, Digital Storage Oscilloscope.

      The Rigol DS1052E has not only a small sized design and color LCD, but also very useful and powerful functions.

•      The most economical model and the best performance price product in its class
•      1Mpts memory depth
•      1GS/s real time sampling rate
•      With the Ultra Zoom feature, it provides you detailed signal analysis while viewing the entire waveform
•      A wide variety of trigger modes are available.
•      You can adjust the trigger sensitivity
•      You can easily connect USB memory and USB printers.
•      A wide variety of connection ports : USB Host & Device, RS232, Pass / Fail output
•      It can record the waveform and replay it afterwards, so you can catch anomalies.
•      Its durable structure and easily portable design (Only 2.5kg)
•      Calibration certificate provided by Rigol
•      Standard 3 year warranty period* *User errors are excluded.
•      Rigol oscilloscopes are one of the best brands in the world in terms of quality. It is also one of the limited number of manufacturers that carries out its own R&D on test and measurement instruments.

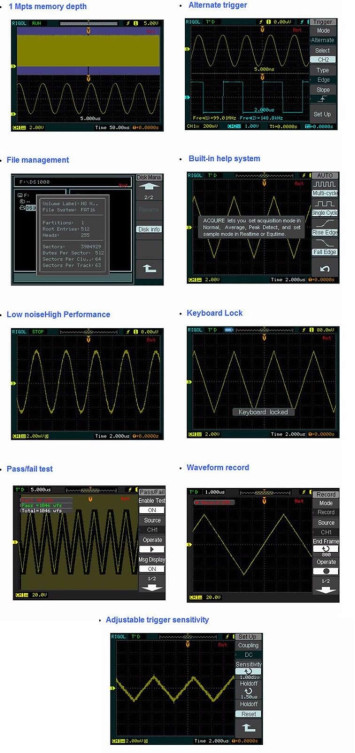

Features:

• - Dual analog channels and 16 channels logic analyzer, 50MHz maximum bandwidth,1GSa/s maximum real-time Sample rate and 25GSa/s maximum equivalent Sample rate
• - 5.6 inch and 64 k TFT LCD make the waveform displays more clear and vivid

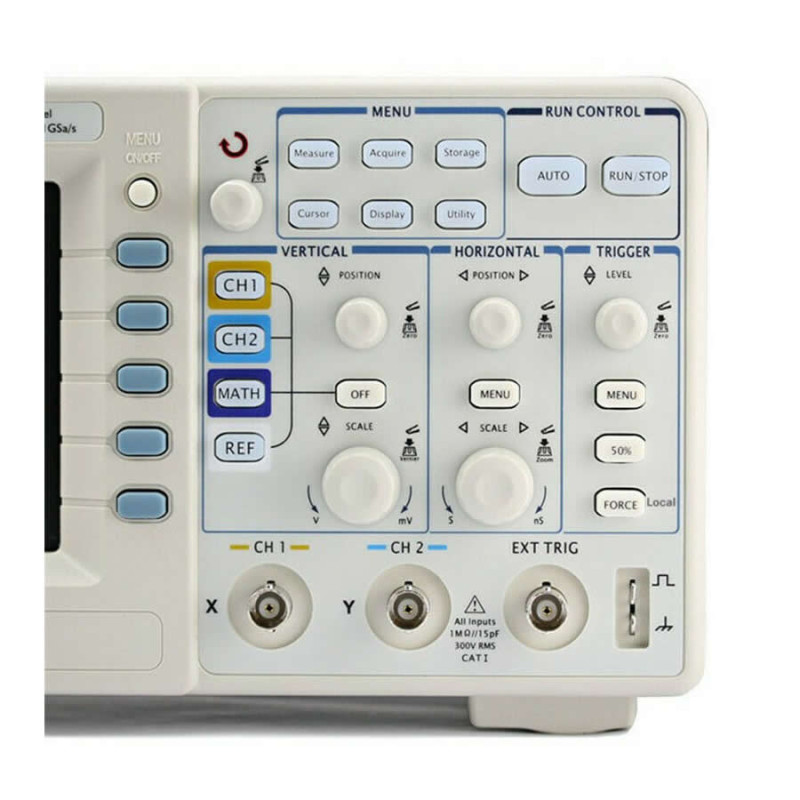

• - Abundant trigger types: Edge, Pulse Width,Video, Slope, Alternate, Pattern and Duration
• - Unique adjustable trigger sensitivity enables to meet different demands
• - Enable to measure 20 types of wave parameters and track measurements via cursor automatically
• - Unique waveform record and replay function
• - Fine delayed scan function
• - Built-in FFT function, hold practical digital filters
• - Pass/Fail detection function enables to output testing results
• - Math operations available to multiple waves
• - Powerful PC application software UltraScope

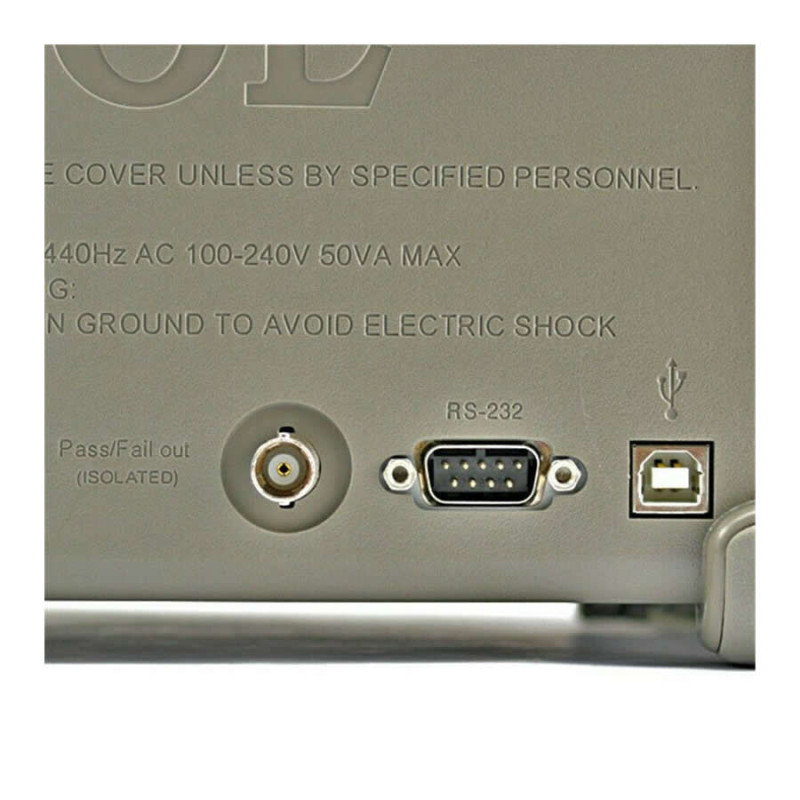

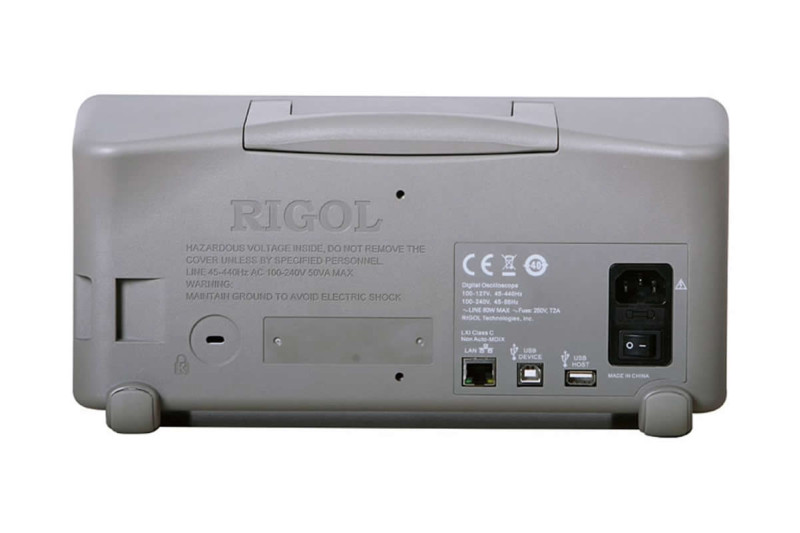

• - Standard configuration interface: USB Device, USB Host , RS-232 and support U disk storage and PictBridge print standards
• - The new function Key Lock can meet the needs of industrial production
• - Support for remote command control

Specification:

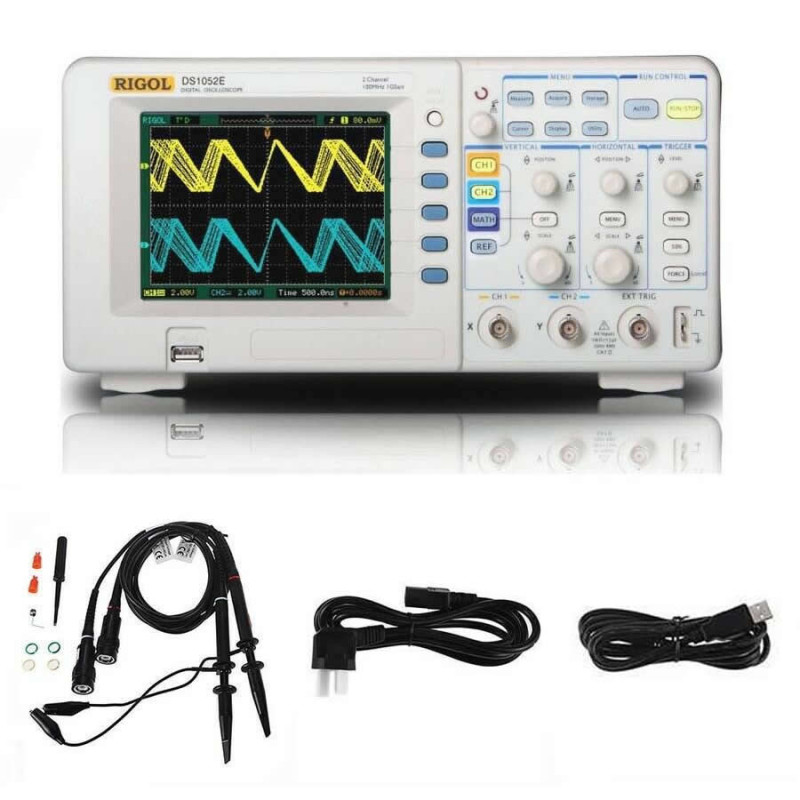

Package Contents:

•     1 Piece Rigol DS1052E 50Mhz 2 Channel Oscilloscope
•     2 Pieces Probe (1.5m), (1:1 or 10:1 adjustable) passive probes
•     1 Piece Power cable.
•     1 Piece USB cable
