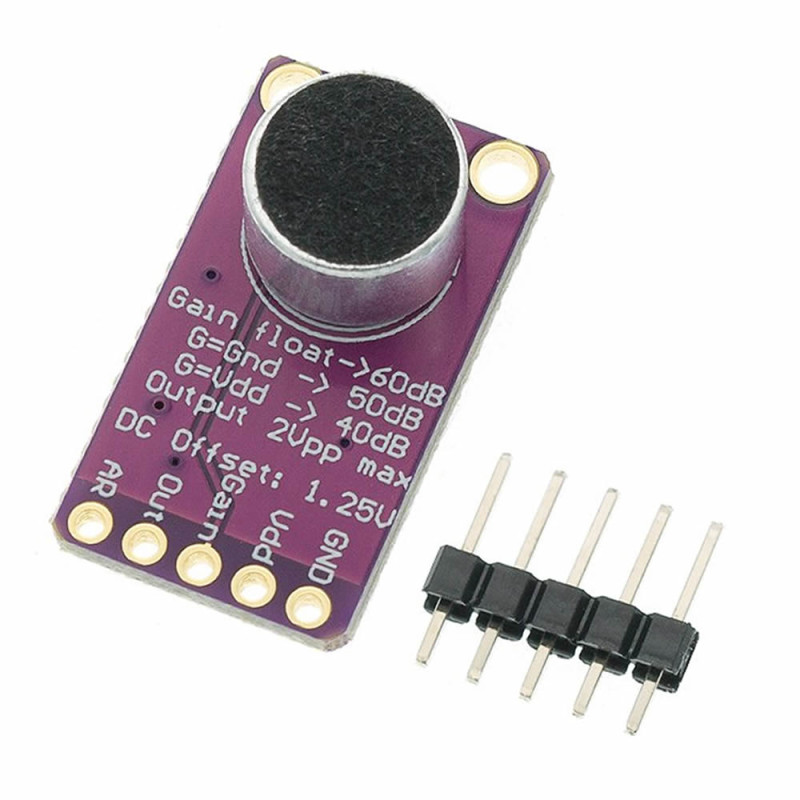

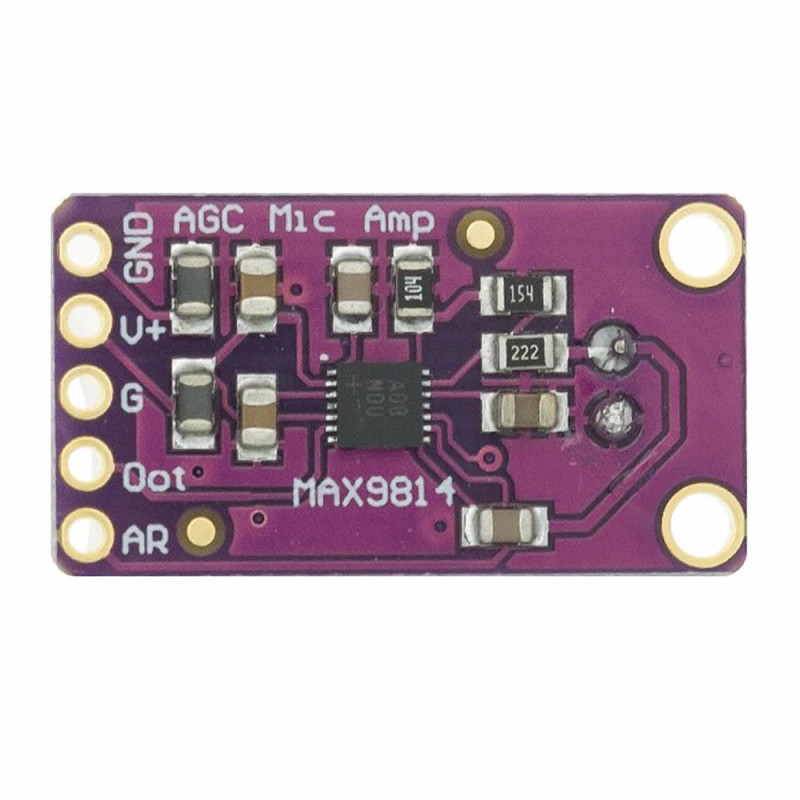

MAX9814 Microphone Module

MAX9814 Analog Microphone Module with Amplifier

Stable Automatic 60db Gain Control Electret Sound Detector

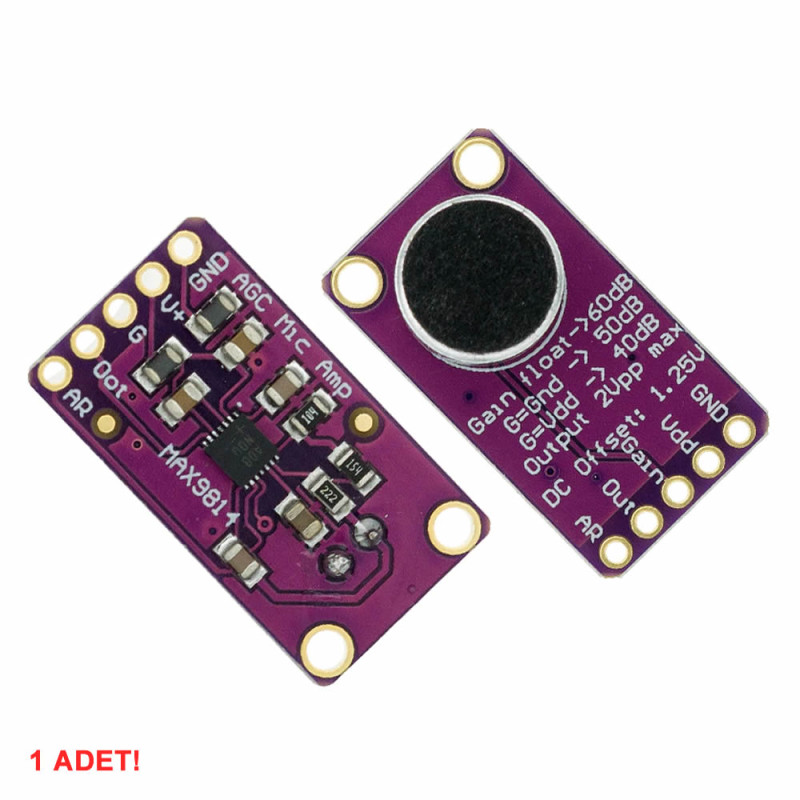

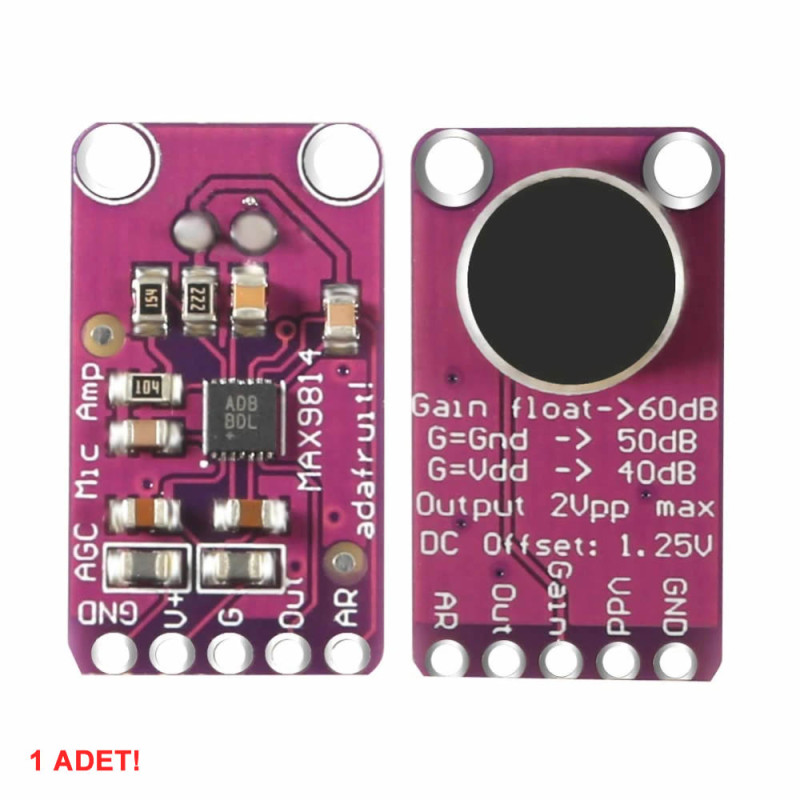

     It is a microphone sensor module with an automatic gain circuit used in sound detection applications. It is a very well designed circuit. It has a quality electret microphone. The Max9814 automatic gain integrated circuit is on the module.  It is used for detecting sounds between 20hz / 20Khz. Max9814 is designed especially for electret microphones.

     The automatic gain circuit is adjusted automatically according to the sound level. When there is no sound, no amplification is done. It amplifies up to 60db when sound amplification is needed. It can be set to levels such as 40-50-60db.

Features:

•  Operating voltage: DC 2.7V / 5.5V
•  Operating current: 3mA
•  Output: 2Vpp at 1.25V bias
•  Microphone operating frequency: 20Hz / 20KHz
•  Automatic gain control ( AGC )
•  Automatic gain setting pin: 40dB, 50dB or 60db
•  Low noise detection sensitivity: 30nV
•  Low THD: 0.04% (typical)
•  Low noise detection sensitivity:
•  Low voltage shutdown mode
•  Programmable action time
•  Programmable attack and release ratio
•  Operating temperature: -40C / +85C

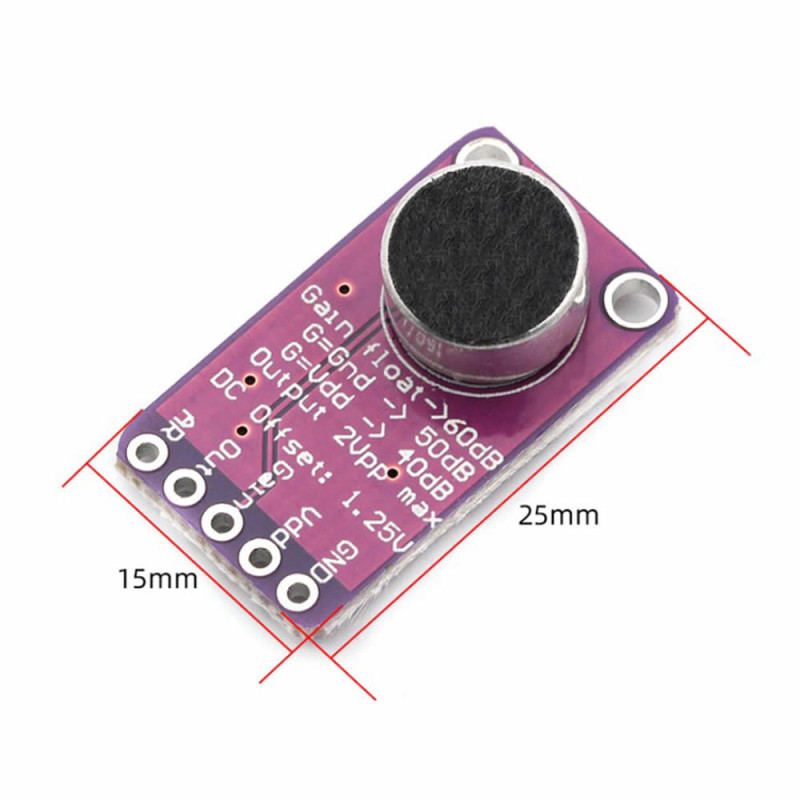

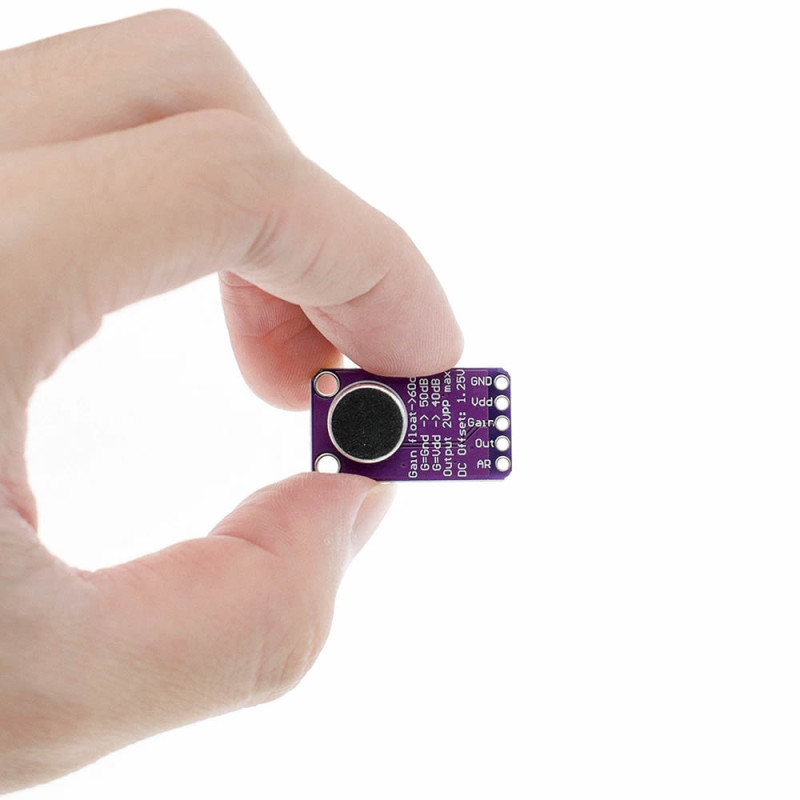

•  Dimensions:  14mm x 25mm
•  Weight: 3gr

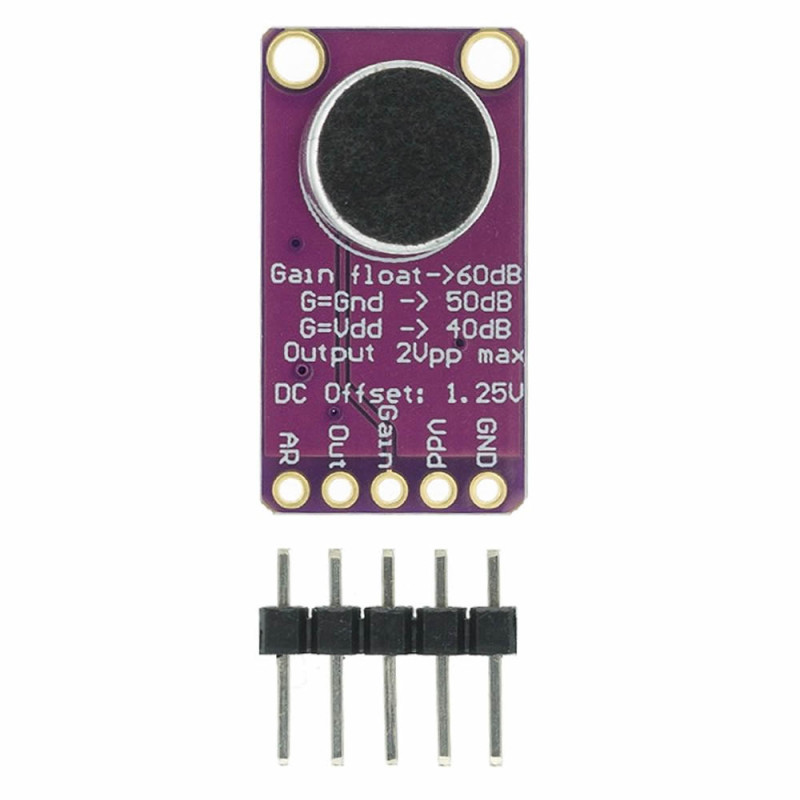

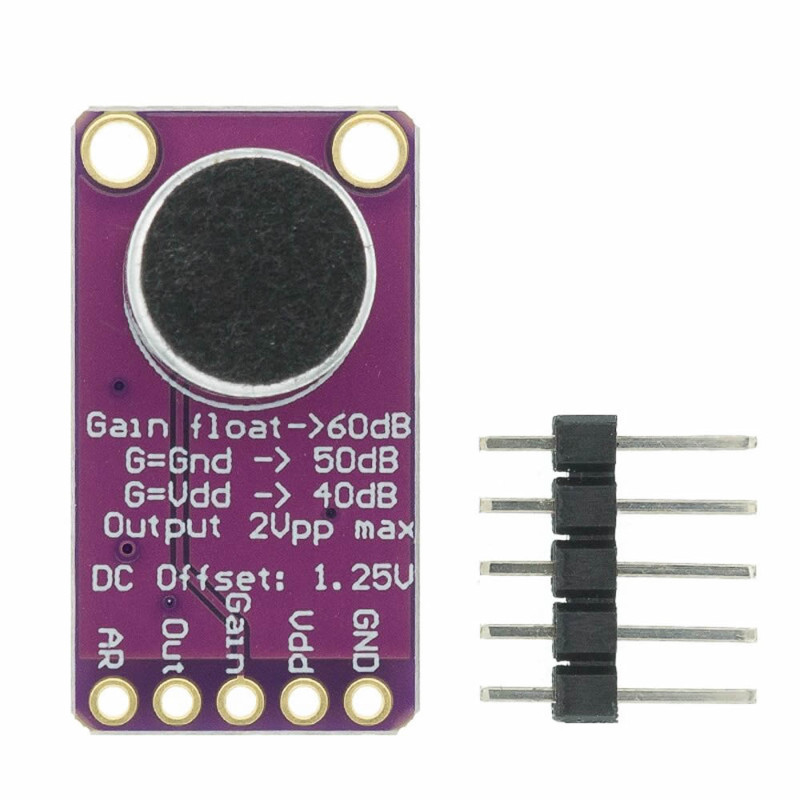

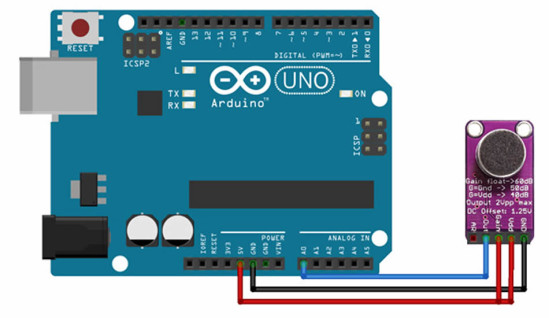

Gain Pin Usage:

• 3.3v: 40db
• Gnd: 50db
• Empty: 60db

Package Contents :

•     1 pcs MAX9814 Microphone Module
