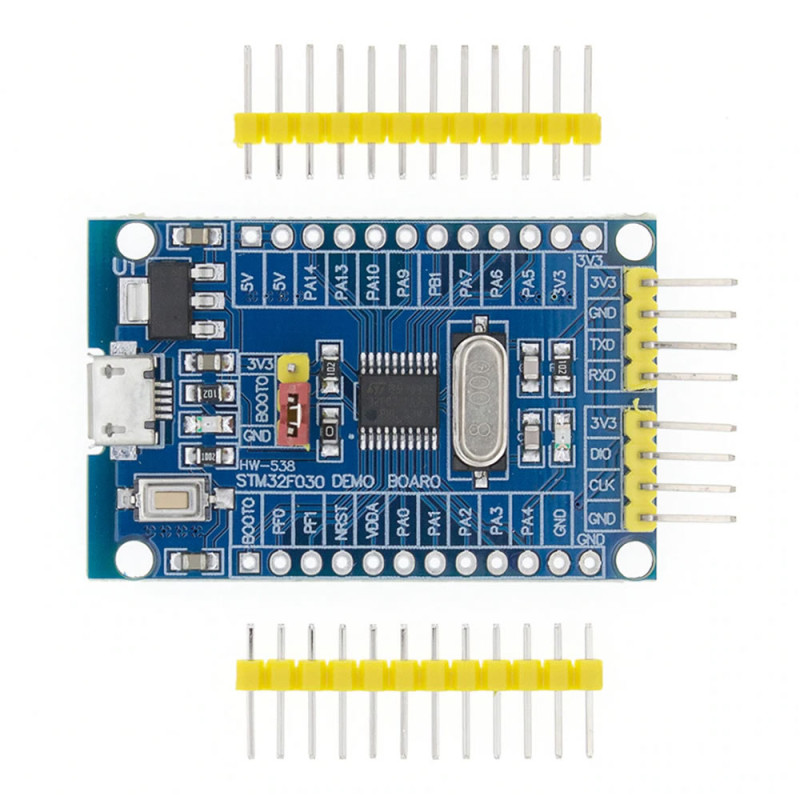

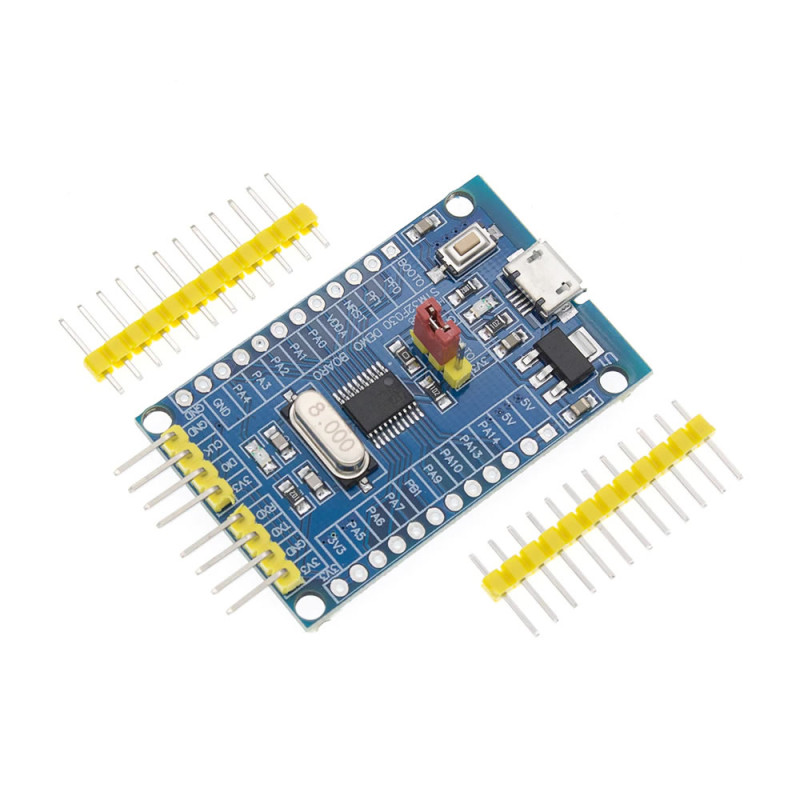

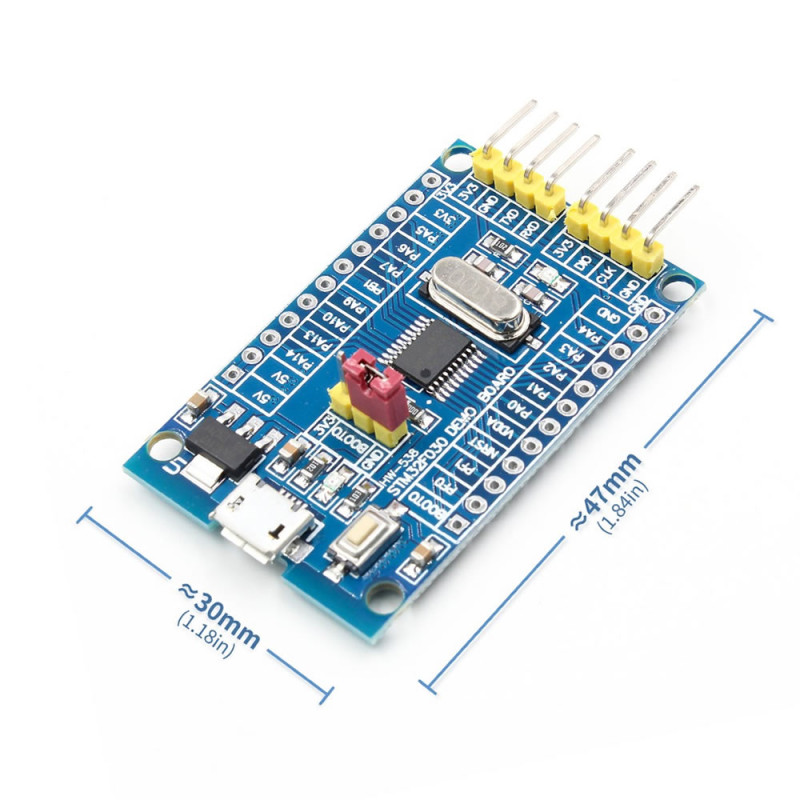

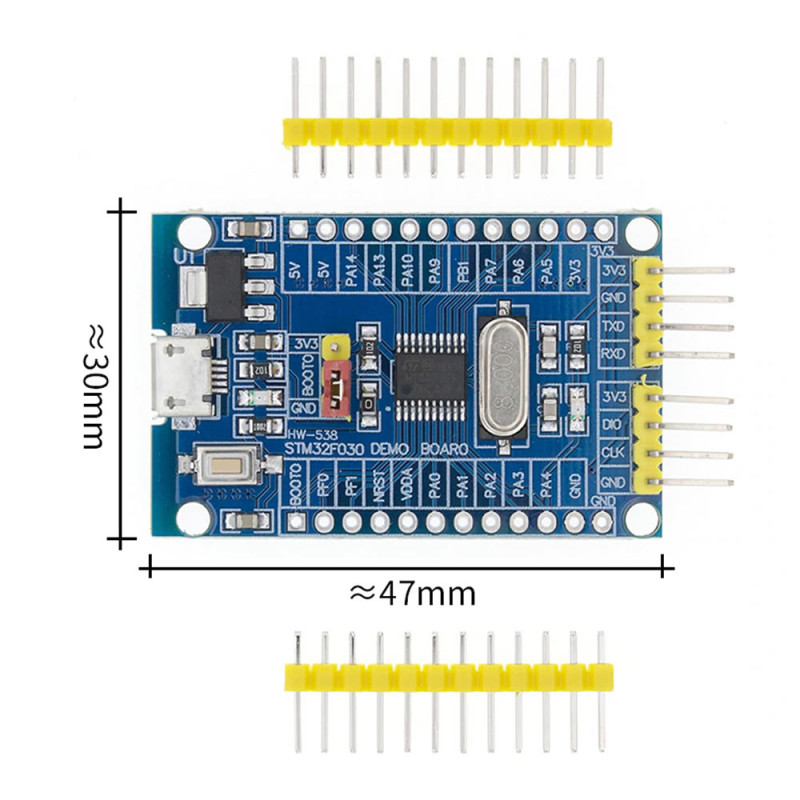

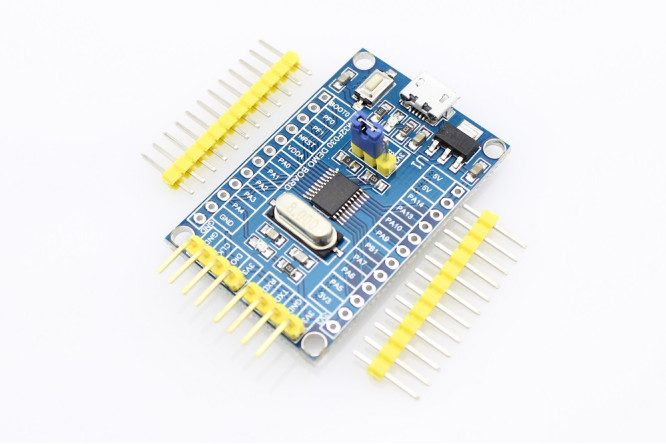

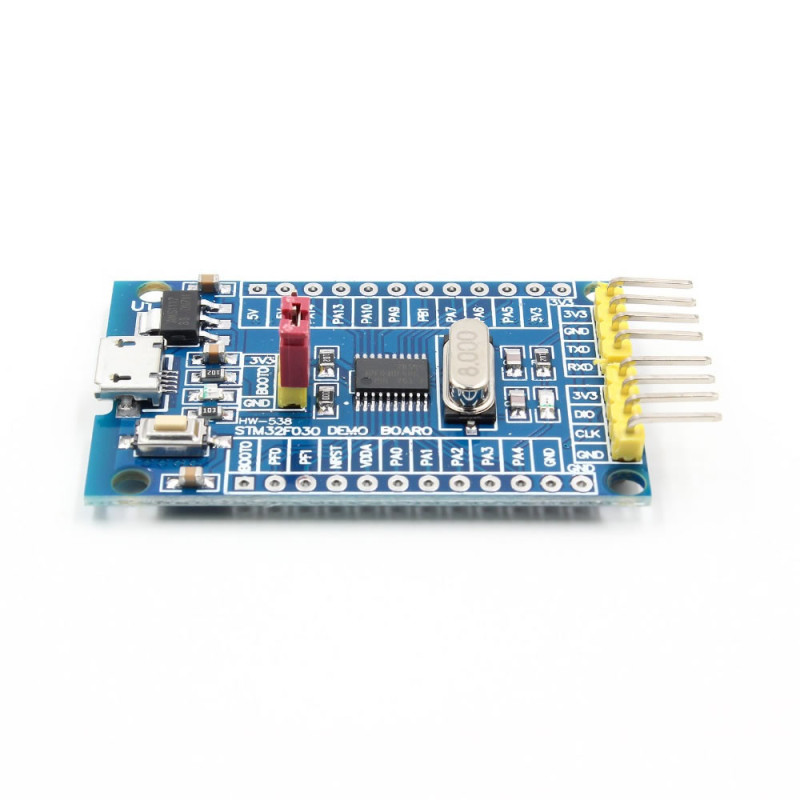

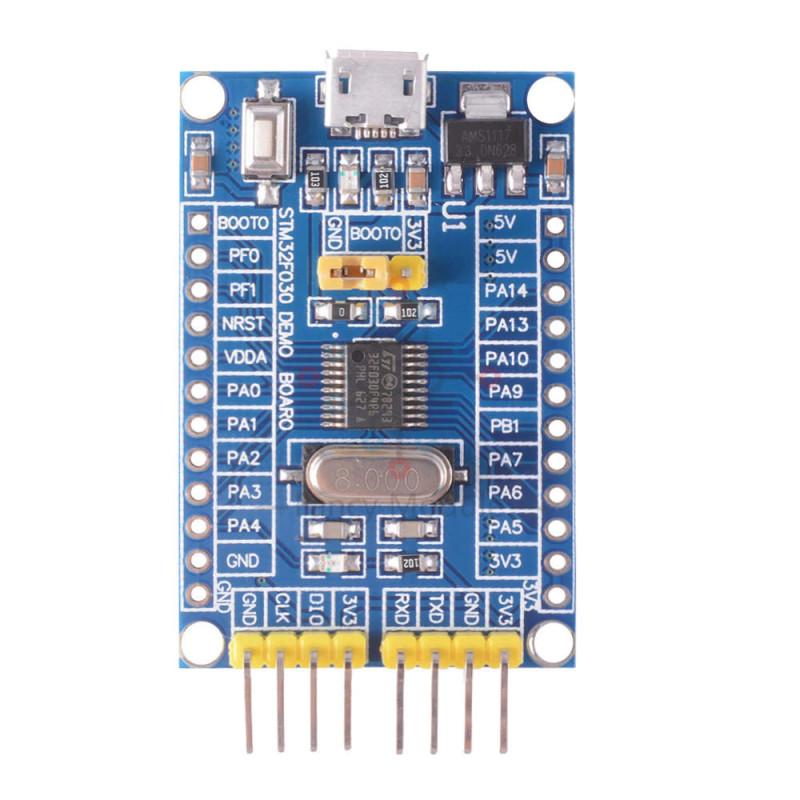

STM32F030F4P6 Development Board

STM32F030F4P6 Development Board

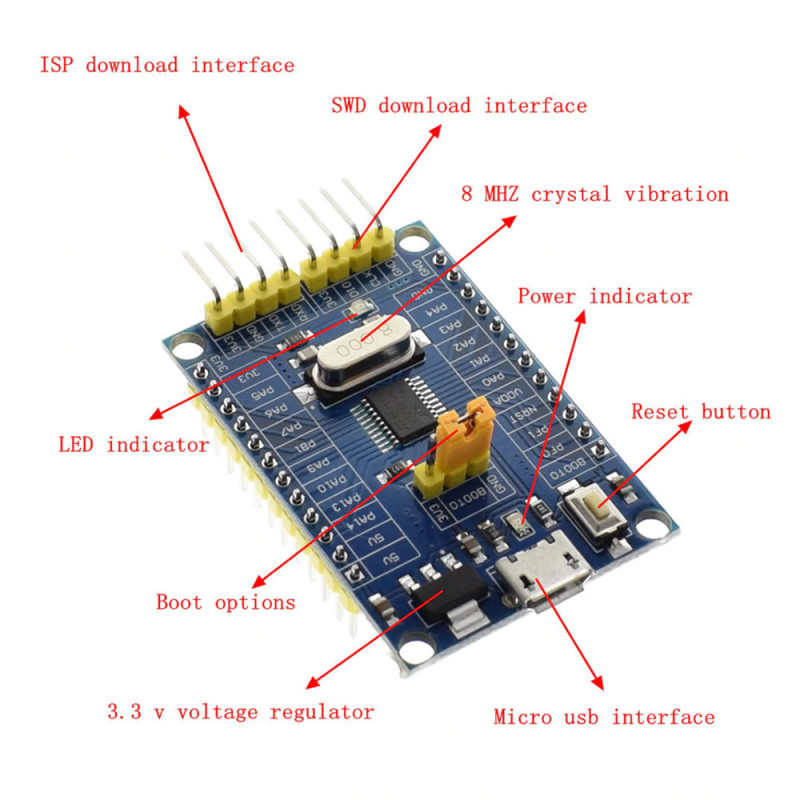

     A 48 mhz, 32bit mcu with a cortex M0 core from the F0 family of the ST company is used. Despite its small structure, all the hardware needed for operation is present on the board. Board power is supplied through the microusb socket. Program and debug operations can be performed with the SWD socket. The reset button, crystal and pin headers, the materials you may need in application development, come inside the kit. With this kit you can enter the 32 bit arm world right away.

Specifications :

•  Core: ARM 32-bit Cortex-M0 CPU, frequency: ≤48MHz
•  16 to 64 Kbytes of Flash memory
•  4 to 8 Kbytes of SRAM with HW parityChecking: CRC calculation unit Reset and power management
•  Voltage range: 2.4 V to 3.6 V
•  Power-on/Power down reset (POR/PDR)
•  Low power modes: Sleep, Stop, Standby Clock management
•  4 to 32 MHz crystal oscillator
•  32 kHz oscillator for RTC with calibration
•  Internal 8 MHz RC with x6 PLL option
•  Internal 40 kHz RC oscillator Up to 55 fast I/Os
•  All mappable on external interrupt vectors
•  Up to 36 I/Os with 5 V tolerant capability 5-channel DMA controller 1 x 12-bit, 1.0 μs ADC (up to 16 channels)
•  Conversion range: 0 to 3.6 V
•  Separate analog supply from 2.4 up to 3.6 V Up to 10 timers
•  One 16-bit 7-channel advanced-control timer for 6 channels PWM output, with deadtime generation and emergency stop
•  One 16-bit timer, with up to 4 IC/OC, usable for IR control decoding
•  One 16-bit timer, with 2 IC/OC, 1 OCN, deadtime generation and emergency stop
•  Two 16-bit timers, each with IC/OC and OCN, deadtime generation, emergency stop and modulator gate for IR control
•  One 16-bit timer with 1 IC/OC
•  One 16-bit basic timer
•  Independent and system watchdog timers
•  SysTick timer: 24-bit downcounter Calendar RTC with alarm and periodic wake up from Stop/Standby Communication interfaces
•  Up to two I2C interfaces: one supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink
•  Up to two USARTs supporting master synchronous SPI and modem control; one with auto baud rate detection
•  Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frame Serial wire debug (SWD)

Package contents :

•     1 pcs STM32F030F4P6 development board.
•     2 pcs 12  pin male header
•     1 pcs 8 Mhz crystal
