- Stok Durumu: Stok Var
- Marka: OEM
- Model: TP5100 Modül
- SKU: RBZ.100.426

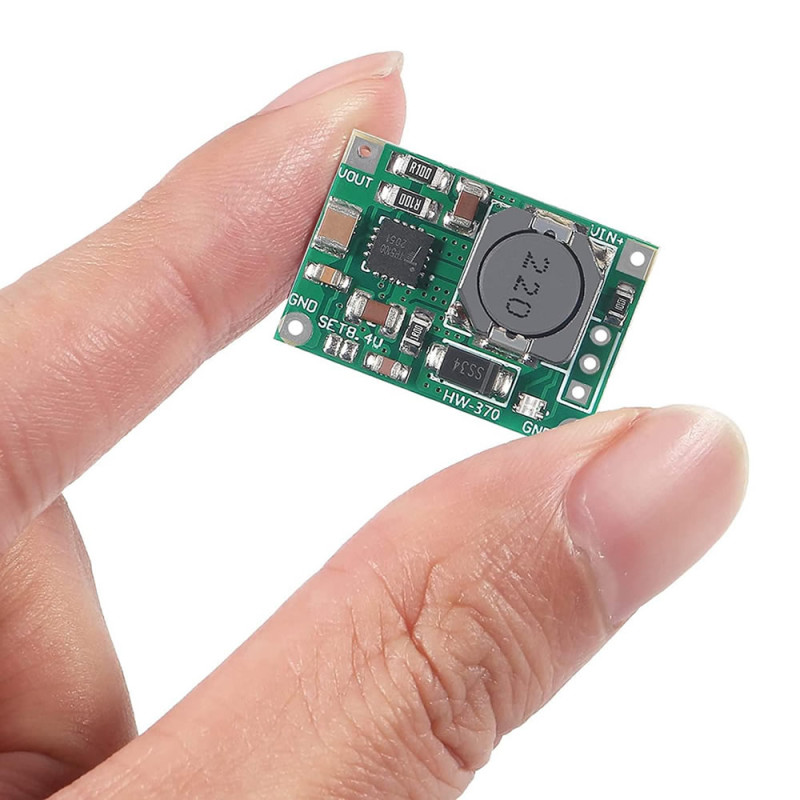

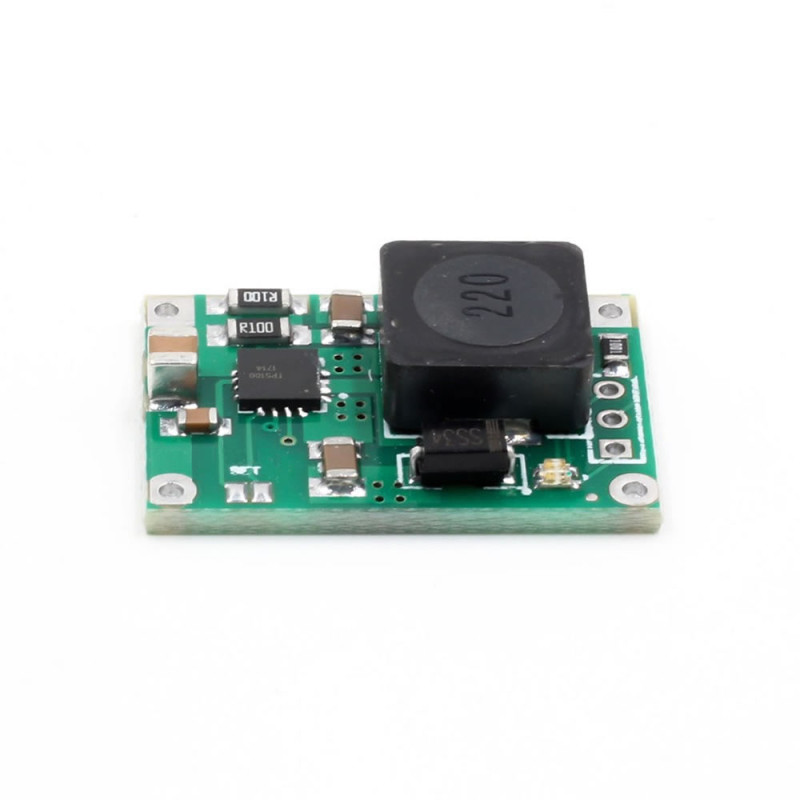

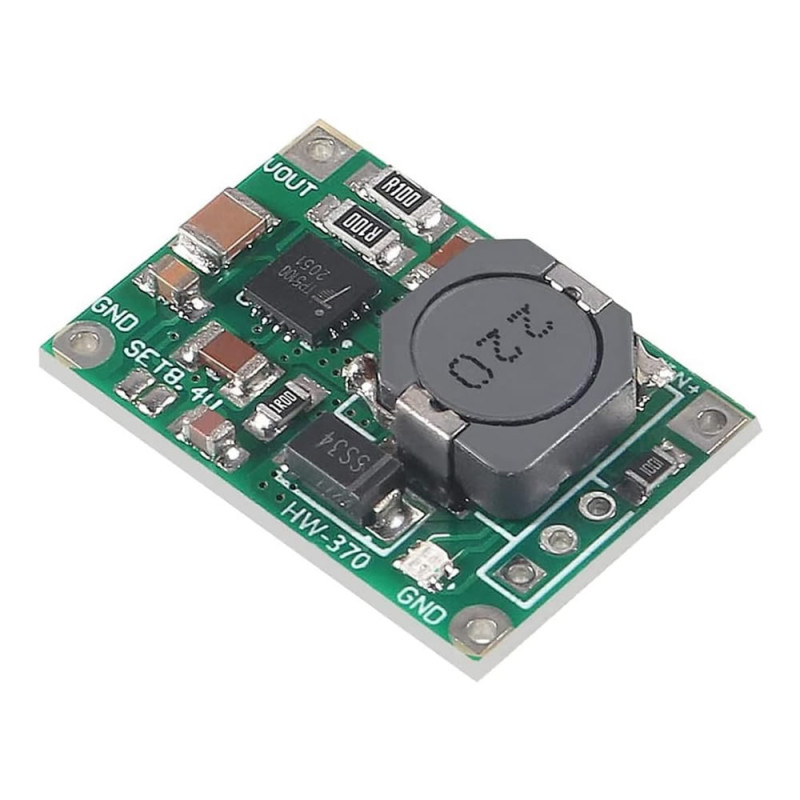

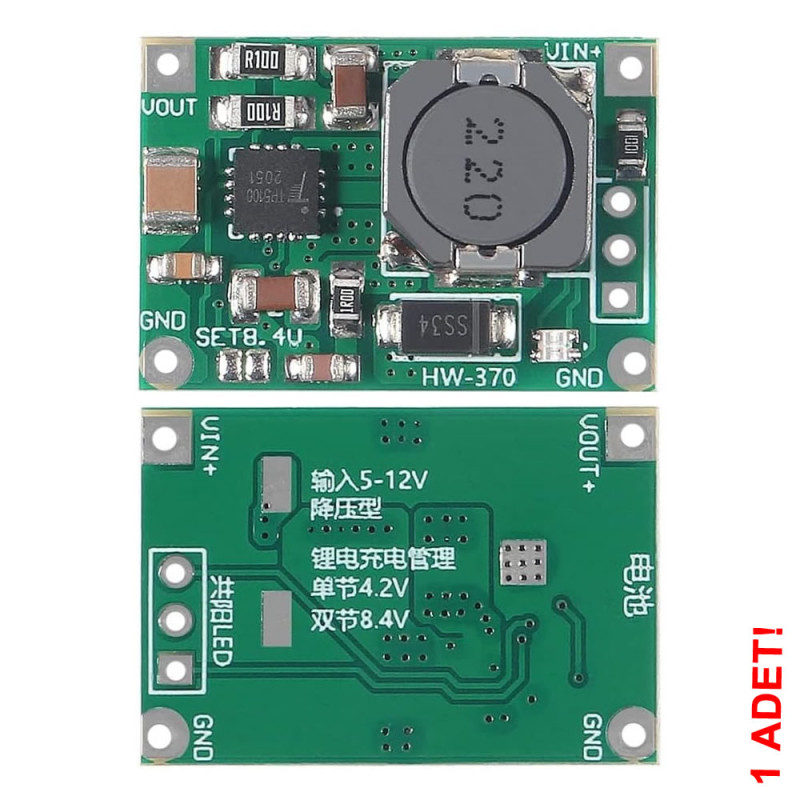

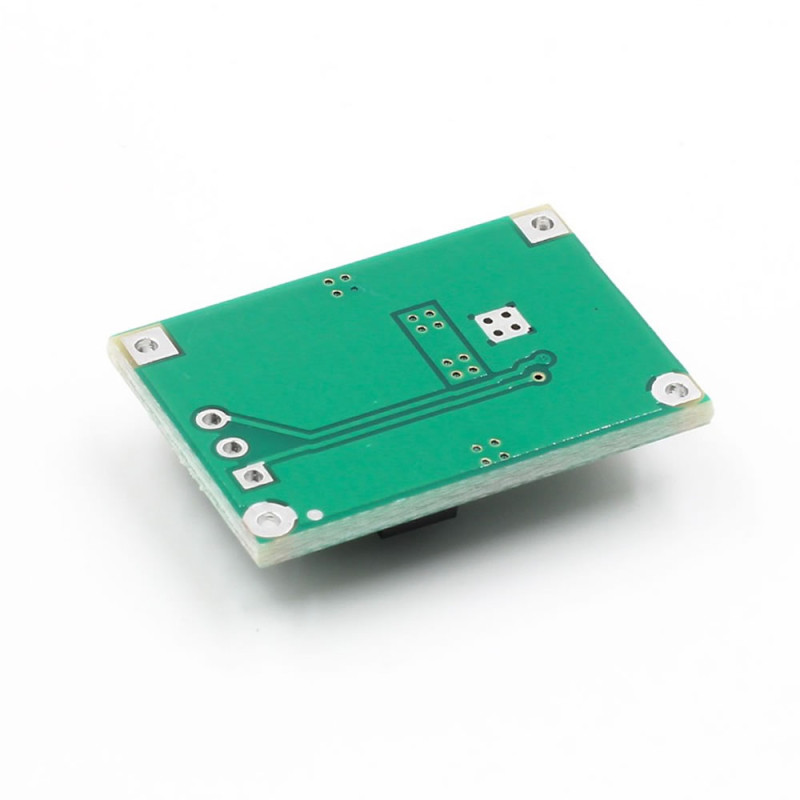

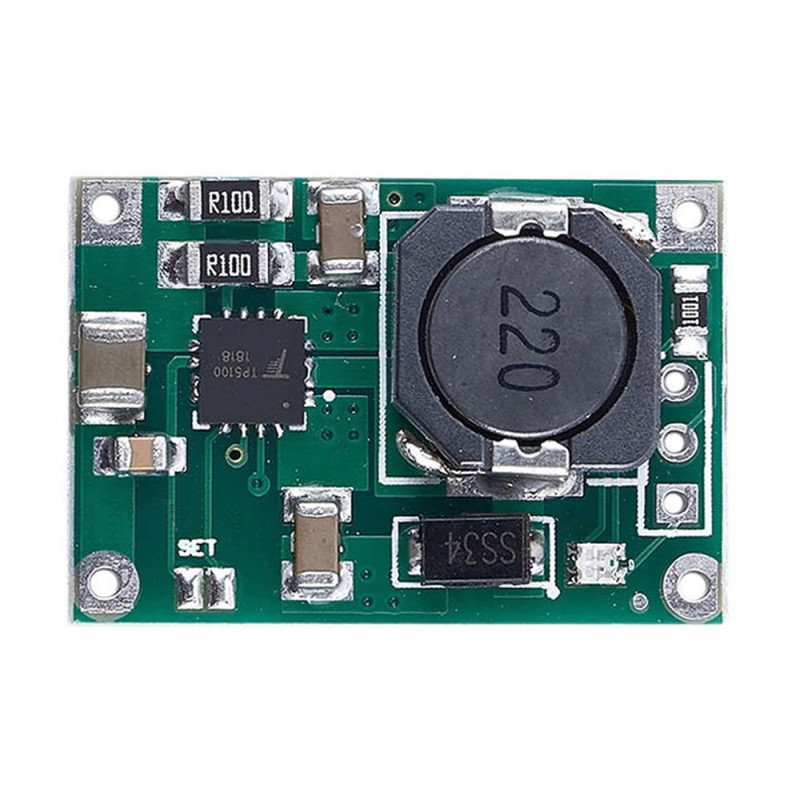

TP5100 1S / 2S Lithium 18650 Battery Charger Module
Lion 4.2V 8.4V 2A Battery Mp3 Mp4 Tablet Pda Phone Walkie Talkie Toy Mobile Devices Camera

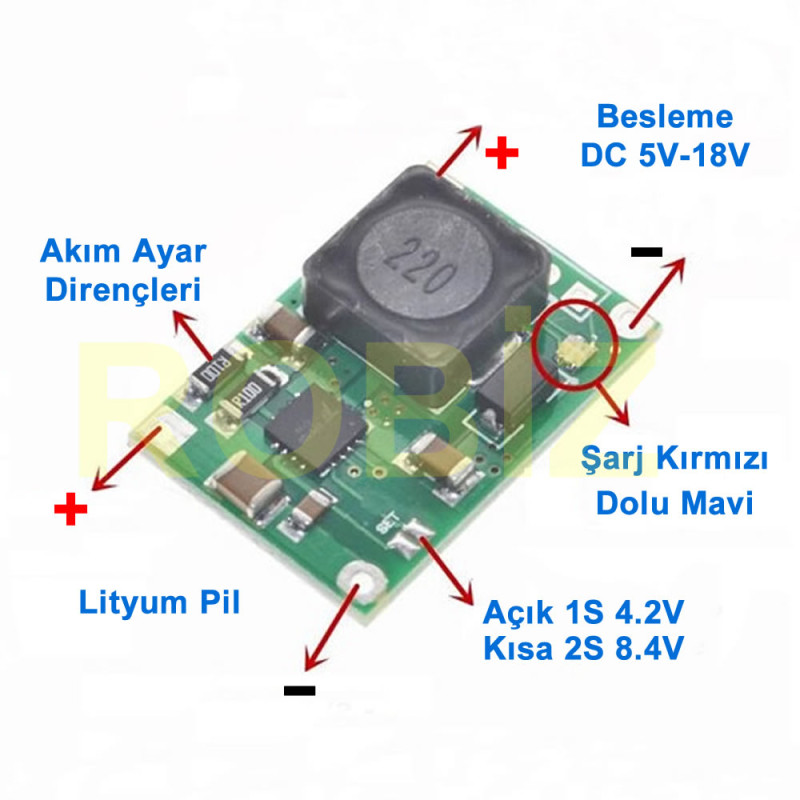

Factory output setting: 4.2V 2A. For 2S, the Set pads must be short circuited. The current setting can be done by changing the resistors.
The TP5100 is for charging single cell 3.7V and 2 cell 7.4V lithium batteries. The TP5100 has built-in input overcurrent, undervoltage protection, overtemperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.
The TP5100 can be powered with a wide input voltage of DC 5V/18V. It has support for precharge, constant current, constant voltage three phase dual battery trickle charging. The charge current can be set up to 2A. This current can be changed with a resistor.
Features:
- IC: TP5100
- Charging battery type: 1S / 2S cell lithium batteries
- Charging voltage: DC 4.2V / 8,4V
- Input voltage: DC 5V /18V
- Charging current: 2A ( 2 pieces of 0.1R resistor on the Pb R100 )
- Programmable constant precharge current 10% -100%.
- Red and green led charging status indicator ( No led comes in the package )
- Blue led: Battery is empty, charging.
- Red led: Battery is full
- Reverse battery connection protection
- Short circuit protection
- Overtemperature protection
- Overcurrent protection
- Undervoltage protection
- Frequency: 400Khz
- Operating temperature: -40C / +85C
- Color: Green

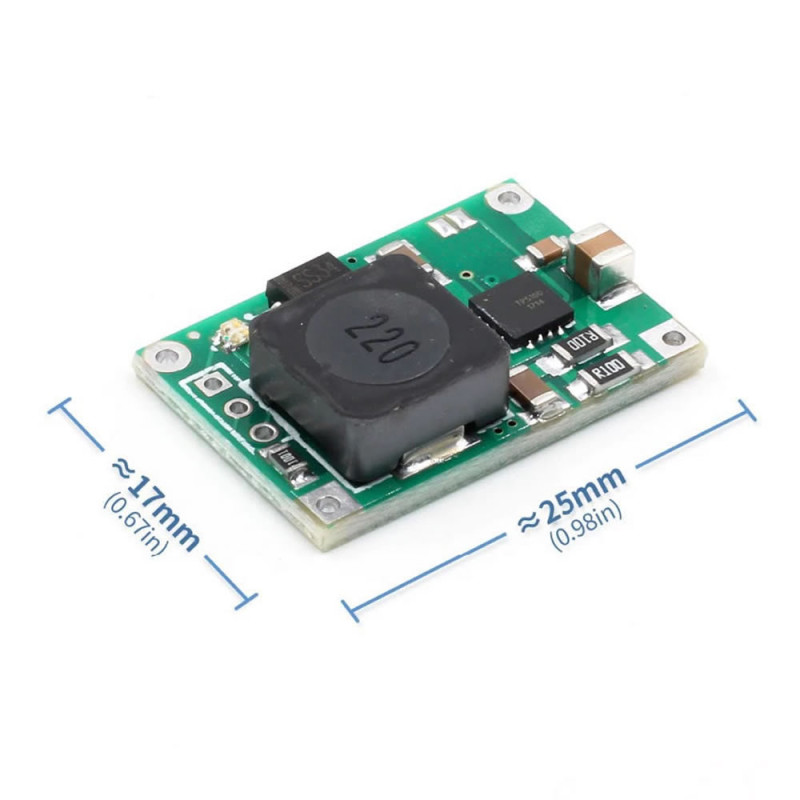

- Dimensions: 5mm x 17mm x 25mm
- Weight: 4gr.
Current setting resistor table
| Resistor ohm | Current mA |
| 1 | 100 |
| 0,2 | 500 |
| 0,1 | 1000 |
| 0,067 | 1500 |
| 0,05 | 200 |
Package Contents:
- 1 Piece TP5100 Lithium Battery Charger Module
.
