Bluetooth 5.0 Pro Audio Module

Bluetooth 5 Pro Wireless Audio Playback Module

Microphone Input Stereo Music Mp3 3.7V Lithium Battery Charge Phone Car Stereo Amplifier Micro Usb Headphone Speaker

Test the product before soldering it. Then proceed to the assembly stage. Checking the product before soldering does not take more than 1 min. Power is supplied over Microusb. Listen to the audio output from the 3.5mm socket with a headphone. If there is no problem, you can proceed to the permanent soldering stages if needed. Soldering causes physical change on the product.

If you connect the battery in reverse, the product will be damaged !!!

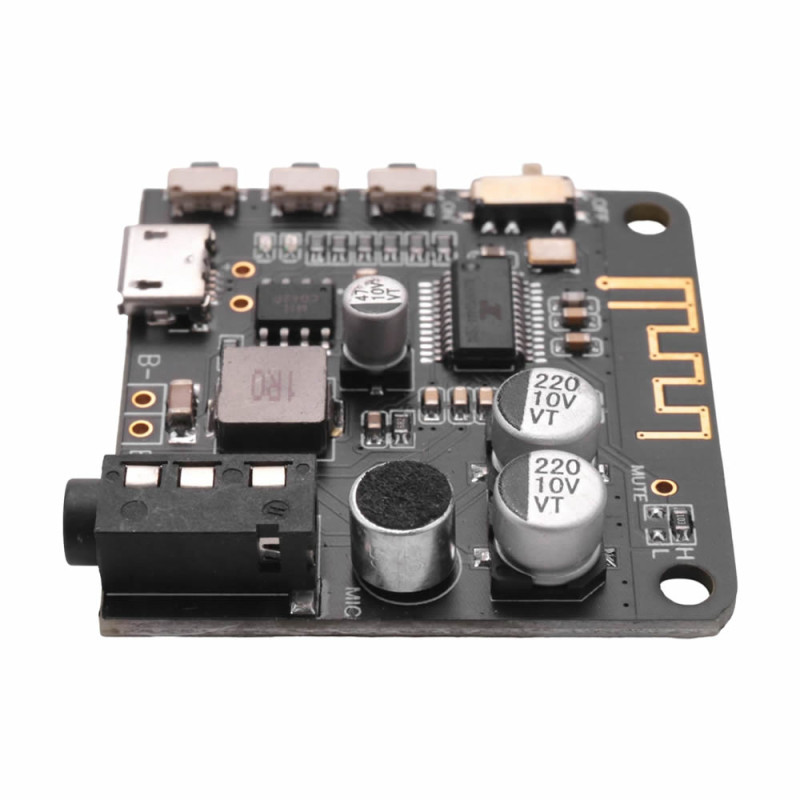

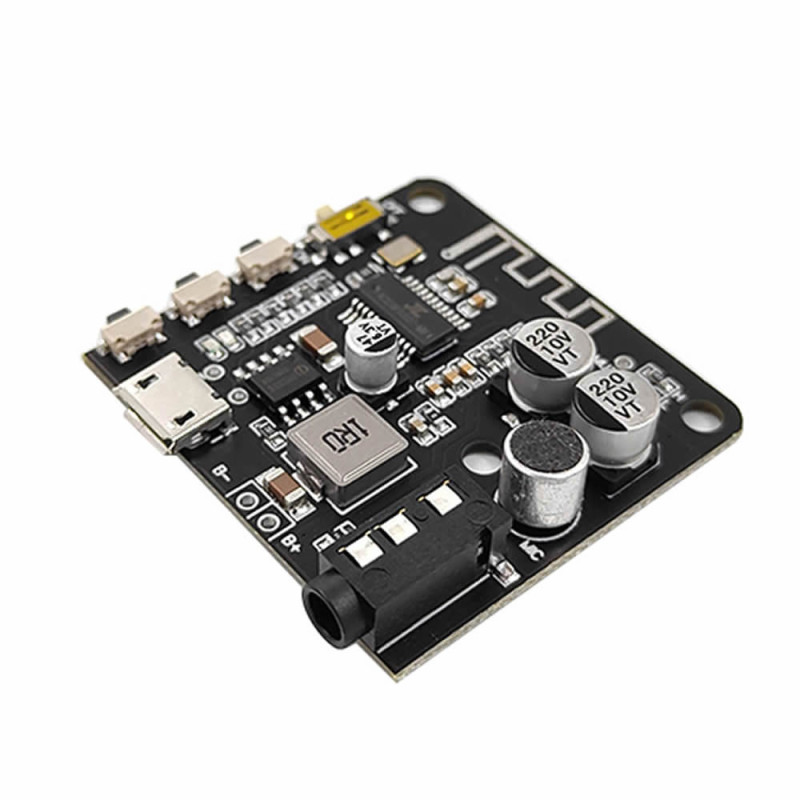

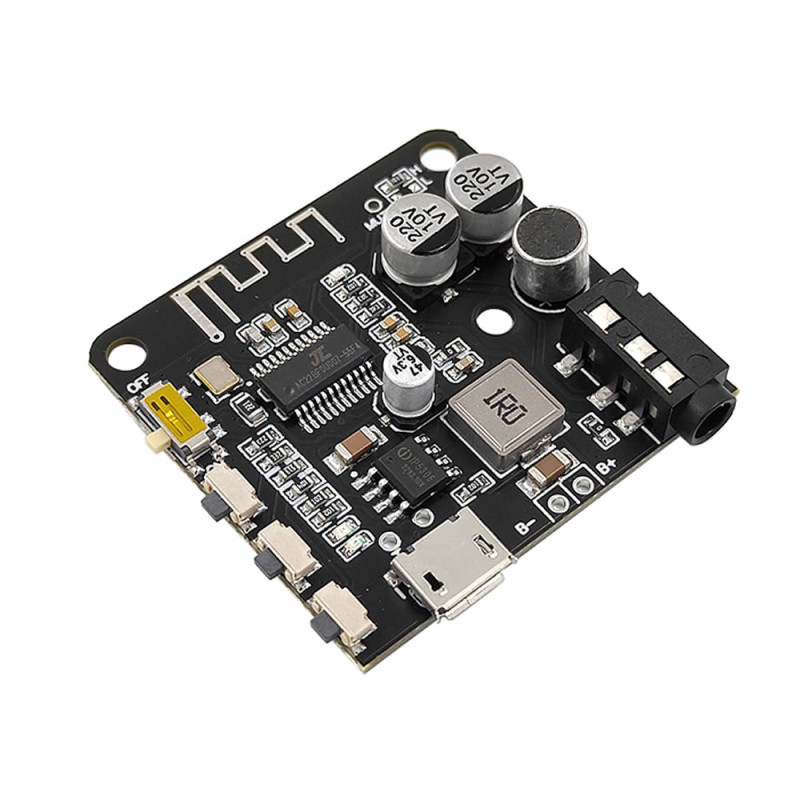

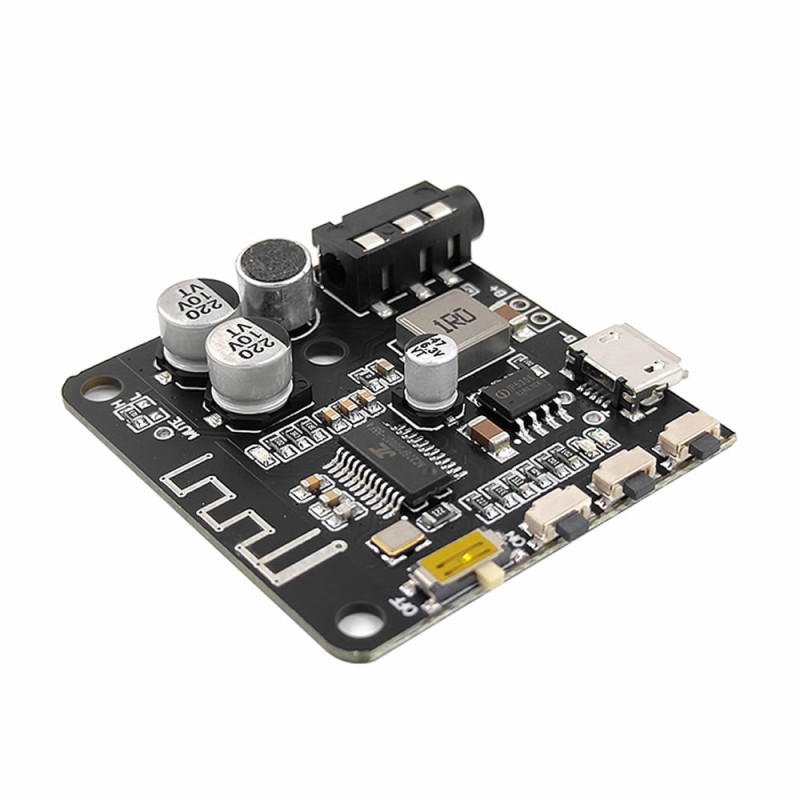

     It is a wireless audio transmission and playback board using Bluetooth 5.0 technology. It can work with Micro usb power supply and 3.7v lithium battery. It has a 3.5 mm audio output socket. Audio output is provided by connecting to a headphone or speaker over this socket. If higher volume is needed, using an amplifier circuit is suitable. There is an on off switch on the board. It also has 3 buttons for various commands.

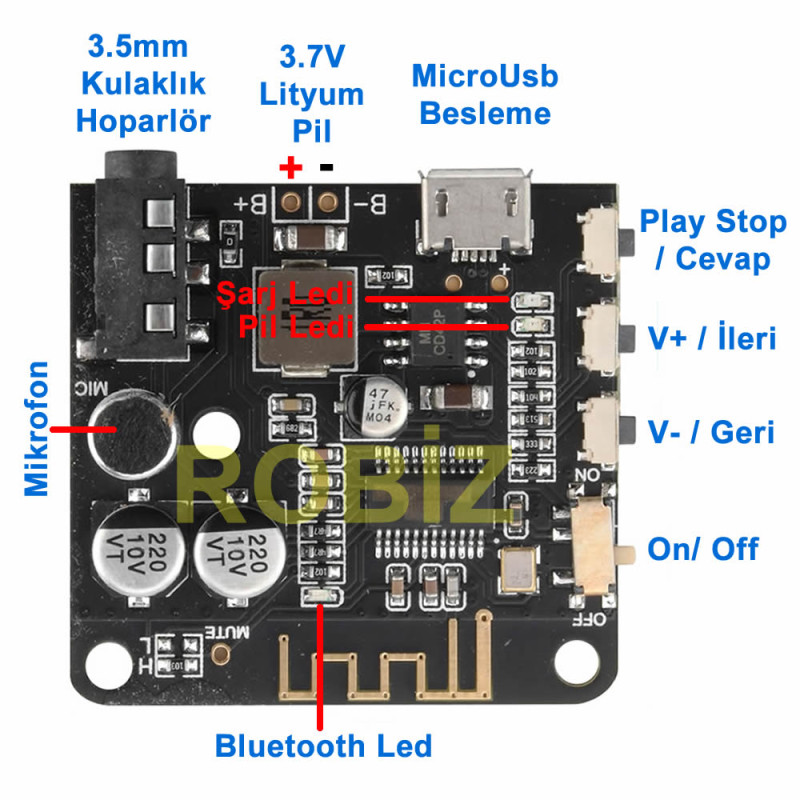

     During lithium battery use, the battery can be charged over the micro usb connection. The wireless audio playback function continues during charging. Many devices do not support charging and audio playback at the same time. The red led shows the power status of the board / the status of the battery charging process. The yellow led shows the battery charge status.

• When only usb power is connected; the red led blinks. This shows the normal operating status.
• If only the battery is connected; the yellow led is on continuously. Blinking of the yellow led shows that the battery voltage has decreased.
• When the battery and microusb connection are made at the same time;  Blinking of the red led shows that the battery charging is continuing. Continuous lighting of the red shows that the battery is charged.

     Disconnecting the usb connection while the battery charging is continuing causes the device to restart. After a while the device will make the connection wirelessly again and continue to work. During this time the audio will be interrupted.

     When the product is used with a phone, voice conversation can be made with the microphone on the board. When a phone call occurs, voice conversation can be started by pressing the playstop button on the board.

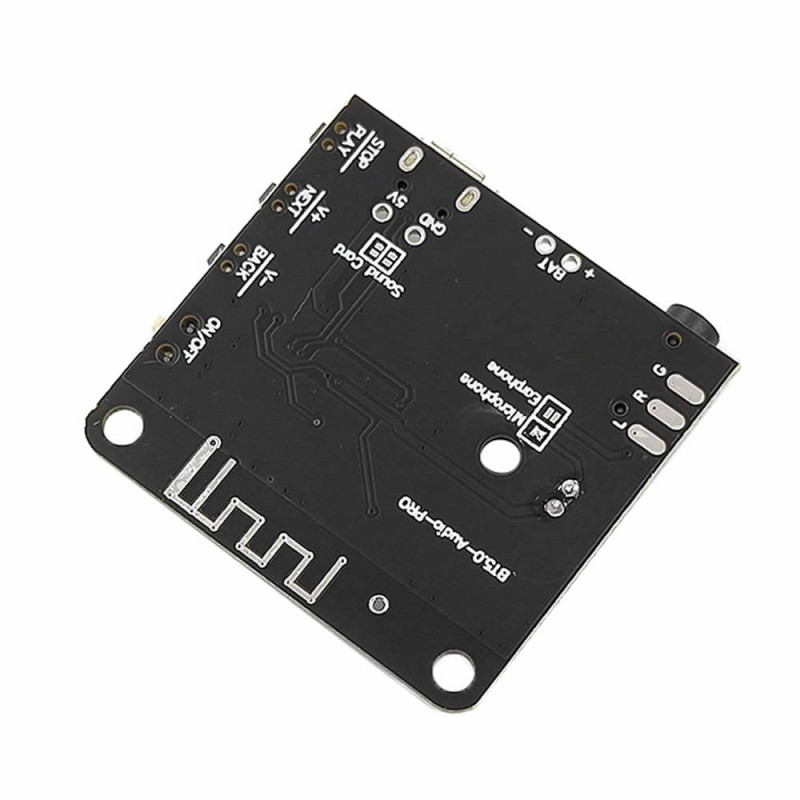

     By soldering the pads on the back of the board it can be operated as a pc sound card. When the connection is established with a usb cable, computer sounds will start to be transferred out over the module.

     The mute setting next to the antenna is set to give sound. If the mute resistor is moved to the side, the sound goes to the off position.

Features:

• Model: BT5.0 Audio PRO
• Micro usb 5V power input
• Vbat external power input: DC 3.7V Lithium Battery ( If the battery is installed in reverse, the product will be damaged. )
• 3,5 mm stereo audio output socket
• Bluetooth status indicator led
• Battery status indicator led.
• Charge indicator led
• Communication distance: 15 meters
• Bluetooth supports: A2DP / AVCTP / AVDTP / AVRCP / HFP
• 3,5 mm stereo audio output socket
• 3 mounting holes
• Operating temperature:  -10C  /  85C
• Color: Black

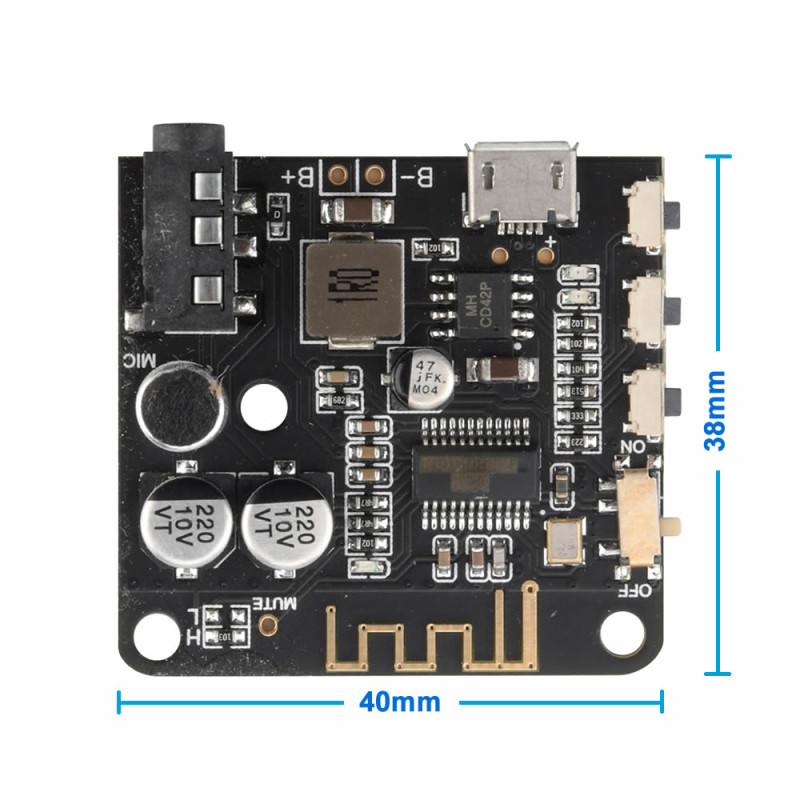

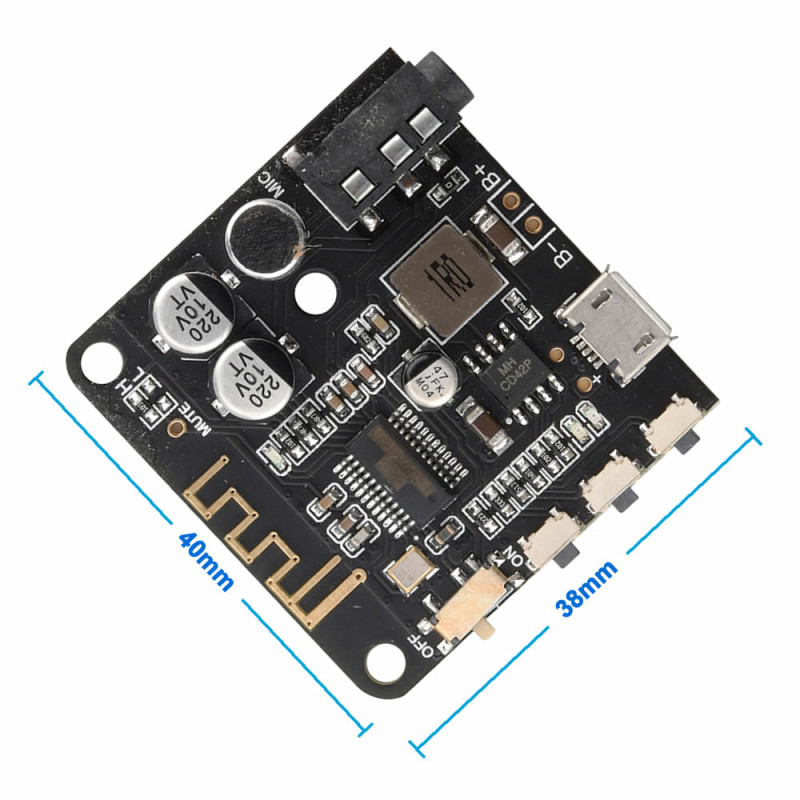

• Dimensions: 38mm x 40mm
• Weight: 10gr

Usage:

     When power is given, the blue bluetooth indicator led lights up and waits for pairing. It appears on the phone as “BT5.0-Audio-PRO”. After pairing, the sounds of the media you play on your device will be heard from the speaker connected to the module. After pairing the led stays on. When the audio playback process starts, it continues to blink slowly

Package contents:

• 1 Piece Bluetooth 5.0 Mp3 Module

.
