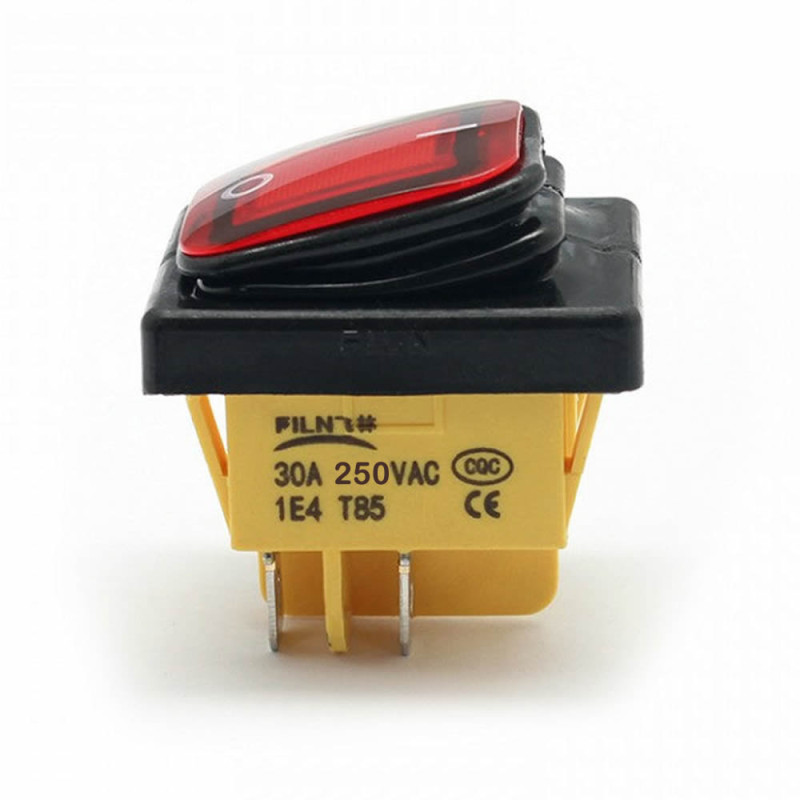

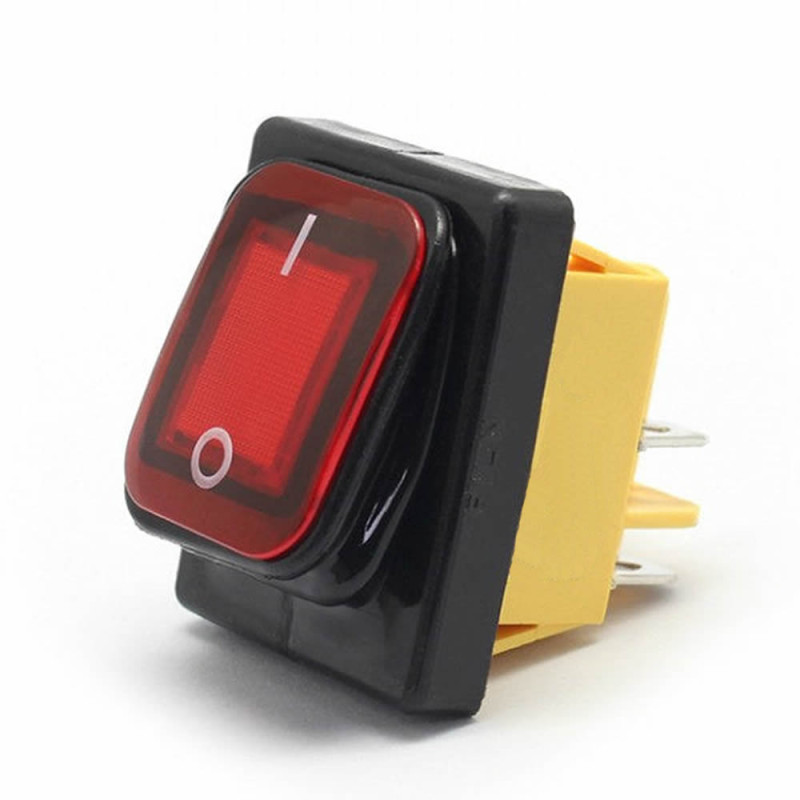

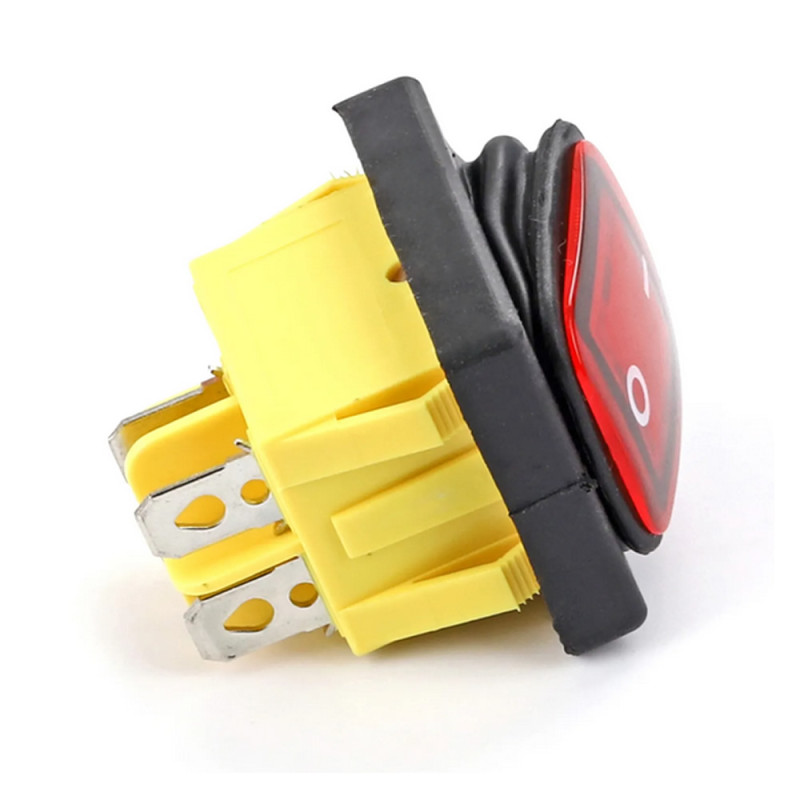

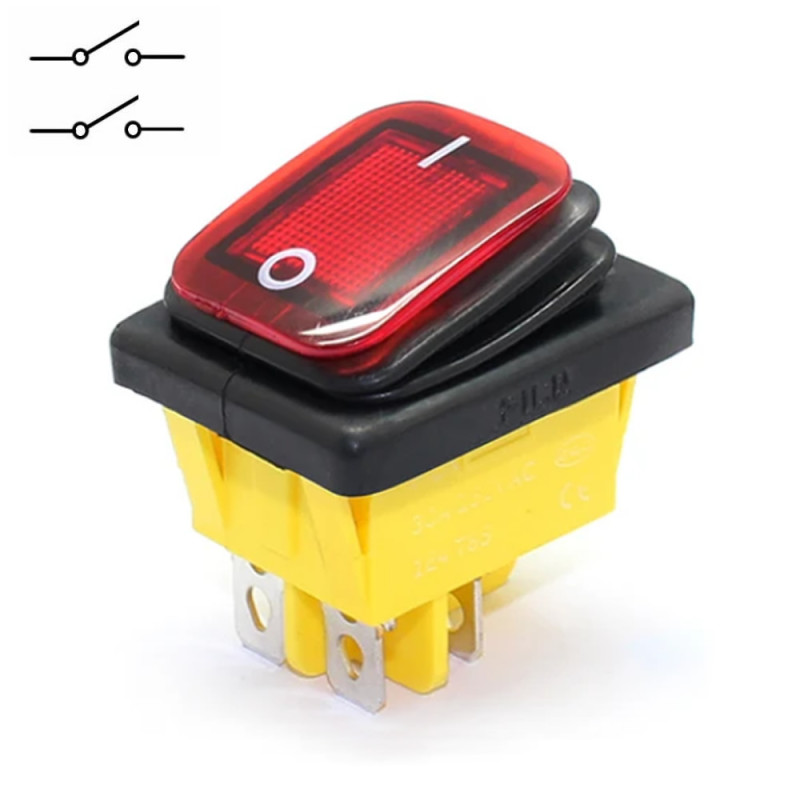

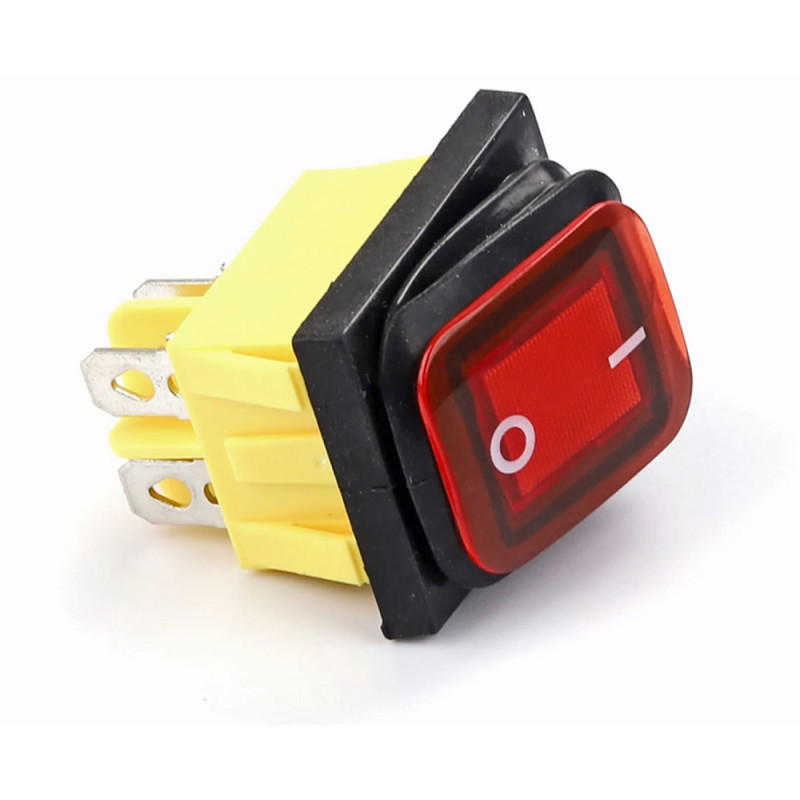

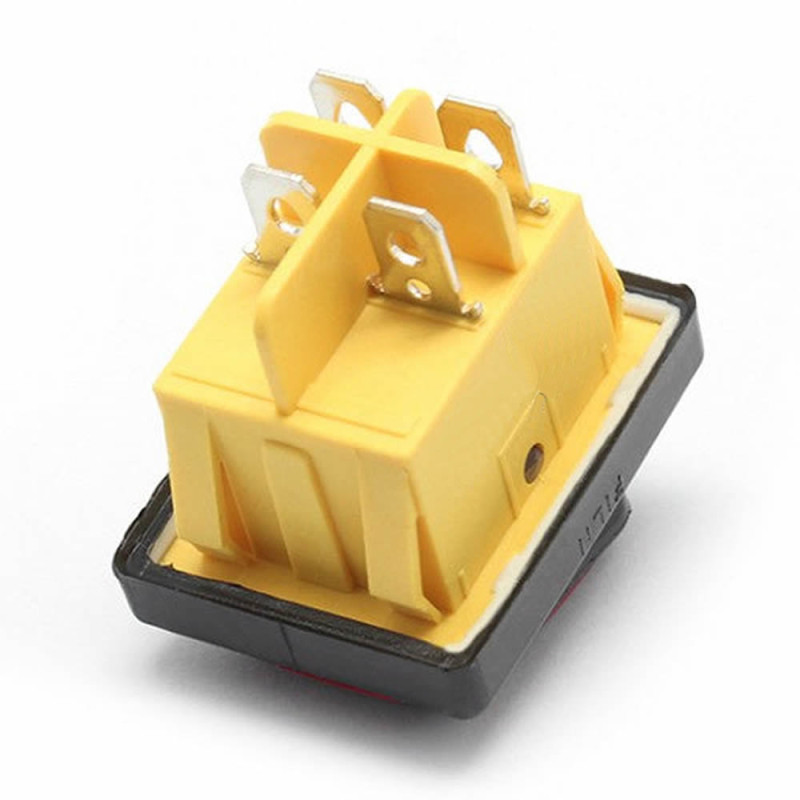

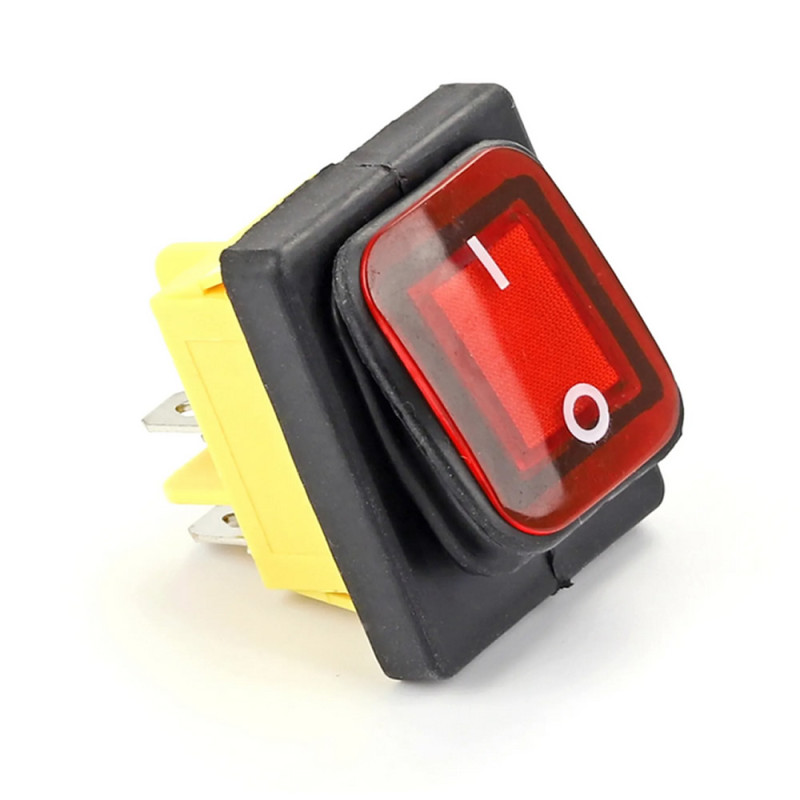

30A 250V Kcd4 Switch
88.20TL
73.50TL + KDV
10 or more 74.97TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.101.115
30A 250V On-Off Switch
High Current Kcd4 4 Pin Button IP67 Waterproof Led Illuminated Rocker Switch
The switch has a high switching capacity of 30A 250V. There are 2 independent switches on the product. It has a waterproof structure. It has an illuminated led indicator feature. There are I O markings on the button. “I” means the switch is short circuit and electricity is going to the relevant device. “O” means the switch is open circuit and electricity is not going to the relevant device.
Features:
- 30A/250V Kdc4 switch
- Switching current voltage: 30A 250V / DC 24V 10A
- Number of switches: 2
- Function: On-Off
- Label: I= On / O= Off
- Action type: Latch / Latching ( Stays permanently in I or O position )
- Material: Plastic / Metal
- Contact resistance: 50mohm and below
- Operating temperature: -25C / +85C
- Color: Blue Red Metallic Gray (Varies according to stock)
- Light color: Red
- Lifetime: More than 50000

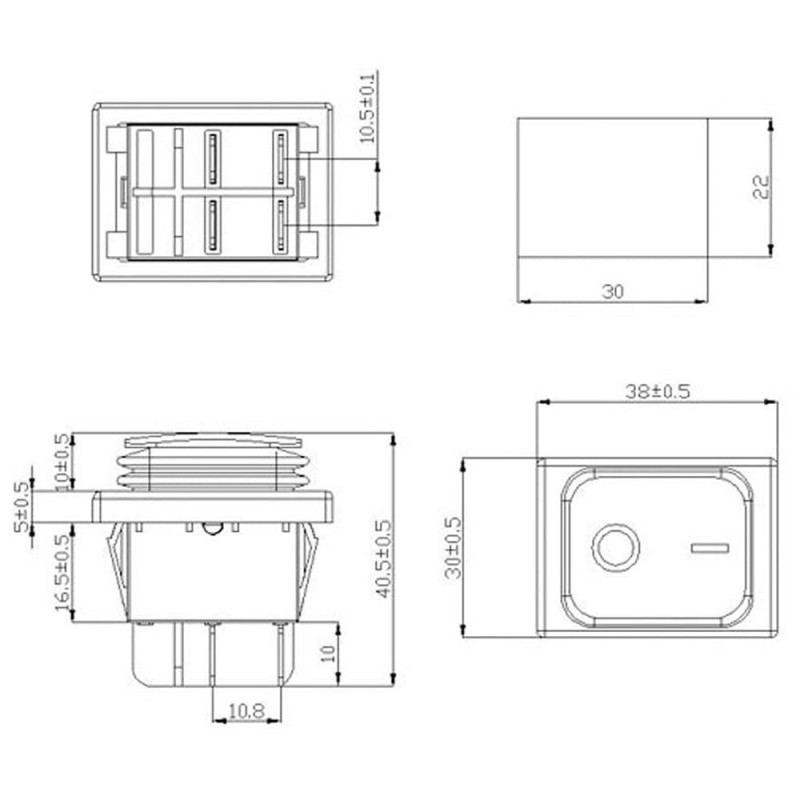

- Dimensions: 28mm x 35mm x 44mm
- Mounting hole dimensions: 30mm x 22mm
- Weight: 20gr
Package contents:
- 1 Piece 30A/250V Kdc4 Switch
