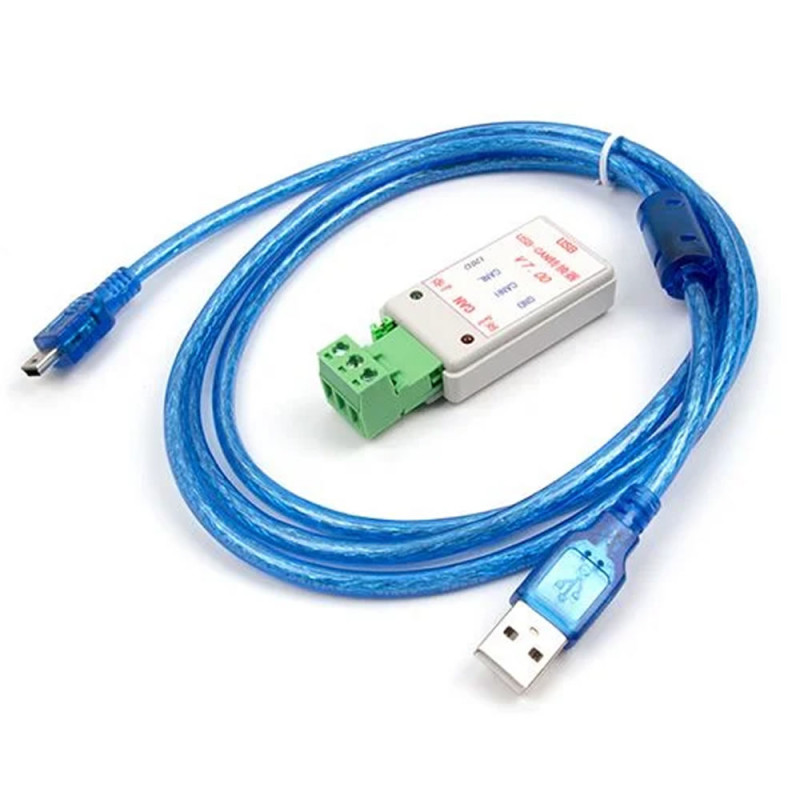

USB CAN Monitor Tracker Communication Converter Adapter Debugger Transceiver

V8 product is available in stock. V8 Product will be sent.

     It is used to be able to monitor the data on the CAN communication line and perform analysis over the Pc usb port. The data is transferred to the computer very fast over the usb port. And it enables you to easily communicate with the Can network. It can be used in the works of learning, developing and testing the CAN network.

     It supports any baud rate between 5Kbps and 1Mbps and is widely used in fieldbus test laboratories, industrial controls, smart buildings, automotive electronics and other fields.

Features:

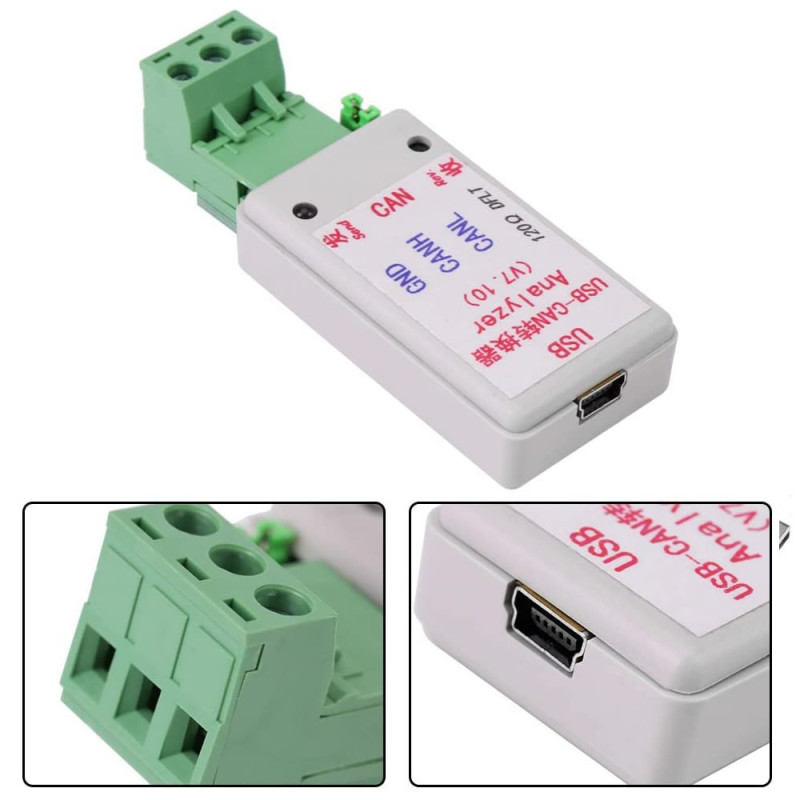

•     Usb Can Communication Analysis
•     It can be used in the works of learning, developing and testing the CAN Network.
•     It can perform data monitoring
•     It is safer than the Rs485 Network.
•     USB 2.0 support compatible with USB 1.1
•     Supports CAN 2.0A and 2.0B protocols
•     Supports 2 Way communication
•     Data can be saved as excel or text.
•     Many conveniences such as ID filtering, naming
•     Transparent transmission function
•     Settings are saved automatically. They are used the same way in the next use.
•     Communication speed: 5k / 1Mbps
•     WINXP/7/10 32/64 bit support
•     It takes its supply over the Usb port.
•     Activatable 120ohm terminating resistor .
•     Operating Temperature:  -10C   /   80C

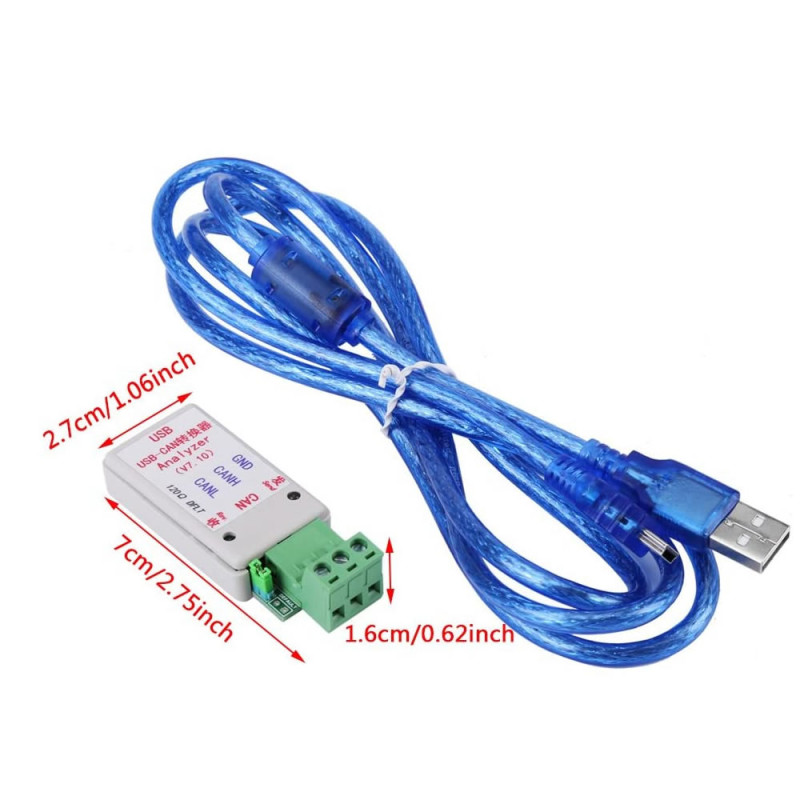

•     Dimensions: 70mm x 27.5mm x 16mm
•     Cable length: 150cm
•     Weight: 180gr

Operating Modes:

1. Standard Mode: CAN communication
2. Loop Mode: Self-testing, in this mode, the analyzer will send and receive data itself, and also send data to CAN Bus.
3. Quiet Mode: Only use to monitor CAN Bus without influence.
4. Loop Quiet Mode: Warm testing

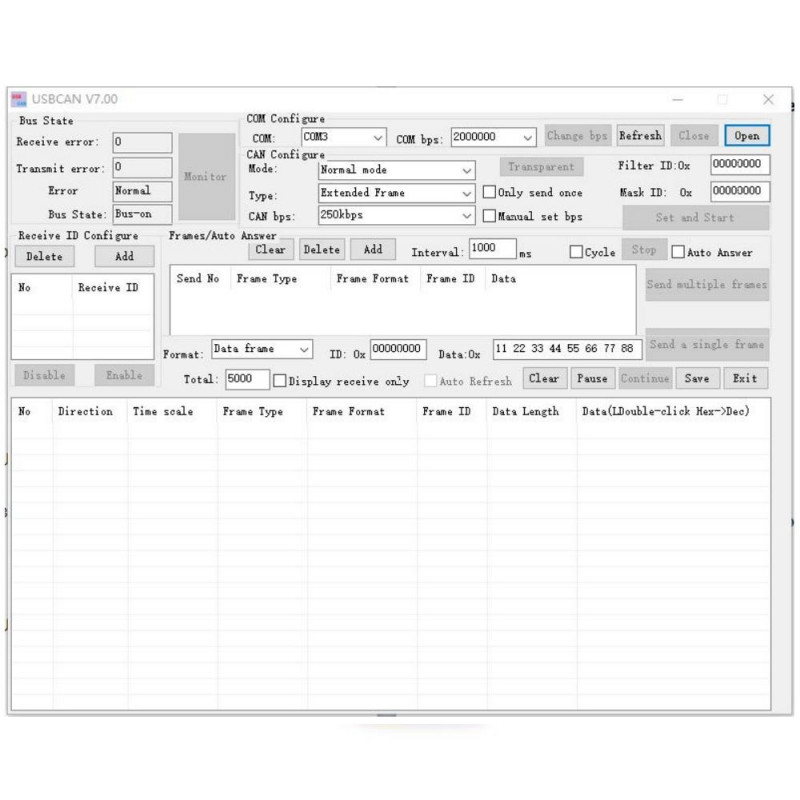

Software :  seeedstudio.com/USB-CAN-Analyzer-p-2888.html

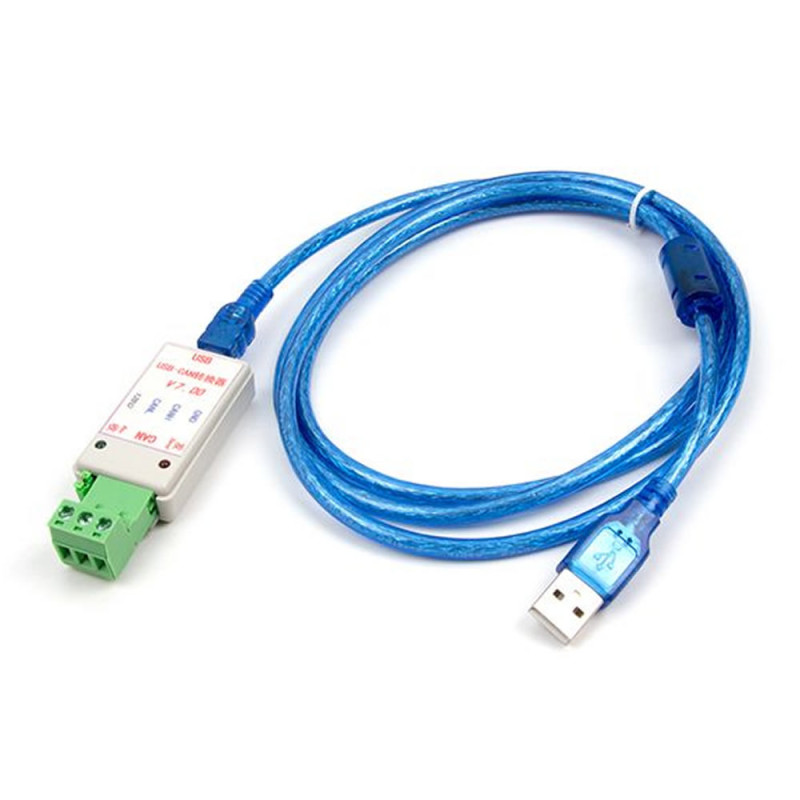

Package Contents:

• 1 Piece USB CAN Module
• 1 Piece Mini Usb Cable

     The USB-CAN debugger is CAN bus debugger with USB2.0 interface and CAN interface. The USB-CAN debugger, computer can be connected to CAN network, through the USB interface can be convenient, fast, data transmission, accurate data acquisition, processing etc.. The USB-CAN debugger support arbitrary baud rate between 5kbps-1Mbps, widely used in the construction of Fieldbus testing laboratory, industrial control, intelligent building, automotive electronics and other fields. At the same time the USB-CAN debugger has the advantages of small volume, plug and play, safety and reliability, good stability and so on, is the best choice for portable users of the system. In order to

     We have released a wide variety of CAN-BUS devices, this USB to CAN Analyzer Adapter can be used with these devices. You can easily import the acquired CAN-BUS data to your computer for analysis. With the help of the supporting software, you can use this USB-CAN Analyzer to develop, test, manage, and maintain CAN Bus network, as well as receiving, sending, analyzing CAN data. We will continue to update the software, fix known bugs, and add new features. If you have problems or have good suggestions during use, please leave a message in the FAQ or post to the forum.

     Compared with the $50 or more expensive USB to CAN Adapter, CAN-BUS Tester, or CAN-BUS Sniffer, the USB to CAN Analyzer Adapter Converter only needs half the price, but it is even more convenient and easy to use. You can just communicate your CAN-BUS device with your computer via the USB cable, then this tiny case will work as your can bus analyzer tool, can bus diagnostic tools, or can bus scanner.

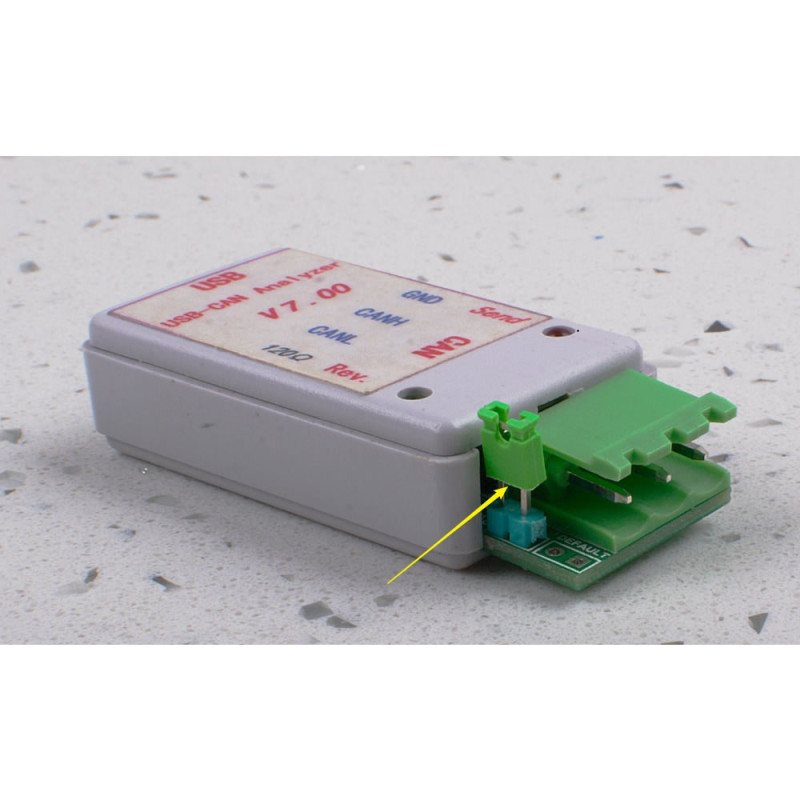

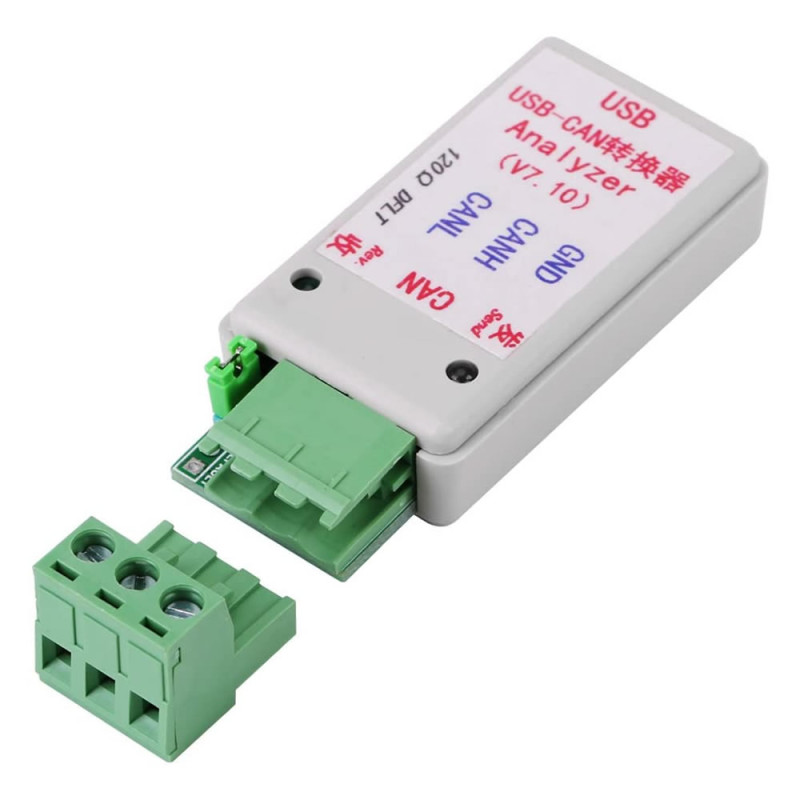

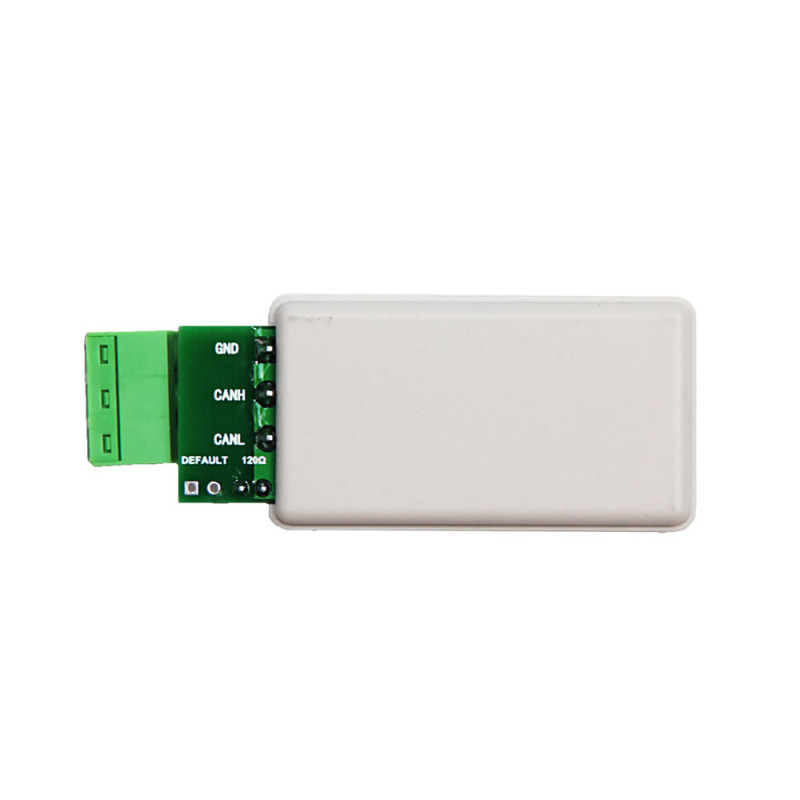

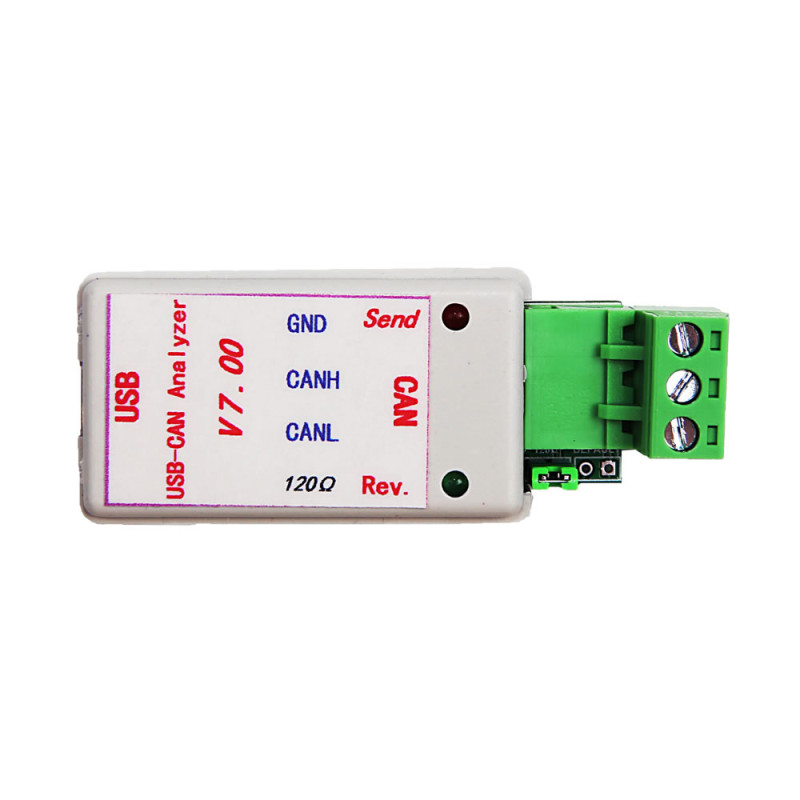

     You can see an onboard green jumper cap as the following figure shown. When you add this jumper on, a 120Ω terminating resistor will be added to the circuit. Conversely, when you remove the jumper cap, the resistor will not be added into the circuit. Normally, you need to keep this jumper cap because the CAN device under test and the CAN analyzer are at the ends of the CAN network. If you want to know more, please check 120-ohm terminating resistor page from NI.
