L298N Dual DC Motor Driver Module

L298N Dual Motor Driver Module

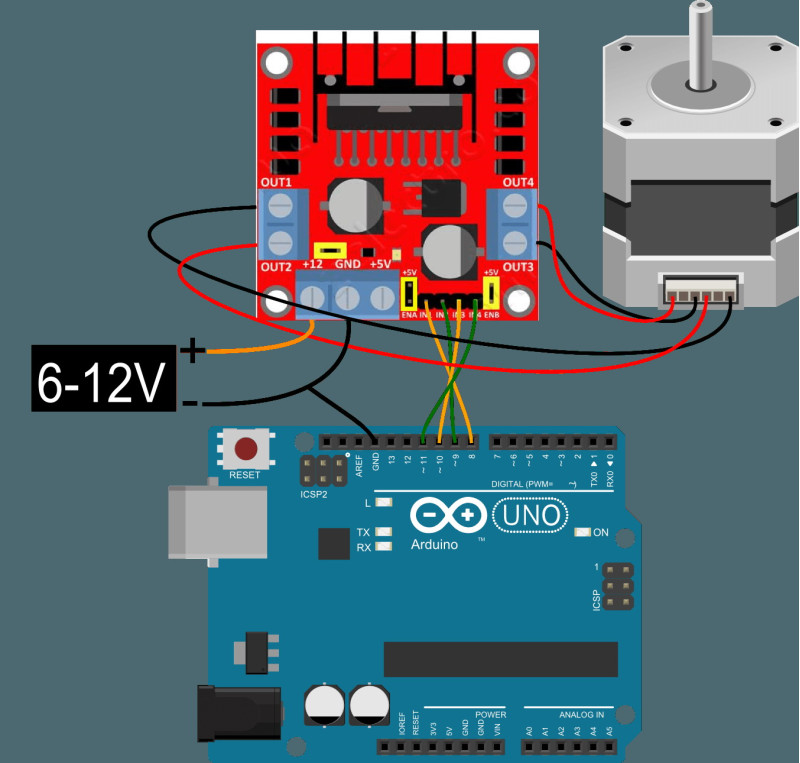

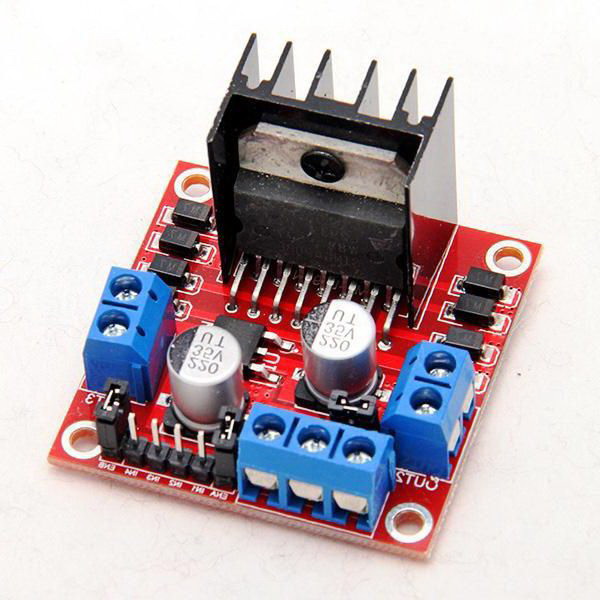

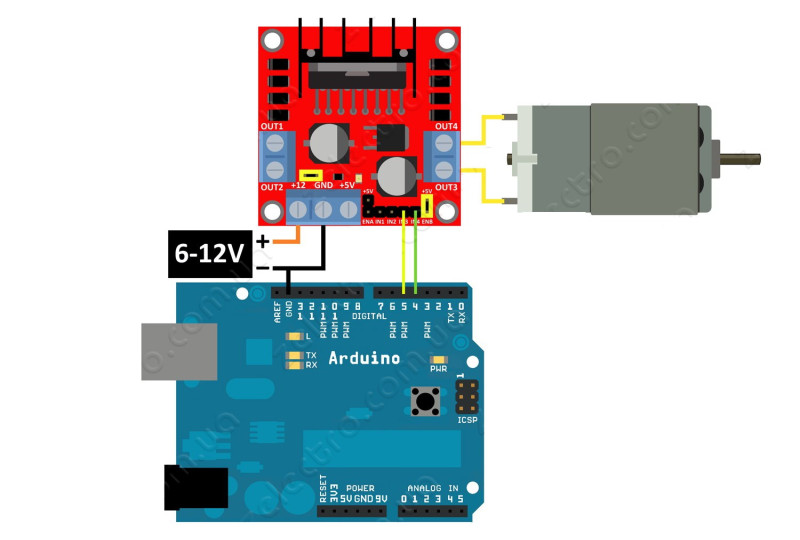

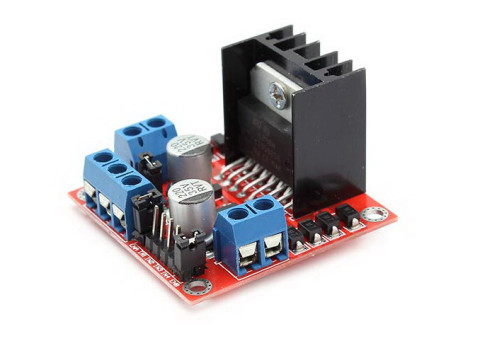

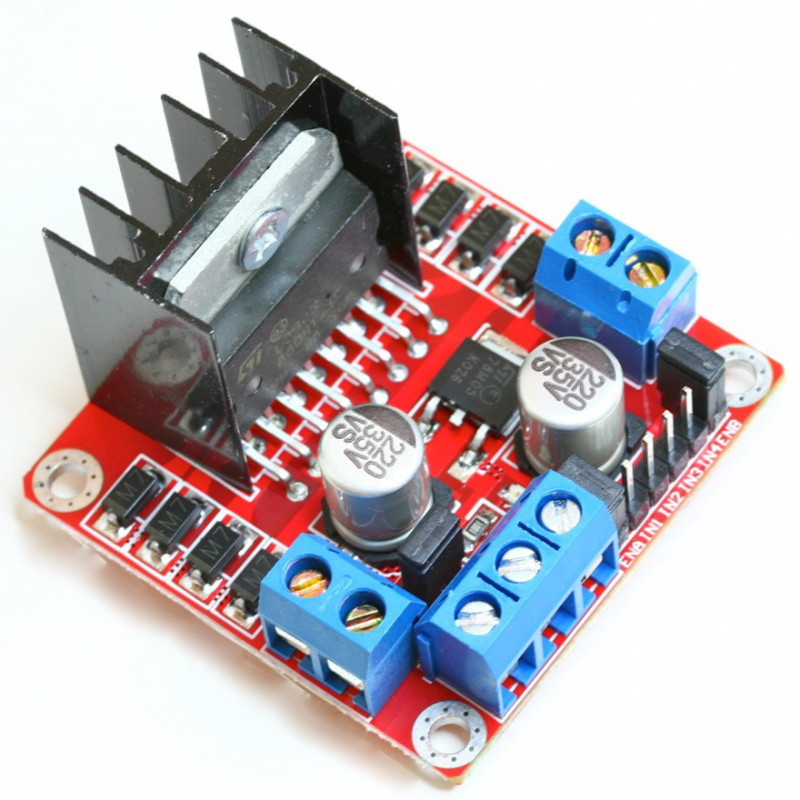

     It is a dual H-Bridge motor driver board built with the ST L298N IC. It can drive 2 pieces of 3-30V DC motors. It has a 5V communication level.  It can operate with a 5V supply. It can be controlled with 3.3V mcus. You can easily control the speed and direction of DC motors.  You can also control 2 phase step motors.

Features :

• L298N Dual H Bridge DC Motor Driver IC
• Supply voltages of the driver part :  +5 V to +35 V
• Ability to generate the 5V supply the board needs with the voltage regulator on the board.
• Current that can be drawn from the drivers : 2A
• Operating voltage of the IC itself : +5 V
• Current drawn by the IC during operation  : 36mA
• Operating temperature : -25C to +130C
• Dimensions : 55mm * 49mm * 33mm
• Voltage range of the control signals

Low:-0.3V

High: 2.3V

• Input voltage acceptance range

Low: -0.3
High: 2.3V

• Power consumption : 20W

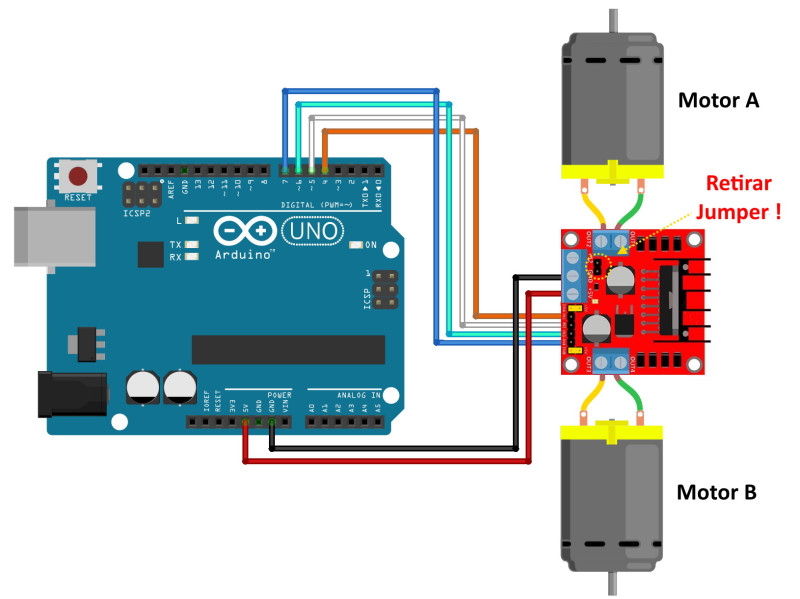

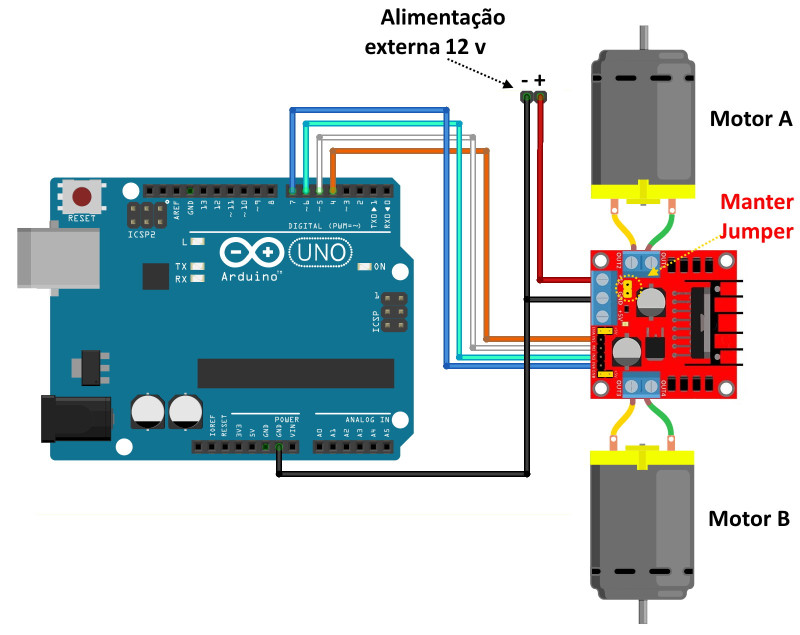

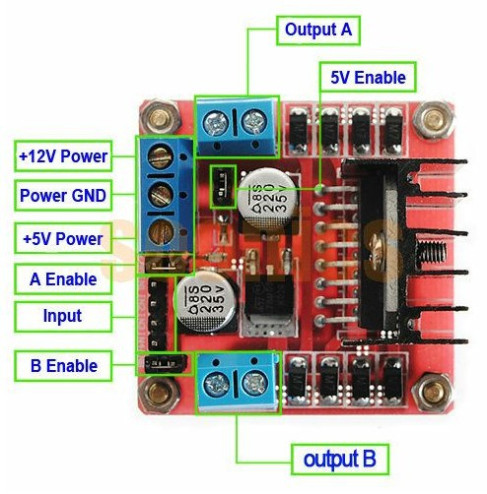

If the 5V at the output of the regulator on the board is to be used externally,  the jumper behind the 3 way supply terminal block must be removed.

Package contents :

•   1 Piece L298N Motor Driver Module

Specifications

• Driver: L298N Dual H Bridge DC Motor Driver IC
• The terminal supply area of driven part Vs: +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs: 7V ~ 35V
• The peak current of driven part Io: 2A
• the terminal supply of area the logical part Vss: +5 V ~ +7 V (can take power within the board +5 V)
• the operating current range of the logical part : 0 ~ 36mA
• control signal input voltage range:
• Low:-0.3V ≤ Vin ≤ 1.5V
• High: 2.3V ≤ Vin ≤ Vss
• enable signal input voltage range:
• Low: -0.3 ≤ Vin ≤ 1.5V (control signal is invalid)
• High: 2.3V ≤ Vin ≤ Vss (control signal active)
• Maximum power consumption: 20W (when the temperature T = 75 °C)
• Storage temperature: -25 °C ~ +130 °C

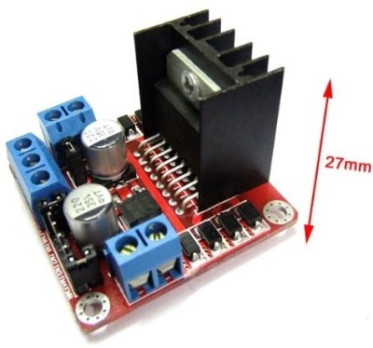

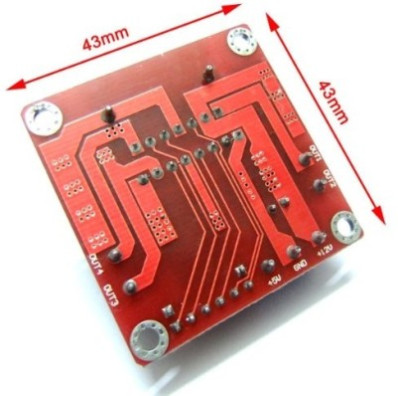

• Driver Board Size: 55mm * 49mm * 33mm (with fixed copper pillar and the heat sink height)
• Driver Board Weight: 33g
• Other Extensions: control of direction indicators, the logic part of the plate to take power interface.
