TDA2030A Amplifier Module

TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
TDA2030A Amplifier Module
71.28TL
59.40TL + KDV
10 or more 60.59TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
  • Stok Durumu: Stok Var
  • Marka: OEM
  • SKU: RBZ.100.309

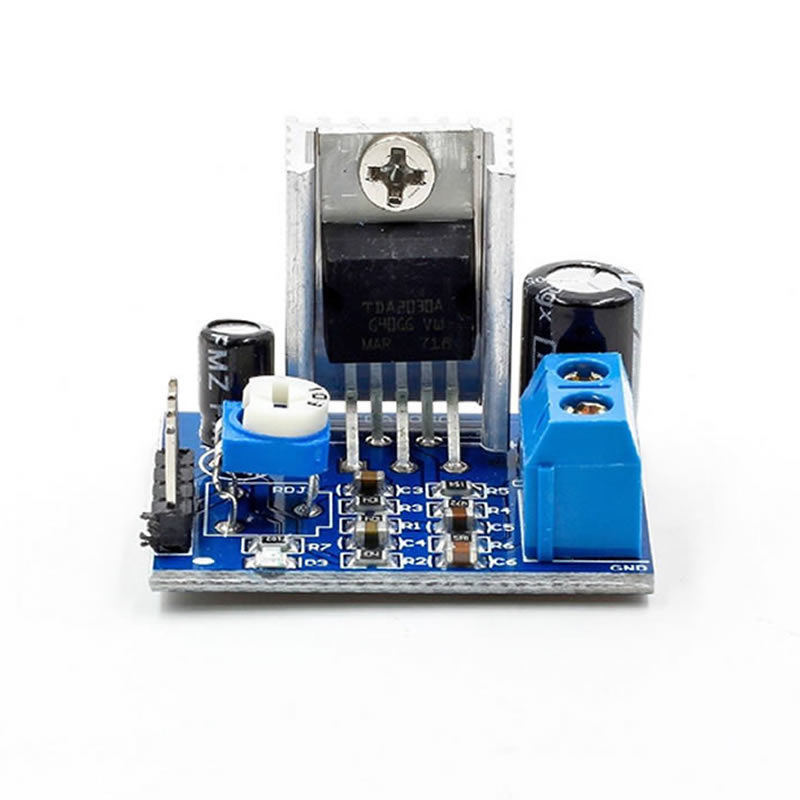

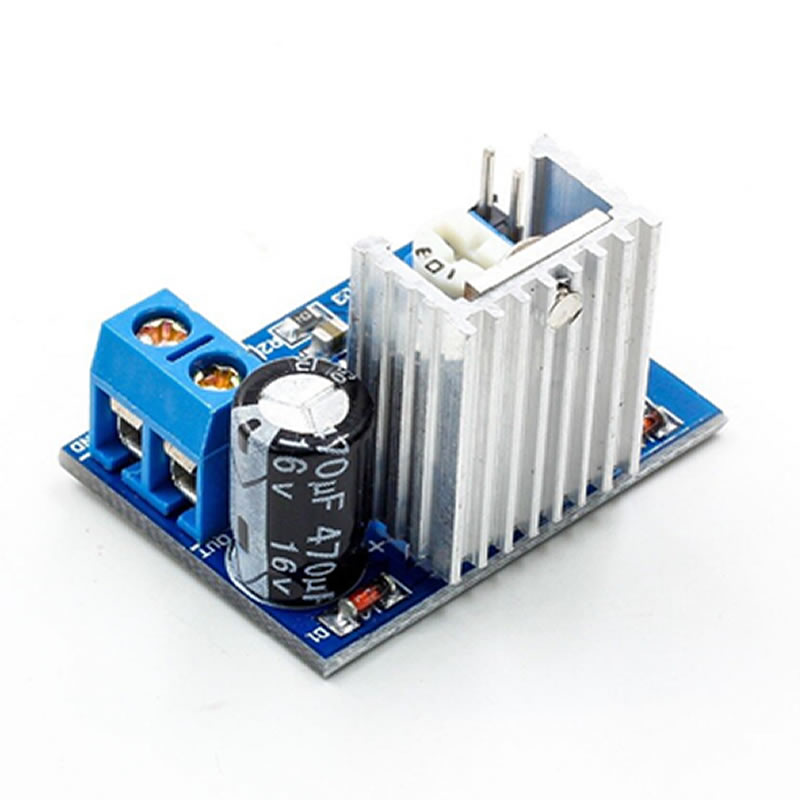

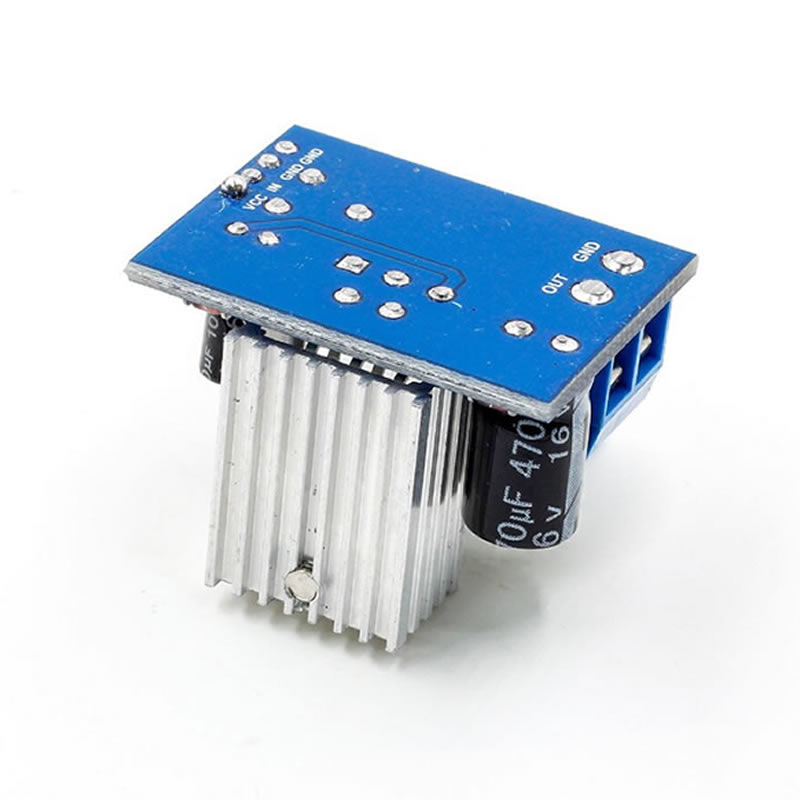

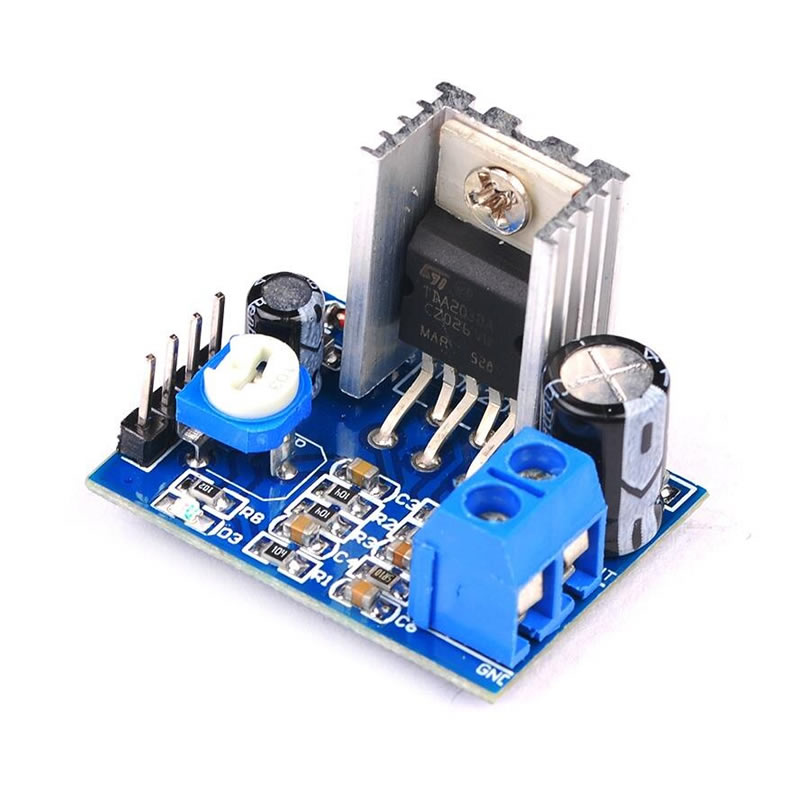

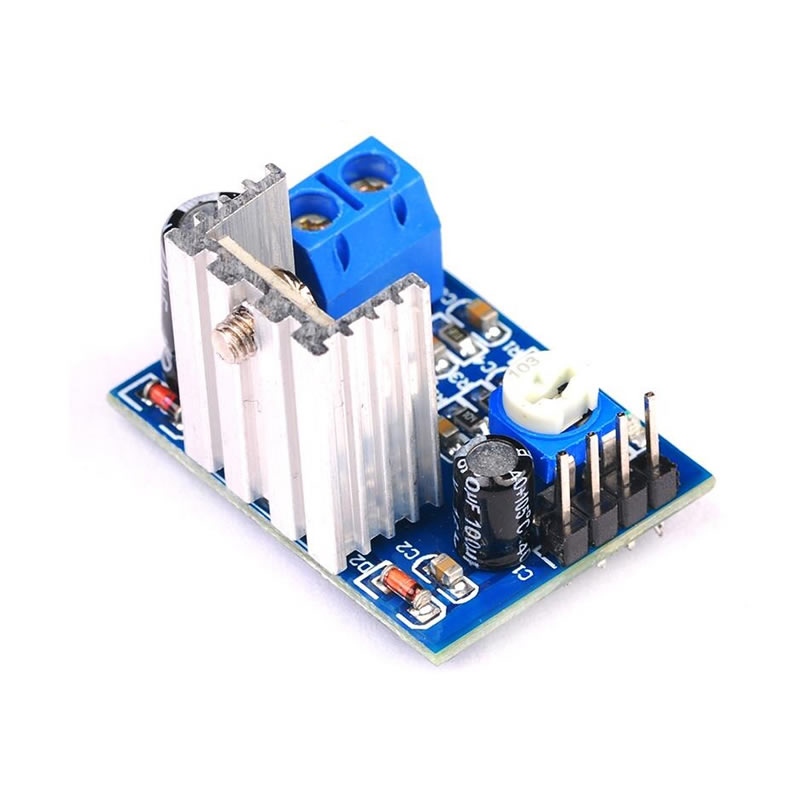

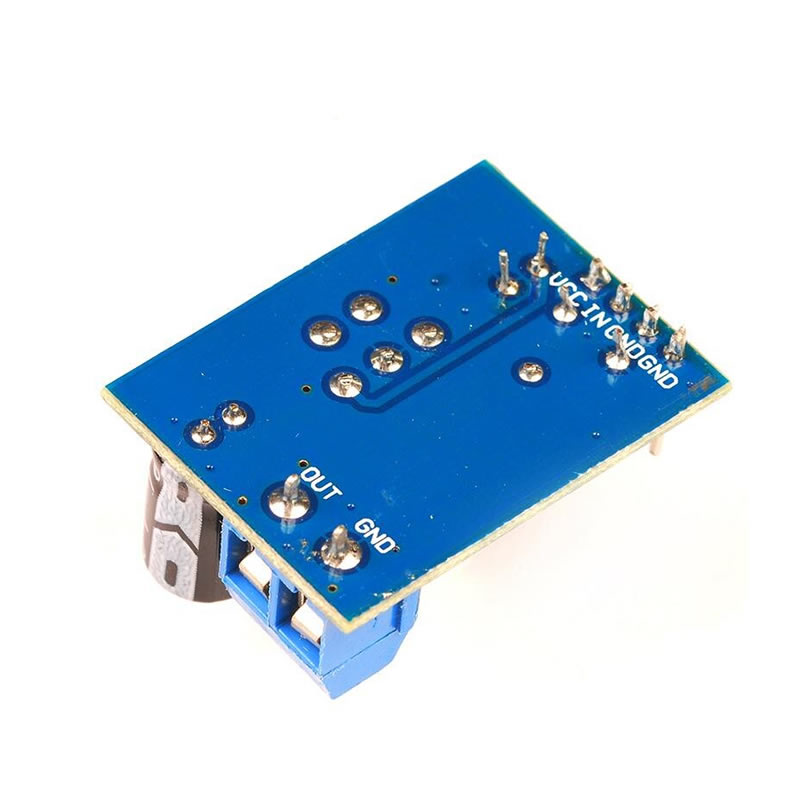

TDA2030A Mono Audio Amplifier Module

12V 18W Music Class AB Amplifier Booster Amplificator Board 4 Ohm Speaker Single Channel



     TDA2030A is a class Ab audio amplifier circuit. With its small size it provides high output power. It can perform Mono 18W audio amplification. It has a short circuit protection circuit against damage.

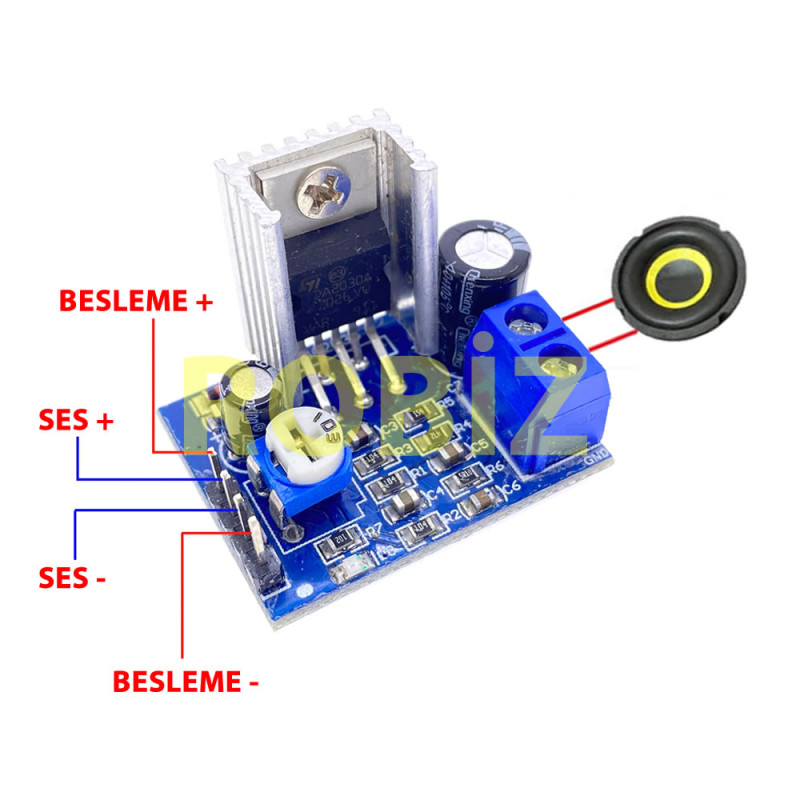

     Audio and supply inputs are made through male headers ( picture 1 ). A 4 ohm speaker can be used. There is a 2 way terminal block socket for the speaker connection.  There is a supply indicator led. The volume adjustment is made with the 10k potentiometer on the module.



Features:

  • IC: TDA2030A
  • Operating voltage:  DC  12V    ( 6V / 22V )
  • Current: 3A Maximum
  • Audio power: Mono 18W
  • Speaker: 4 Ohm
  • 10kohm potentiometer on the board to adjust the volume level.
  • Supply indicator led.
  • 0.5% noise
  • Low harmonic.
  • Short circuit protection.
  • High temperature protection.
  • Supply and audio signal input with 4 Pin male header.
  • Speaker output terminal block.
  • Aluminum block mounted on the IC for cooling
  • Color: Blue
  • Temperature:  -20C  /  85C

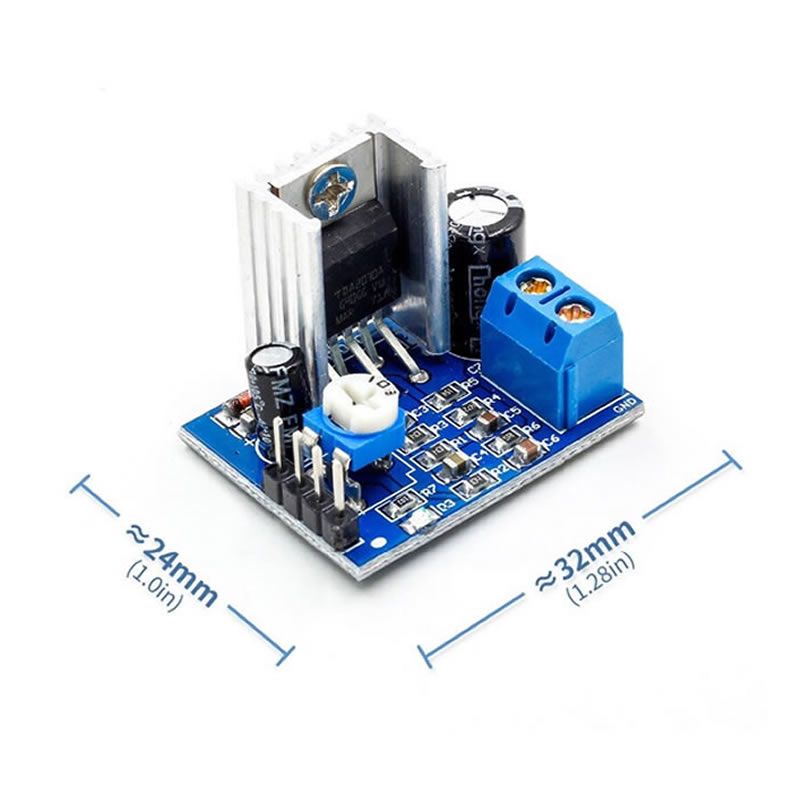

  • Dimensions:  24mm x 32mm x 24mm
  • Weight:  11gr



Package contents :

  • 1 pcs TDA2030A Module
