PAM8403 2x3w Amplifier Board

PAM8403 Mini Audio Amplifier Class D 2x3w Amplifier Board

Stereo Digital Amplifier Music Audio Amplifier Booster 2-4-8ohm Speaker Headphone Tv Radio Speaker

We recommend that it not be used in applications requiring high volume. The 2x3W audio output power is sufficient for many applications. However, if you need high volume, this power may be insufficient. When high volume is desired, noise (crackling) occurs.

Using a shielded type audio connection cable causes the noise to decrease.

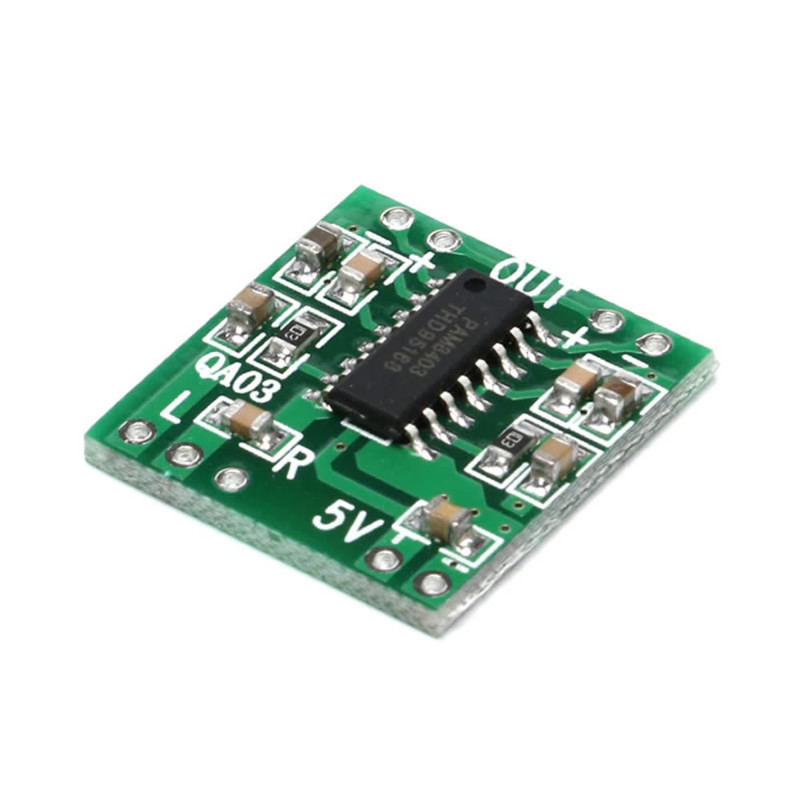

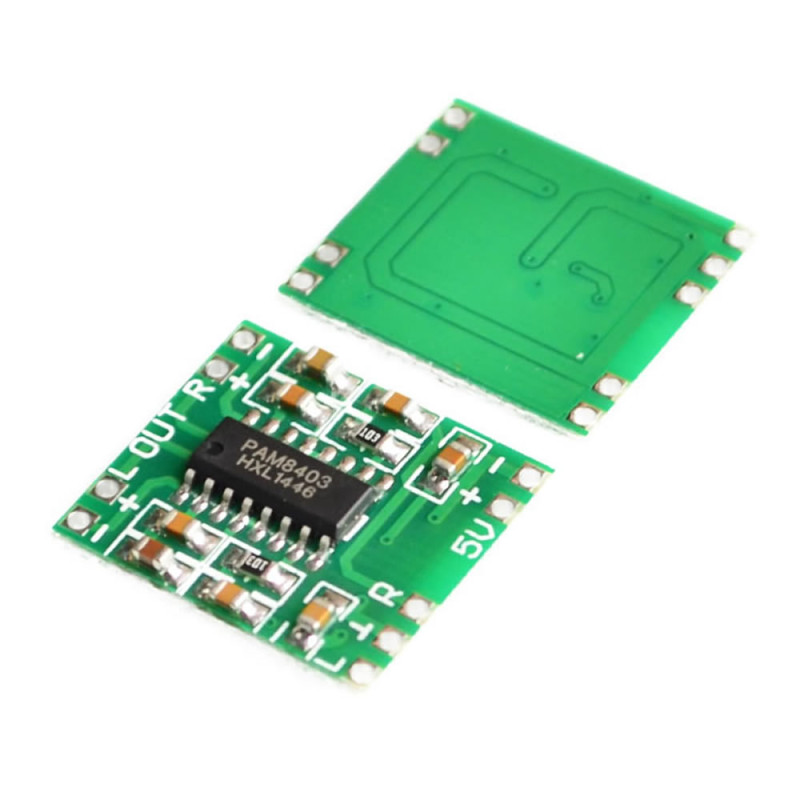

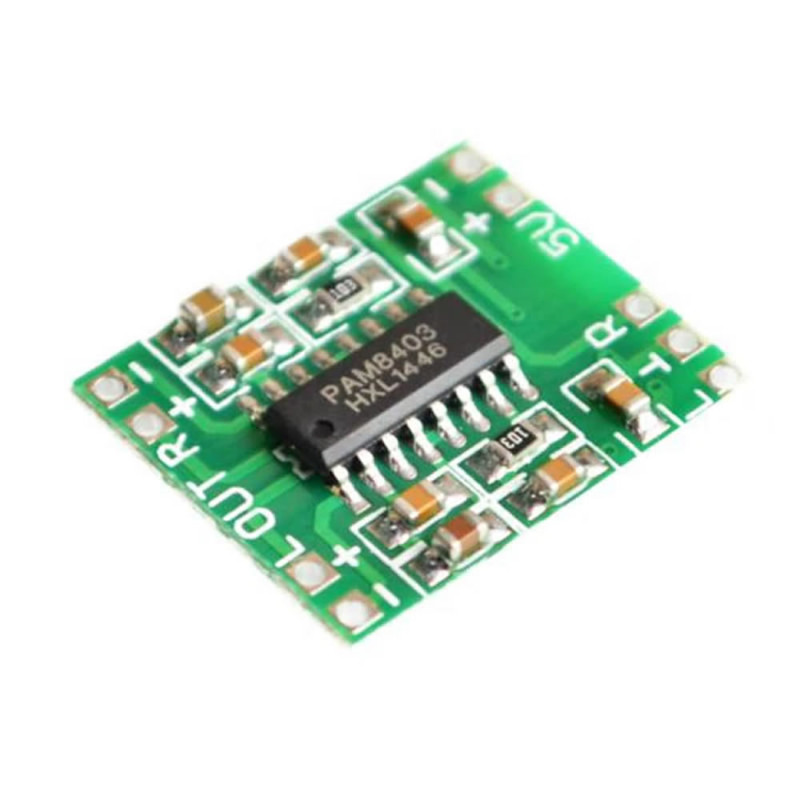

     It is a small amplifier board using the Pam8403 IC. It has stereo 2x 3w audio output. It works with DC 5v. It is used in many areas such as television, radio, warning announcement systems. It is suitable for use with 4 ohm speakers. It can be used for long periods.



Features:

•     Operating voltage: DC 2V-5.5V
•     Audio power:   3W + 3W  ( It crackles at higher volumes )
•     Speaker:  2ohm  /  4ohm /  8ohm  ( 4 ohm is recommended.)
•     It is suitable for use in low power applications.
•     2 Channel stereo output
•     Class: Class D
•     Short circuit protection
•     Over temperature protection
•     It can be powered directly by a computer or a product with usb output. Or it can work with a 5V battery.

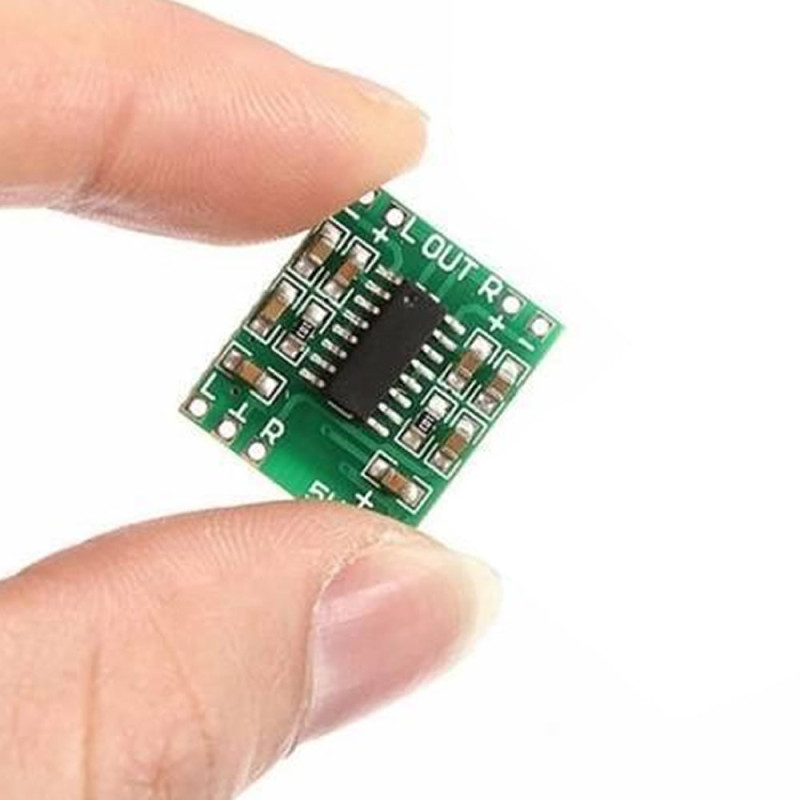

•     Ease of application thanks to its very small design.

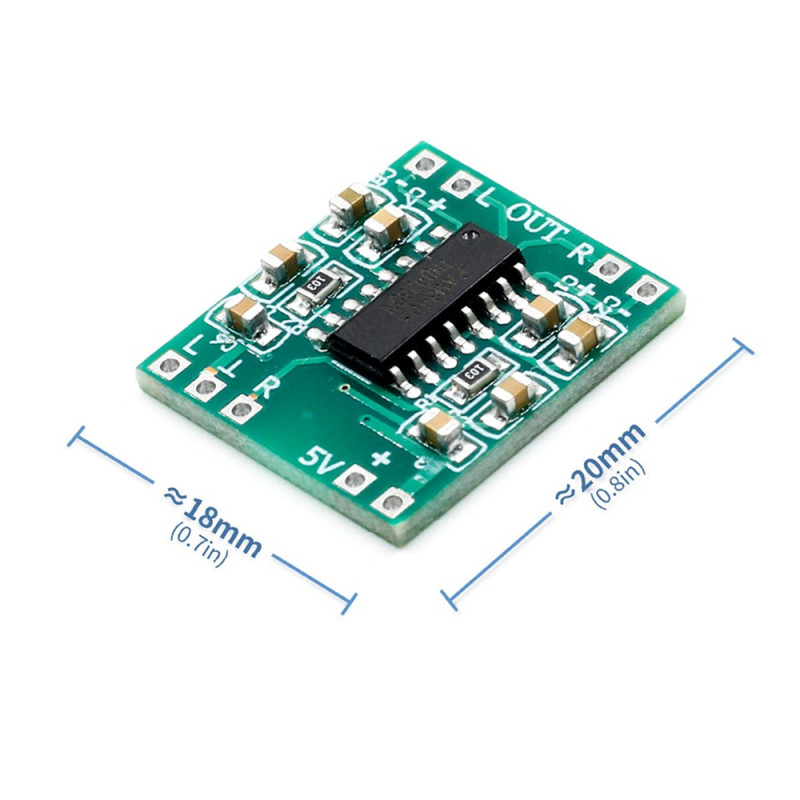

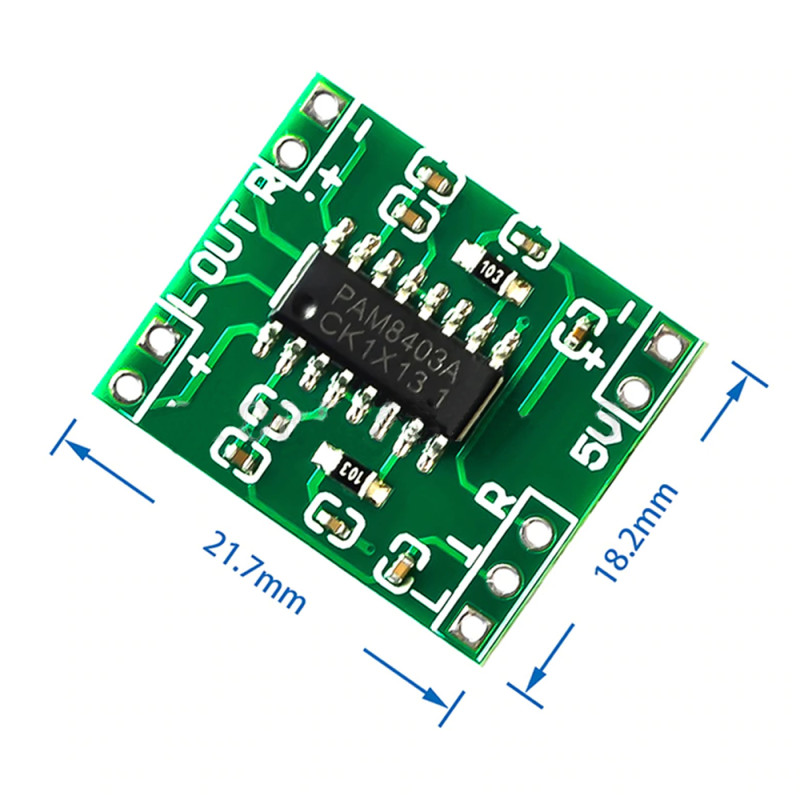

•     Dimensions:  21mm x 18mm x 3.4mm
•     Weight:1gr

Note :

• The module is damaged at voltages above 5.5V.
• The module is damaged at reverse voltage.

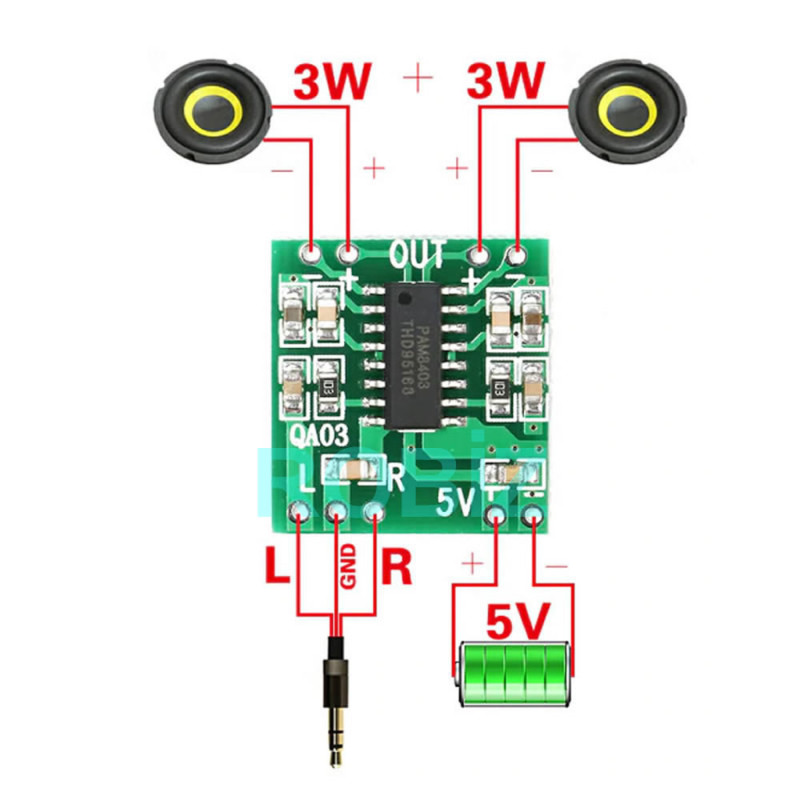

• The left and right pins are the audio input. The middle terminal is the ground terminal. Incorrect connection may damage the product.
• Do not use the product by combining its audio outputs.

Package contents :

•    1 pcs  PAM8403 2x3w Amplifier Board

.
