L9110 Dual Motor Driver Board

L9110 Dual Motor Driver Board

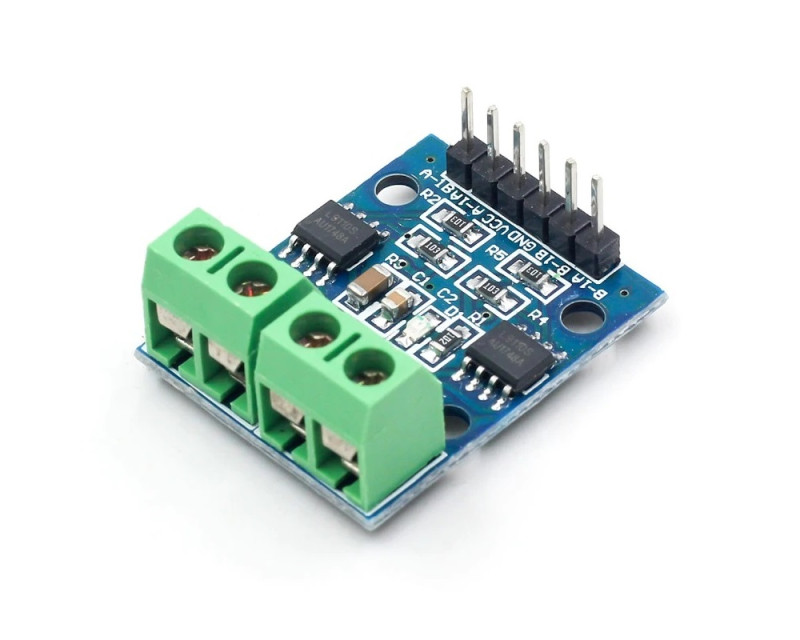

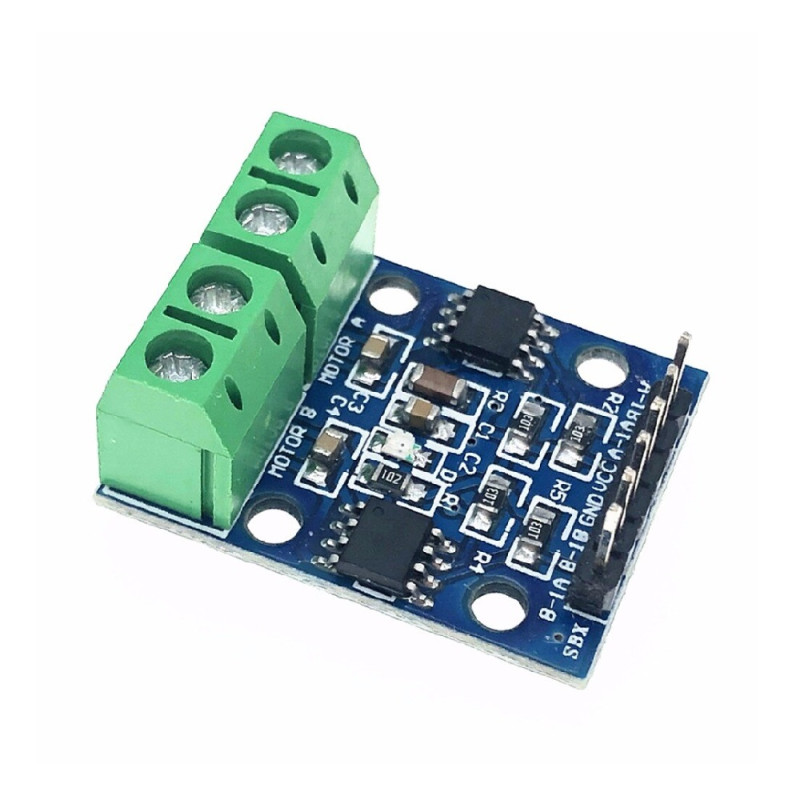

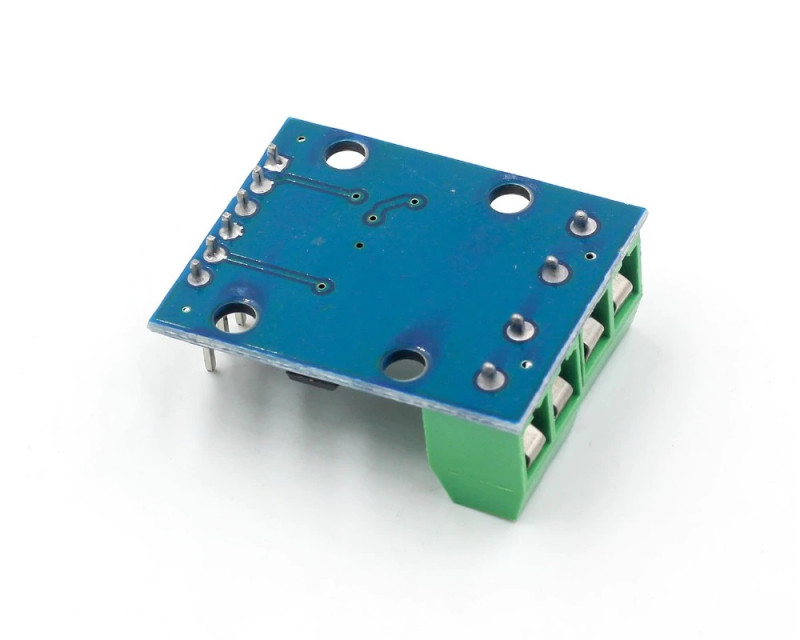

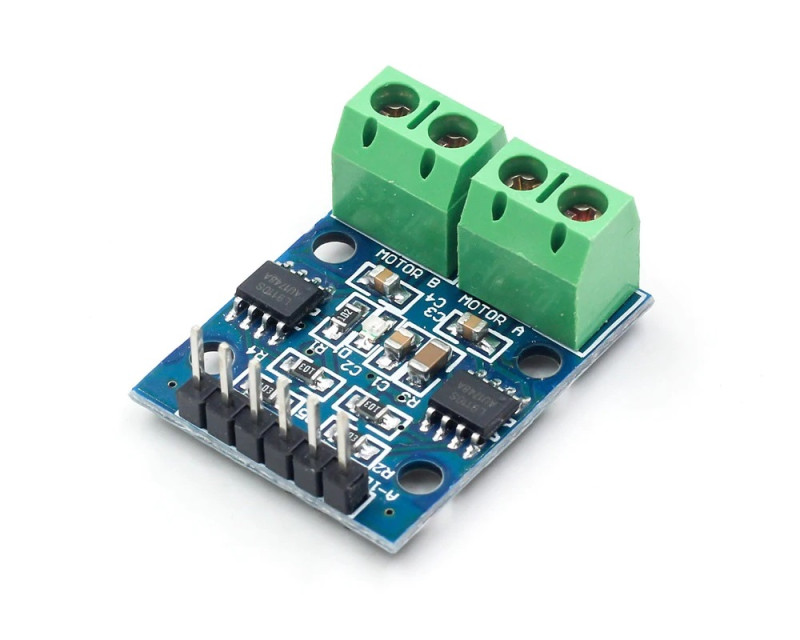

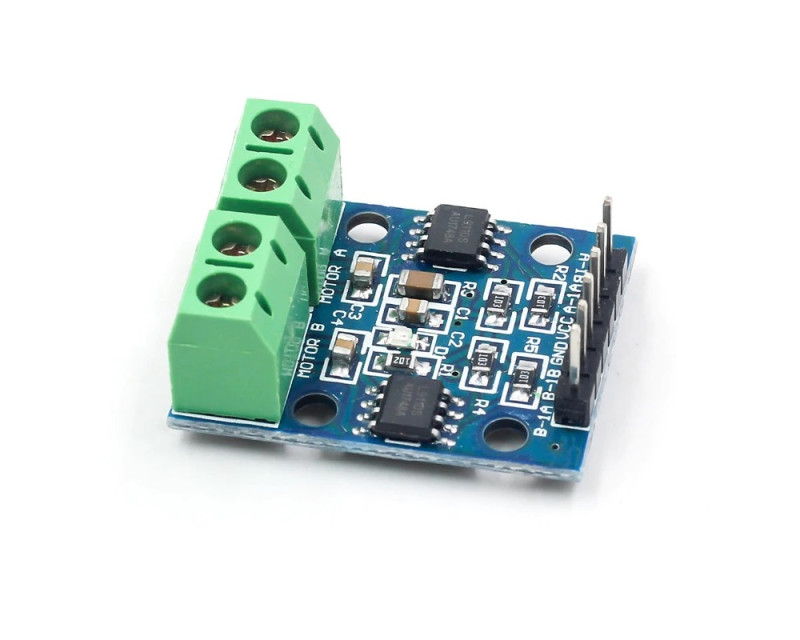

     The L9110 dual motor driver board is an affordable, small-sized and quite useful mini DC motor driver board. The L9110 motor driver IC is located on the board. With the driver board, which operates at an input voltage between 2.5-12V, two separate DC motors in both directions or a 4-wire 2-phase stepper motor can be controlled.

     The driver output voltage is 7.6V. Thanks to this, it is quite easy to use with 6V motors. It can supply up to 800mA continuously and up to 2A momentarily per channel. It can easily be used in mini sumo, line follower robots and a wide variety of motor control applications. There is no enable pin on the driver. The channels are continuously active. PWM can be applied directly to the input pins.



Features :

• It can control two separate motors independently of each other.
• It can supply 800mA current per channel.
• It can supply 7.5V voltage per channel.

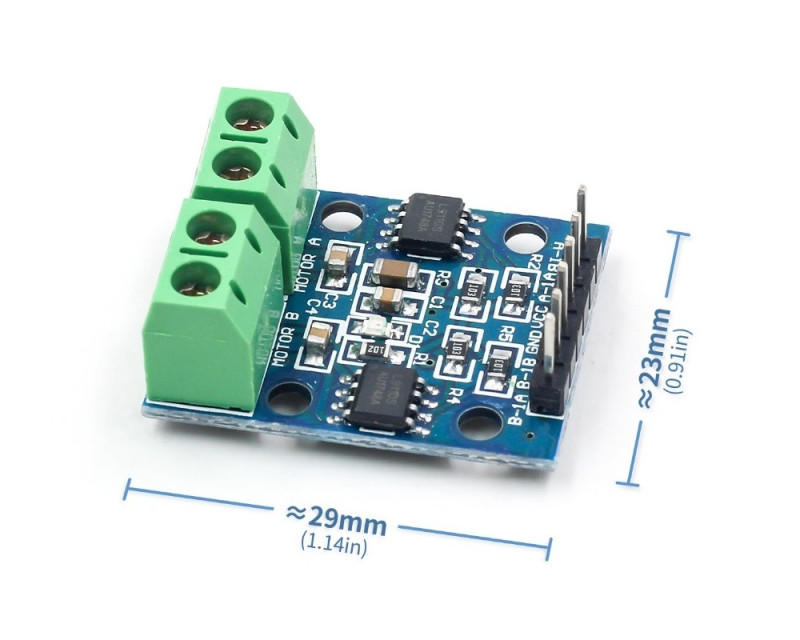

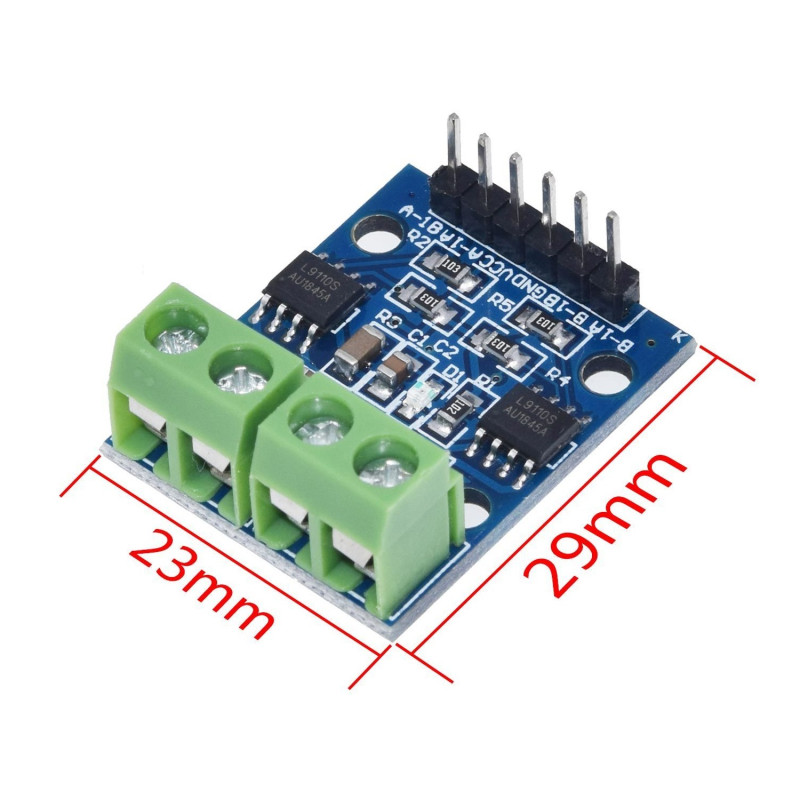

• Dimensions : 31 mm x 22 mm
• Weight : 7 gr

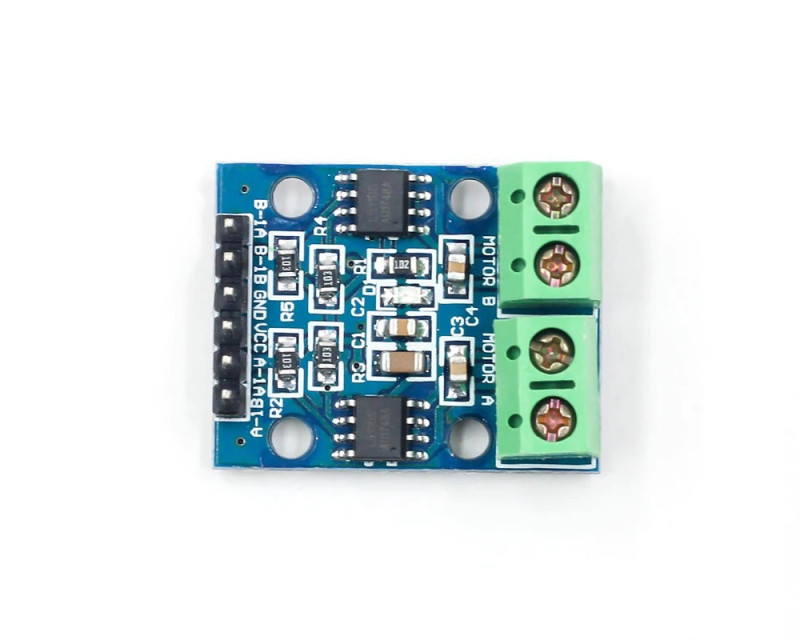

Pin Connections :

• IA2: Left motor 1st input
• IB2: Left motor 2nd input
• IA1: Right motor 1st input
• IB1: Right motor 2nd input
• GND: Ground connection
• Vcc: Supply Voltage

Package contents :

•    1 pcs L9110 Dual Motor Driver Board
