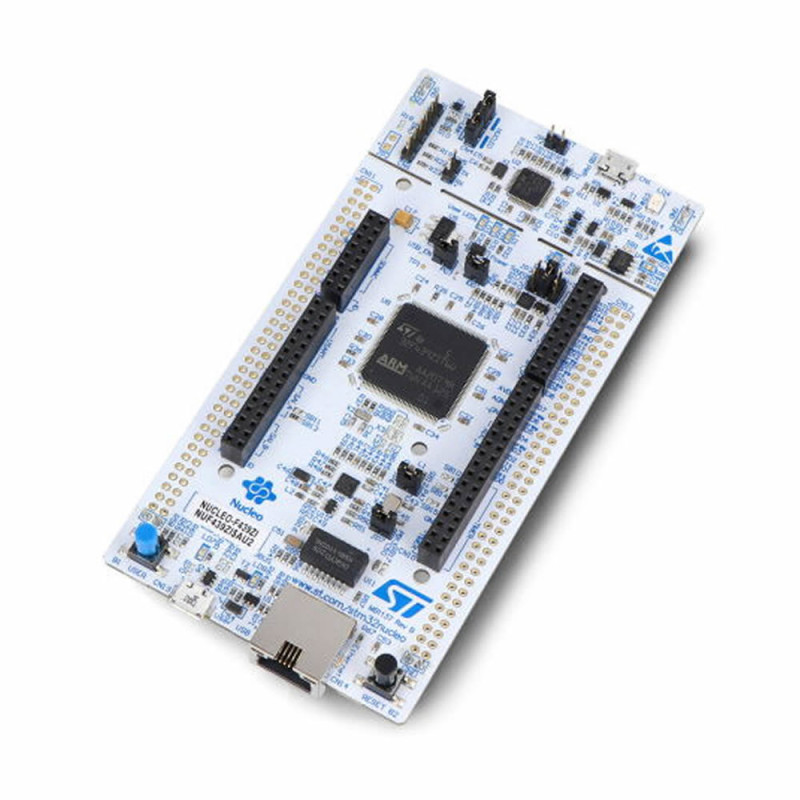

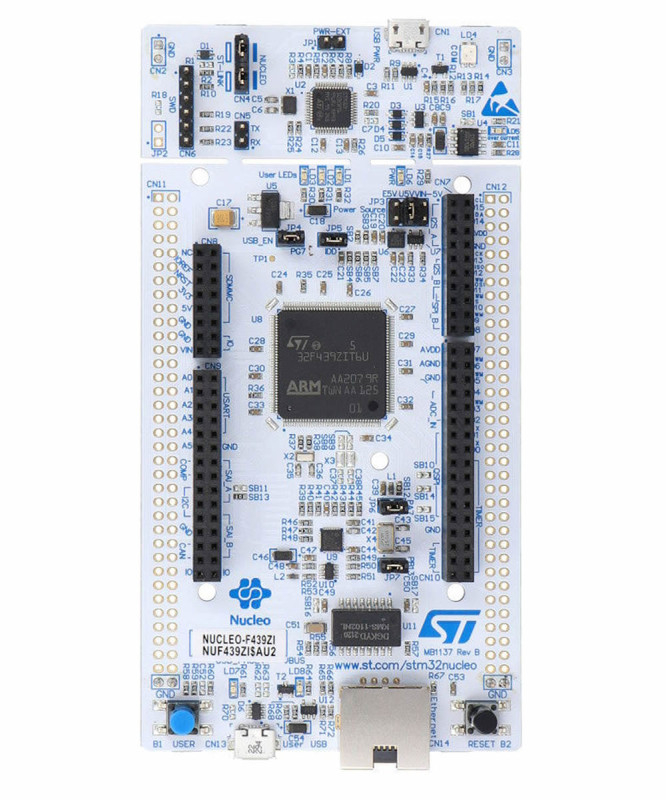

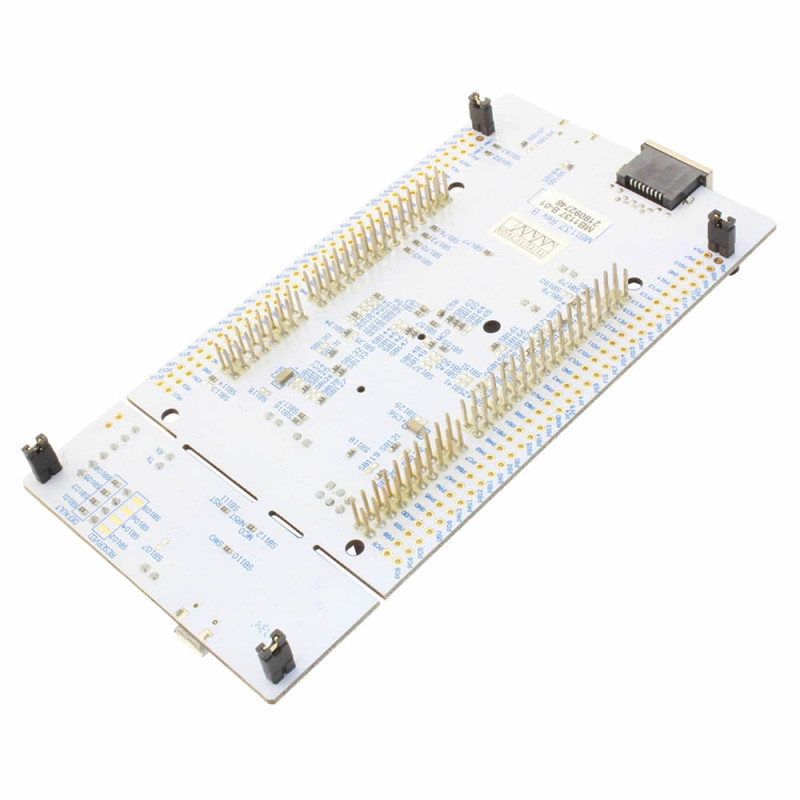

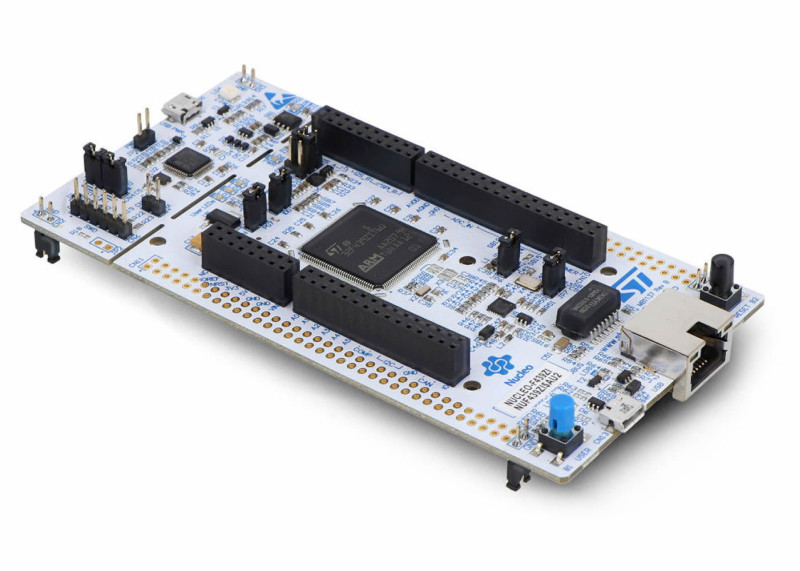

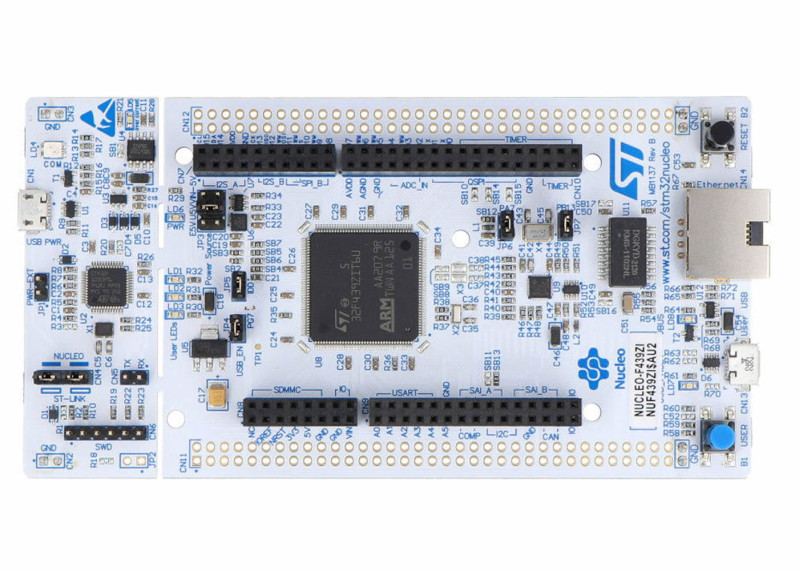

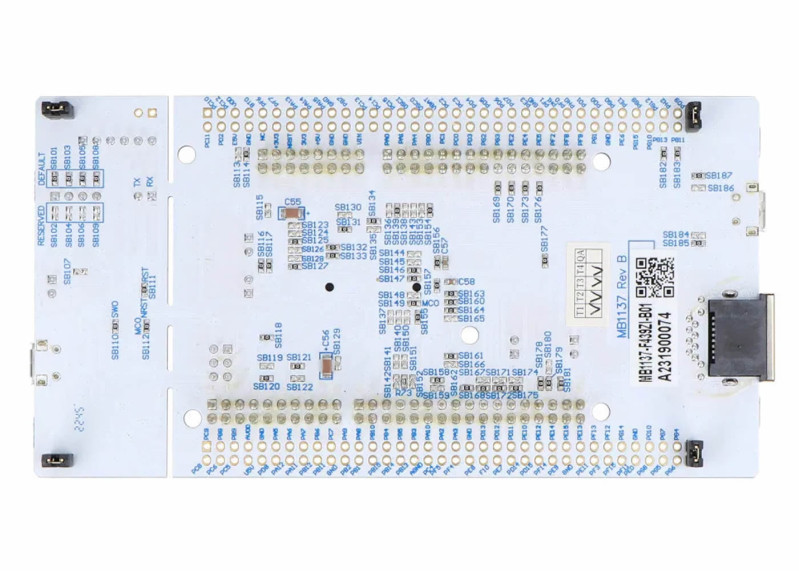

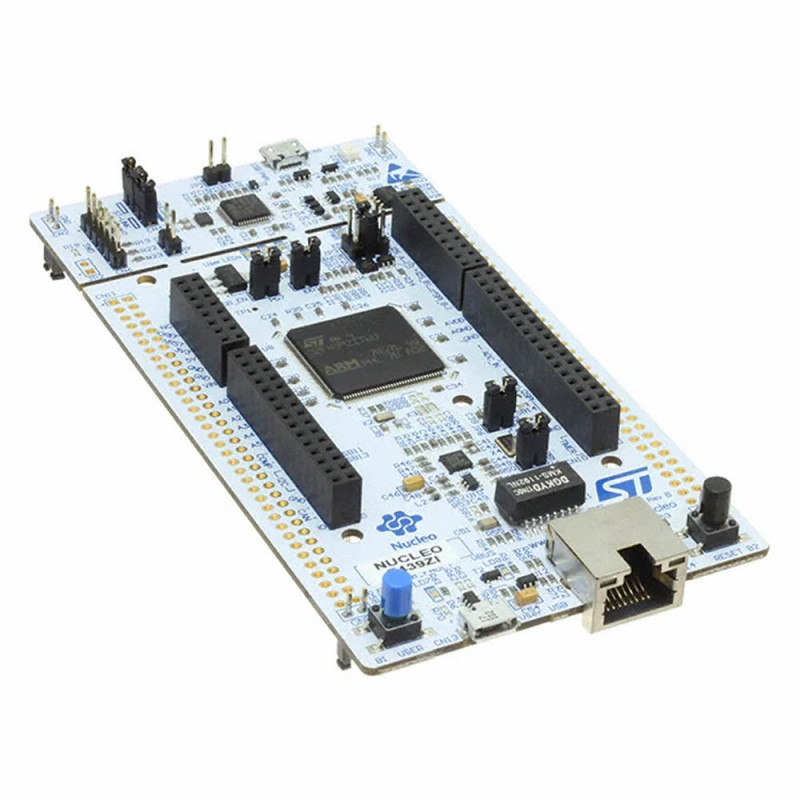

NUCLEO-F439ZI

ST NUCLEO-F439ZI Nucleo Kit STM32F439ZI Mcu

STM32 Development Board Arm Cortex-M4 2 Mb Flash 180 MHz CPU DSP FPU ST-LINK V2 Arduino Zio Morpho Connectivity Nucleo-144

     The STM32 Nucleo-144 board offers an affordable and flexible way for users to try new concepts and build prototypes by choosing among the various performance and power consumption features offered by the STM32 microcontroller. On compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

     The ST Zio connector, which extends the ARDUINO Uno V3 connectivity, and the ST morpho headers offer an easy way to expand the functionality of the Nucleo open development platform with a wide choice of specialized shields.

     The STM32 Nucleo-144 board does not require a separate probe as it integrates the ST-LINK debugger/programmer.

     The STM32 Nucleo-144 board comes with the comprehensive STM32 free software libraries and examples delivered with the STM32Cube MCU Package.

    Features

•         The microcontroller: STM32F439ZI  STM32 microcontroller in LQFP144, TFBGA225 or VFBGA264 package
•         Core: ARM Cortex M4 32-bit
•         Clock frequency: 180 MHz
•         Flash memory: 2 MB
•         RAM: 256 KB
•         Analog-to-digital converter (ADC): 12-bit, 24 channel
•         Digital-to-analog converter (DAC): 12-bit, 2-channel
•         3 user LEDs
•         1 user button and 1 reset button
•         32.768 kHz crystal oscillator
•         Board connectors:
•             SWD
•             ST morpho extension connector
•         Flexible power supply options: ST-LINK USB V BUS , USB connector or external sources
•         Comprehensive free software libraries and examples available with the STM32Cube MCU Package
•         Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench, MDK-ARM and STM32CubeIDE
•     Features specific to some boards (see the ordering information section of the datasheet for details)
•         External or internal SMPS to generate V core logic supply
•         Ethernet compliant with IEEE-802.3-2002
•         USB Device only, USB OTG full speed or SNK/UFP (full speed or high speed mode)
•         Board connectors:
•             ARDUINO Uno V3 connector or ST Zio expansion connector including ARDUINO Uno V3
•             Camera module FPC
•             MIPI20 compatible connector with trace signals
•             USB with Micro-AB or USB Type-C
•             Ethernet RJ45 Connector
•         On-board ST-LINK (STLINK/V2-1, STLINK-V3E or STLINK-V3EC) debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port and debug port
•         The number of 16-bit Timers: 12
•         The number of 32-bit Timers: 2
•         Interfaces: 3x I2C, 6x SPI, 2x I2S, 2x CAN, 4x USART, 4 UART, USB OTG
•     Two types of connectors:
•         Connectors for caps compatible with Arduino Uno Rev3
•         Standard STMicroelectronics Morpho pins to access the leads of the microcontroller
•     The module is compatible with the mbed system (mbed.org)
•     The debugger ST-Link/V2 is placed on the board with the opportunity to work as a standalone device with the SWD output
•     The possibility to power through the USB connector
•     Embedded three LEDs:
•         1 x for indication of supply voltage
•         1 x indicator of connection
•         1 x at user disposal
•     Two buttons:
•         1 x RESET
•         1 x at user disposal
•     Three different interfaces via the microUSBconnector (USB re-enumeration):
•         Virtual COM port
•         Mass memory
•         Port for programming/debugging
•     The module supports most of popular environments, i.a.: IAR, Keil, and the platforms based on GCC compiler
•     Module dimensions: 135 x 70 x 18 mm

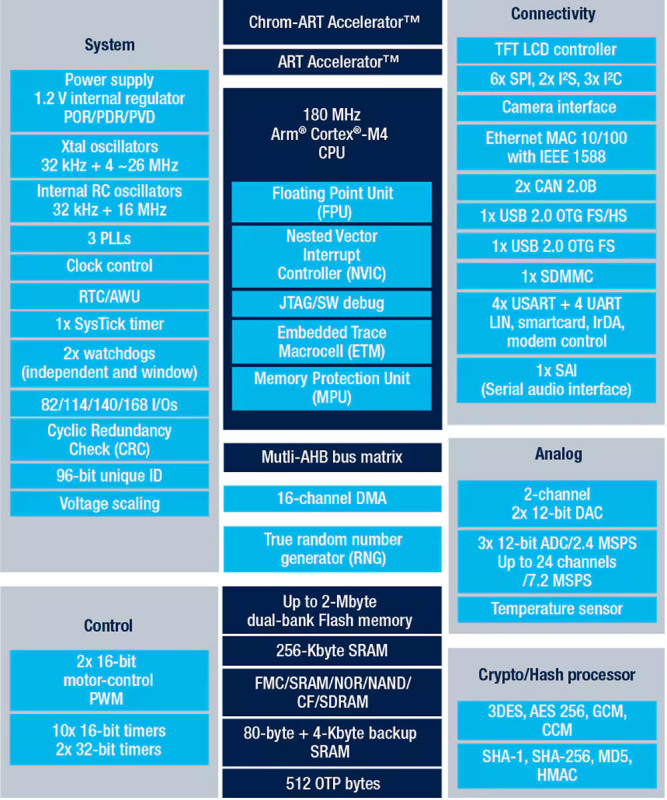

STM32F439ZI

     High-performance advanced line, Arm Cortex-M4 core with DSP and FPU, 2 Mbytes of Flash memory, 180 MHz CPU, ART Accelerator, Chrom-ART Accelerator, FMC with SDRAM, TFT, HW crypto

STM32F439ZI  Features:

•     Includes ST state-of-the-art patented technology.
•     Core: Arm 32-bit Cortex-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
•     Memories
•         512 bytes of OTP memory
•         Up to 2 MB of flash memory organized into two banks allowing read-while-write
•         Up to 256+4 KB of SRAM including 64 KB of CCM (core coupled memory) data RAM
•         Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, compact flash/NOR/NAND memories
•     LCD parallel interface, 8080/6800 modes
•     LCD-TFT controller with fully programmable resolution (total width up to 4096 pixels, total height up to 2048 lines and pixel clock up to 83 MHz)
•     Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)
•     Clock, reset, and supply management
•         1.7 V to 3.6 V application supply and I/Os
•         POR, PDR, PVD, and BOR
•         4-to-26 MHz crystal oscillator
•         Internal 16 MHz factory-trimmed RC (1% accuracy)
•         32 kHz oscillator for RTC with calibration
•         Internal 32 kHz RC with calibration
•         Sleep, Stop, and Standby modes
•         VBAT supply for RTC, 20×32-bit backup registers + optional 4 KB backup SRAM
•     3×12-bit, 2.4 MSPS ADC: up to 24 channels and 7.2 MSPS in triple interleaved mode
•     2×12-bit D/A converters
•     General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
•     Up to 17 timers: up to twelve 16-bit and two 32-
•     Debug mode
•         SWD & JTAG interfaces
•         Cortex-M4 Trace Macrocell
•     Up to 168 I/O ports with interrupt capability
•         Up to 164 fast I/Os up to 90 MHz
•         Up to 166 5 V-tolerant I/Os
•     Up to 21 communication interfaces
•         Up to 3 × I2C interfaces (SMBus/PMBus)
•         Up to four USARTs/4 UARTs (11.25 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)
•         Up to 6 SPIs (45 Mbit/s), 2 with muxed full-duplex I2S for audio class accuracy via internal audio PLL or external clock
•         1 x SAI (serial audio interface)
•         2 × CAN (2.0B active) and SDIO interface
•     Advanced connectivity
•         USB 2.0 full-speed device/host/OTG controller with on-chip PHY
•         USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
•         10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
•     8- to 14-bit parallel camera interface up to 54 Mbytes/s
•     Cryptographic acceleration: hardware acceleration for AES 128, 192, 256, triple DES, HASH (MD5, SHA-1, SHA-2), and HMAC
•     True random number generator
•     CRC calculation unit
•     RTC: subsecond accuracy, hardware calendar
•     96-bit unique ID.
•     ECOPACK2 compliant packages.

Package contents:

• 1 pcs NUCLEO-F439ZI

Attention = A mini usb cable is not included in the package.
