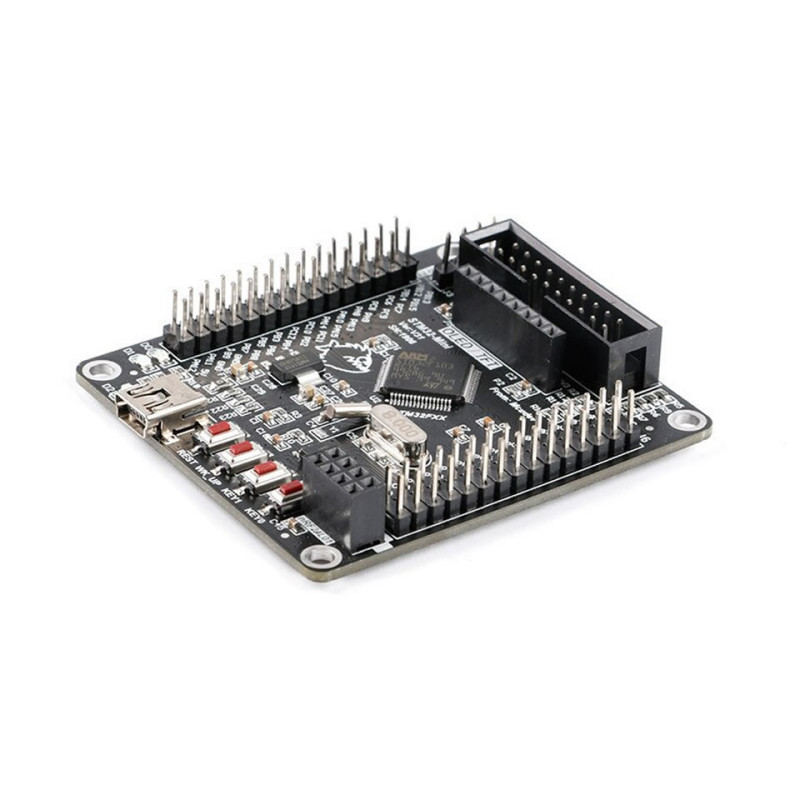

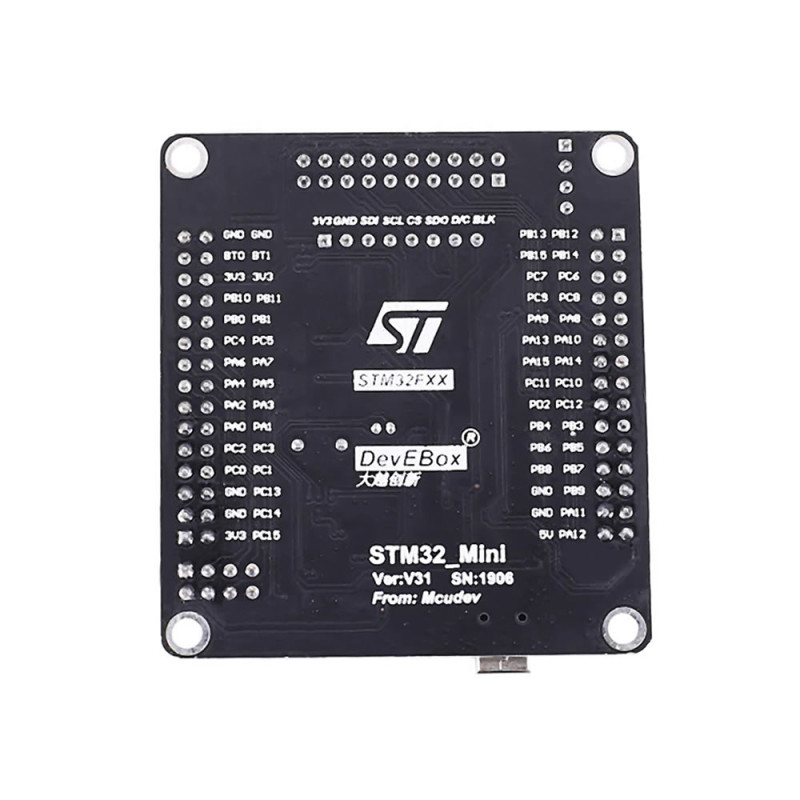

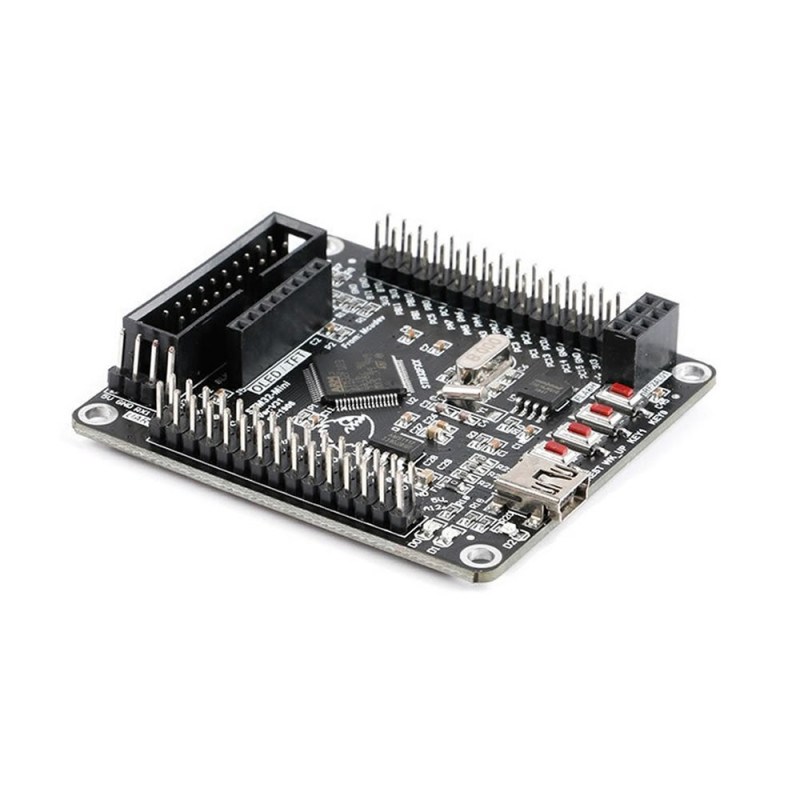

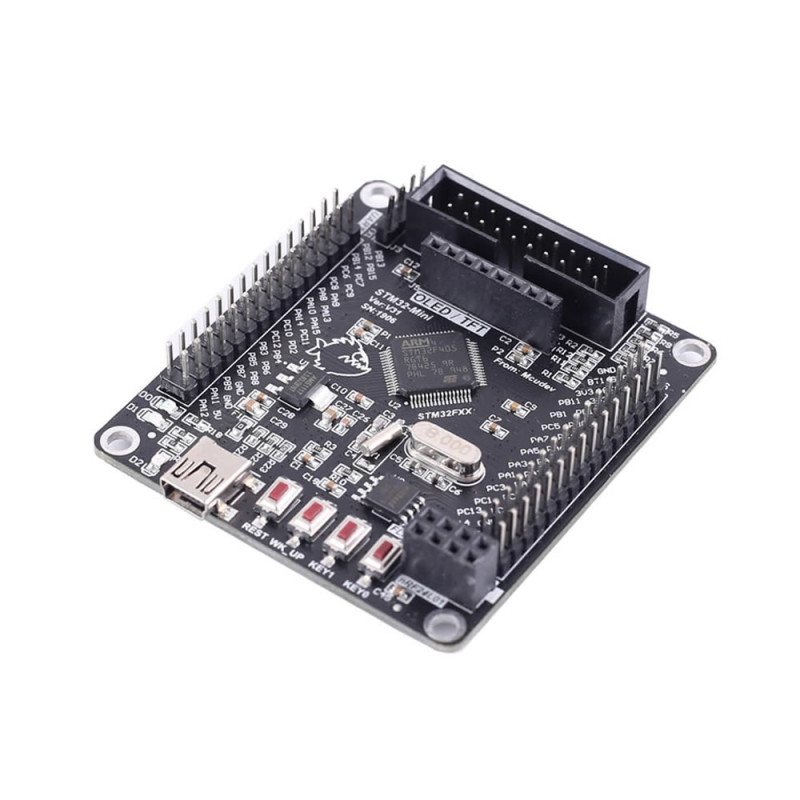

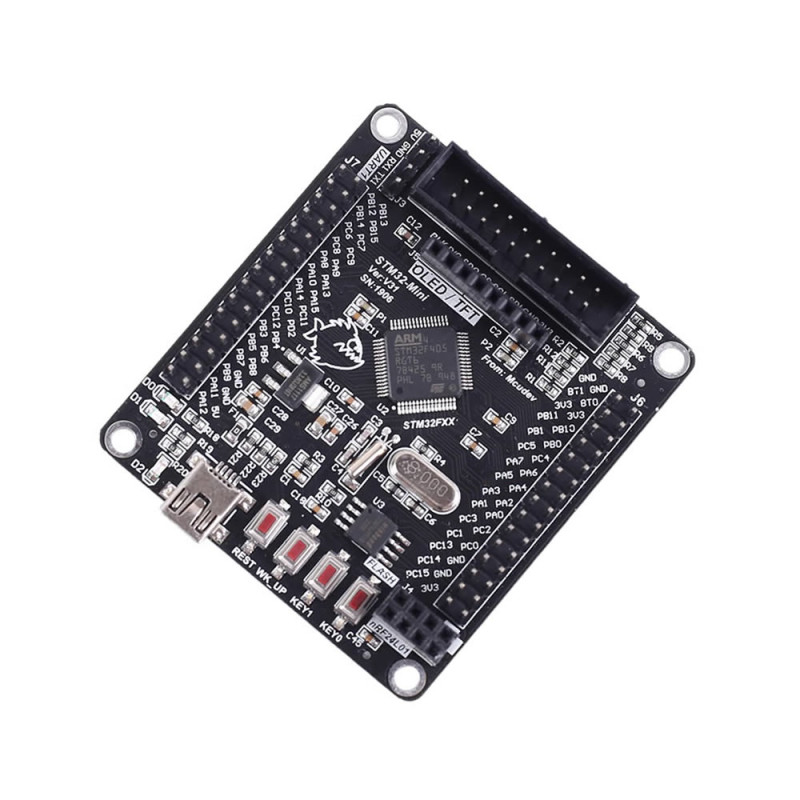

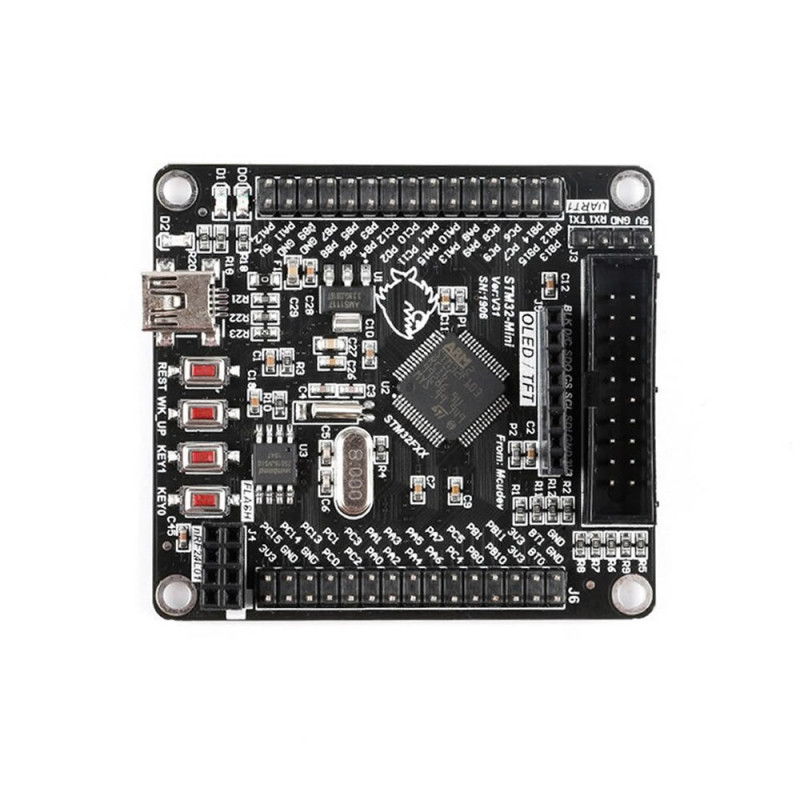

STM32F103RCT6 Development Board

STM32F103RCT6 Development Board

ARM STM32 STM32 32 Bit Arm Cortex M3  W25X16 2M Flash

There is no programmer on the product. If you do not have an external jtag programmer, you need to purchase that as well.

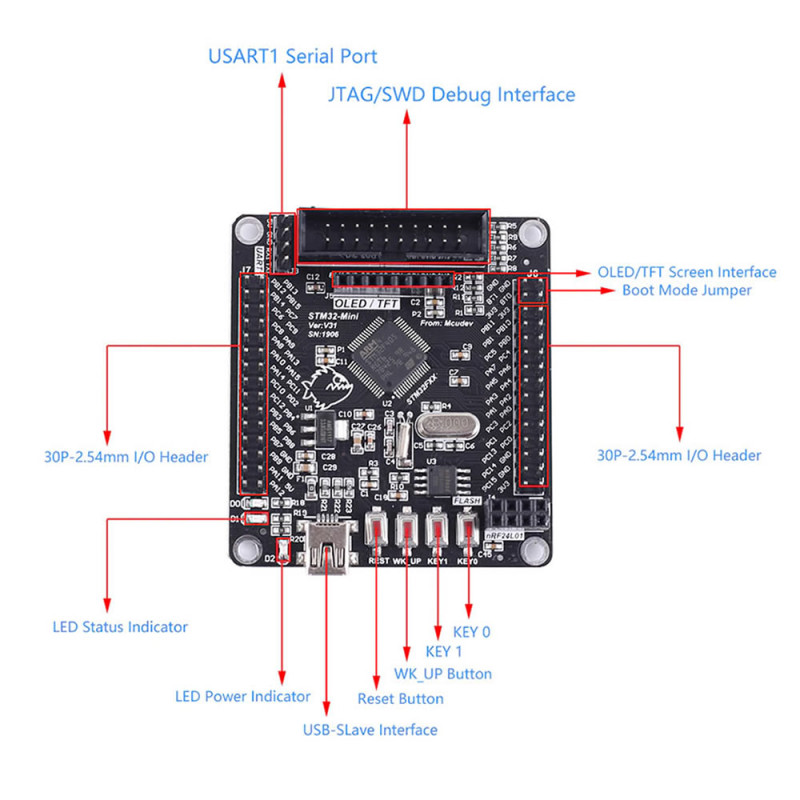

Features:

• STM32F103RCT6, TQFP64, FLASH: 256K, RAM: 48K
• SPI FLASH memory ic, W25X16  2M bytes
• OLED display port
• Mini USB communication socket. It can supply the system voltage.
• Boot mode jumper socket
• 32.768 crystal for RTC
• NRF24L01 2.4Ghz Wireless Communication Module Socket
• Reset button
• 3 Pieces user button
• Supply indicator led
• 2 indicator leds
• 8Mhz crystal
• LM1117-3.3V voltage step down ldo 3.3V 800mA
• 2 Pieces Output port 15 x 2
• Jtag programming debug port
• 4 Pieces 3.5mm Mounting hole

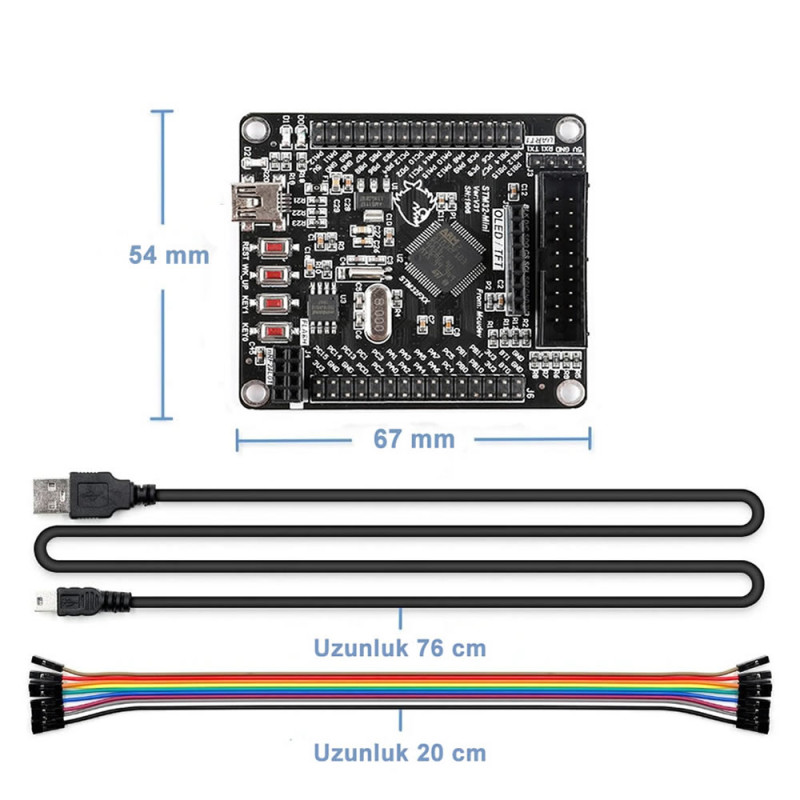

• Dimensions: 56x62mm

Package contents :

• 1 Piece STM32F103RCT6 Development Board.
• 10 Pin 20 Cm Female Female Dupont Cable
• 1 Piece Mini Usb Cable

.
