IR Receiver Transmitter Remote Control Set

IR Receiver Transmitter Remote Control Set
Infrared Wireless Remote Receiver Transmitter Ky-022 Receiver Television Satellite Receiver Air Conditioner Control 1838 IR Led HX1838

     The wireless infrared remote control set is an easy-to-use and functional product that you can use in various robotics and hobby applications. All the materials you may need are included in the kit. It is not affected by light and electromagnetic noise. It is widely used in devices such as televisions, satellite receivers, cd players, air conditioners and remote controlled toys.

     On the receiver side there is a module (Ky-022) with a 38 KHz 1838 type infrared receiver. In addition, it can also be used with different 38 KHz receivers if desired. The remote control has 17 buttons and all buttons are usable. Jumper cables with female ends on both sides are also included in the package so that you can make the circuit connection.

     Communication can be achieved up to 8 meters in open areas. The receiver has a viewing angle of 60 degrees. This remote control set can be used with many microcontroller platforms, primarily Arduino.

Remote control features:

•     Operating frequency: 38 KHz
•     Number of buttons: 17
•     Distance: 8 meters
•     Viewing angle: 60 Degrees

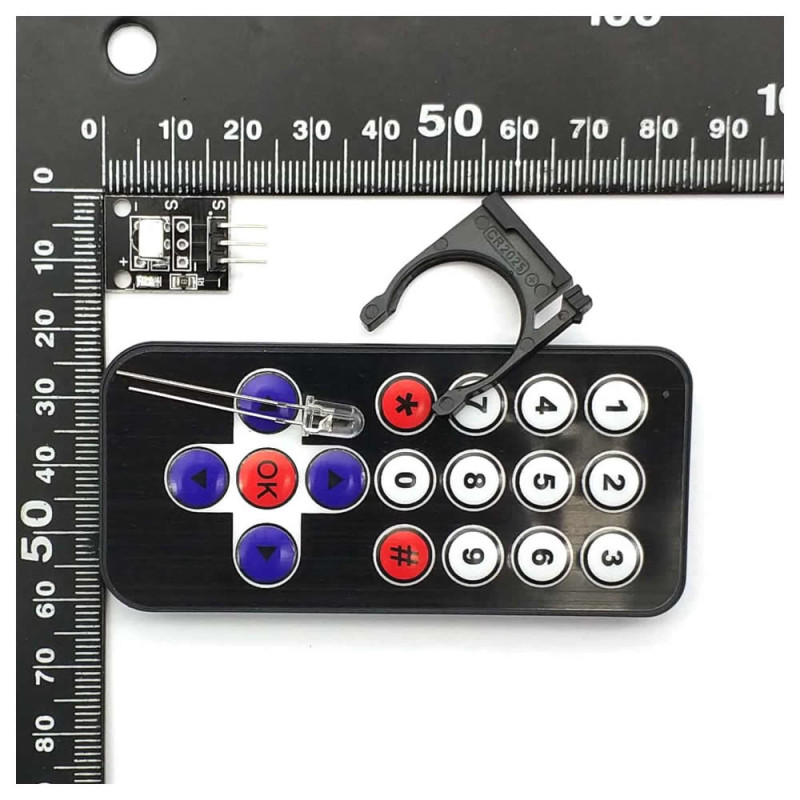

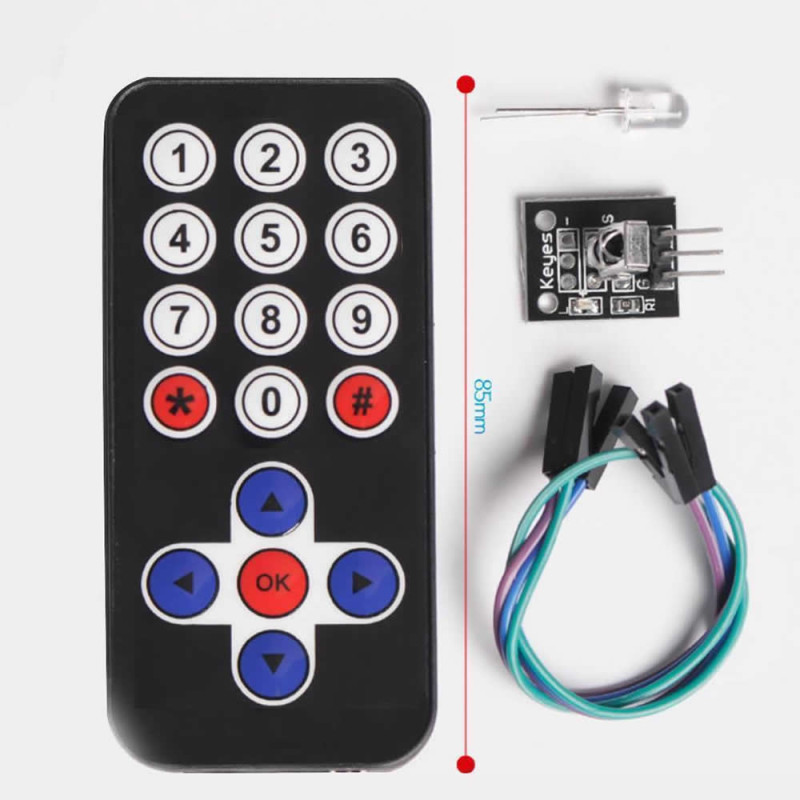

•     Dimensions: 8.5cm x 4cm x 0.65cm

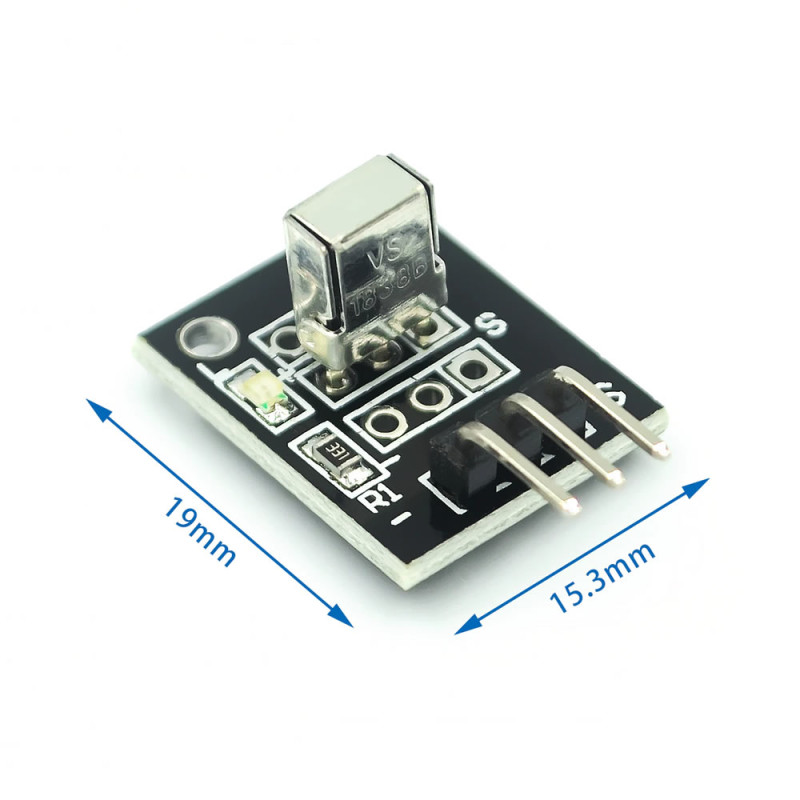

Ky-022 features:

•     Operating Voltage: 2.7 to 5.5V
•     Frequency: 37.9KHz
•     Detection distance: 18m
•     Detection angle: 90 Degrees
•     Dimensions: 6.4mm x 7.4mm x 5.1mm

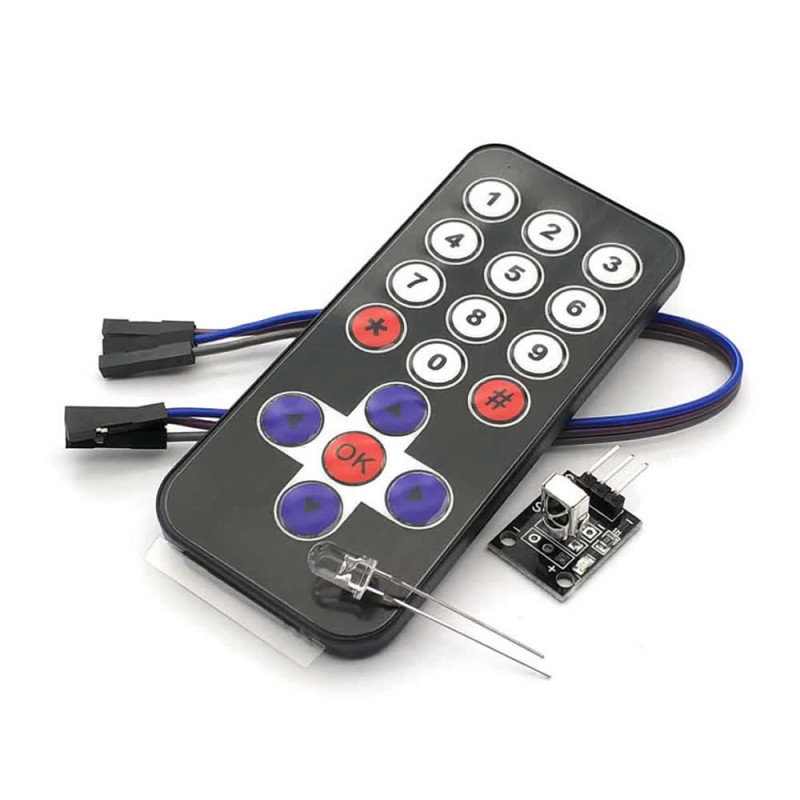

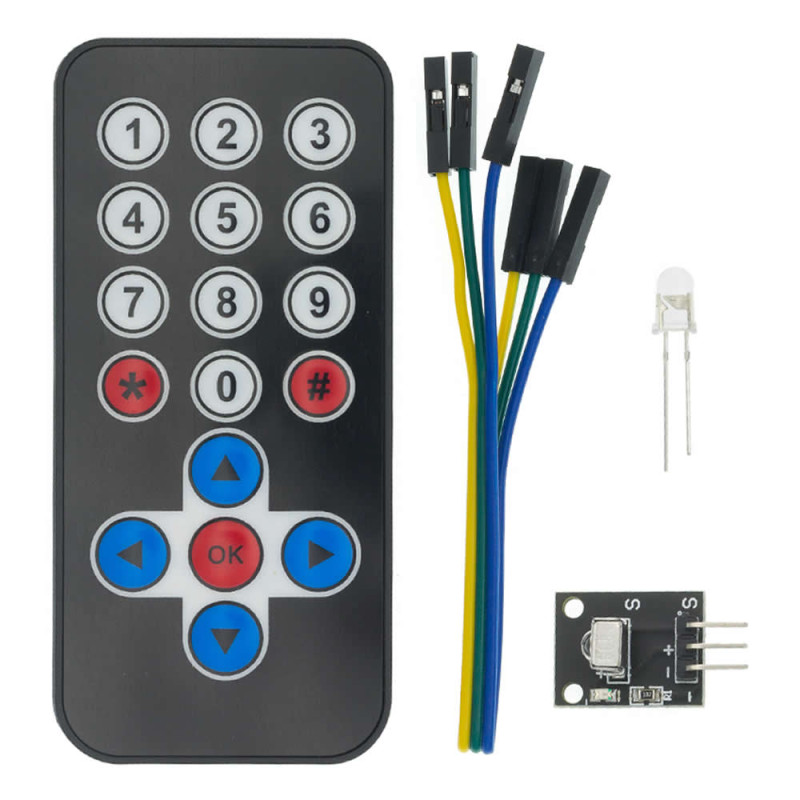

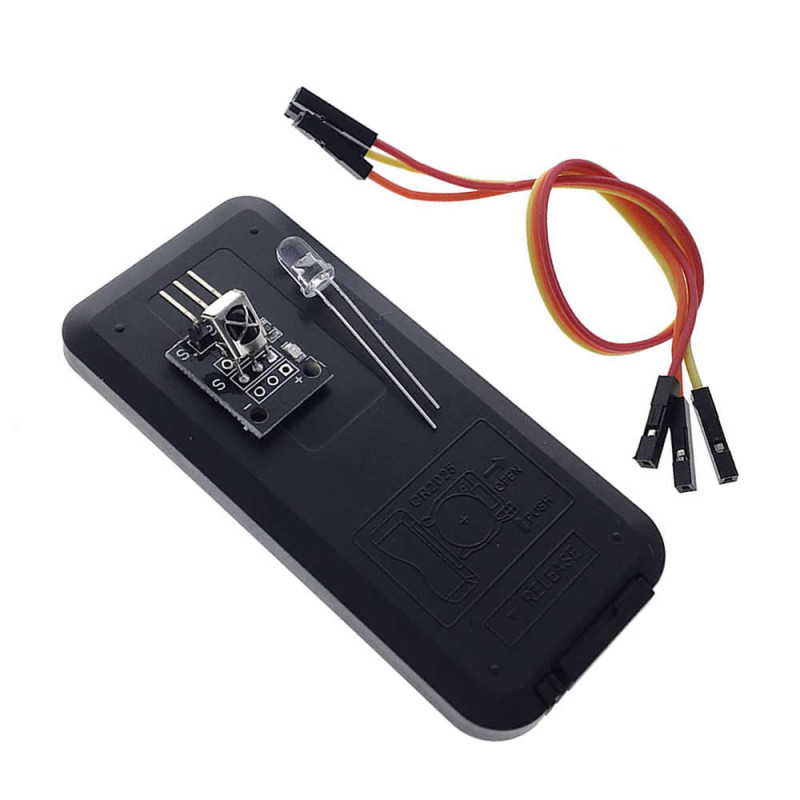

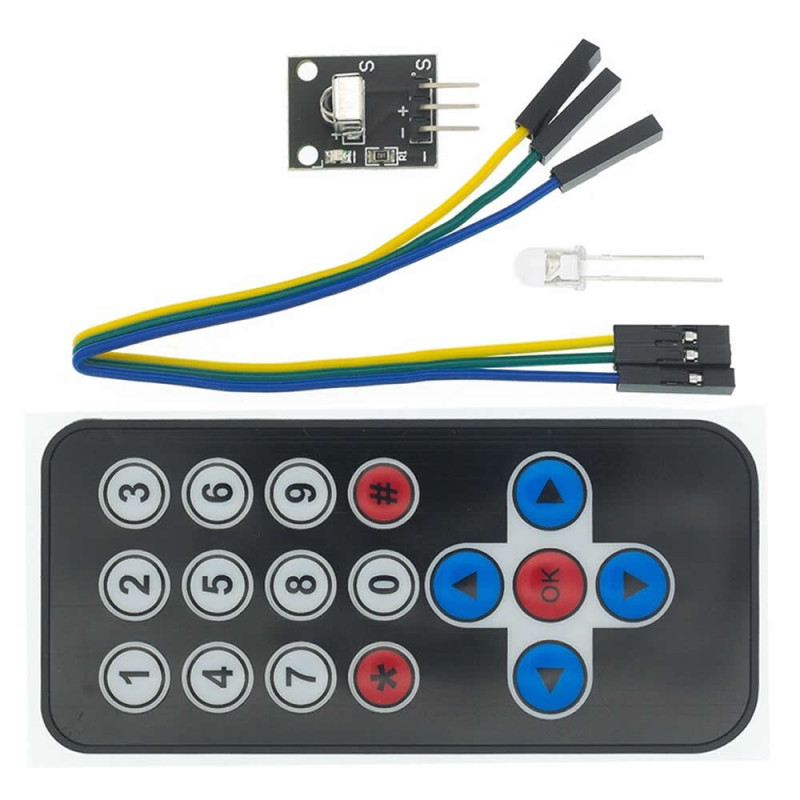

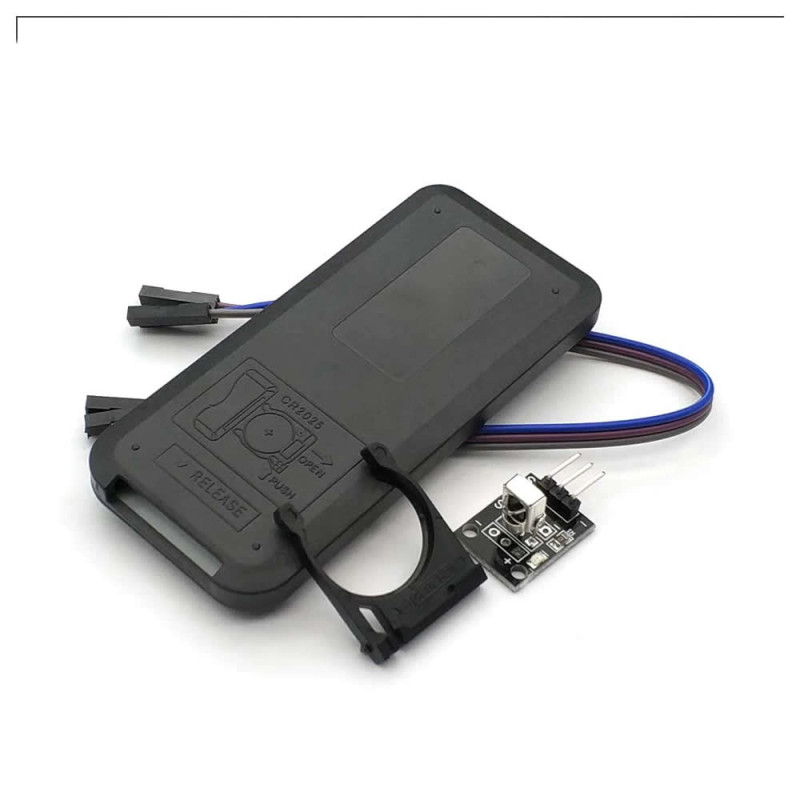

Package Contents:

•     17 button remote control ( Battery not included )
•     1838B IR receiver led
•     1838B IR receiver sensor board Ky-022
•     3 Pin female female dupont cable

.
