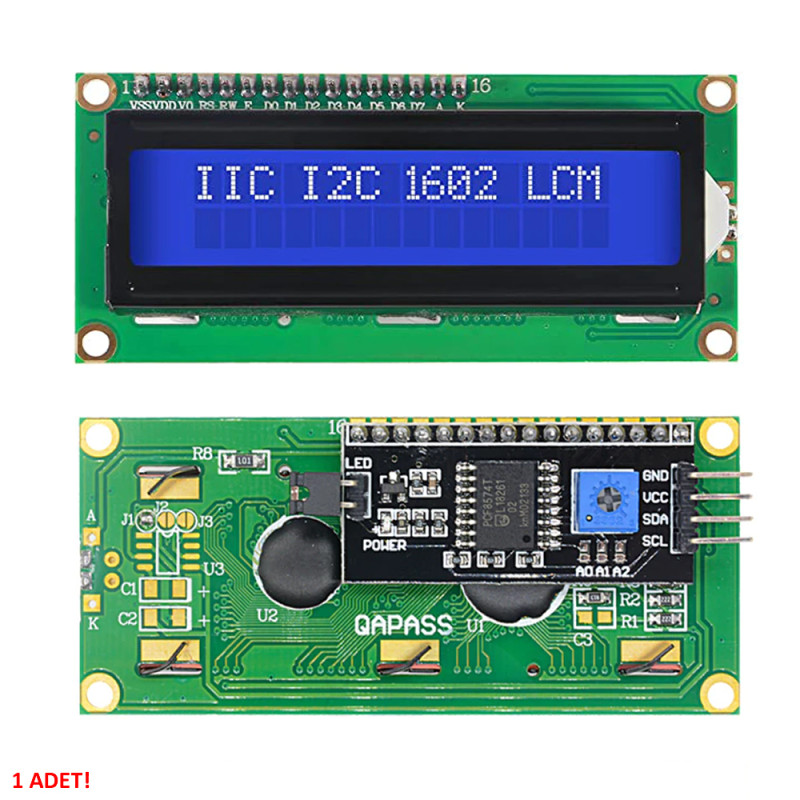

I2C 1602A Blue Lcd

IIC I2C Serial 1602A 2x16 Blue Character LCD Module

Display Screen 5V White Backlight 16X2 16 X 2 Standard Top Left Lcd Indicator Contrast Pot

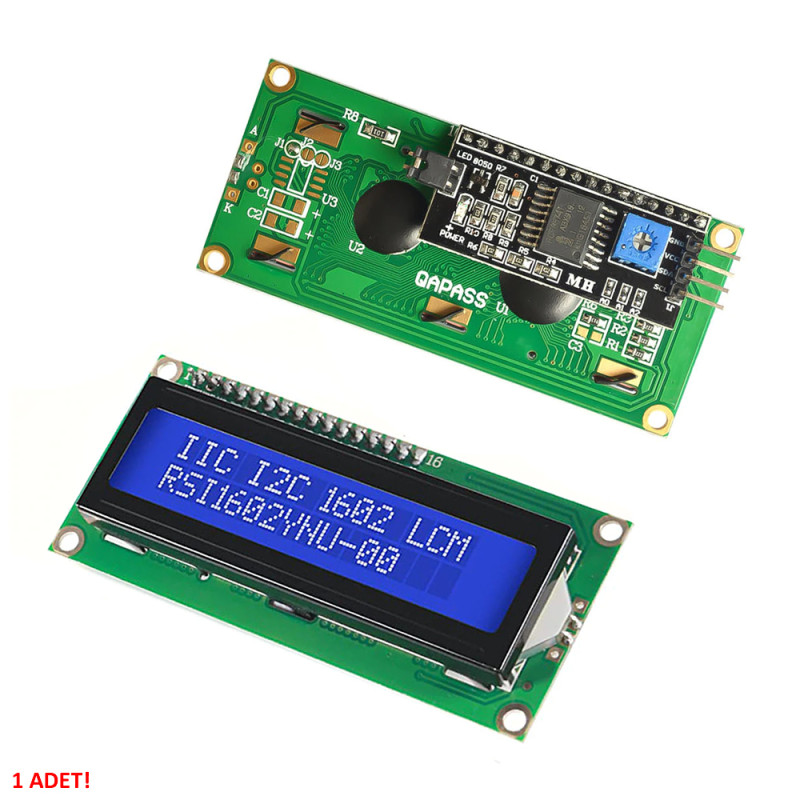

     Standard top left socket 2 line 16 character blue lcd module. Communication is established with the I2C serial communication interface. Thus the lcd is used with only 2 pins. The pins that would be used for the lcd become available for different operations.

     It is widely used in various electronic circuits, machines and projects. It serves the function of displaying text in circuits. You can easily show information, menu or guidance texts to users.

Features:

• 2x16 character lcd
• Model: 1602A
• Operating voltage: DC 5V
• 16 characters 2 lines
• Communication: IIC
• I2C address:  0x27 / 0x38 / 0x3F  PCF8574A
• Contrast adjustment pot
• Color: Blue
• White backlight ( can be controlled with jumper or software )
• Viewing angle: 6 degrees
• Driver IC: HD44780 compatible ( AIP31066, HD44780, KS0066, SPLC780, ST7066 )
• Interface: IIC
• Operating temperature:  -20C  /  70C
• 4 pin communication and power socket
• 4 mounting holes

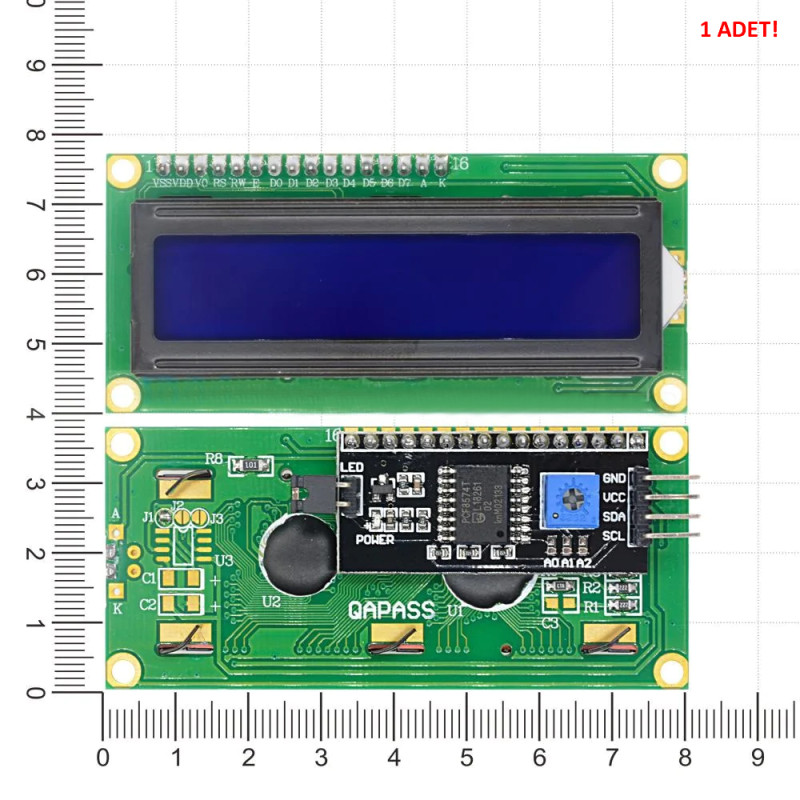

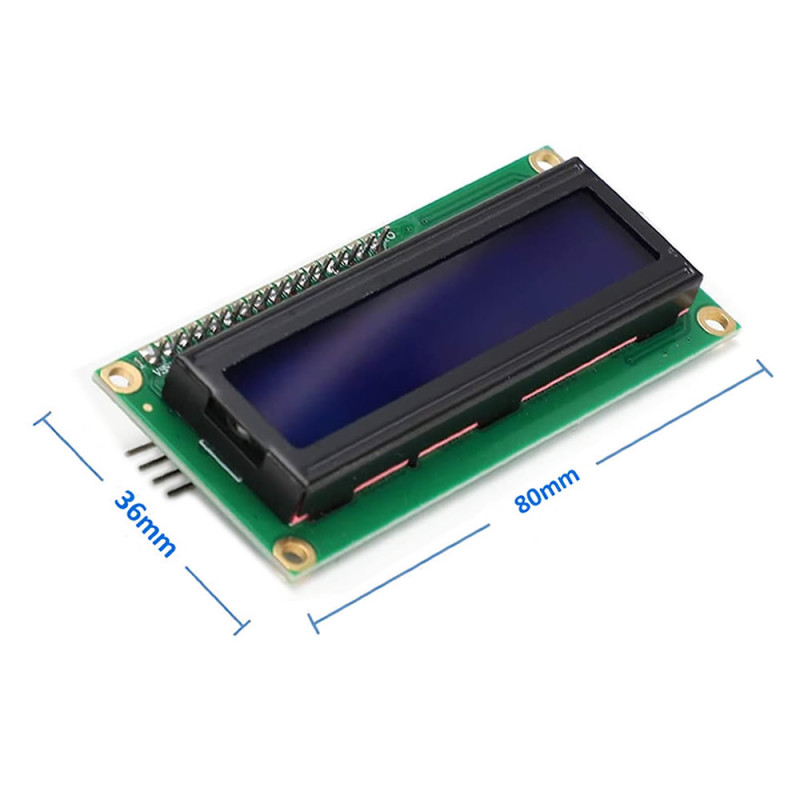

• Dimensions:  36mm x 80mm
• Weight:  36gr

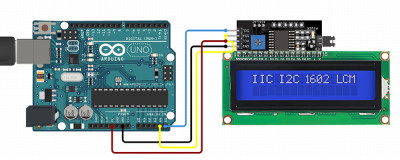

Pin connection:

• VCC: Supply 5V pin
• GND: Supply ground pin
• SDA: I2C data pin
• SCL: I2C clock pin

Package contents:

• 1 pcs I2C 1602A Blue Lcd

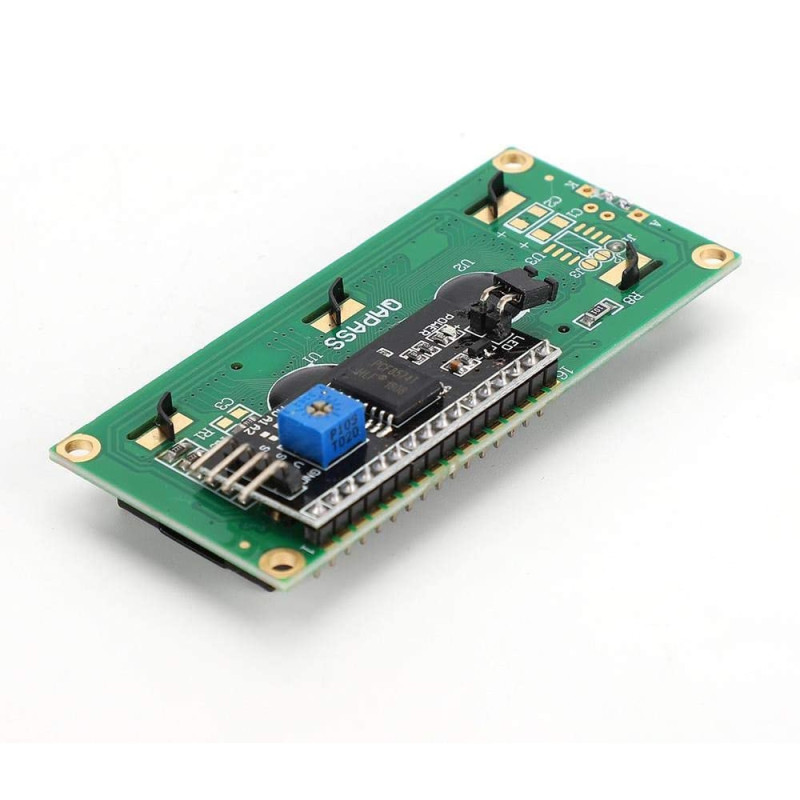

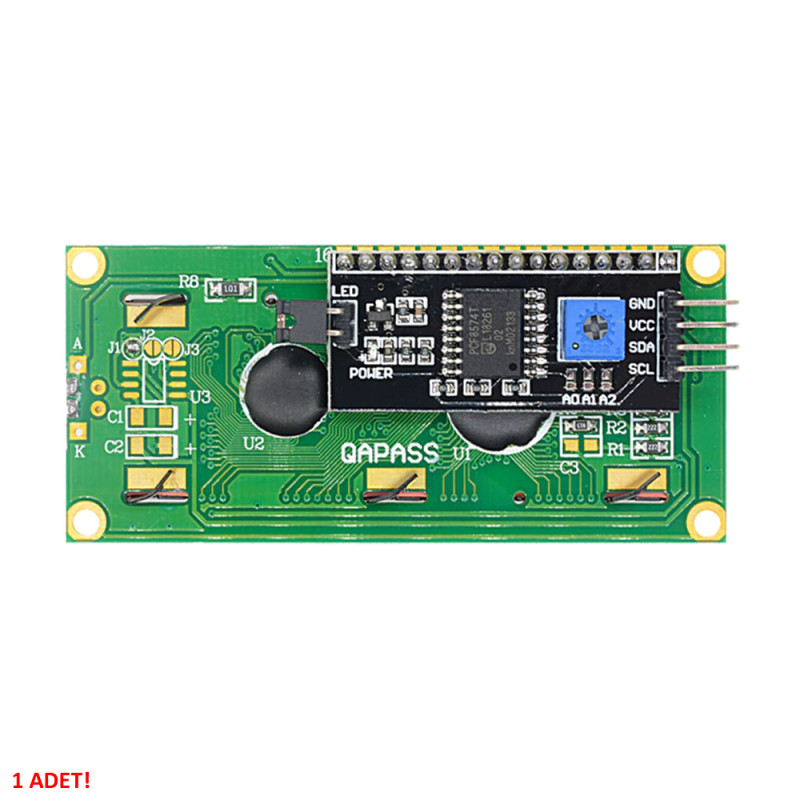

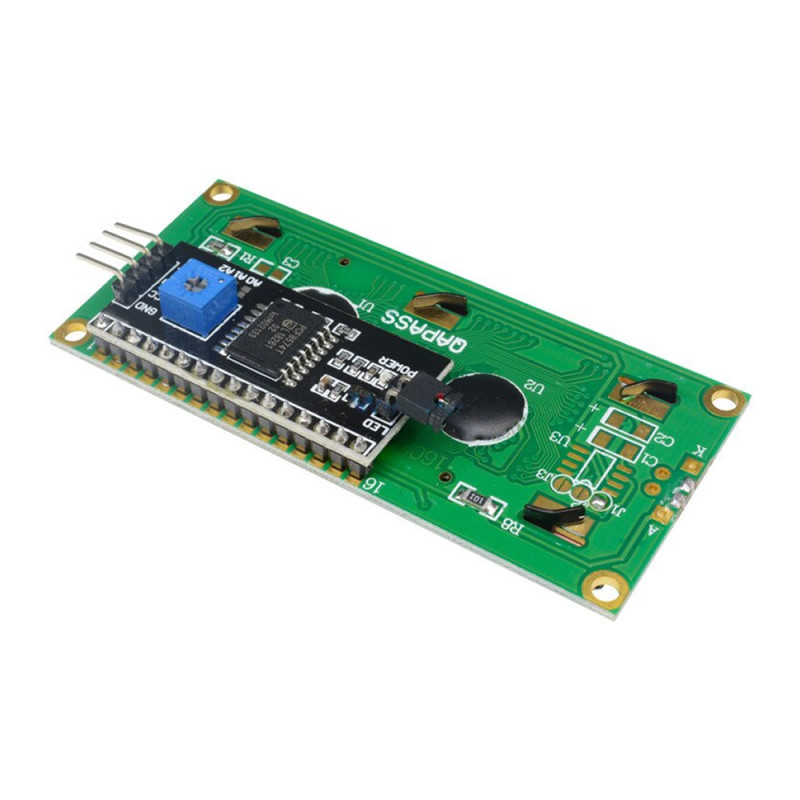

•  IIC serial communication module ( soldered to the board )

.
