4 Channel Logic Level Converter

4 Channel 2 Way Logic Level Converter

5V 3.3V Signal Adapter IIC I2C SPI UART Bi-Directional Converter

     Communication between systems operating at different voltage levels can damage the circuits. To prevent this, the levels of the signals between the 2 systems must be brought to their own system voltages. This board performs the required adaptation.

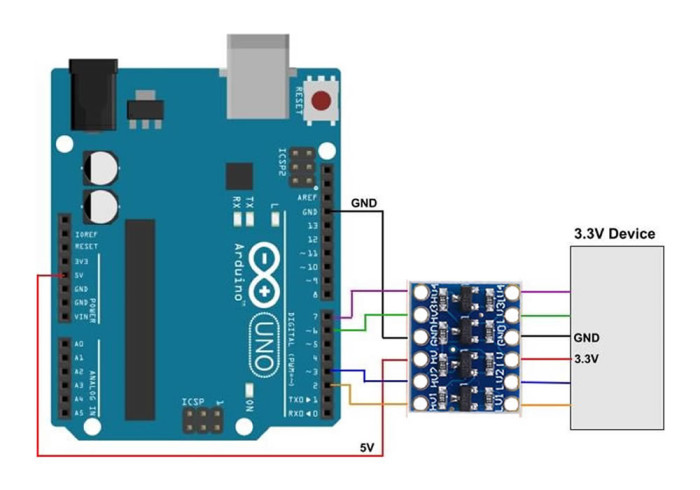

     It can perform 4 channel 2 way communication. It can work with many communication protocols such as spi i2c uart io etc. For example, communication is established between an arduino circuit operating at 5V and a sensor, kit etc. operating at 3.3V by using logic level converters. The connection is made through the 6 pin empty headers on the 2 edges.

Features:

•  Model: Signal level converter
•  Number of channels: 4
•  Direction: 2 way bidirectional
•  Input voltage range:  DC 1.8V  / 5.5V
•  Output voltage range:  DC 1.8V  / 5.5V
•  Operating current: 50ma max. per channel
•  Usable protocols: IIC, SPI, UART, IO
•  Color: Blue
•  6 pin empty header connection socket on 2 edges
•  Operating temperature:  -10C  /  85C

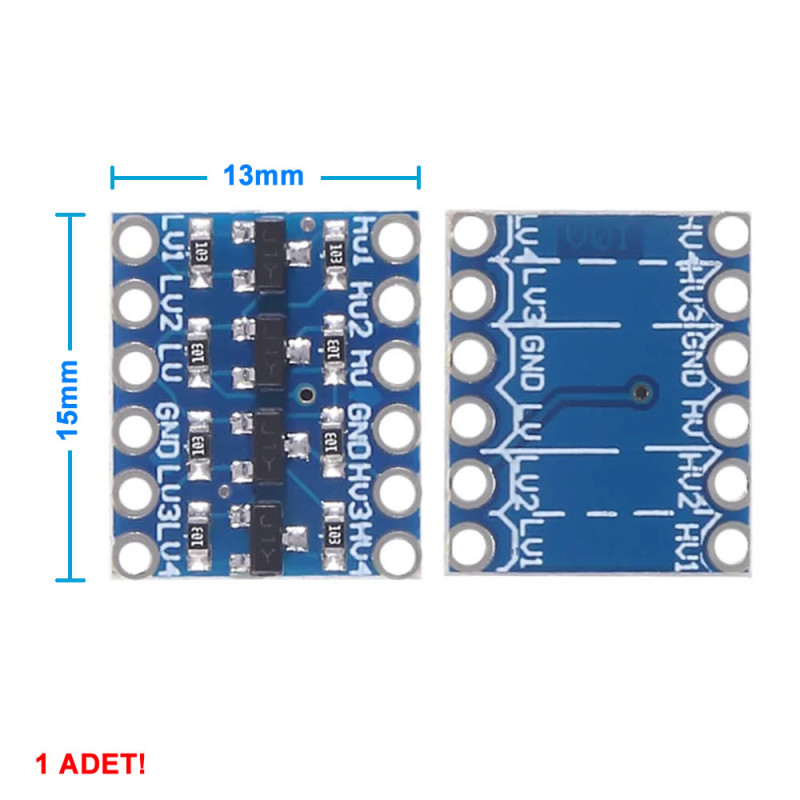

•  Dimensions: 13mm x 15mm
•  Weight:  2gr

Package Contents:

•   1 pcs 4 Channel Logic Level Converter
•   12 Pin male header

.
