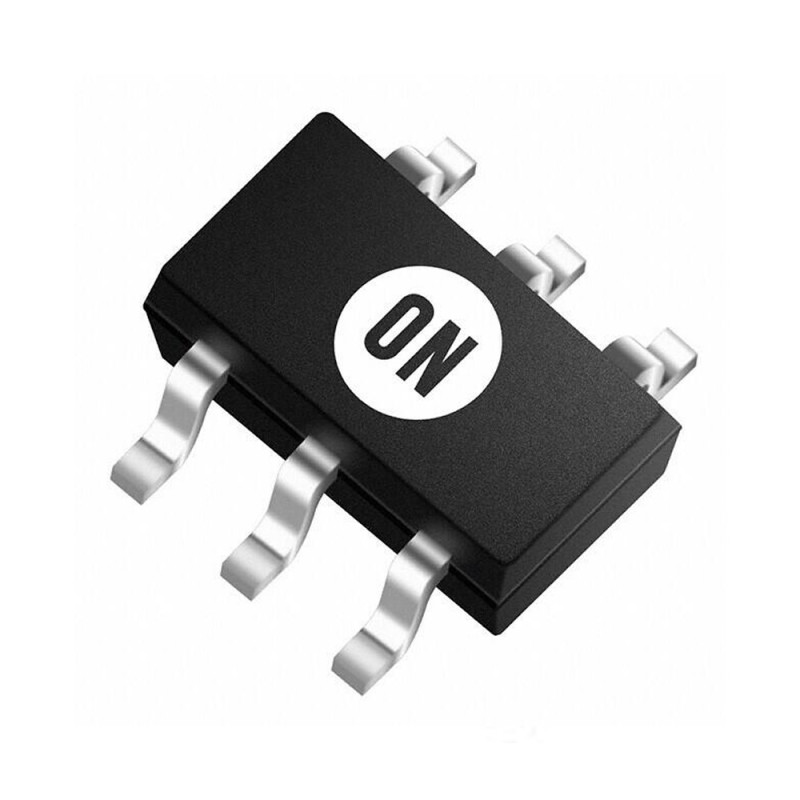

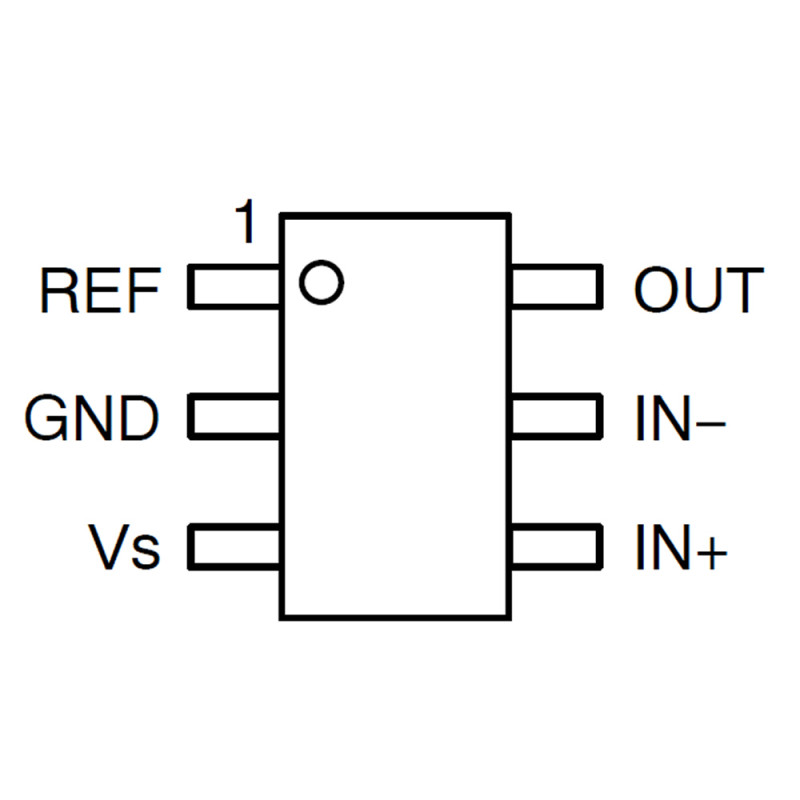

NCS214RSQT2G Current Sense Amplifier

NCS214RSQT2G Current Sense Amplifier

26V Low-/High-Side Voltage Out Bidirectional Current Shunt Monitor 1 Circuit Rail to Rail SC-88 SC70-6 SOT-363

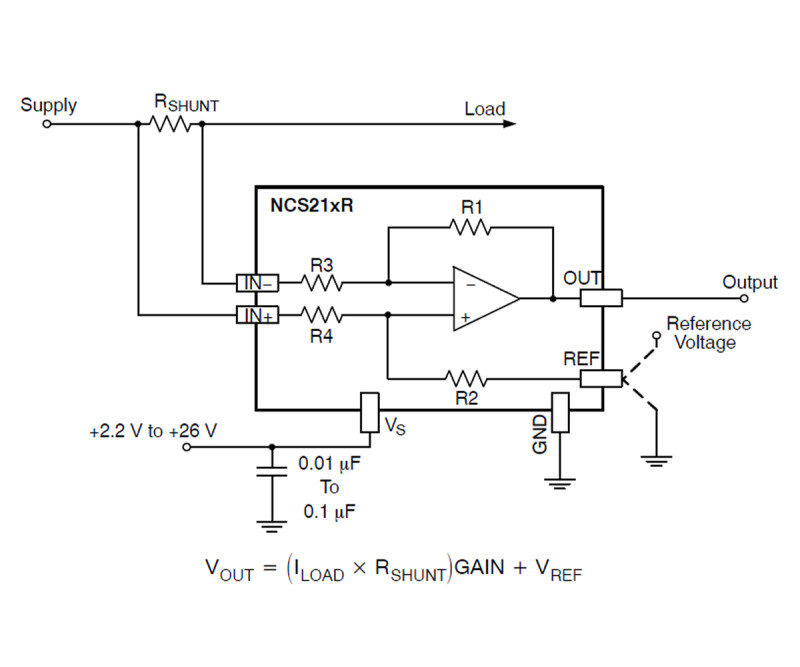

    The NCS214R and NCV214R (AEC- Q100 qualified) are voltage output, current sense amplifiers that can measure voltage across shunts at common-mode voltages from -0.3V to 26V, independent of supply voltage. With a fixed gain of 100V/V, the low offset of the zero-drift architecture enables current sensing across the shunt with maximum voltage drops as low as 10mV full-scale. These devices can operate from a single +2.2V to +26V power supply, drawing a maximum of 80uA of supply current. Available in SC70-6 and UQFN10 packages. Additional gain options are available: NCS213R (50V/V), NCS210R (200V/V), NCS211R (500V/V)

Features:

•     Wide Common Mode Input Range: -0.3 to 26V
•     Low Offset Voltage: +/-100uV max.
•     Low Offset Drift: 0.5uV/C max.
•     Supply Voltage: 2.2 to 26V
•     Amplifier Type: Current Sense
•     Number of Circuits:  1
•     Output Type:   Rail-to-Rail
•     Slew Rate:   1V/us
•     -3db Bandwidth:  60kHz
•     Current - Input Bias:   39uA
•     Voltage - Input Offset:  1uV
•     Current - Supply: 40uA
•     Voltage - Supply Span (Min):   2.2V
•     Voltage - Supply Span (Max): 26V
•     Operating Temperature:  -40C / 125C (TA)
•     Mounting Type: Surface Mount

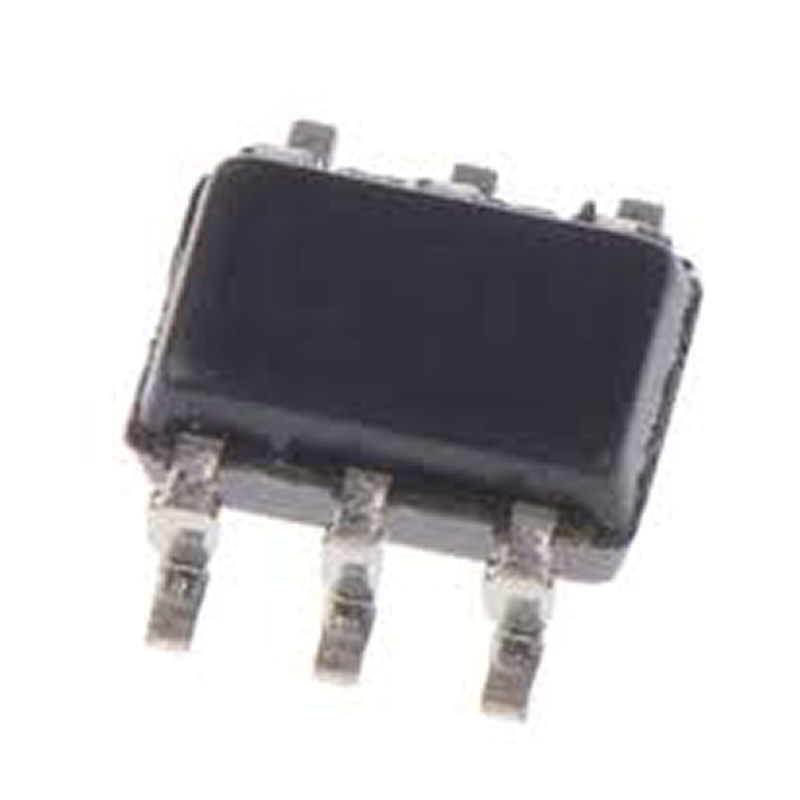

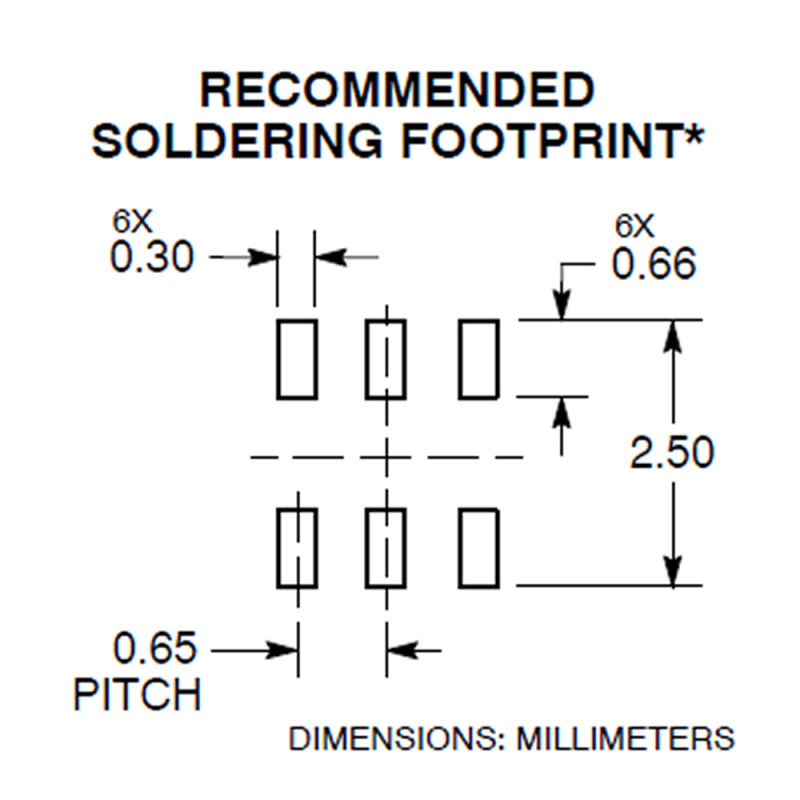

•     Package / Case   6-TSSOP, SC-88, SOT-363
•     Supplier Device Package   SC-88/SC70-6/SOT-363

Applications

•     Power Monitoring
•     Power Adapters
•     LED Power Supply
•     Over Current Protection
•     Automotive
•     Closed Loop Feedback Circuits

End Products

•     White Goods
•     Automotive
•     Lighting
•     Laptop/Notebooks PC
•     Fast Chargers in Smartphones and Tablets
•     Telecom DC-DC Modules
•     E-Cigarettes
•     Computing Servers

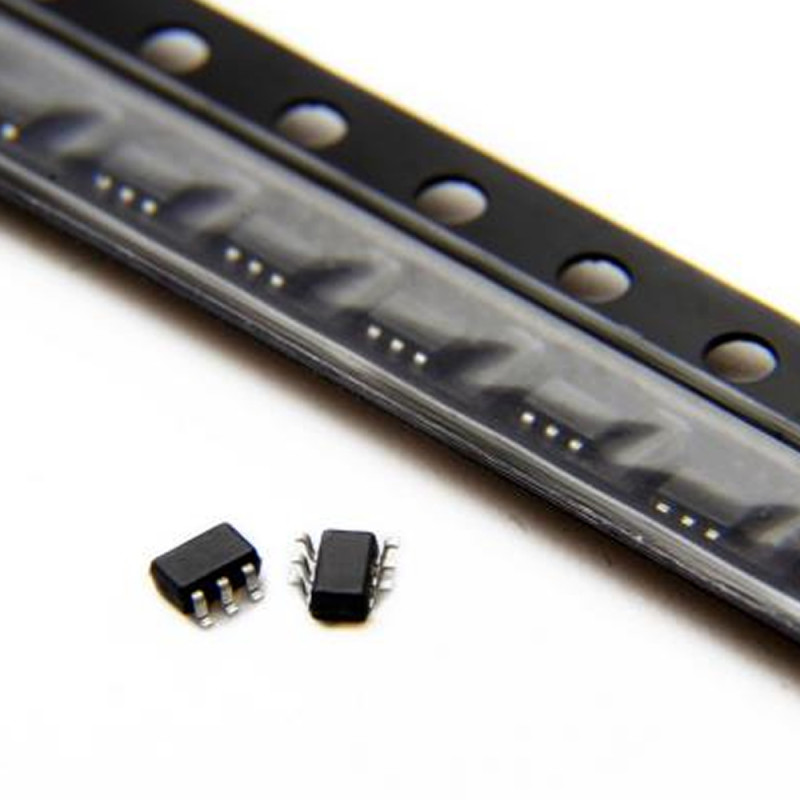

Package Contents:

• 1 Piece NCS214RSQT2G Current Sense Amplifier

.
