CA-255S Led Driver Module

CA255S Lcd Driver Board

Led Tv Television Constant Current Backlight DC 24V 10”/48” Screen Switch Voltage Booster Inverter Power Module Backlight

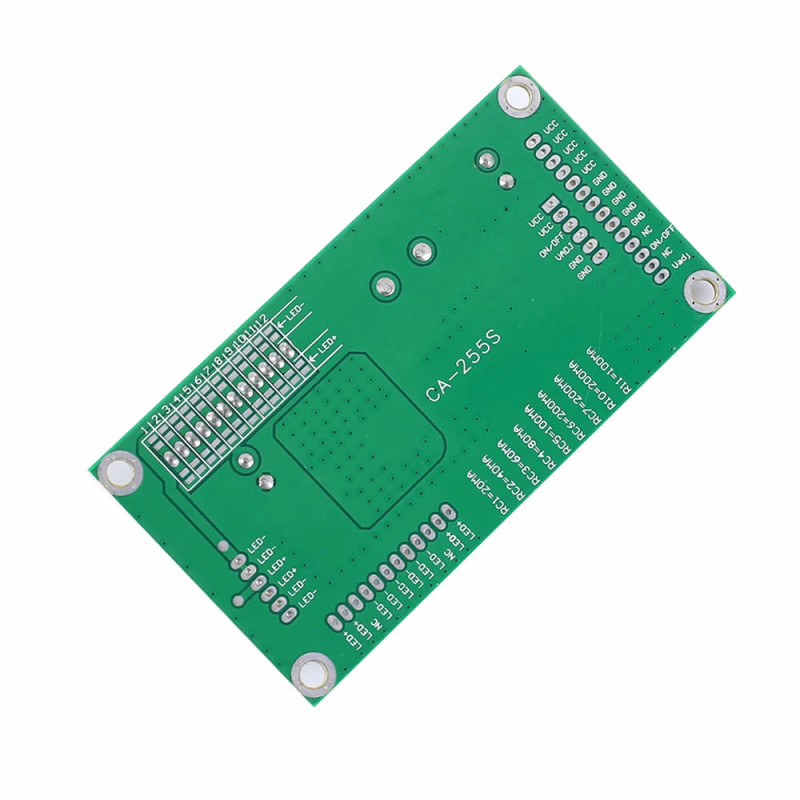

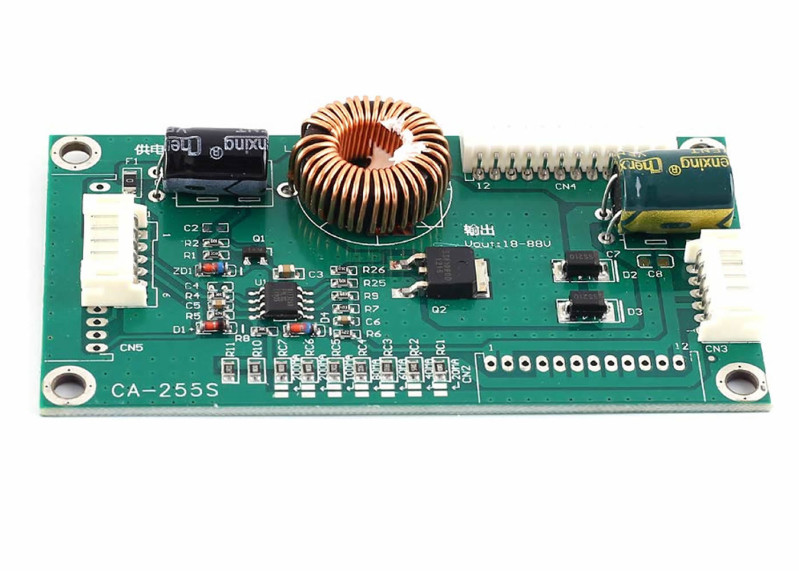

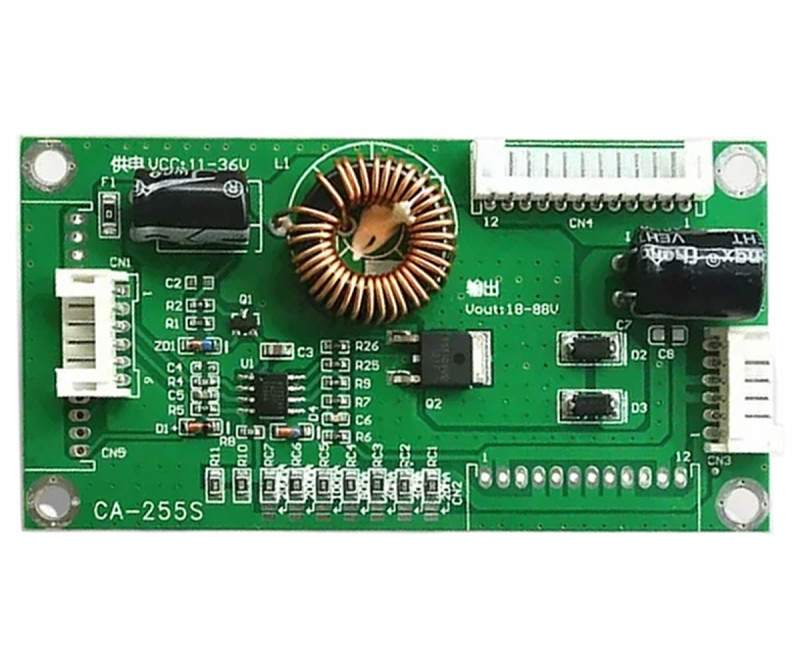

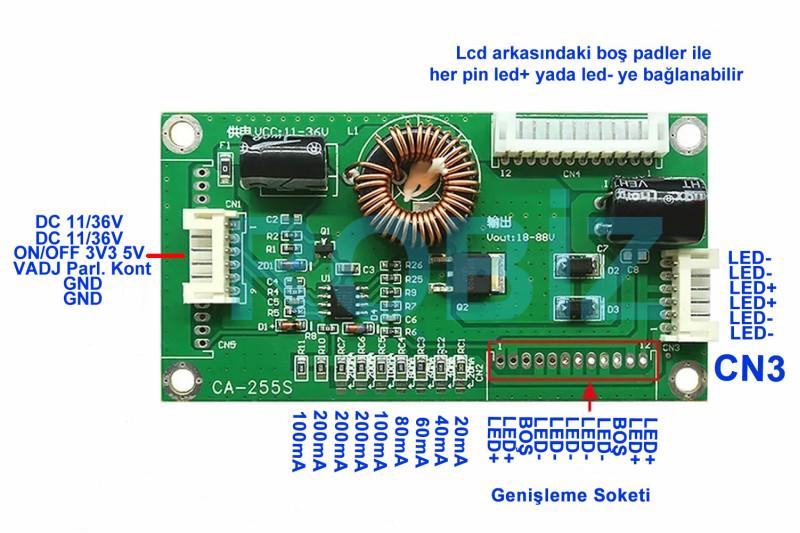

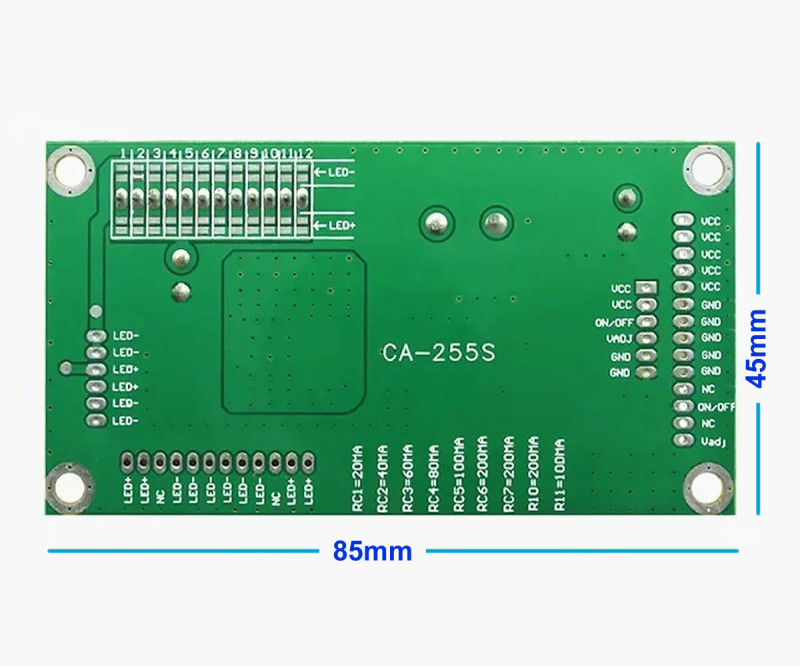

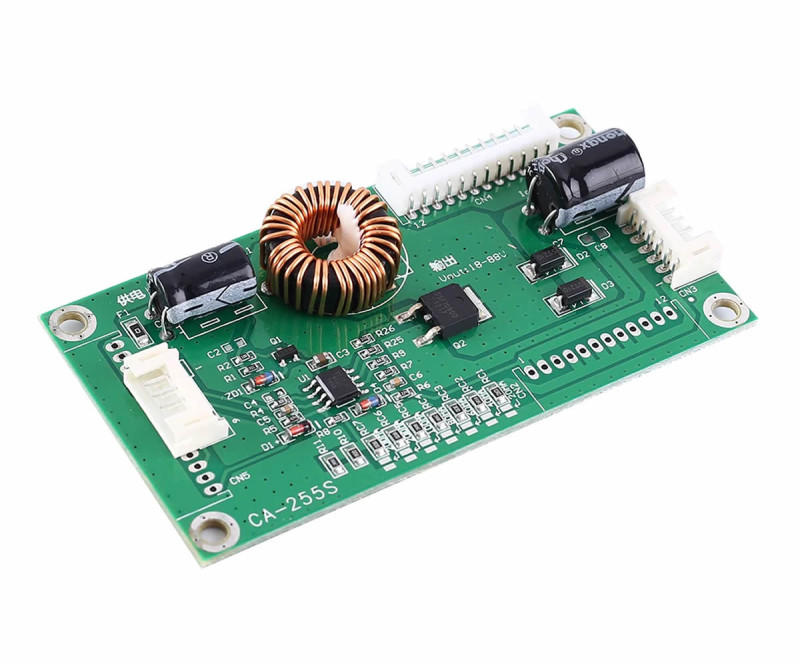

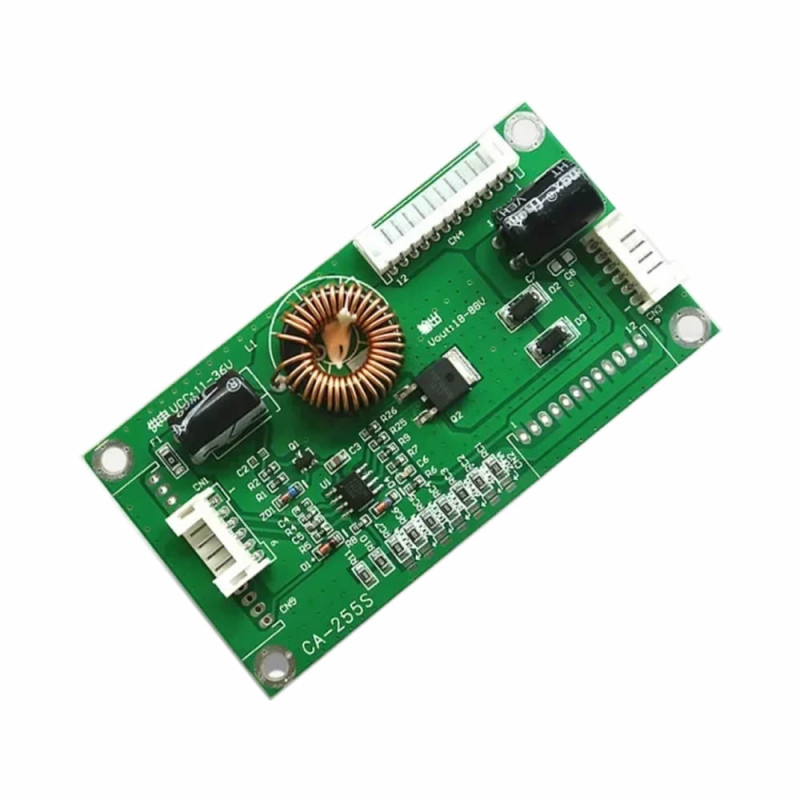

     It is the driver board of the led circuits used for Lcd backlighting. It has a wide area of use.  Input voltage up to DC 36V can be applied. There is a flexible design on the board. There are 3 different sockets for the Lcd supply output. The CN3 socket can be connected directly to suitable lcds. In the lower right section there are lcd+ and lcd- outputs without a socket. On the CN4 in the upper right section, each pin can be set separately as lcd+ and lcd-. In the lower left section there is the current adjustment section. By completing the appropriate led solder here, the constant current selection to go to the board is made. From the left socket there are supply and control input sockets.

Features:

•  CA255S lcd driver board
•  Lcd dimensions:  10 / 48 inch lcds
•  Input voltage:   DC 11V /  36V
•  Output voltage:  DC 15V / 85V  Automatically adjusted
•  Output current:   20ma / 1000mA  Current selectable
•  Wide operating voltage range
•  High performance
•  Low power consumption
•  Color: Green
•  Operating temperature:  -20C   /  85C
•  4 Pieces mounting hole

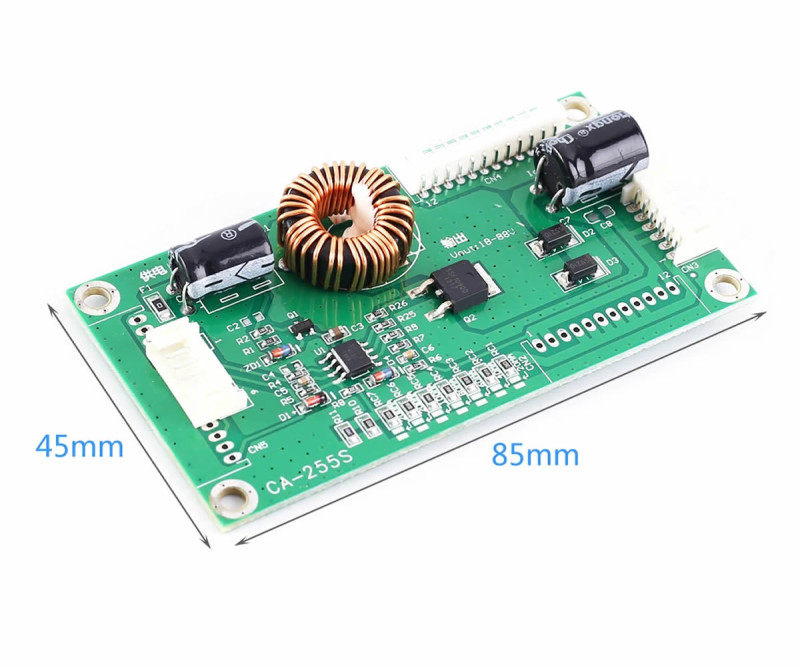

•  Dimensions:  45mm x 85mm
•  Weight:  24gr

Package contents:

• 1 Piece CA-255S Led Driver Module
