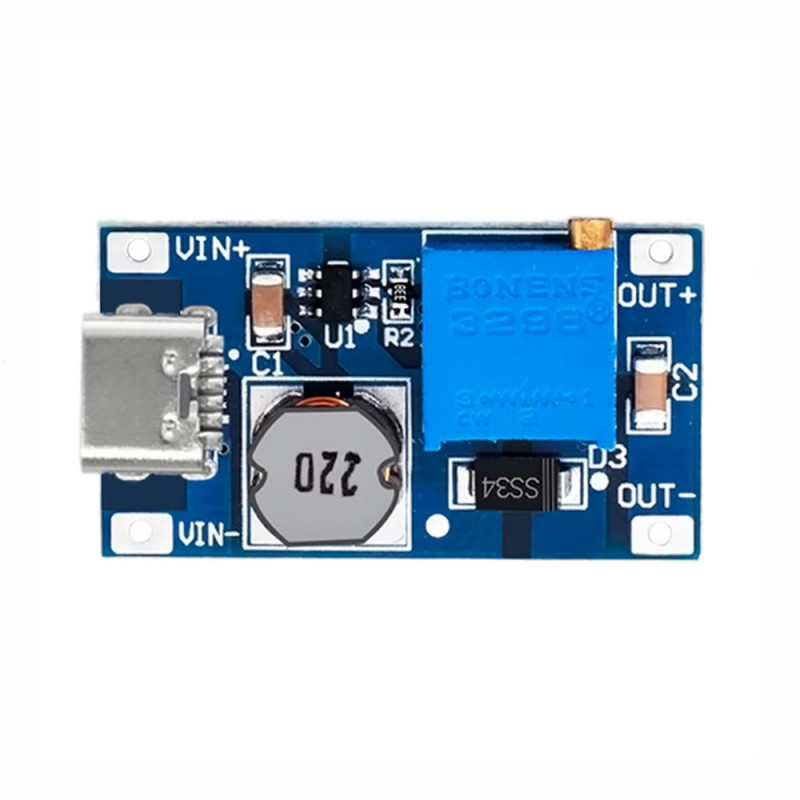

MT3608 Type C Boost Module

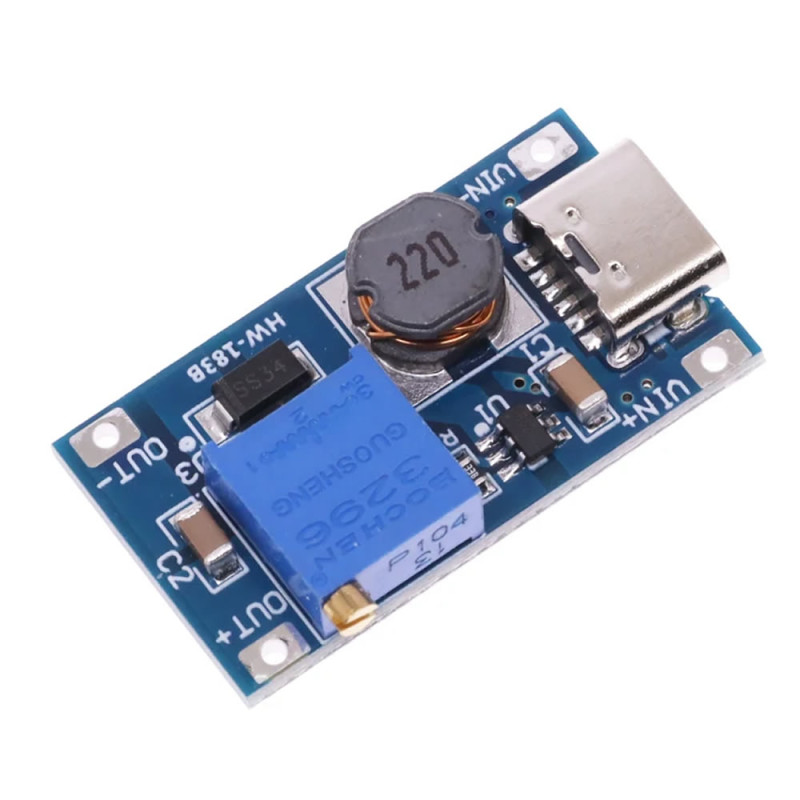

MT3608 Type C Usb 28V 2A DC Boost Module

Adjustable Voltage Booster Power Supply Step Up Dc Converter

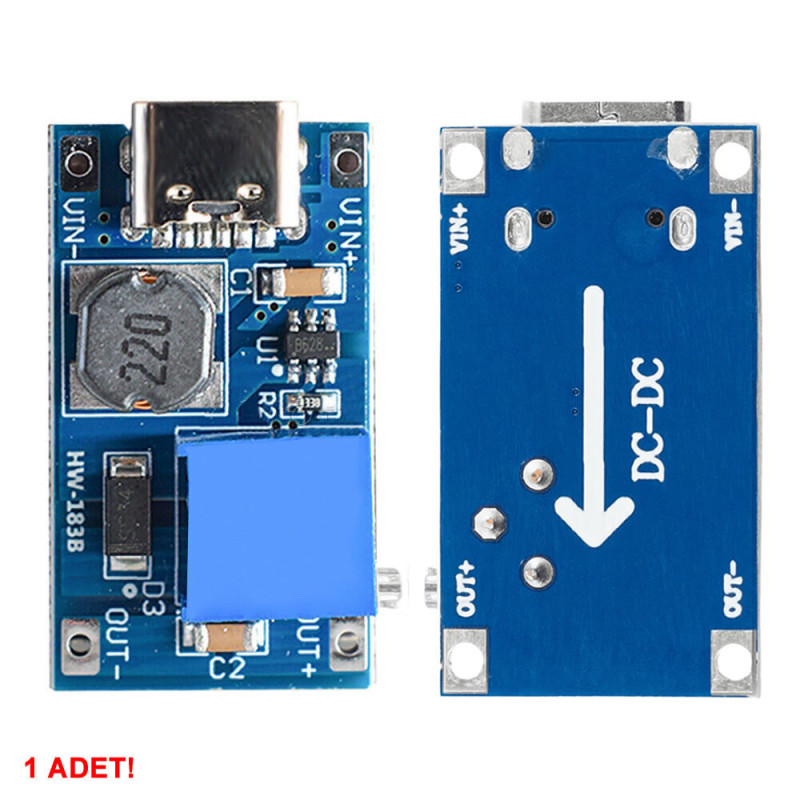

     It is a voltage booster module made with the Mt3608 integrated circuit. It is low cost and high efficiency. It can provide output current up to 2 amperes. It can also be powered through the Type C usb socket located at its input. In this way, you can adjust the 5V usb voltage as 28V output. It is important that the voltage is not applied in reverse. If the input voltage is applied in reverse, the product will be damaged. After turning the multi turn potentiometer 15-20 turns counterclockwise, you can see that the output voltage rises.

     Connect the product with crocodile cables without soldering, paying attention to the direction of the input voltage. The potentiometer on the product is multi turn. Turn it 20 full turns counterclockwise. Then you will see that the voltage can be adjusted. After you see that the voltage boosting operation is successful, you can use it by mounting it with soldering etc. operations in the application you want.

Features:

• Integrated circuit: MT3608
• Input voltage: Dc 2V / 24V
• Output current: 2A  Maximum ( It should be used at 1A current levels in continuous use )
• Output voltage: Dc 5V / 28V    Adjustable  Maximum

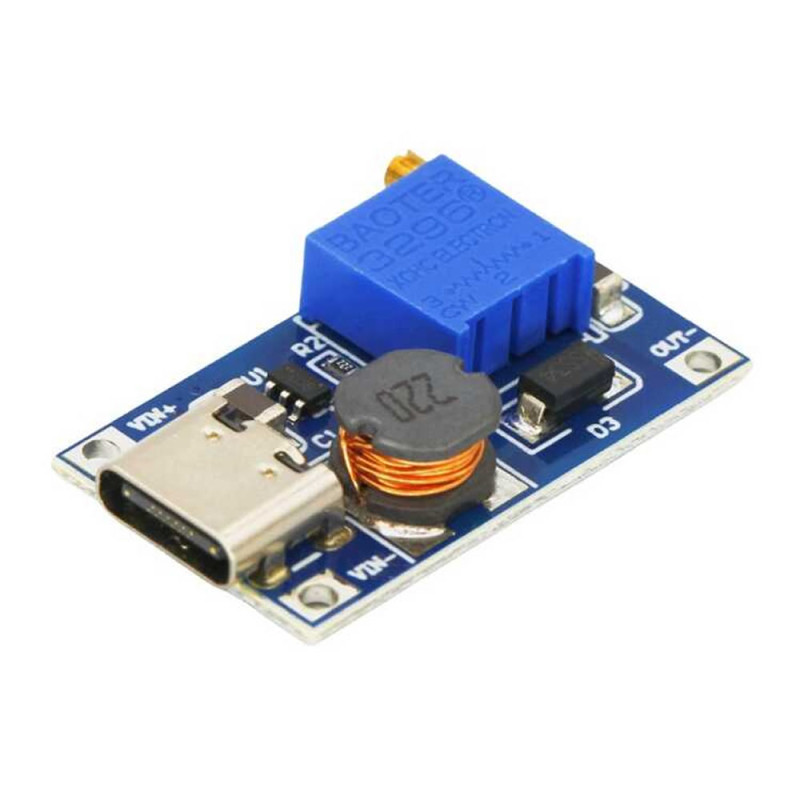

• Input socket: Usb type c voltage

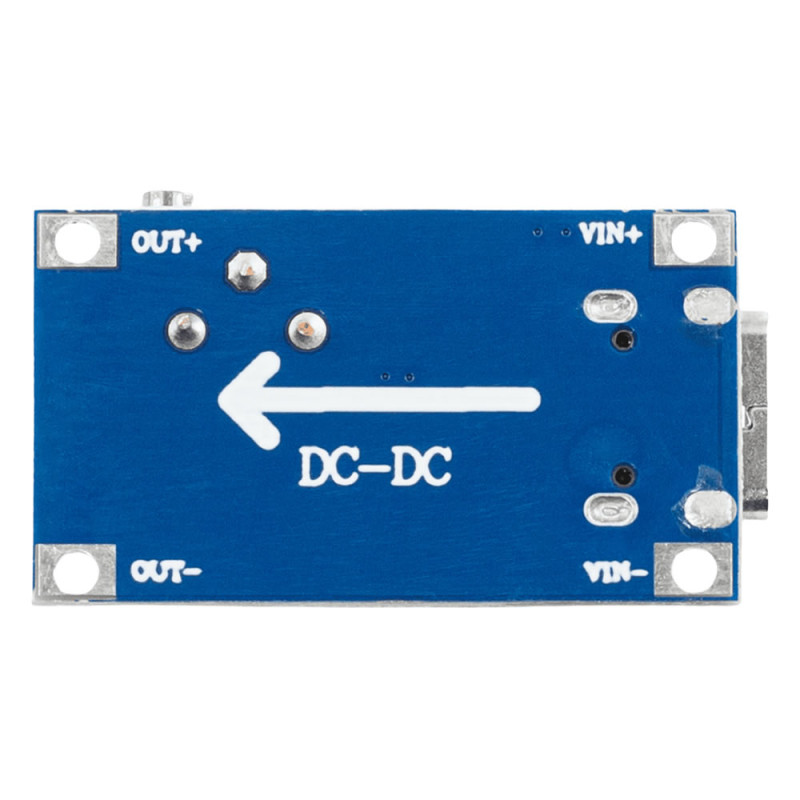

• 2 pin empty power pad
• Voltage adjustment potentiometer
• Efficiency: 93%
• Operating temperature:  -20C  /  65C
• Color: Blue

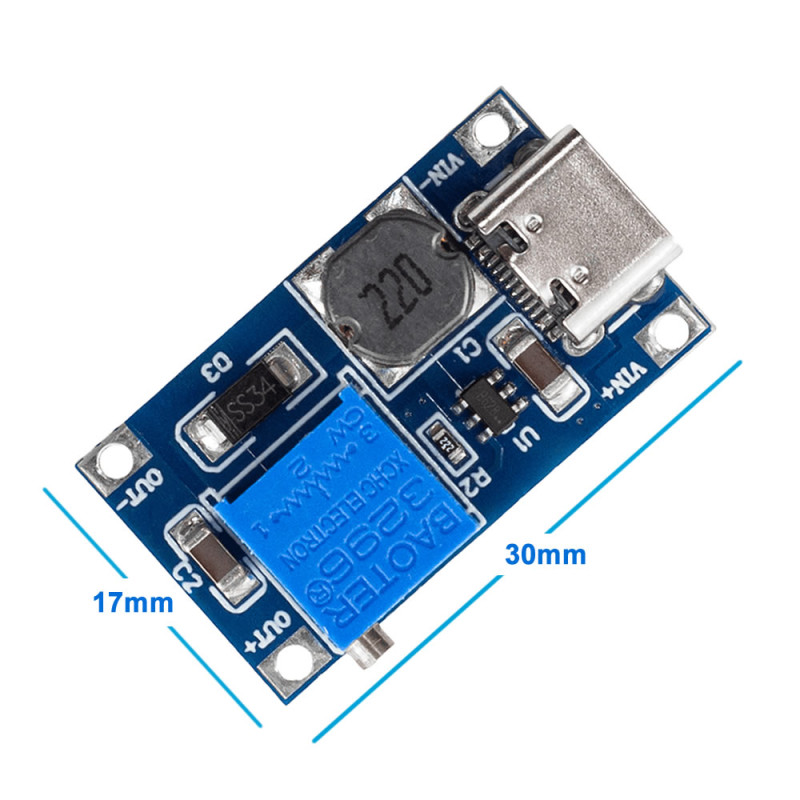

• Dimensions:  17mm x 30mm
• Weight:   4.5gr

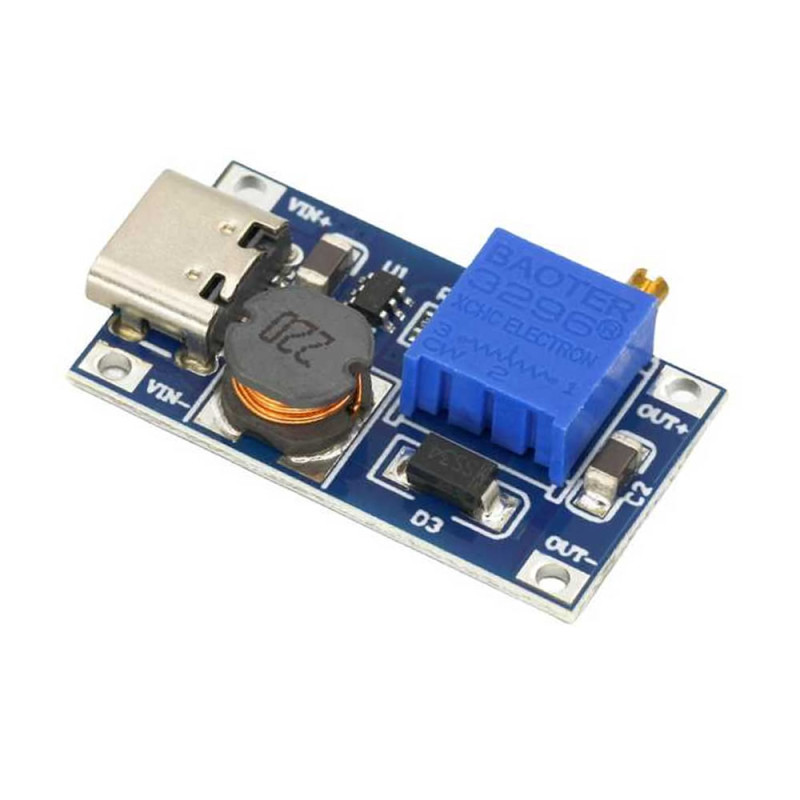

Potentiometer use:

•  The potentiometer on the product is multi turn. Turn it 20 full turns counterclockwise. Then you will see that the voltage can be adjusted. Trying to lower the output voltage below the input voltage by turning it clockwise damages the product.

Precautions:

• The input voltage should not exceed the maximum input voltage of 24V. The product is damaged at high voltage.
• Output current cannot exceed 2A
• If the module output voltage cannot be adjusted, it gives the output voltage at first start up.
• The product is damaged in a faulty reverse connection. Short circuited products are evaluated as user error.
• The input power has to be higher than the power to be drawn at the output. Otherwise the output voltage cannot rise. As an example, you cannot run a computer with a pen battery ! In such cases the voltage cannot rise.

Package contents:

•      1 Piece MT3608 Type C Boost Module
