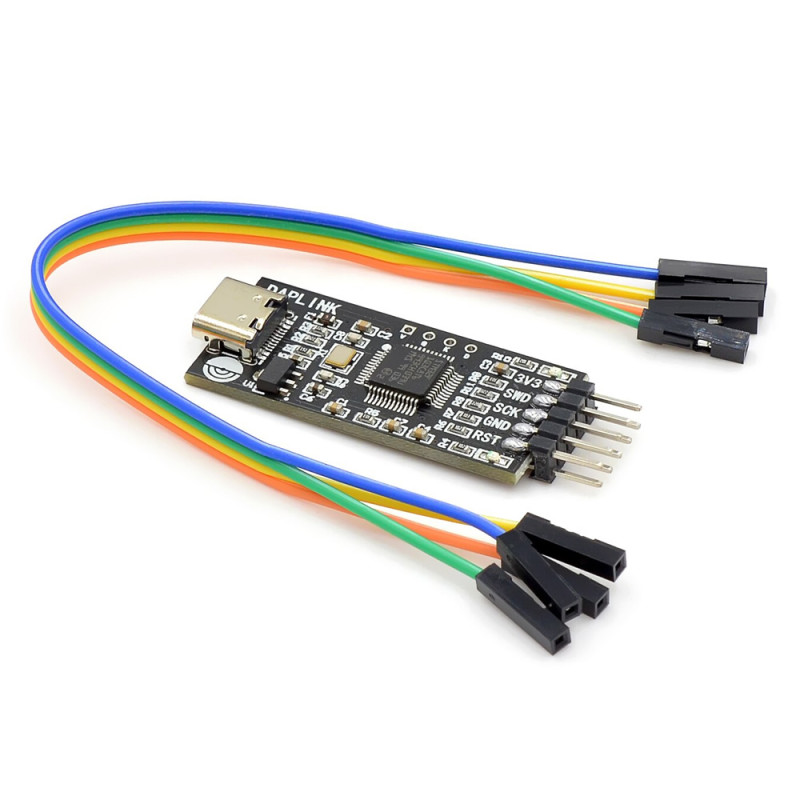

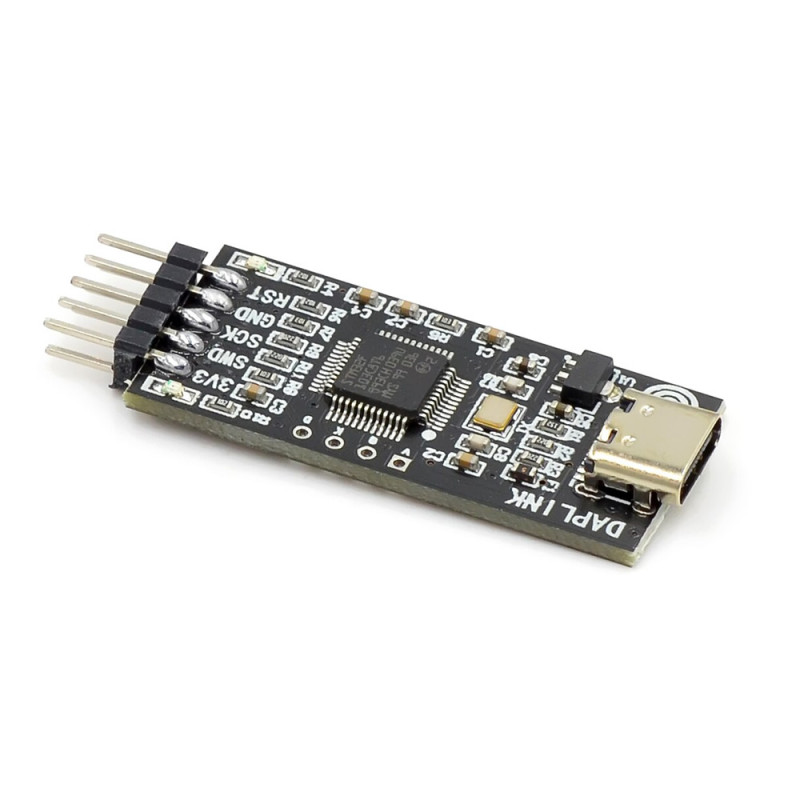

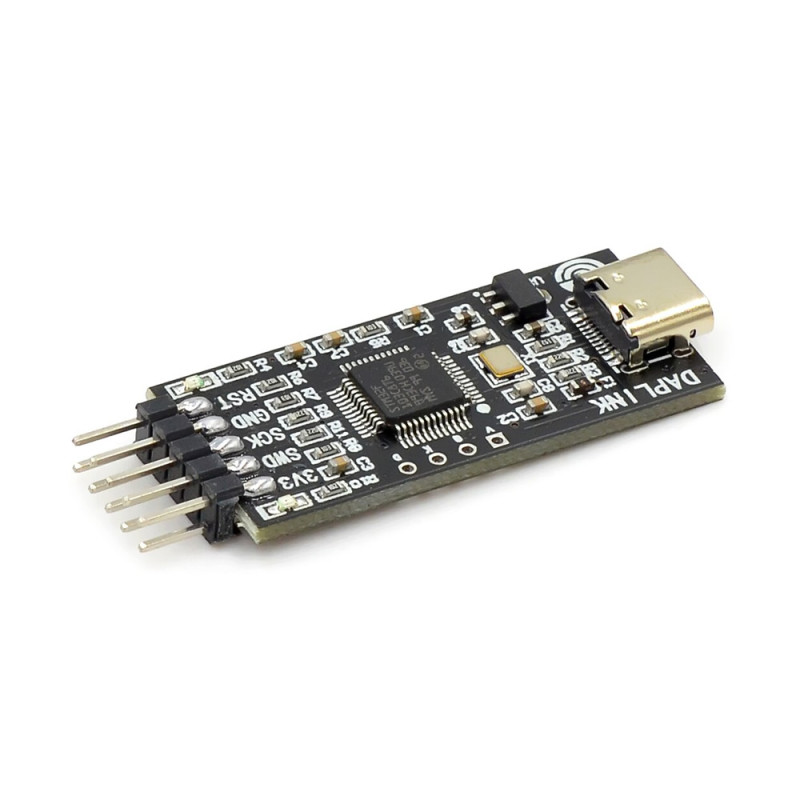

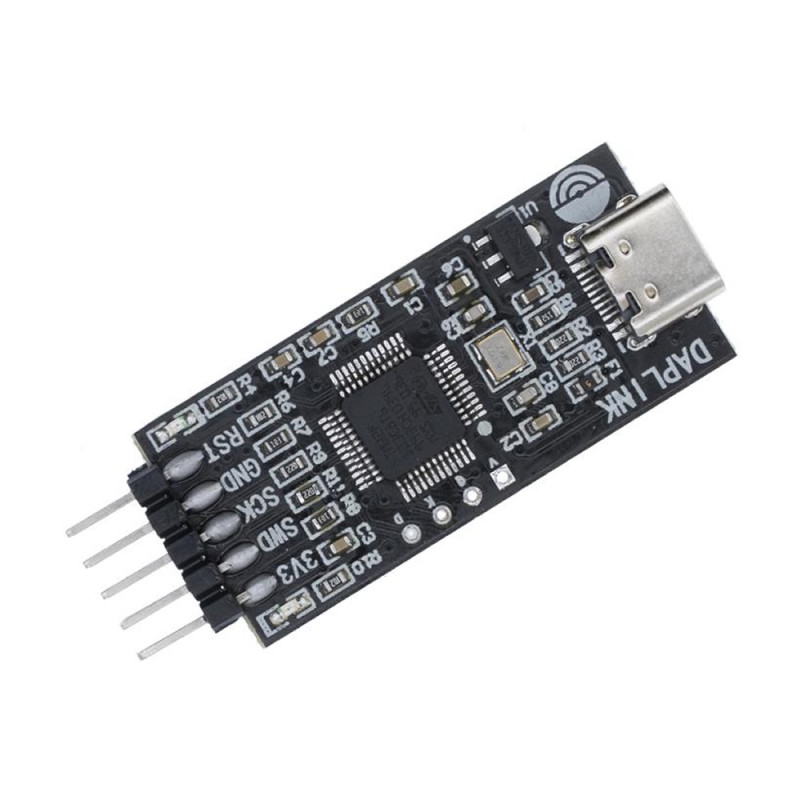

Daplink Arm Jtag Programmer
Cortex Swd Uart Emulator Simulator Debugger CMSIS Serial Port U Disk Jlink Stlink Type-C Usb STM32 GD32 CH32 CKS32 APM32
No technical support will be provided regarding the use of the product.
The product does not have voltage protection circuits. When working with high voltage target boards, it is essential to note that the programmer and the connected computer may be damaged.
It is an open source jtag programmer with programming, debug and usb ttl communication functions. It is a product similar to jlink and stlink. Thanks to its open source code, there are no license fee expenses. It can perform fast programming. With its small structure, it is very easy to carry. It is preferred with its affordable price that can be used continuously in programming operations.
It supports Arm Cortex based processors. Daplink connects the target processor to your computer over usb. Apart from the jtag programmer function over swd, it also has a usb uart converter function. With this function, chips that can be programmed over uart can be programmed.
Features:
- CMSIS-DAP / DAPLink
- SWD connection support
- Mainstream chip support
- Cortex M core support
- STM32, GD32, CH32, CKS32, APM32
- Able to work with Keil MDK, IAR Workbench , OpenOCD, pyOCD and other CMSIS-DAP compatible ides
- Creates a virtual serial port (com).
- You can use it as a usb ttl converter.
- CDC - It can be used for programming, debug and log output monitoring over the serial port.
- MSC - Drag and drop flash programming support
- 5.3V 3.3V operation support
- Type C usb pc connection socket

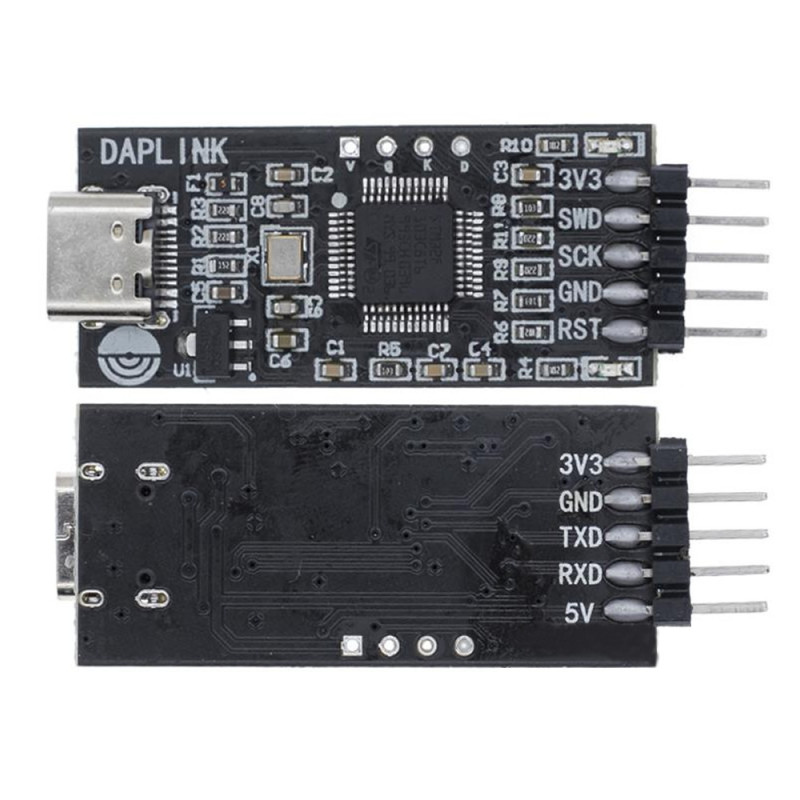

- Pin information is written on the pcb
- You can power low current drawing circuits over the device.
- Easy and fast connection to the target circuit with its socket that accepts dupont cable.
- It is shipped in an anti static bag.
- Windows and linux operating system support

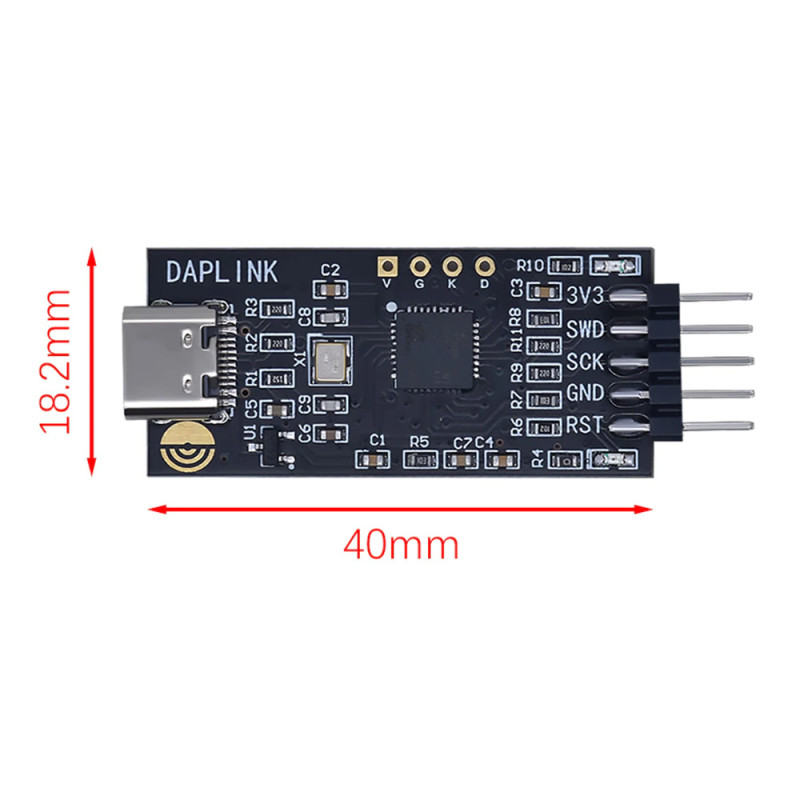

- Dimensions: 18mm x 40mm
- Weight: 7.5gr
Software:
- There is no need for a driver. It will be recognized by the pc as a plug and play virtual com port.CMSISDAP
- User manual: github.com/wuxx/nanoDAP/blob/master/doc/README.md
- Hardware and software information: github.com/wuxx/nanoDAP
- Win7 serial port driver: github.com/wuxx/nanoDAP/tree/master/driver/windows7_serial_driver
- For the Mbed driver, install the mbedWinSerial_16466.exe file
- One-click programming tool Script tool: github.com/wuxx/openocd-toolbox
Package contents :

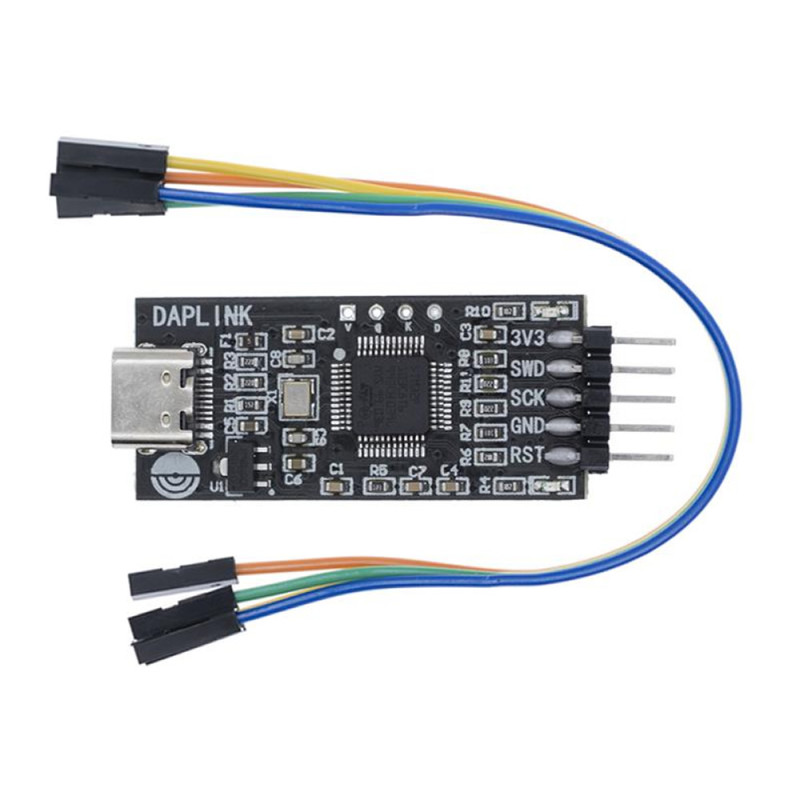

- 1 Piece Daplink Jtag Programmer
- 1 Piece 4 pin 15cm Dupont Cable
