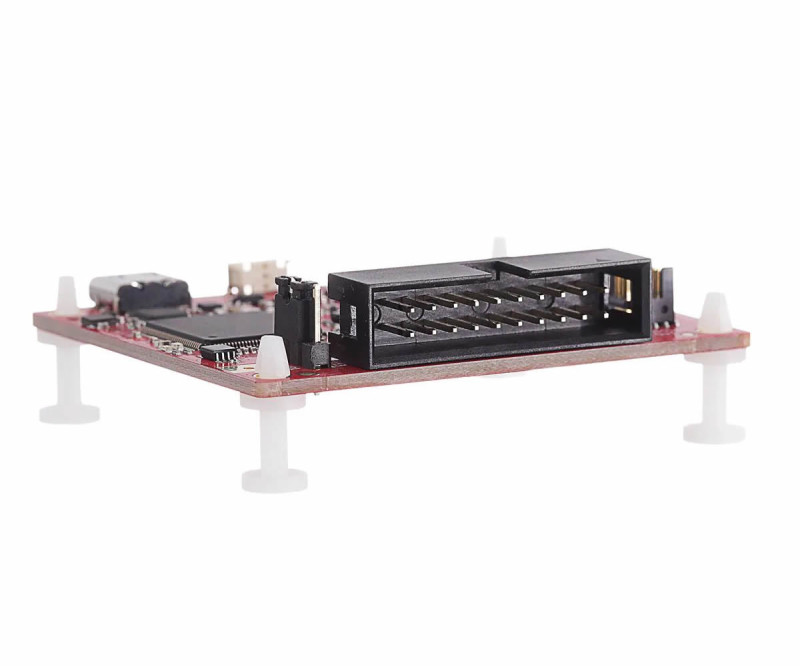

LP-XDS110ET

Texas TI LP-XDS110ET LaunchPad Development Kit Debugger

MSP432E401Y CC2340R5-Q1 CC2744R7-Q1 CC2745P10-Q1 CC2745R10-Q1 CC2745R7-Q1 CC2340R2 CC2340R5 CC2755R10 CC1312PSIP CC1314R10 CC1354P10 CC1354R10

The product is an original Texas Ins. product. Support regarding its use can only be obtained from the manufacturer. Since it is a specific product and its condition cannot be determined, it will not be accepted for return. Make your purchase decision accordingly.

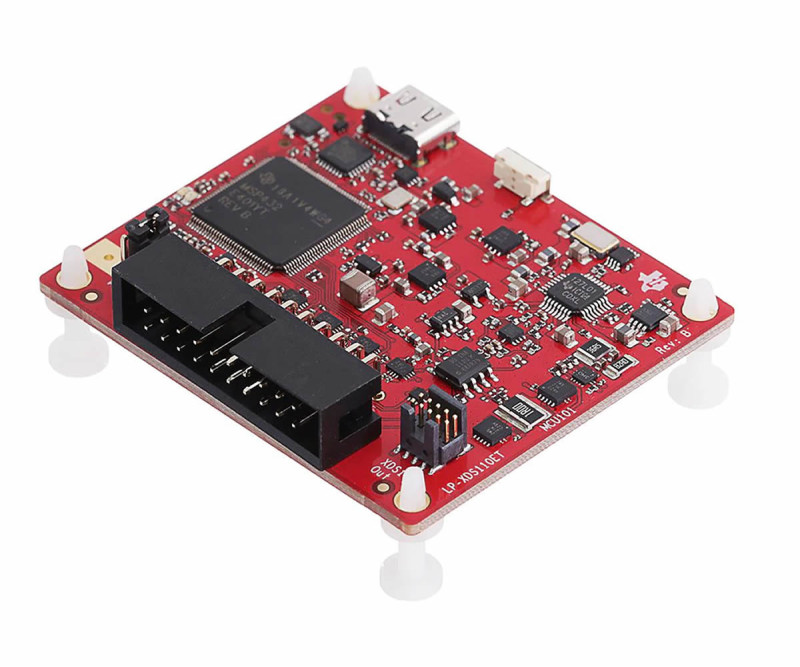

     The LP-XDS110ET LaunchPad development kit debugger is a tool to program and debug Texas Instruments (TI) microcontrollers, microprocessors and DSP XDS-compatible devices. The LP-XDS110ET has been designed to connect directly to split Launchpad development kits via the 20-pin edge connector, however they can also be used to debug other LaunchPad development kits and XDS-compatible devices using the XDS110 out connector. The LP-XDS110ET has added circuitry for power measurements to support EnergyTrace software.

Features:

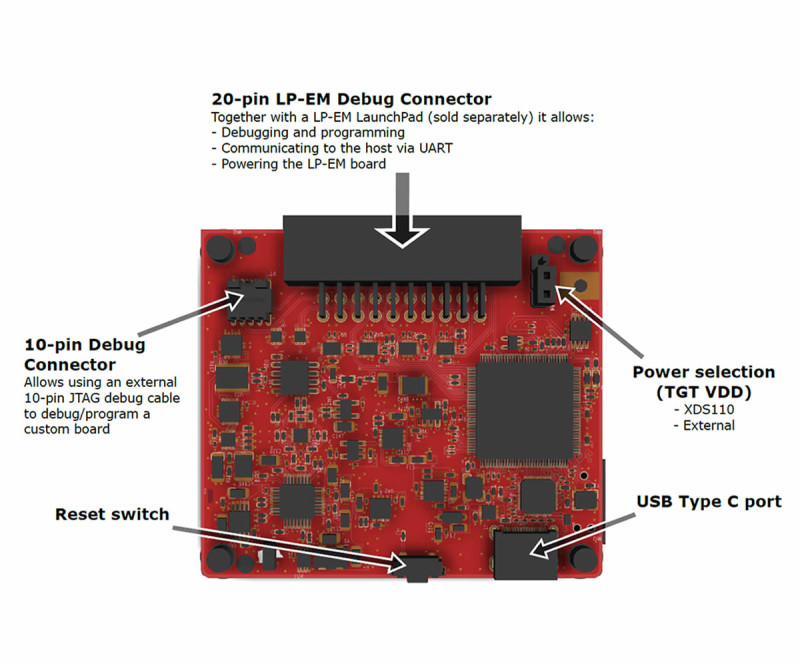

•     Plug & play with split LaunchPad development kit designs using 20-pin edge connector
•     10-pin XDS110 out connector
•     USB-C to power debugger and communicate with host computer
•     UART serial port
•     Power profiling uisng EnergyTrace++

     To use your new LP-XDS110ET Debug Probe with an LP-EM LaunchPad (sold separately), you need to connect the 20-pin LP-EM Debug connector to the corresponding header on theLP-EM LaunchPad.

     Simply connect the edge connector of the Debug Probe to the edge connector of the LaunchPad and connect the USB port of the Debug Probe to the host computer. A secondary UART communications channel will also be available and power to the LaunchPad will be provided directly

Supported products:

• Arm Cortex-M4 MCUs
  • MSP432E401Y - SimpleLink 32-bit Arm Cortex-M4F MCU with ethernet, CAN, 1MB Flash and 256kB RAM
• Automotive wireless connectivity products
  • CC2340R5-Q1 - Automotive-qualified SimpleLink Bluetooth Low Energy wireless MCU with 512-kB flash
  • CC2744R7-Q1 - Automotive SimpleLink Bluetooth LE wireless MCU with 864kB flash, HSM, APU
  • CC2745P10-Q1 - Automotive SimpleLink Bluetooth LE wireless MCU with 1MB flash, HSM, APU, CAN-FD, +20dBm
  • CC2745R10-Q1 - Automotive SimpleLink Bluetooth LE wireless MCU with 1MB flash, HSM, APU, CAN-FD
  • CC2745R7-Q1 - Automotive SimpleLink Bluetooth LE wireless MCU with 864kB flash, HSM, APU, CAN-FD
• Low-power 2.4-GHz products
  • CC2340R2 - SimpleLink 32bit Arm Cortex-M0+ 2.4GHz wireless MCU with 256kB flash
  • CC2340R5 - SimpleLink 32bit Arm Cortex-M0+ 2.4GHz wireless MCU with 512kB flash
  • CC2755R10 - SimpleLink 32-bit Arm Cortex-M33 multiprotocol wireless MCU with 1MB flash, HSM, APU
• Sub-1 GHz wireless MCUs
  • CC1312PSIP - Sub-1 GHz system-in-package (SiP) module with integrated power amplifier
  • CC1314R10 - SimpleLink Arm Cortex-M33 Sub-1 GHz wireless MCU with 1-MB flash and up to 296 kB of SRAM
  • CC1354P10 - SimpleLink Arm Cortex-M33 multiband wireless MCU with 1MB flash, 296KB SRAM, integrated power amp
  • CC1354R10 - SimpleLink Arm Cortex-M33 multiband wireless MCU with 1-MB flash and up to 296-KB SRAM

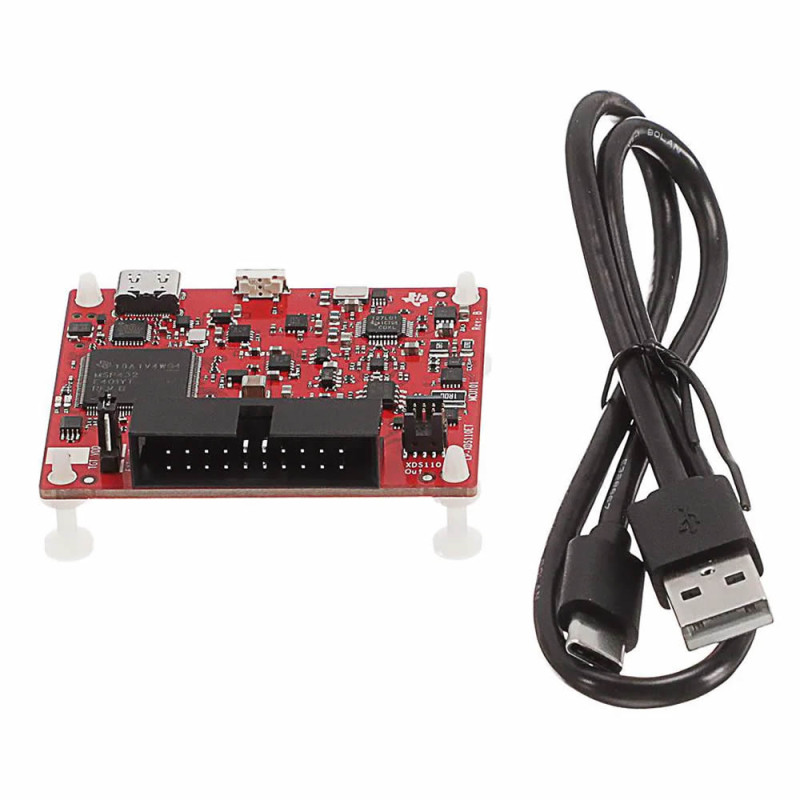

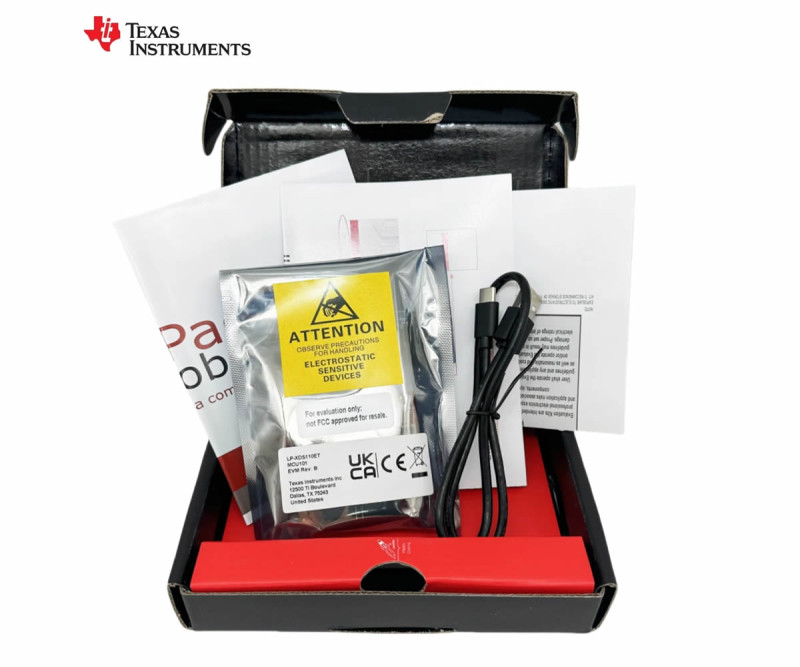

Package contents:

•  1 pcs LP-XDS110ET
•  1 pcs Usb cable
•  Quick start brochure

.
