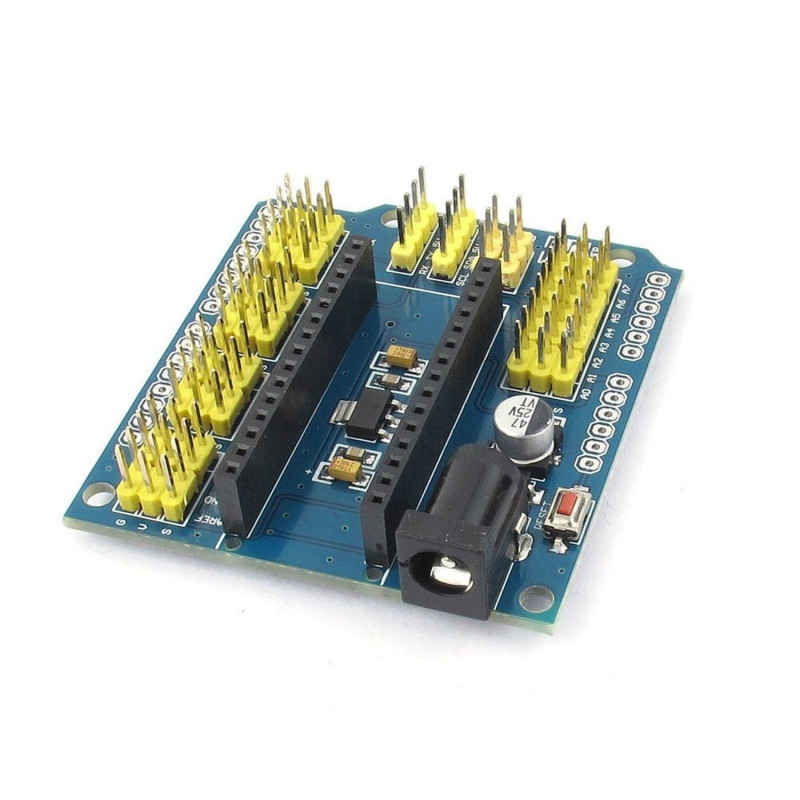

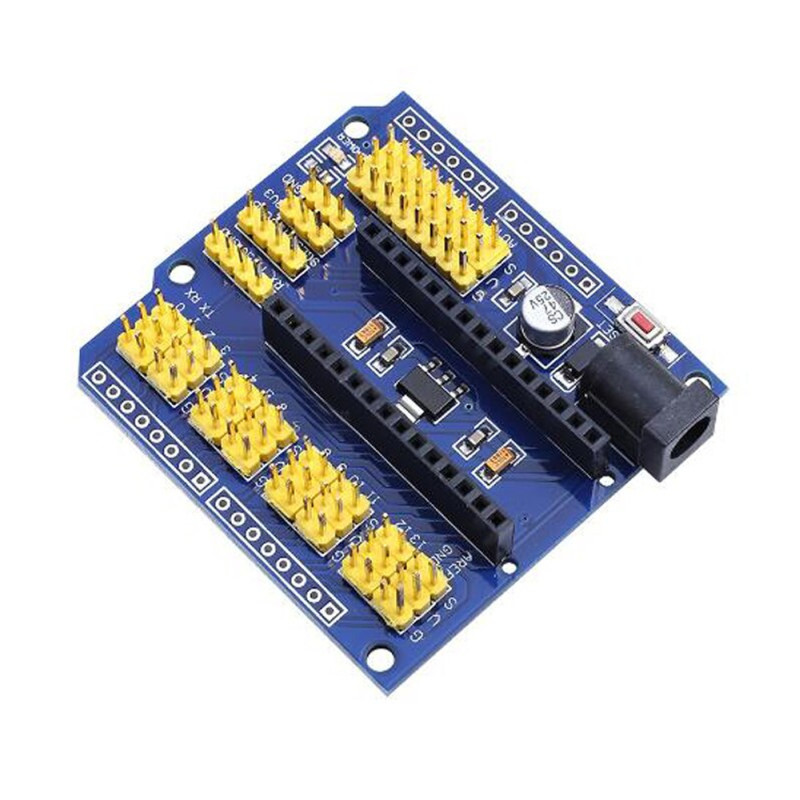

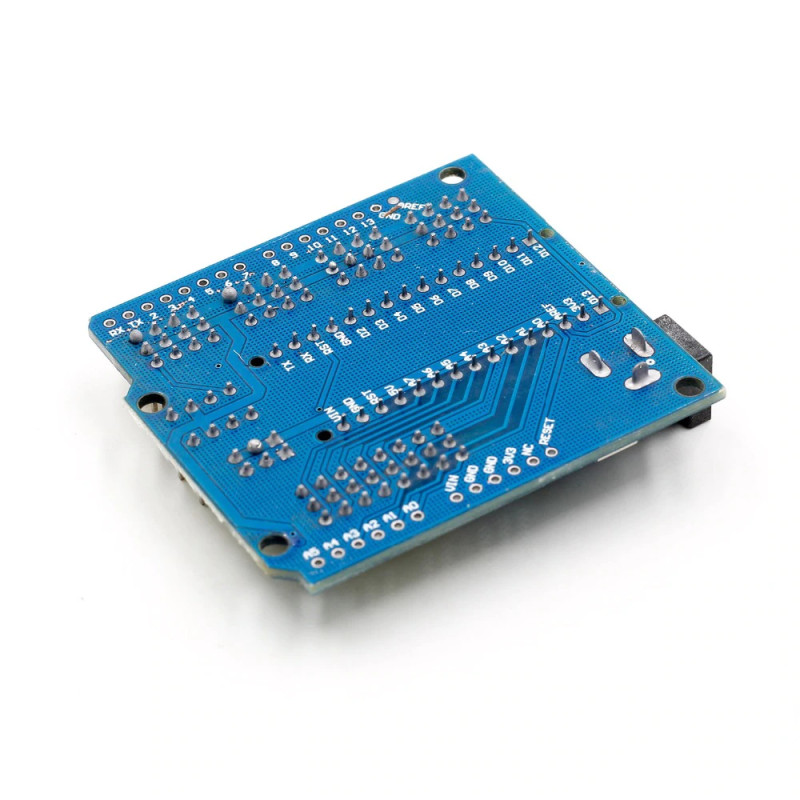

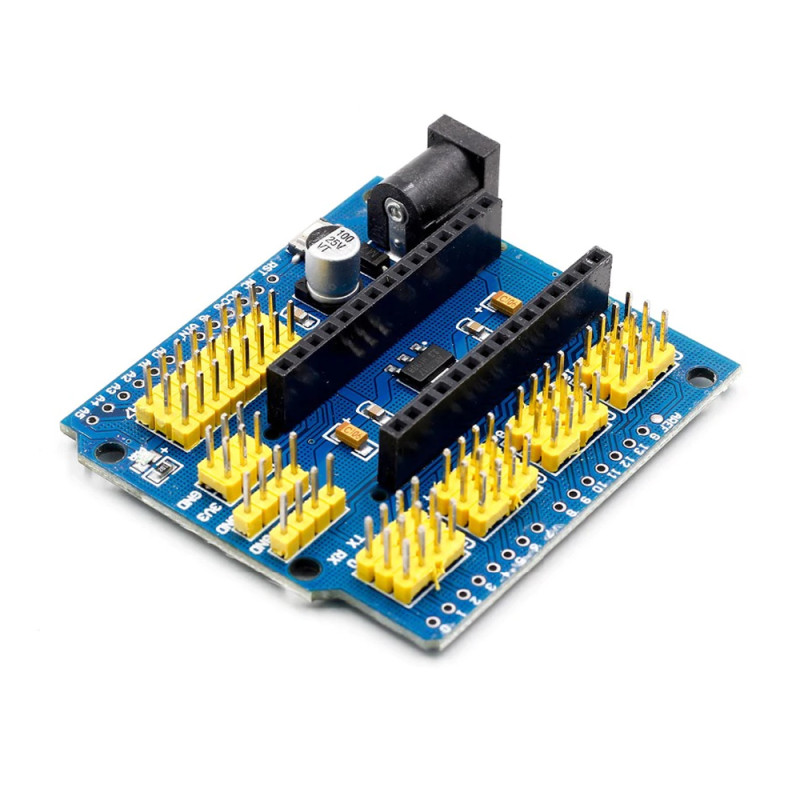

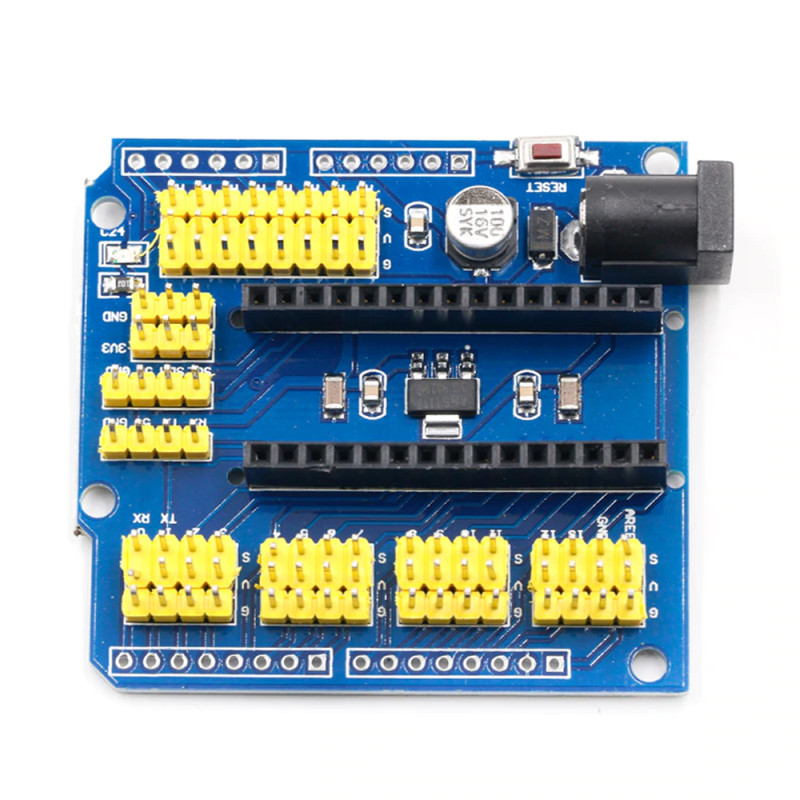

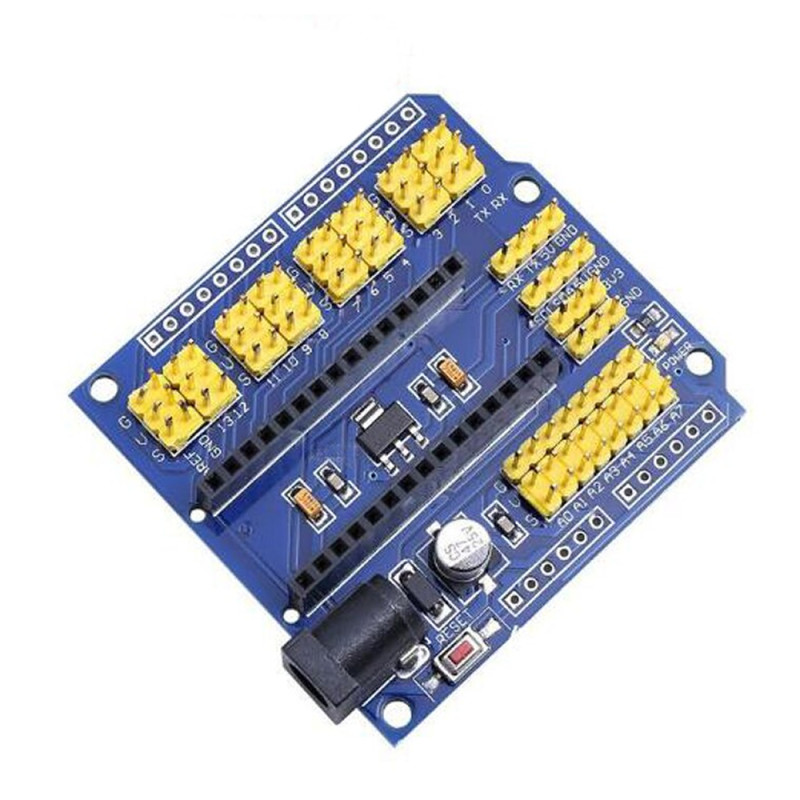

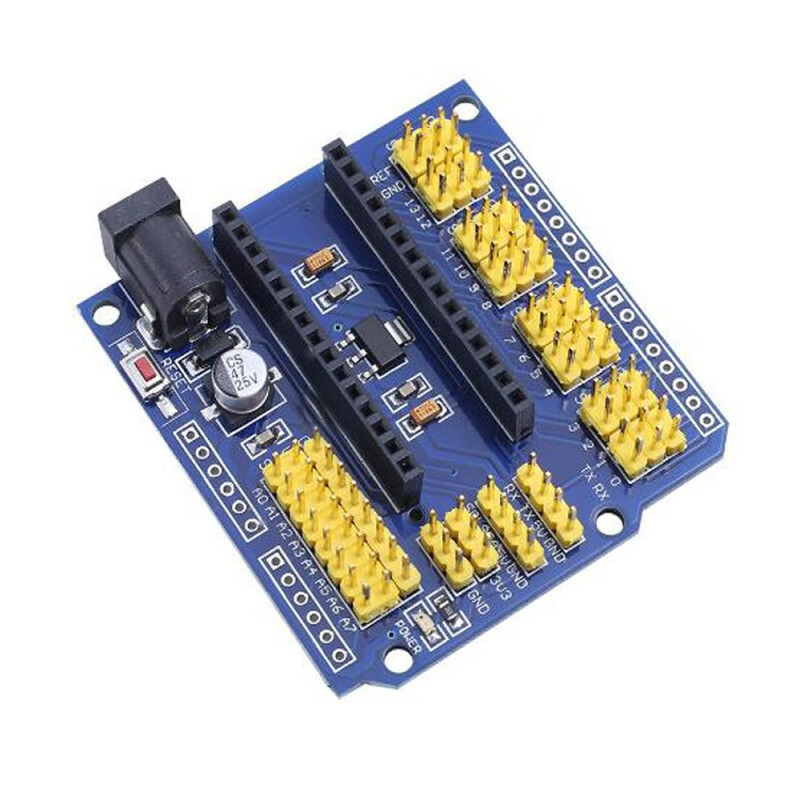

Arduino Nano 3.0 IO Shield

Arduino Nano 3.0  IO Shield

Nano V3 Expansion Sensor Control Board I2C PWM 3.3V Sensor Module Easy Connection

     It is an IO shield board developed for Arduino Nano 3.0. It has a UNO R3 compatible structure. It allows various sensor modules and arduino shields to be easily connected with the arduino nano board. It has an external power adapter socket. It is used by generating 3.3V supply voltage with the voltage generating regulator on the board. This allows it to be used when there is no usb connection. It can also power external 3.3V devices.

Features:

•      It is compatible with Arduino Nano V3.
•      2.1mm adapter connection socket
•      Reset button
•      3.3V voltage generating regulator
•      Power indicator led
•      14 I/O sockets
•      8 Analog input sockets.
•      6 PWM Pin sockets
•      1 Adapter power socket
•      5 I2C expansion sockets
•      AREF output
•      3.3V output socket

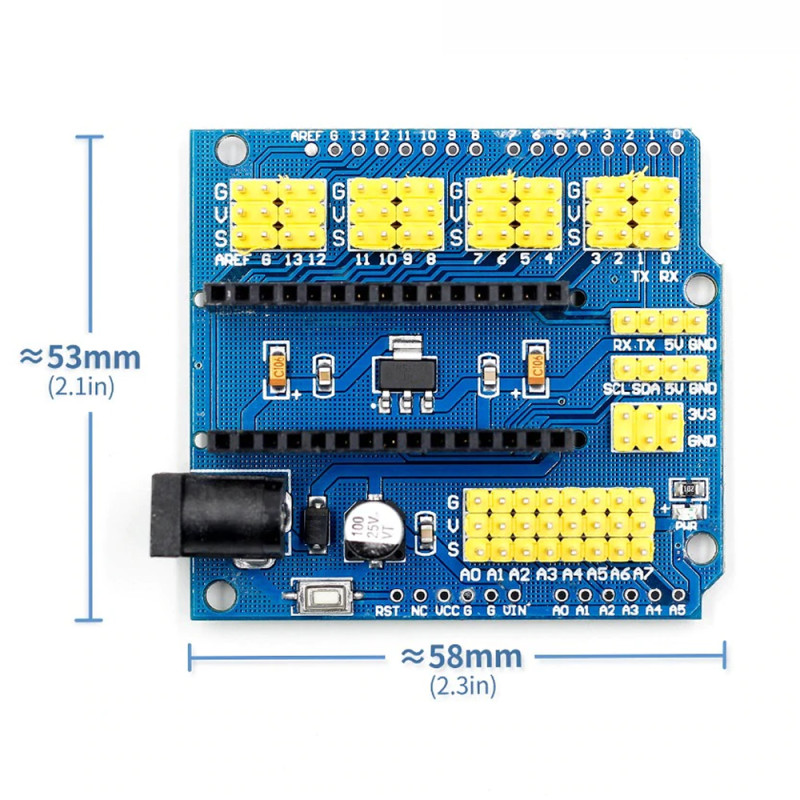

•      Dimensions: 53mm x 58mm
•      Weight: 20gr

Package contents :

•    1 Piece  Arduino Nano 3.0  IO Shield
