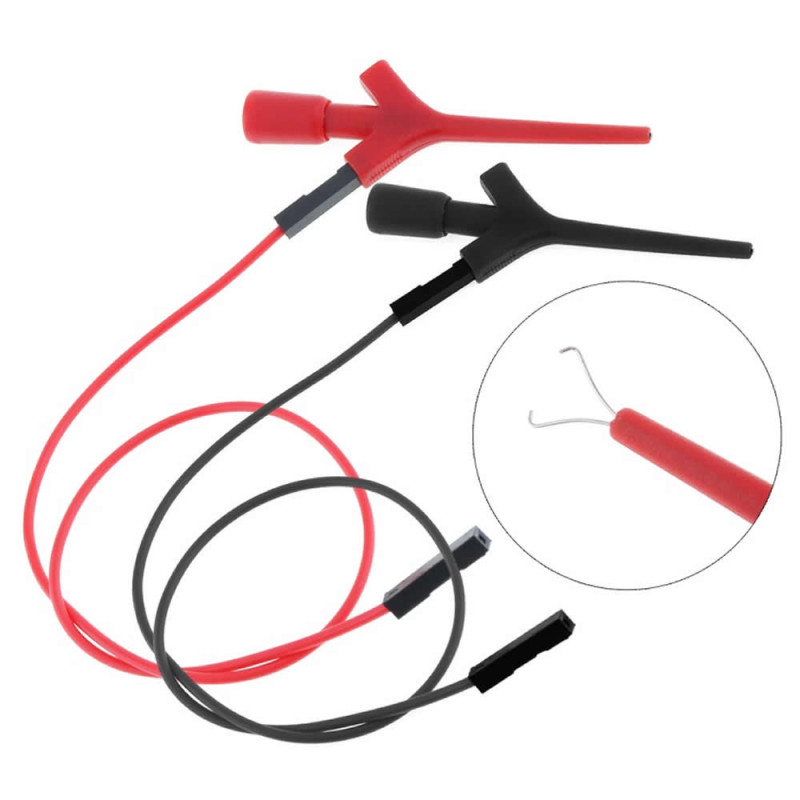

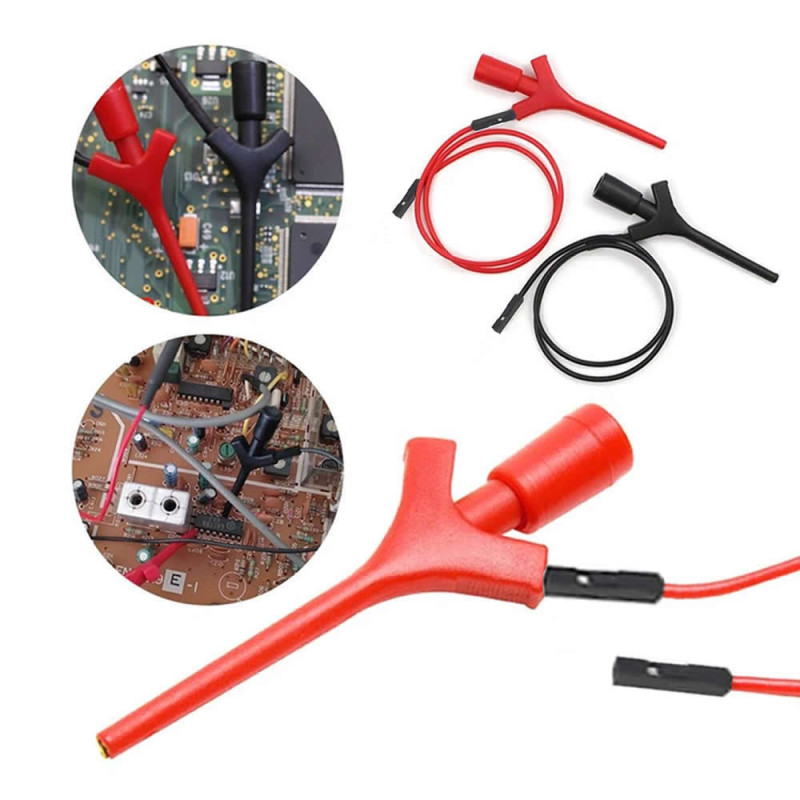

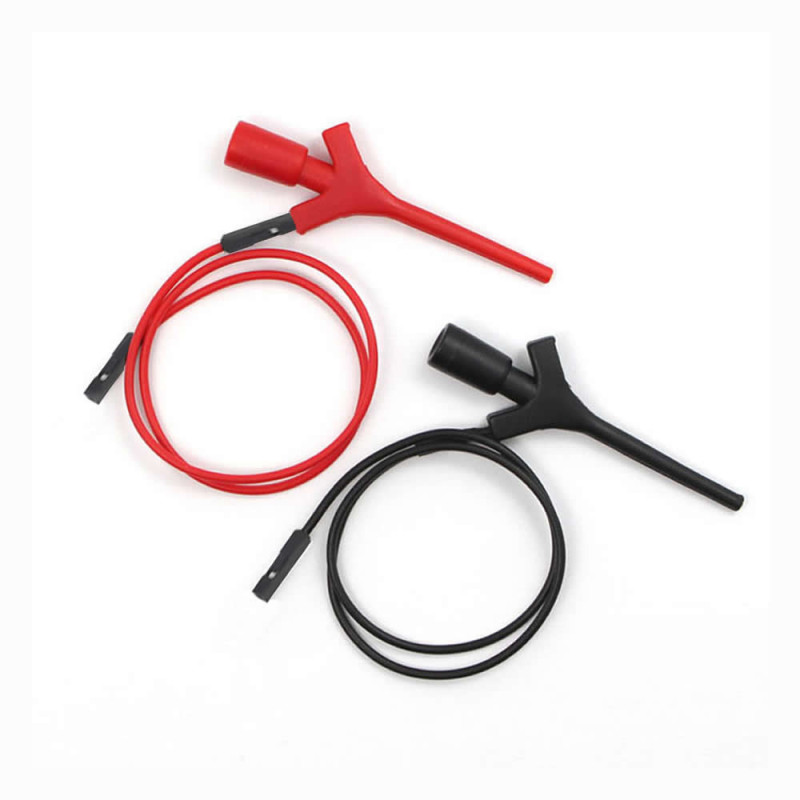

Hook Type Test Probe Pair 2mm

Hook Type Test Probe Pair 2mm

Mini Test Logic Analyzer Solderless Holder Grabber Wire Clip Clamp Socket Red Black Dupont Connector Oscilloscope Signal Generator Multimeter

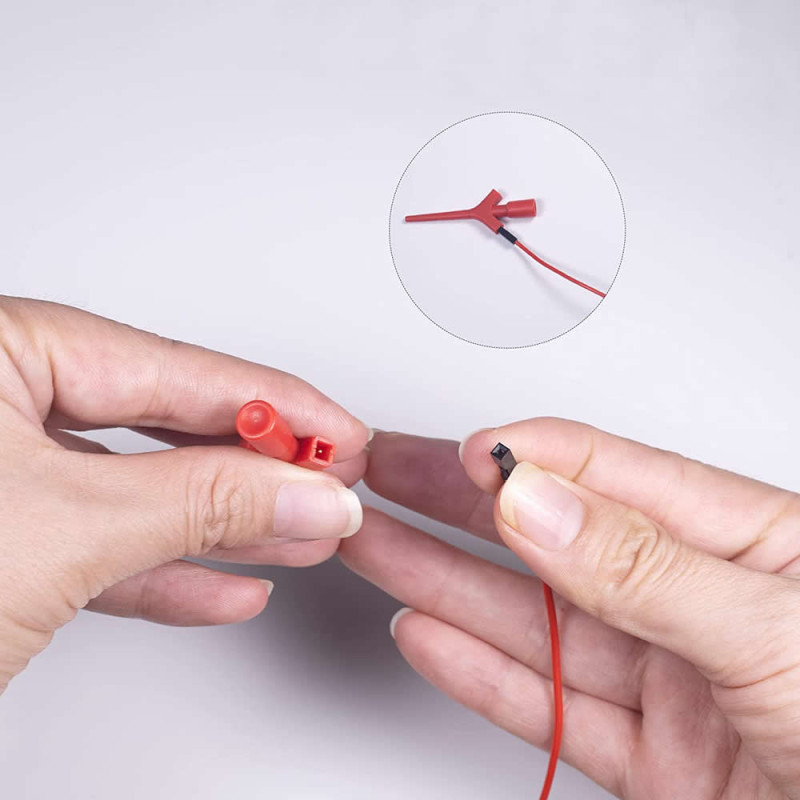

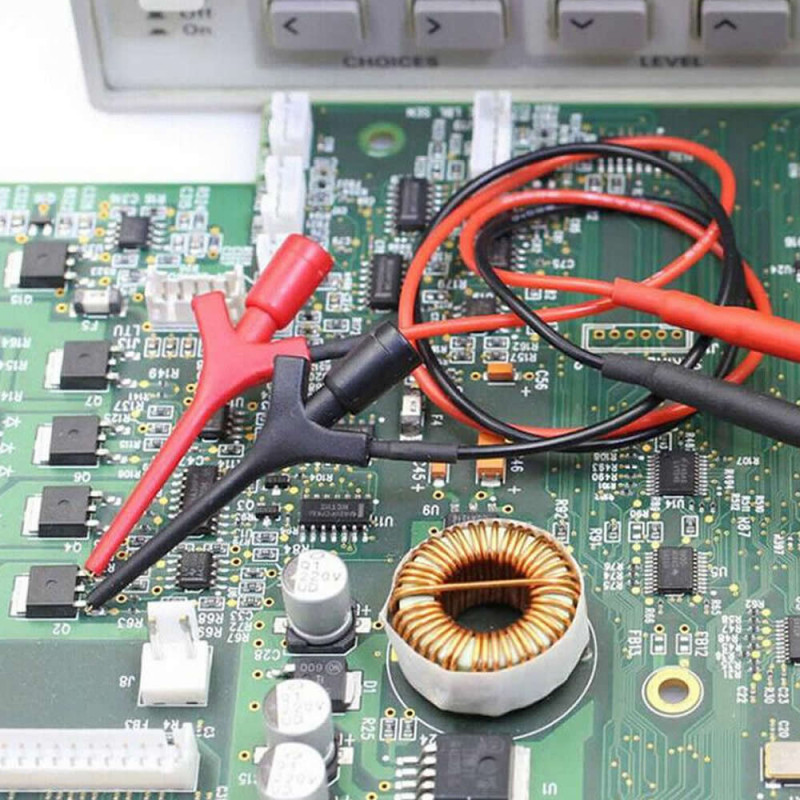

     They are hook type socket probes used with devices such as logic analyzers, signal generators, oscilloscopes. The connection is established with a female female dupont cable. In electronic circuits it is easily attached to empty pads, pins, headers and similar places. During the measurement process signals can be monitored easily without effort. It is used for easily following the signals on the boards being tested. The cable length is 30cm.

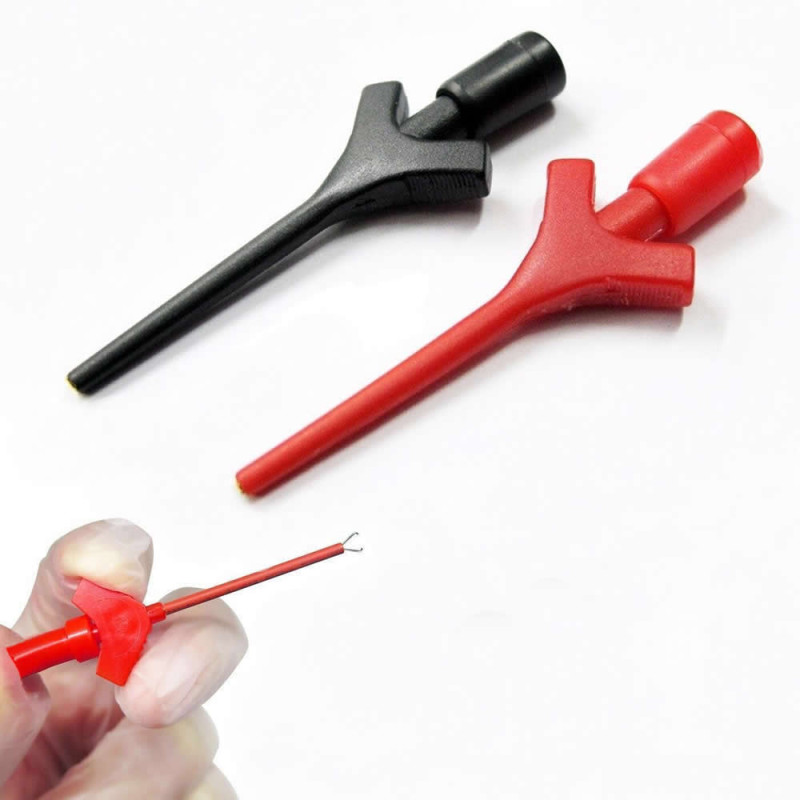

     The hook mechanism opens outwards. After it is connected to the relevant point, the spring system is released and clamped. It provides a solid connection without soldering. Due to the protected socket structure the possibility of a short circuit also drops greatly. With their safe holding structure they are perfect tools for testing all kinds of electronic devices.

     It is very useful in applications where there are multiple signals to be monitored. The dupont cable is of replaceable structure. While being used with power supplies and signal generators, it also allows you to perform operations such as transferring signals and supply voltage.

Features:

• Hook type test probe pair
• Jaw opening 3mm
• 2mm gripping capacity ( wire pin etc )
• Voltage: DC 30V
• Current: 1A
• Probe color: Red / Black
• Cable color: Red / Black
• Strong spring mechanism
• Material: Plastic / Metal
• Operating temperature:  -10C  /  70C
• Dupont cable structure. ( cable replaceable )
• Cable length: 30cm

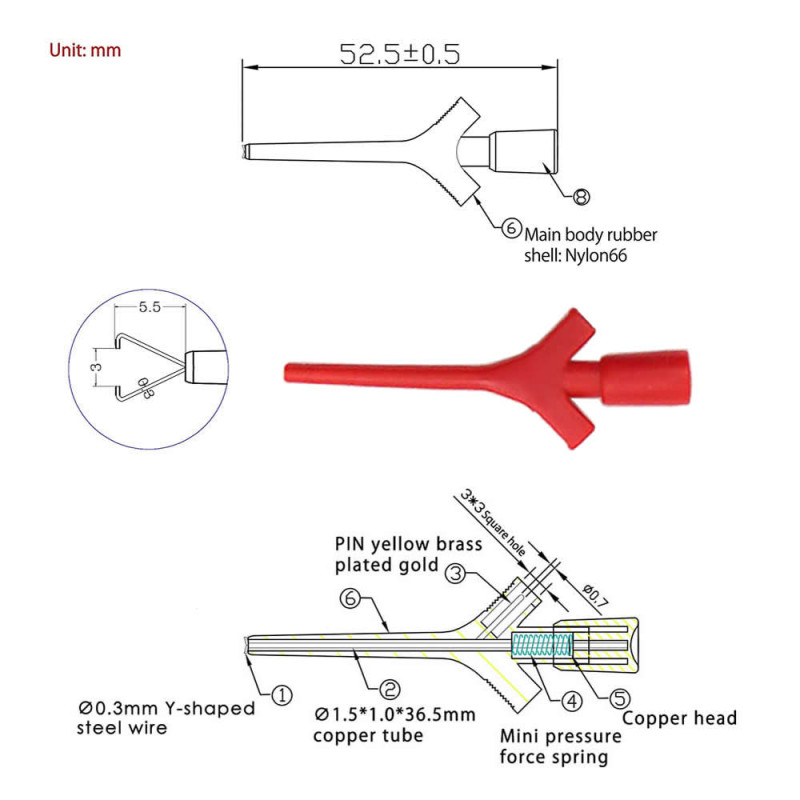

• Body dimensions:  18mm x 52mm
• Weight: 5gr

Package Contents:

•      1 Piece Hook Type Test Probe Pair 2mm

.
