E18-D80NK Infrared Distance Sensor MZ80

E18-D80NK Infrared Distance Sensor MZ80

50cm NPN NC Infrared Optical Obstacle Detector Proximity Switch Maze Robot Car Automation Machine Security Alarm

The switching load capacity is maximum 100mA. If you use it in an application that draws high current, the sensor will be damaged.

      Infrared sensor with 80cm range. It is a high quality, industrial infrared sensor with digital output suitable for many robot projects. It has an M18 compatible body structure. When an obstacle comes in front of it, the output becomes 5V. Use the output terminal by pulling it up with 5V.


Features:

•     80cm Range Infrared Sensor
•     Output type: NPN NC
•     Operating voltage: DC 5V
•     Load current:  Maximum 100mA ( If you draw high current the sensor will be damaged.)
•     Detection distance  3cm / 80cm

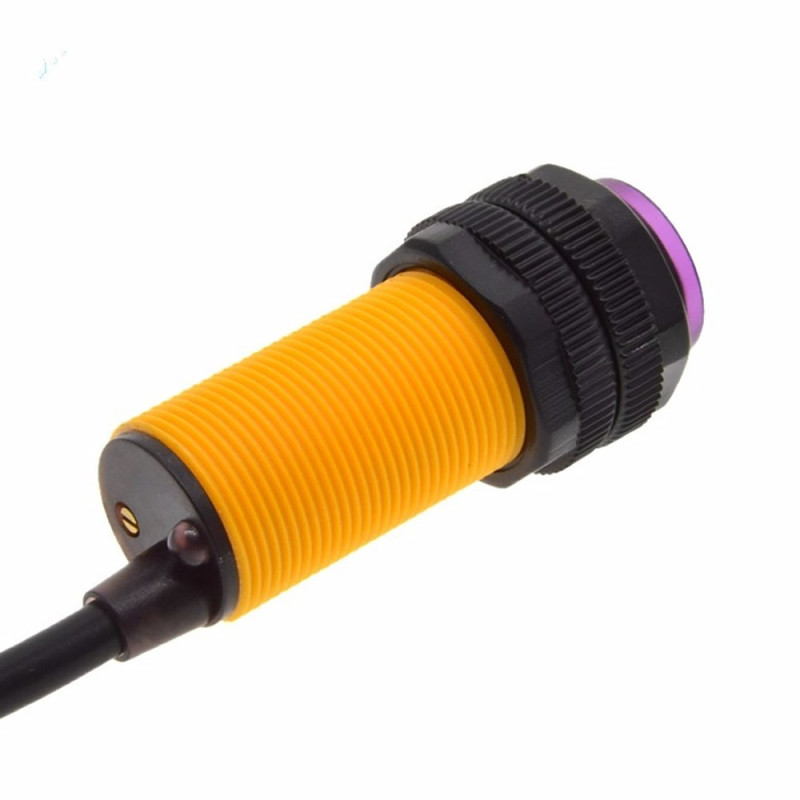

•     The distance can be adjusted with the trimpot on the back.
•     Output status indicator led on the back side.
•     It is a high quality industrial sensor with digital output.
•     Response time: 2 ms

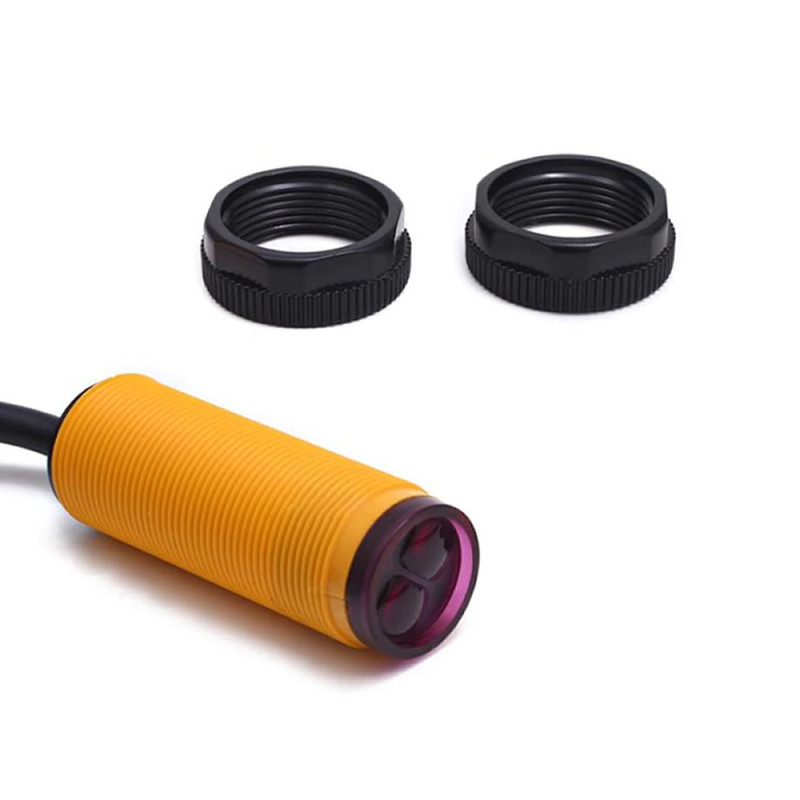

•     It can be mounted easily with the mounting bracket.
•     Material: Plastic / Metal
•     Color:  Yellow / Black
•     Operating temperature:  -25C / +60C
•     Mounting hole: 18mm
•     Sensor dimensions:   17.5mm x 50mm

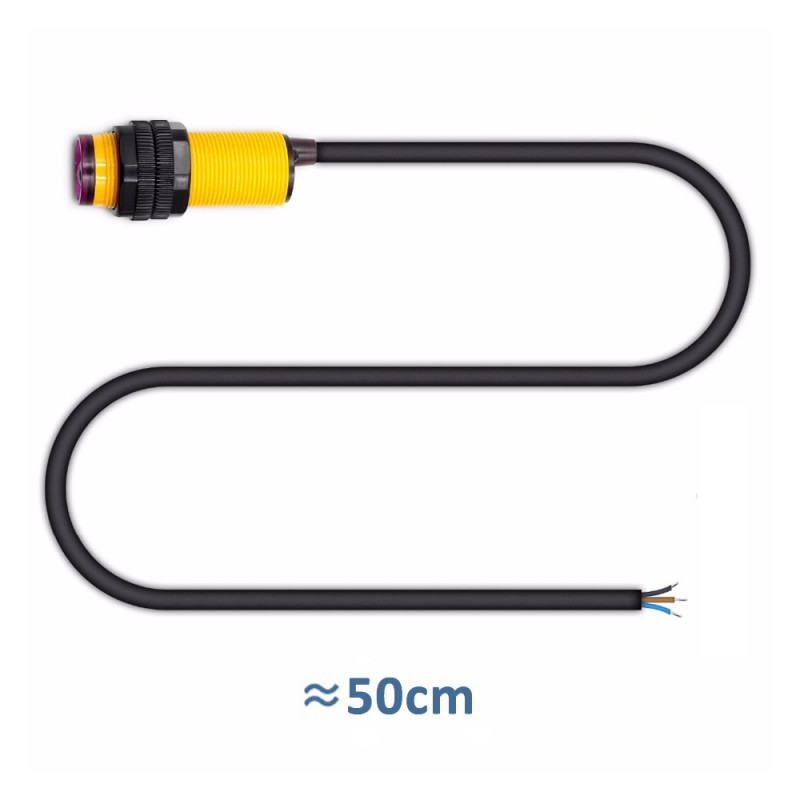

•     Cable length: 50cm
•     Weight:  25gr

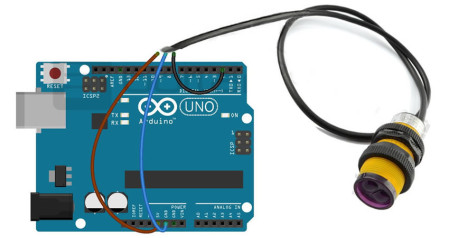

Cable Connections:

•    Brown: +5V
•    Blue: GND
•    Black: Data Output

Package contents:

•  1 x E18-D80NK Infrared Distance Sensor MZ80

.
