SCA60C Sensor Module
1,352.40TL
1,127.00TL + KDV
10 or more 1,149.54TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.101.285
- MPN: RBZ.101.285

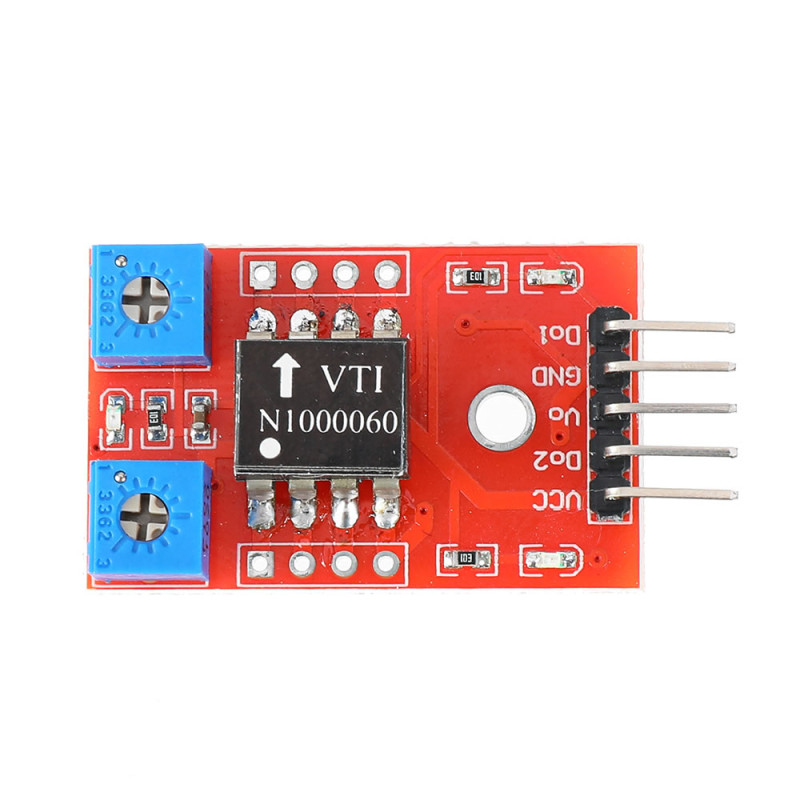

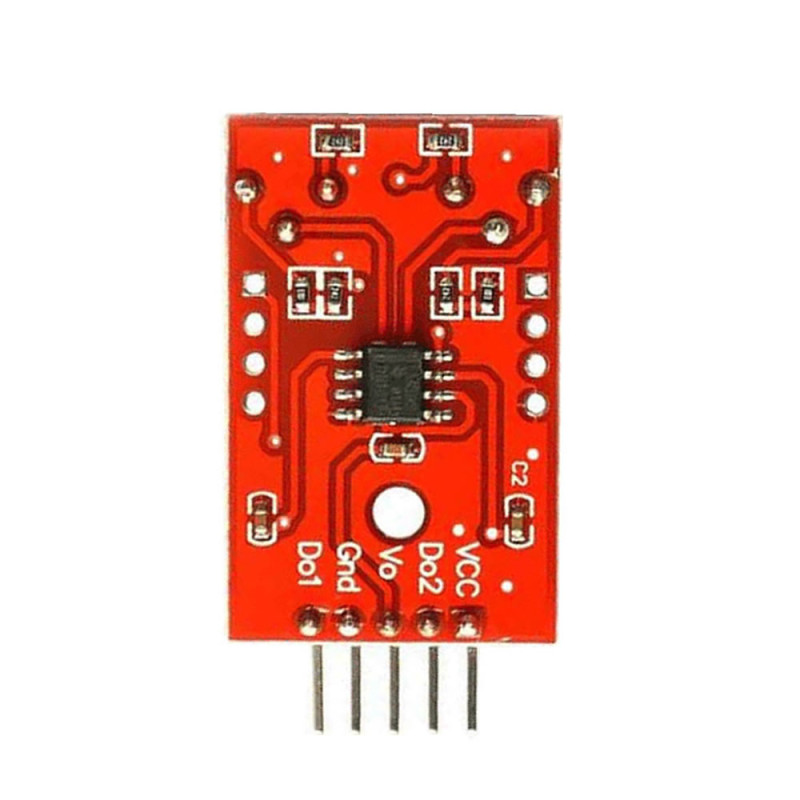

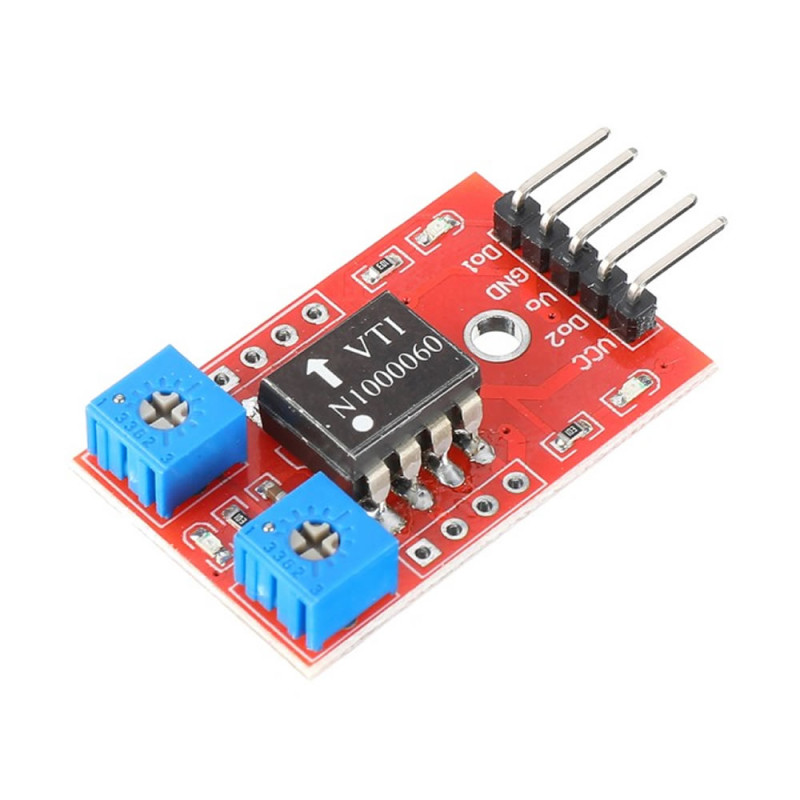

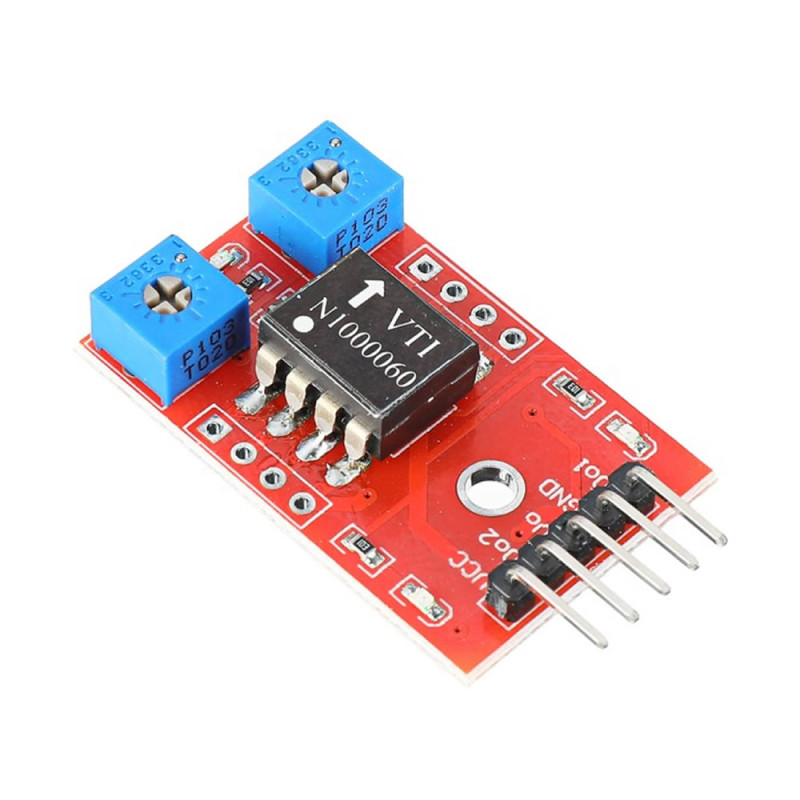

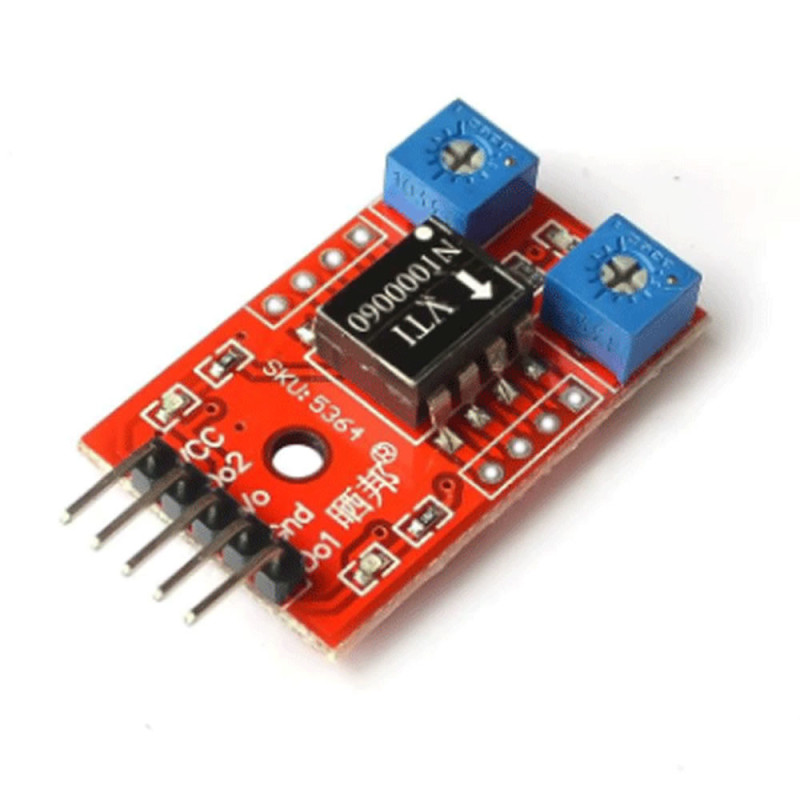

SCA60C Sensor Module
1 Axis 2 Way 180C Angle Vibration Tilt Detector Alarm Motion Sensor Robot Arm Car Drone Medical Industry
SCA60C angle vibration detection sensor. It can detect in the entire range between 0790 and 90/180C. It has 2 digital outputs. There is 1 analog voltage output. It can be easily used with kits such as Arduino. It can be used in many areas such as medical, industrial applications, robot applications etc. It is suitable for applications where the angle position is required precisely.
Features:
- SCA60C Module
- Operating voltage: DC 5V
- Operating current 2mA
- 2 Adjustment potentiometers
- Angle signal output: 0 / 90 Degrees 90 / 180 Degrees
- Sensitivity: 1 Degree
- Analog voltage output
- Ttl outputs are in 0 / 5V states.
- It can be connected to Mcu ios.
- Smart body balance sensing
- Taught operating modes
- Advanced error detection features.
- 2 way tilt alarm output
- 2 Indicator leds
- Color: Red
- 1 Mounting hole
- 5 pin male header connection socket.

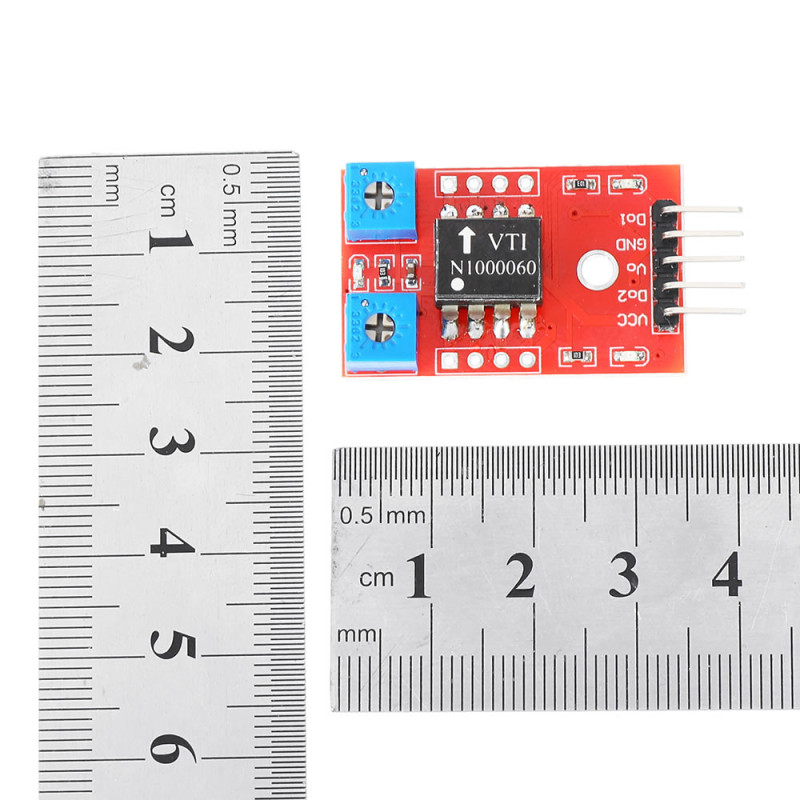

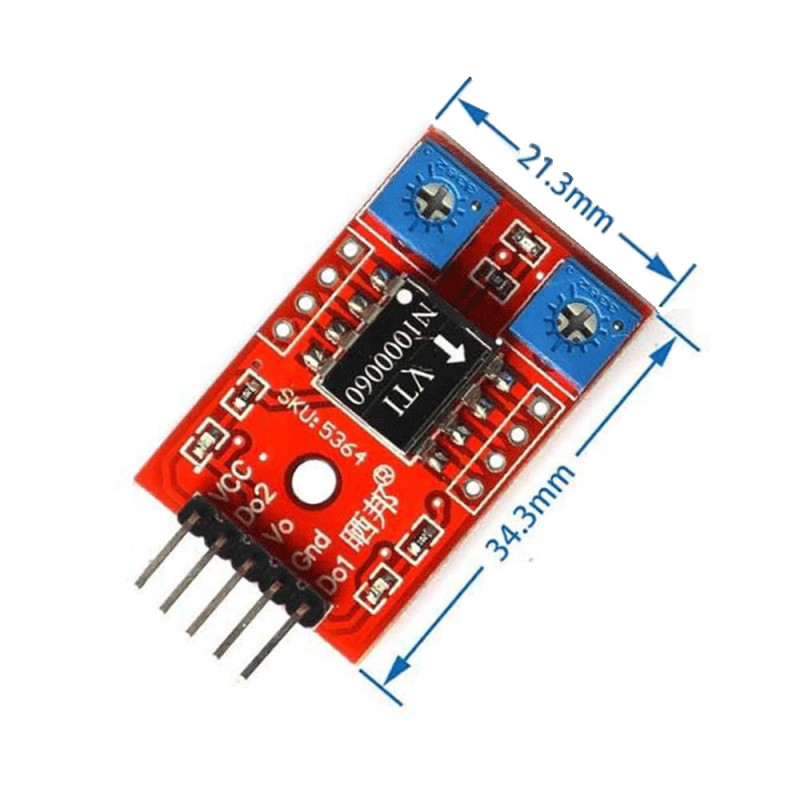

- Dimensions: 22mm x 34mm x 9mm
- Weight: 5gr.

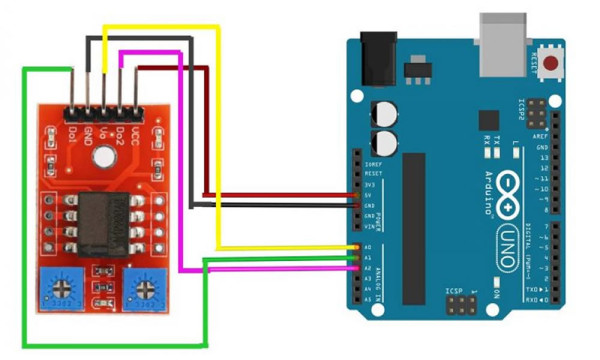

Pin Descriptions:
- VCC: Dc 5V supply
- GND: Ground
- DO1 Left tilt output pin
- DO2: Right tilt output pin
- VO: Analog voltage output pin It can be monitored via Adc.
Package Contents:
- 1 Piece SCA60C Module
.
