EC11 Rotary Encoder
47.04TL
39.20TL + KDV
10 or more 39.98TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.100.729
EC11 Rotary Encoder With Button 20 Steps
Pwm 360 Degree Rotary Encoder With Button Digital Potentiometer Menu Motor Speed Adjustment Control Power Supply Electronic Circuit Automation Medical
It is a sensor with which we can measure the rotation speed via a pwm signal. It produces 20 pulses in 1 full turn. The rotation angle is calculated by counting the pulses. It is widely used in applications such as various motor speed control and menu adjustment. It has a button function. It works with DC 5V.
Features:
- Operating voltage: DC 5V
- Rotation angle: 360 Degrees
- Number of steps 20 Pulses
- Push button feature

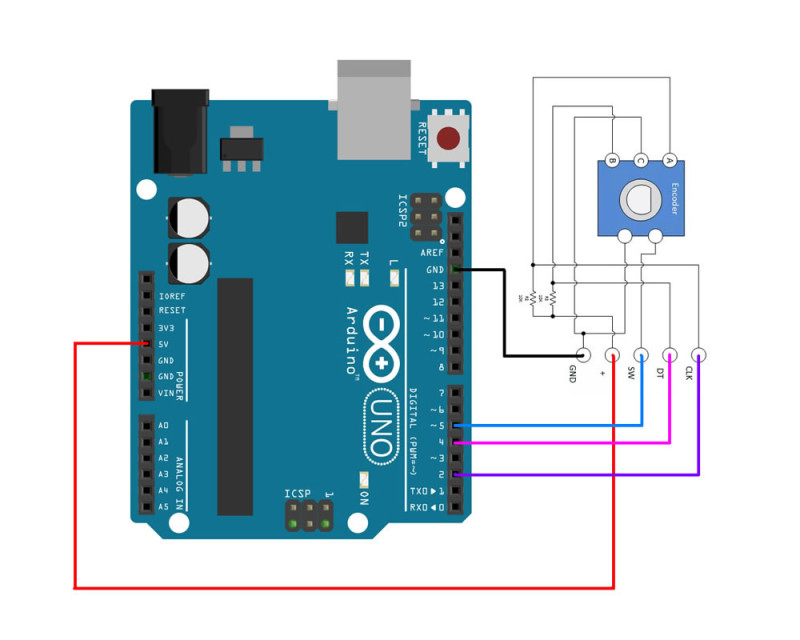

- Arduino compatible
- Different output in clockwise and counterclockwise rotations

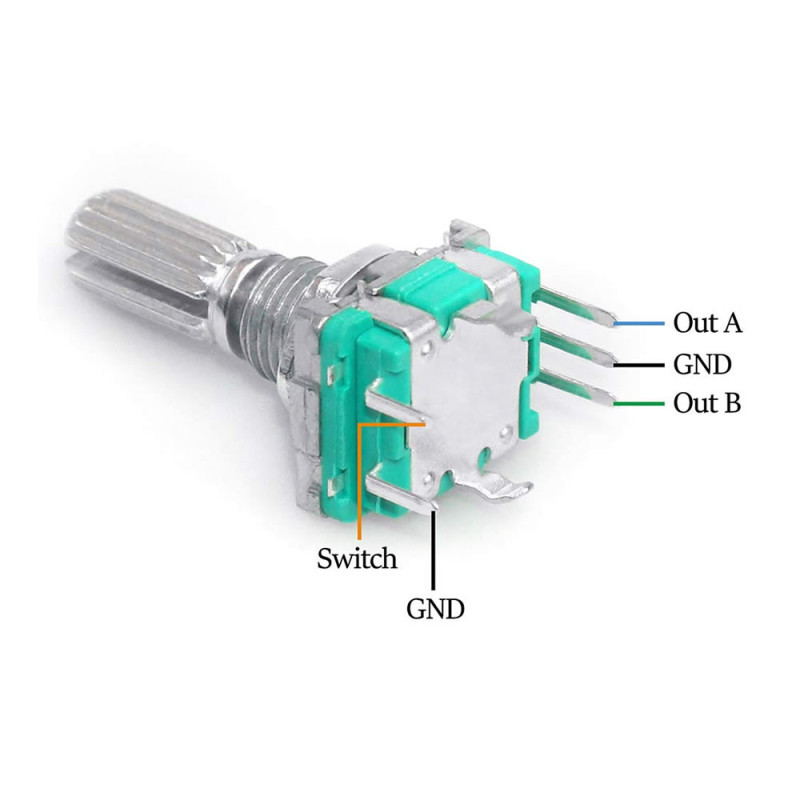

- Number of pins: 7
- Rotation life: 30000 turns
- Switch life: 20000
- Color: Gray
- Operating temperature: -20C / 80C

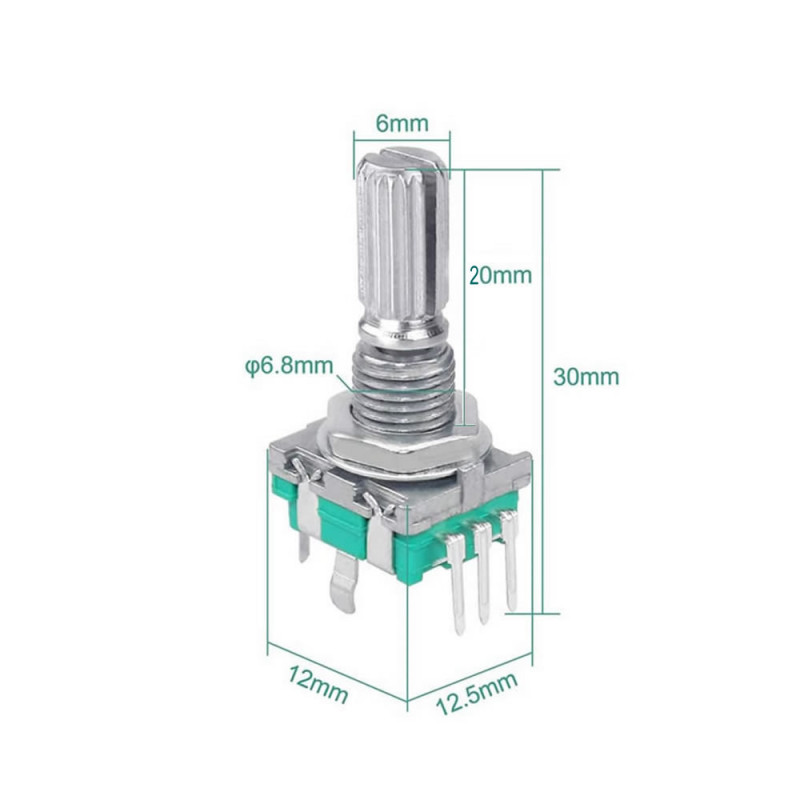

- Mounting hole: 7mm

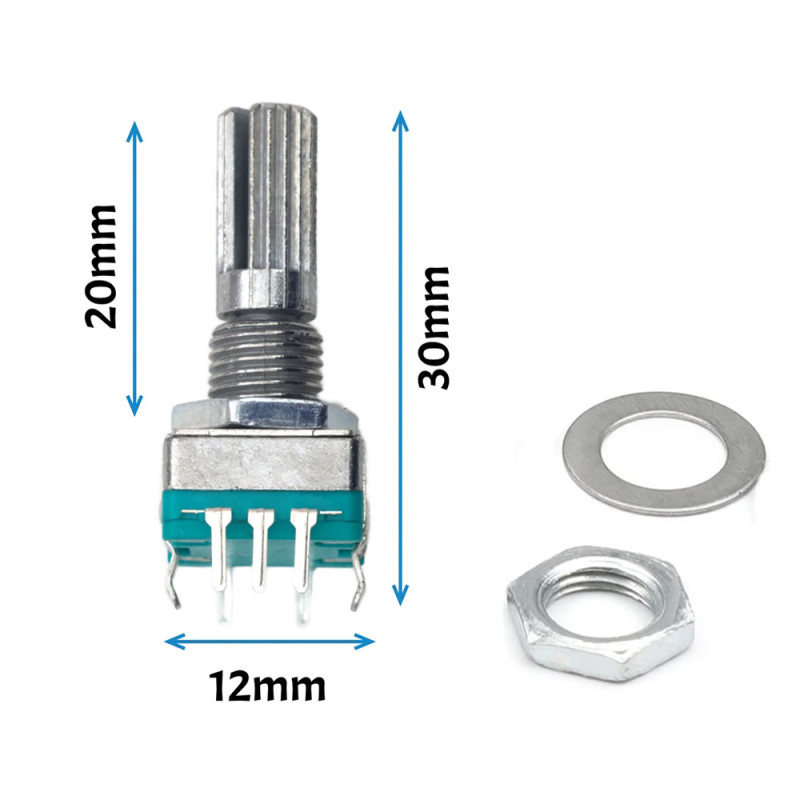

- Shaft length 20mm
- Shaft diameter: 6mm
- Dimensions: 12mm x 12mm x 30mm
- Weight: 4gr
Package contents:

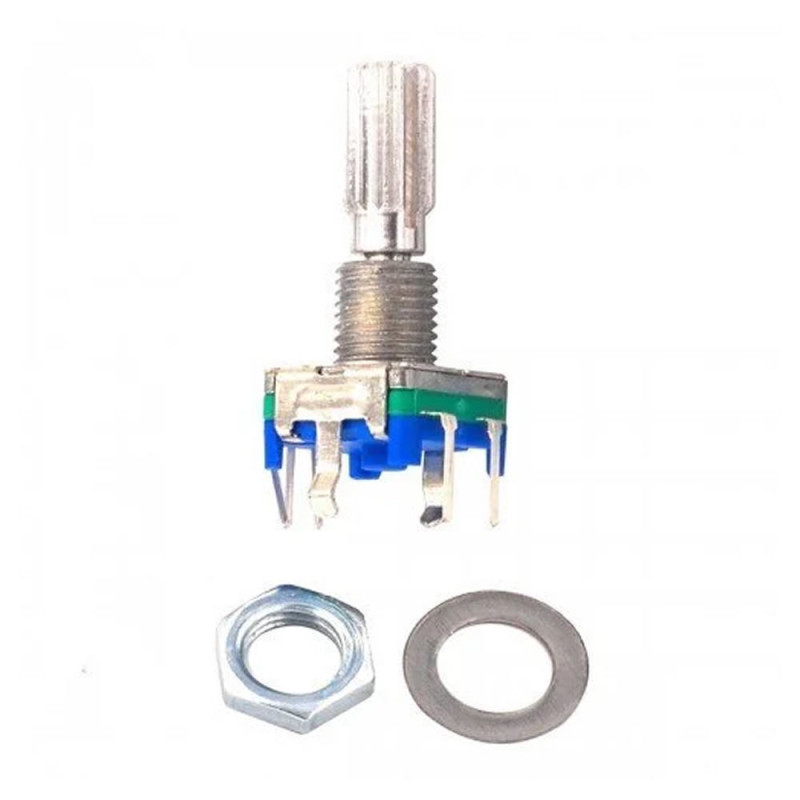

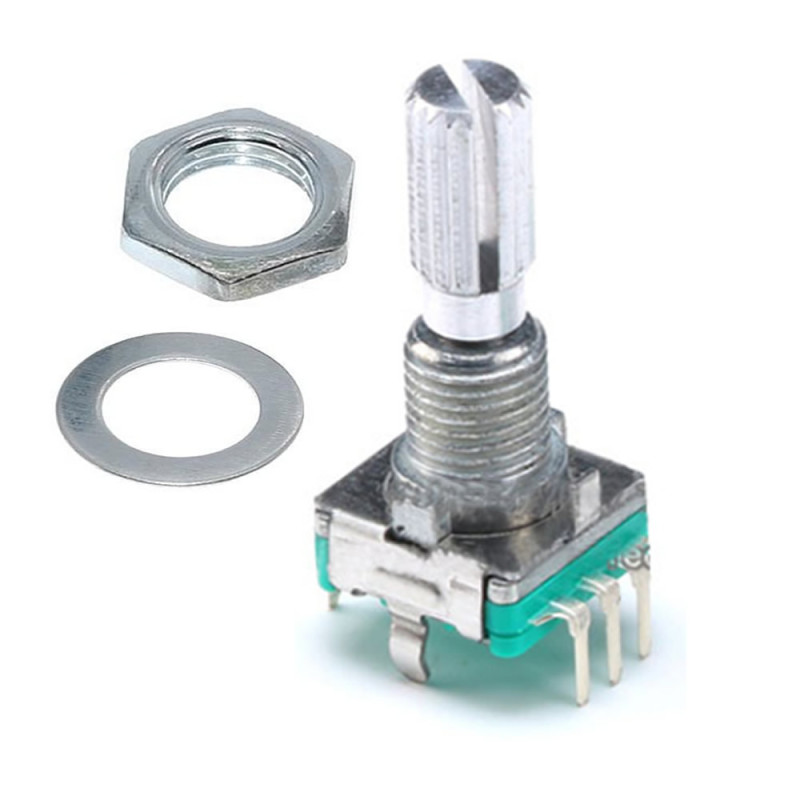

- 1 Piece EC11 Rotary Encoder
- 1 Piece Nut and washer
