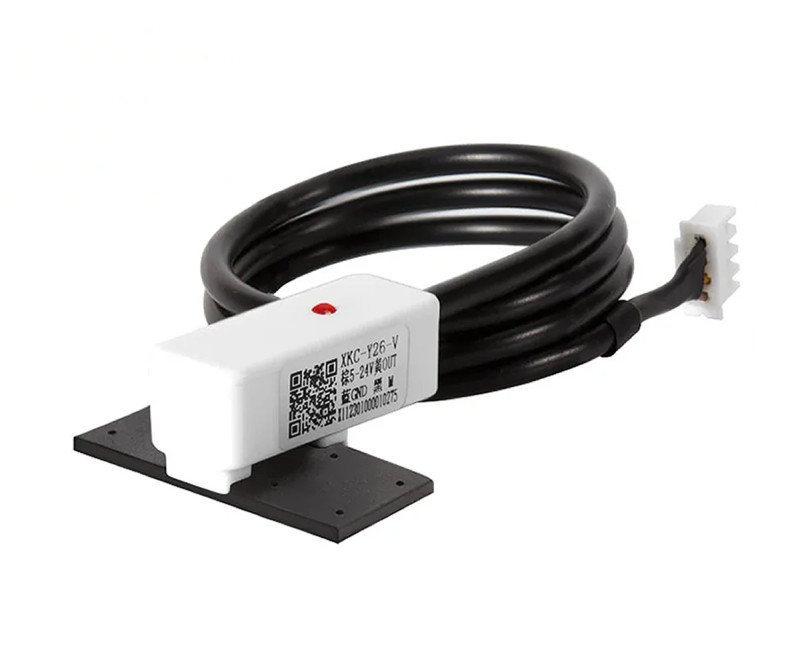

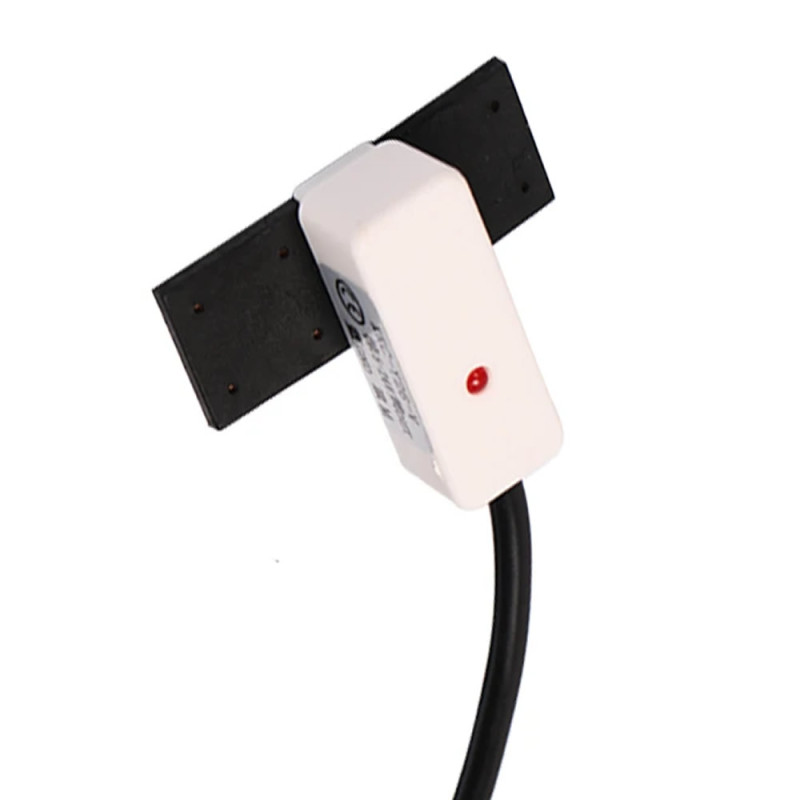

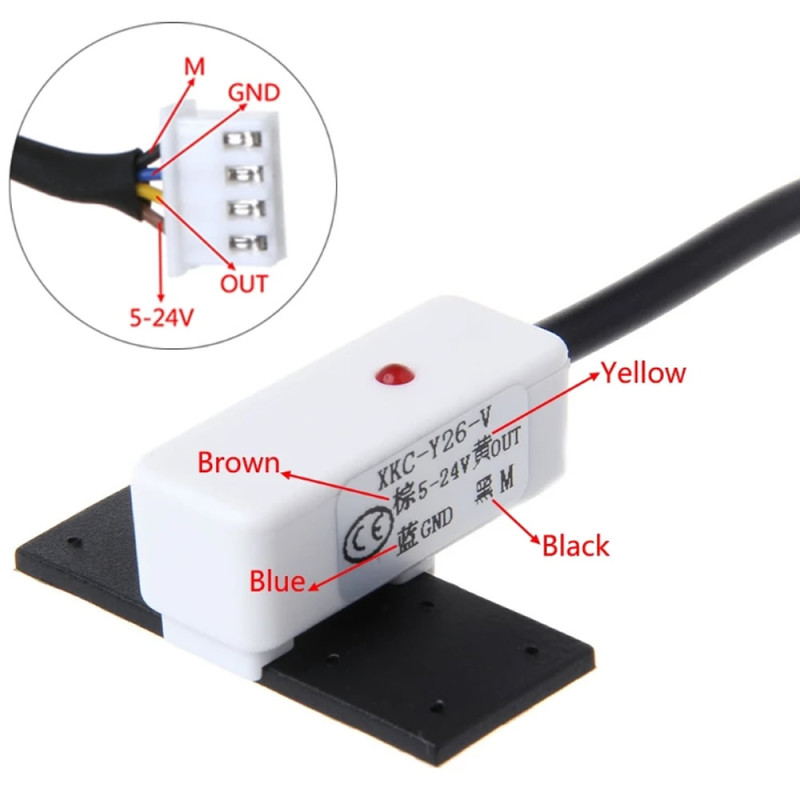

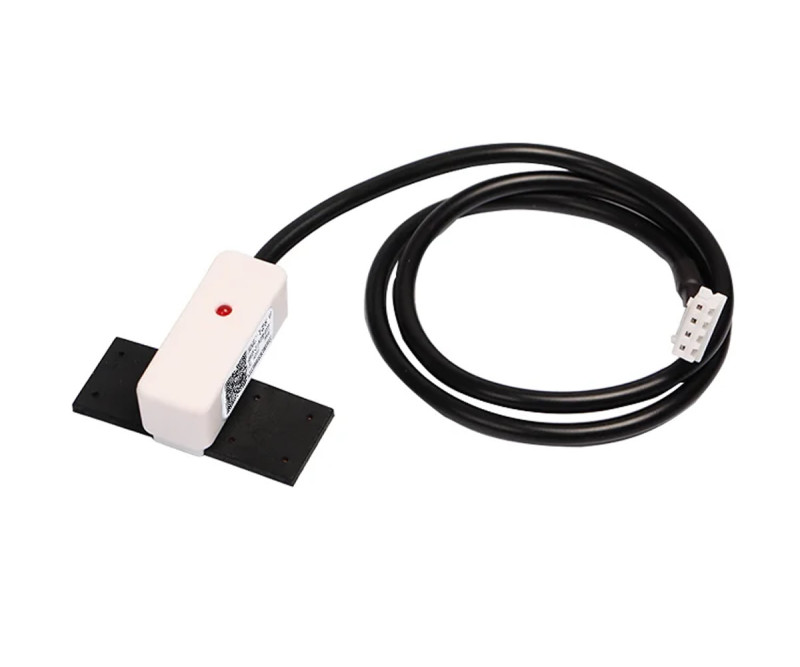

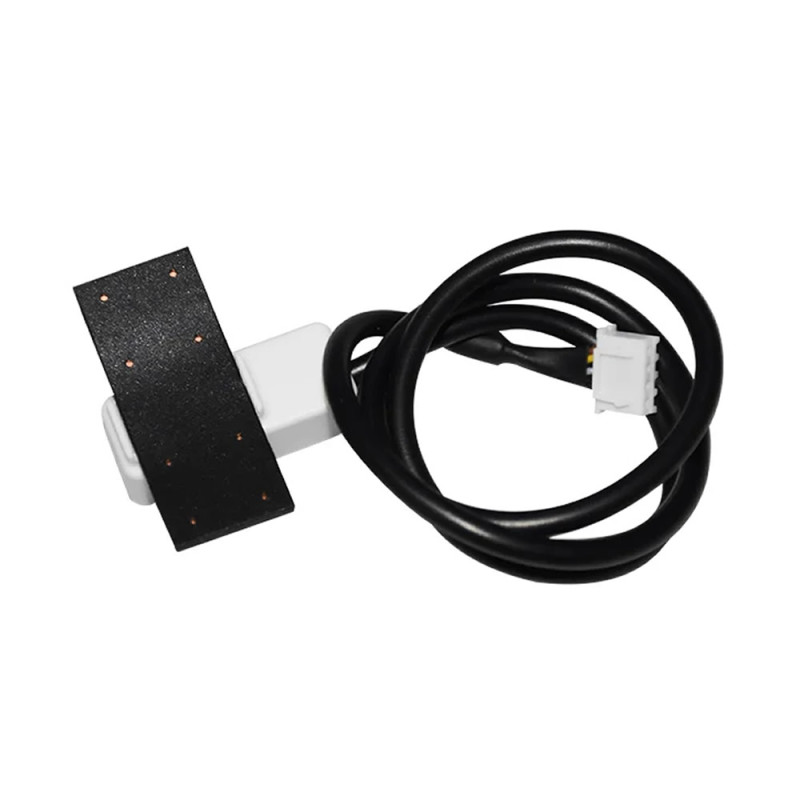

XKC-Y26-V Capacitive Non-Contact Water Level Sensor
Float Switch Boiler Container Reservoir Tank Pool Aquarium Pipe Plastic Glass Ceramic Pump
This product is a sensor used to detect the liquid level. You cannot drive a motor pump by drawing high current directly through this product. It is mandatory to add a relay or contactor type component in between. If the sensor is short circuited, it means the product has been damaged due to high current. It cannot be repaired.

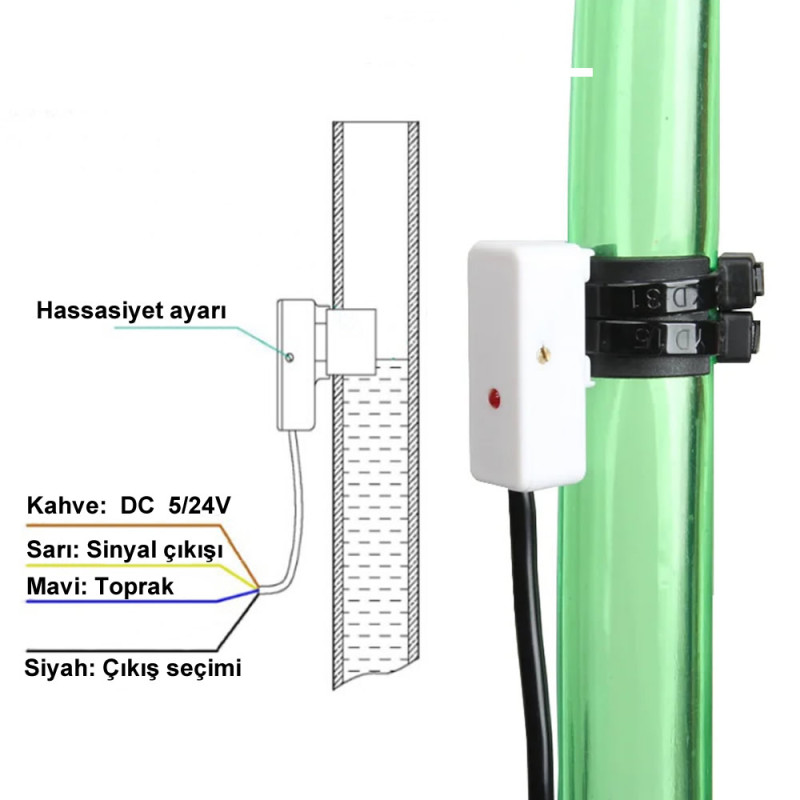

It is used to detect the liquid level in liquid filled tanks without contact. They can be used on non-metallic surfaces and on pipe lines. It can activate devices such as a pump, indicator, alarm and the like. It can be used on flat or curved surfaces. With the liquid level sensor you can detect whether your tanks are full or empty. Flow sensors can experience clogging problems. Sensors used inside liquid can experience physical and electrical problems such as erosion and dissolution. Since this product has no contact with liquid, it is not exposed to such effects
The sensor provides output as a dry contact. Depending on the position you place it, it can be normally open or normally closed. It is used for detecting the liquid level in applications such as Aquariums, Hydroponic Systems, Salt Water Tanks, Washing/ Dishwashing Machines, Filtration Systems and the like.
Features:
- XKC-Y26-V non-contact water level sensor
- Operating voltage: DC 5V / 24V
- Output current: Maximum 100mA ( The product is damaged at high current )
- Detection distance: 10mm
- Detection level error: -+ 1.5mm
- Response time: 500ms
- Output status indicator led
- Sensitivity adjustment pot
- It can indicate the level of boiled water.
- Non-metallic boilers, pipes, plastic, glass, ceramic
- Sensor protection: IP65
- Temperature range: -20C / 105C
- Color: White Black

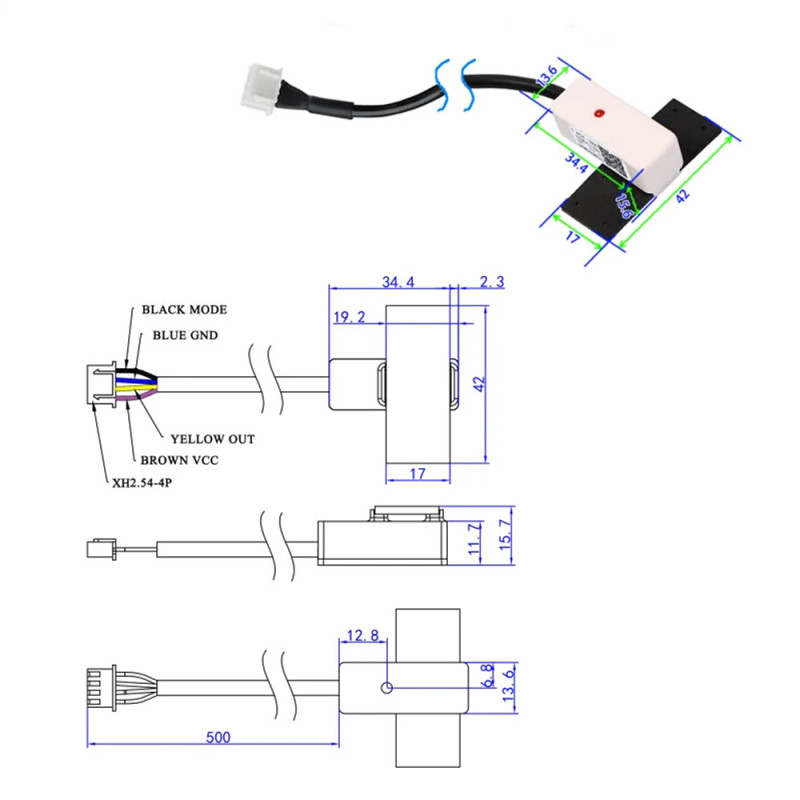

- Dimensions: 17mm x 42mm x 16mm
- Cable length: 50mm
- Weight: 18gr
Package contents:
- 1 Piece XKC-Y26-V Non-Contact Water Level Sensor
