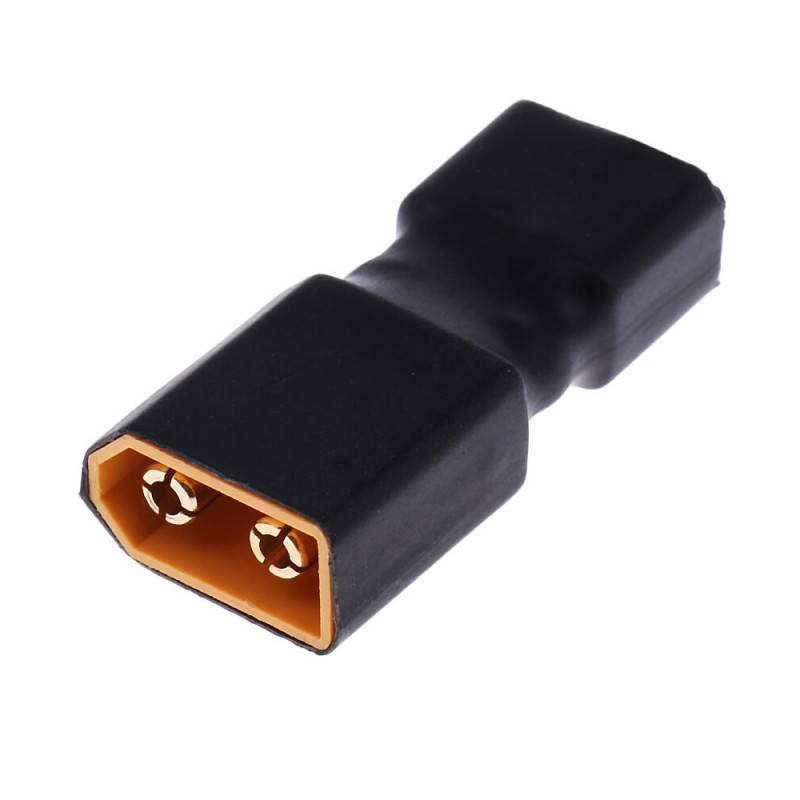

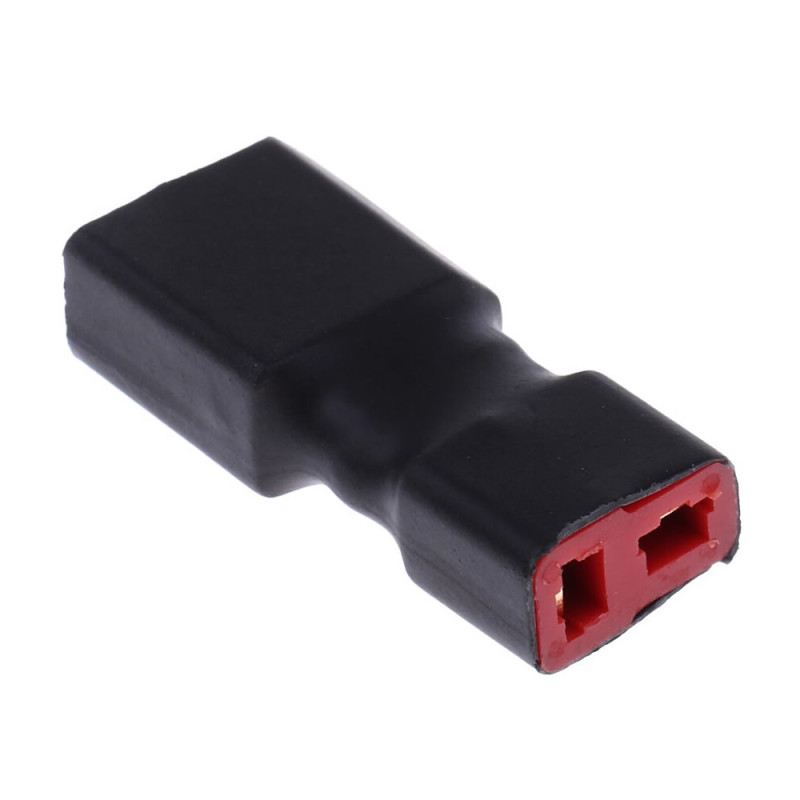

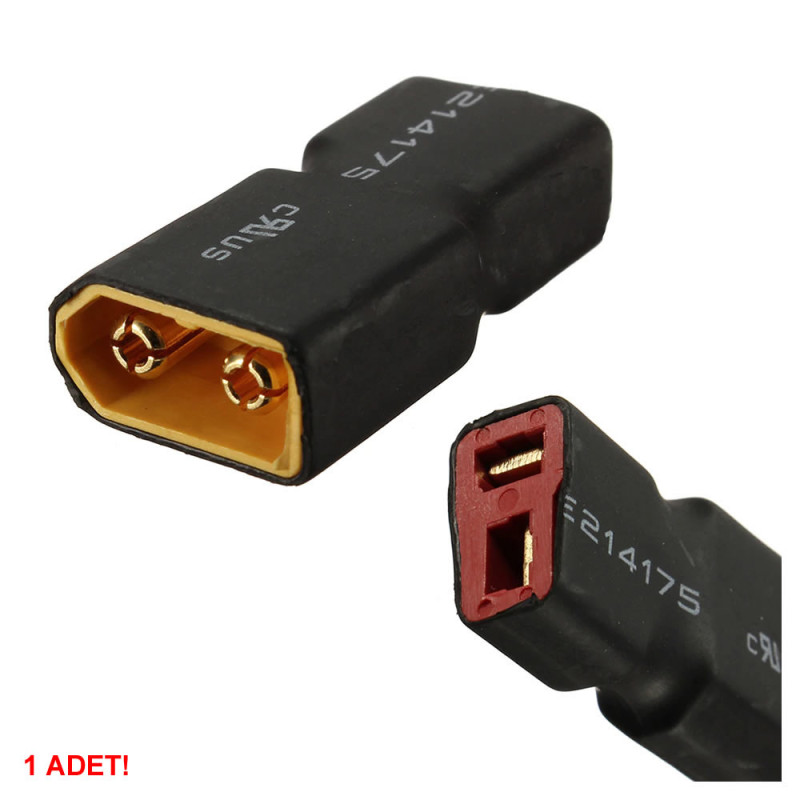

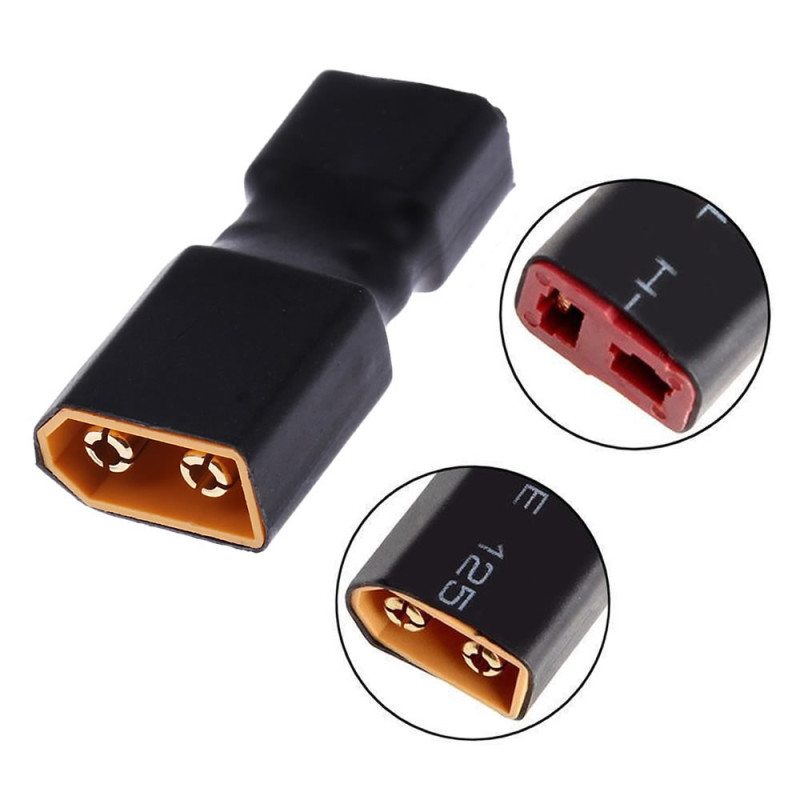

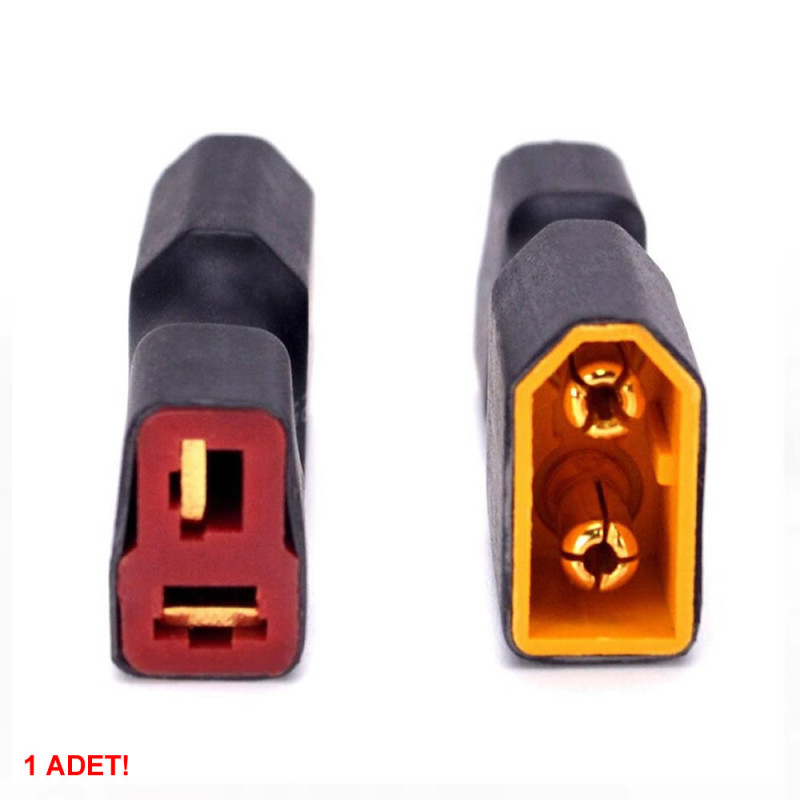

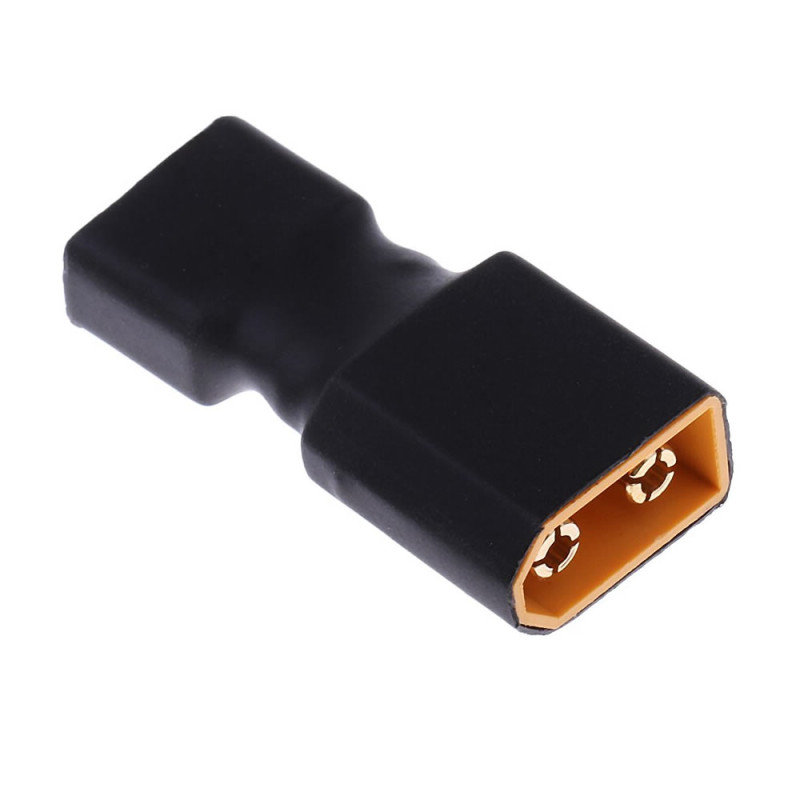

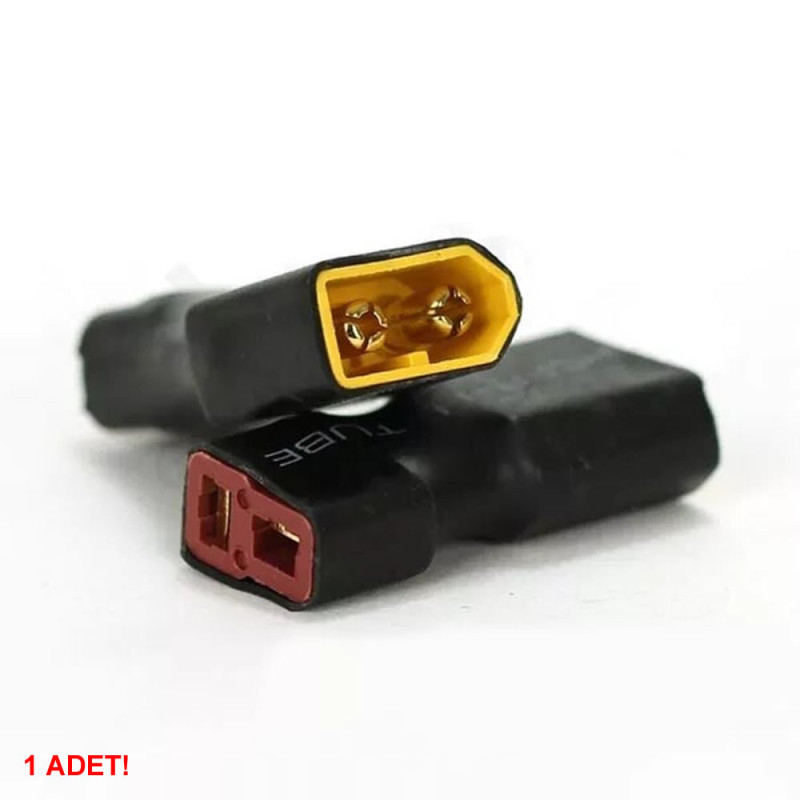

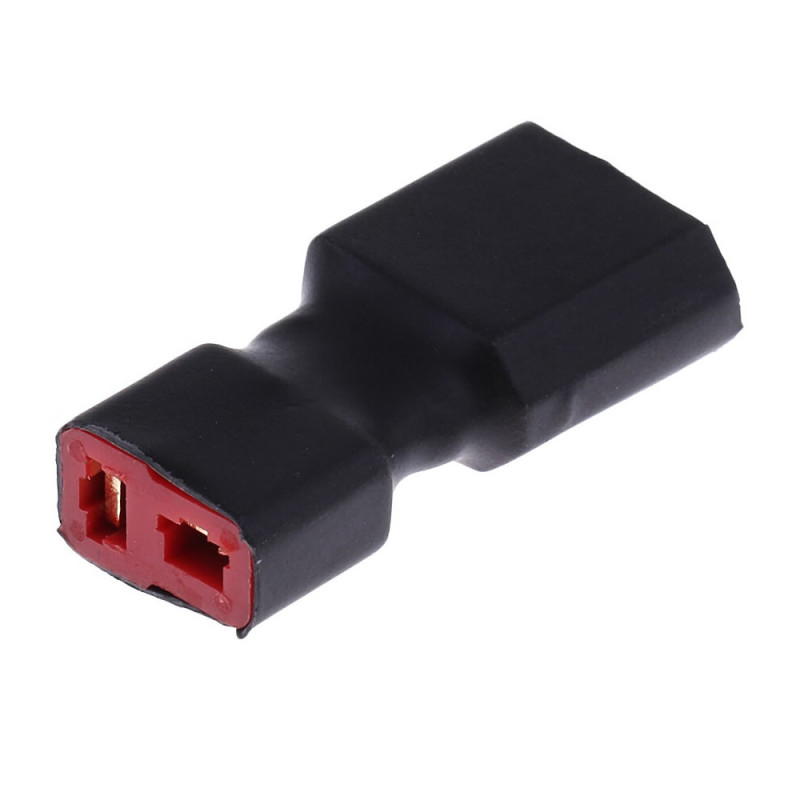

XT60 T Adapter Socket

XT60 Male T Deans Female Converter Adapter Socket

Lithium LiPo Battery Accumulator Battery Pack Connection Connector RC Esc Motor Drone Model Airplane Boat Quadcopter Multicopter

     XT60 sockets are very widely used high current carrying sockets.This adapter serves as an adapter for connecting batteries with deans socket cables to xt60 sockets. With this converter adapter you can easily complete your connection without soldering. It has high current carrying capacity. One side of the socket is an XT60 male socket. The other side is a deans T female socket. T type sockets are also widely used in ESCs.

     They are connection connectors produced from metals that show low resistance and have high current carrying capacity up to 60A. It forms the electrical connection smoothly and securely. It has a physical plastic housing design that prevents reverse connection. It is suitable for use with your high current capacity Lipo batteries.

     The plastic materials of the housings have a structure that can withstand the temperature that will occur as a result of high current. With these connectors, operations such as various connections, extensions, adapters and battery connections can be made. It can be used in Lipo batteries, RC vehicles, robots and high amperage connections. You can use it with brushless motors that draw high current.

Features:

•     Converts XT60 Male sockets to T Female socket.
•     Physical design that prevents short circuit and reverse connection.
•     Operating voltage: DC 500V maximum
•     It has high current carrying capacity.
•     Operating current:  30A ( Instantaneous 60A ( 1 minute))
•     Very suitable for battery charging operations.
•     Non-slip structure solid connection
•     High temperature resistant plastic metal material.
•     Resistance: 1mohm
•     Color: Black
•     Temperature resistance: -20C - 120C
•     Life: 1000 plug unplug
•     Length: 32mm
•     Male socket: 16mm x 9mm
•     Female socket side 15mm x 9mm
•     Weight: 7gr

Package Contents:

•    1 Piece XT60 T Converter Adapter Socket
