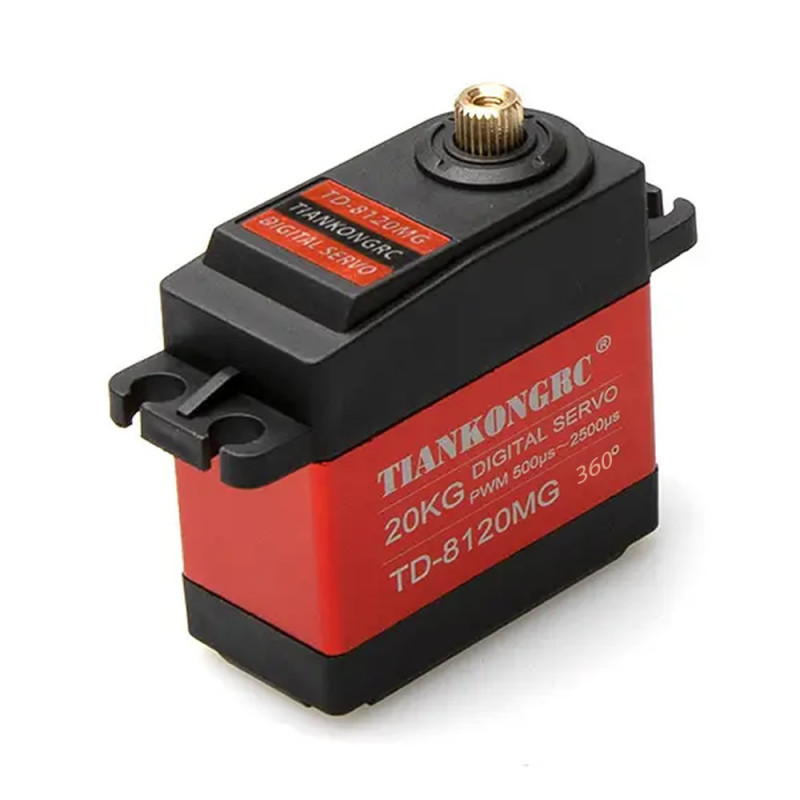

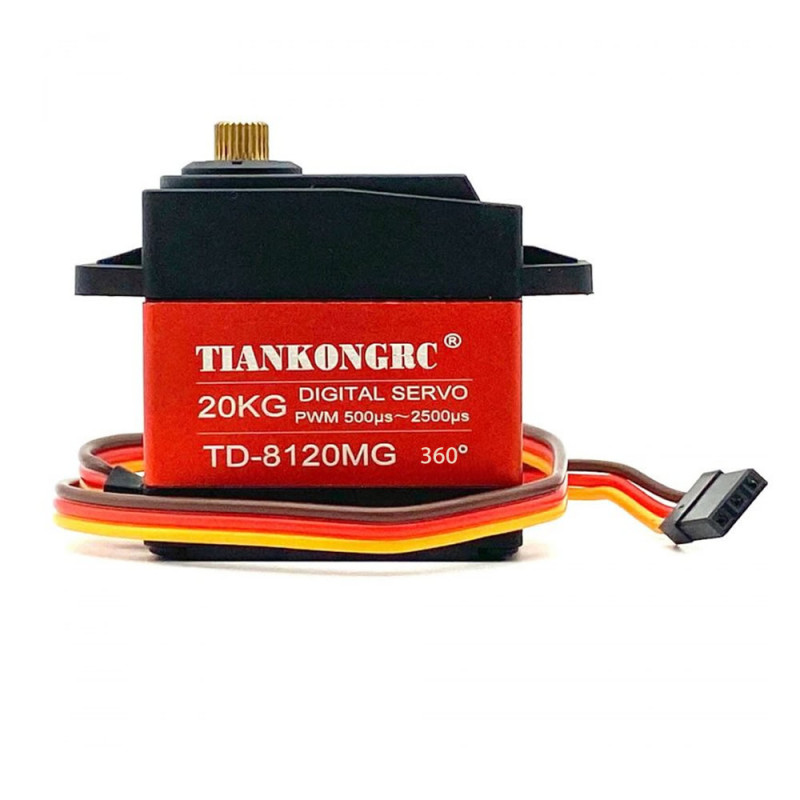

TD-8120MG 360 Metal Gear Servo

TD-8120MG 20kg 360 Degree Metal Gear Servo Motor

20Kg High Torque Waterproof Double Bearing Digital Robot Hand Arm Car Steering Helicopter Airplane Boat

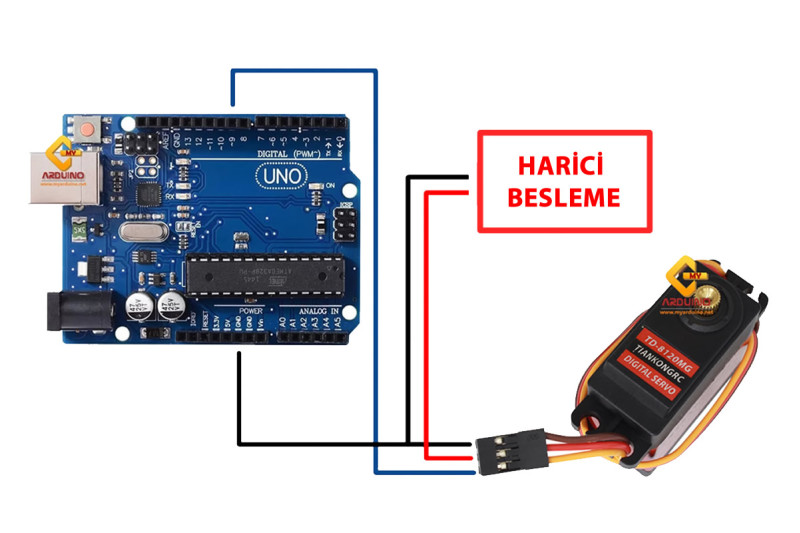

Cannot be used with Arduino. The Arduino power supply is not sufficient to drive this motor. Even if it is to be driven with Arduino, the motor must be powered from an external source.

     TD-8120MG is a very powerful servo motor. It has 20kgcm high torque power. It is used in mechanical movement applications. It is used in many applications such as steering control, robot, car, hand etc.  It has a standard S type servo connector.

Features:

• Model: TD8120MG
• Angle : 360 Degrees
• Operating voltage: DC 4.8V  /  7.2V
• 4.8V torque: 18.5Kgcm
• 6V torque: 21.8Kgcm

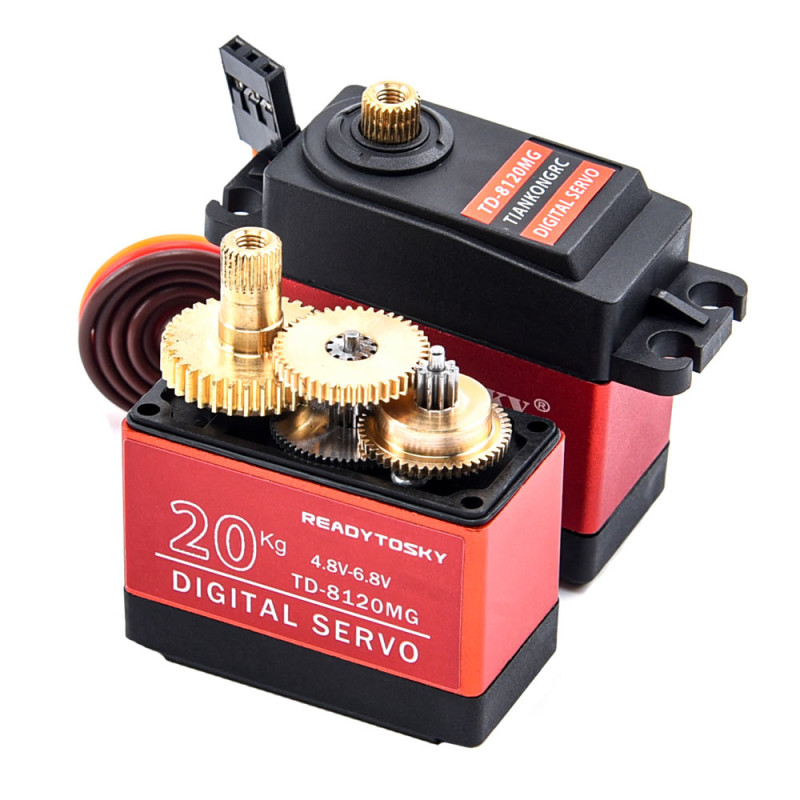

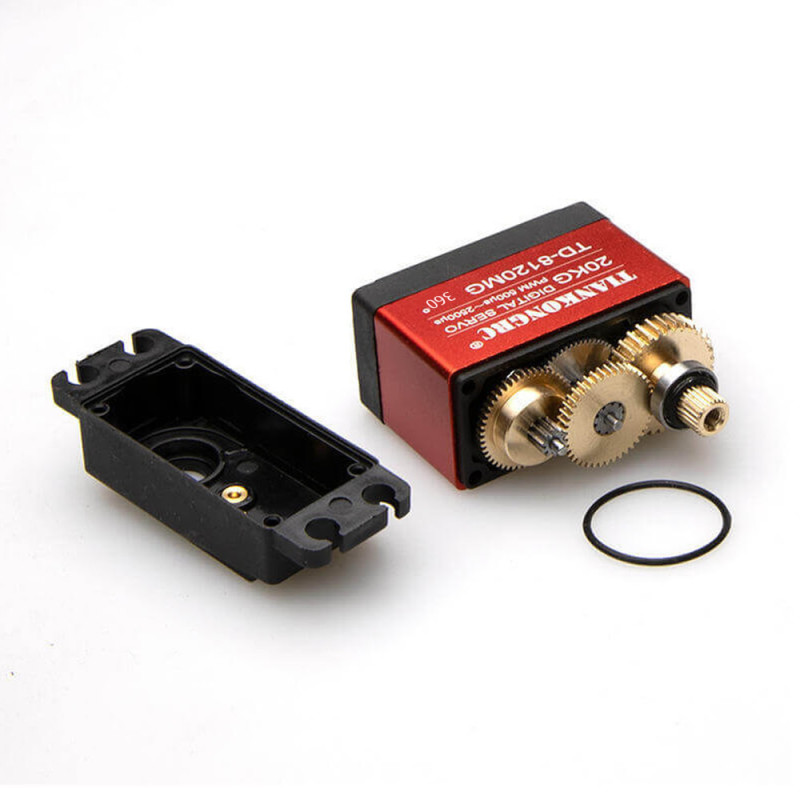

• Metal gear
• Double bearing
• Waterproof shaft
• Connector: "S" Type  (Gnd, Vcc, Signal)
• Cable length: 30cm
• Operating speed: 0.18sec / 60 degrees ( DC 4.8V No load )
• Operating speed: 0.14sec / 60 degrees  ( DC 6V No load )
• Dead band width: 4 us
• Operating temperature: -30C /  60C

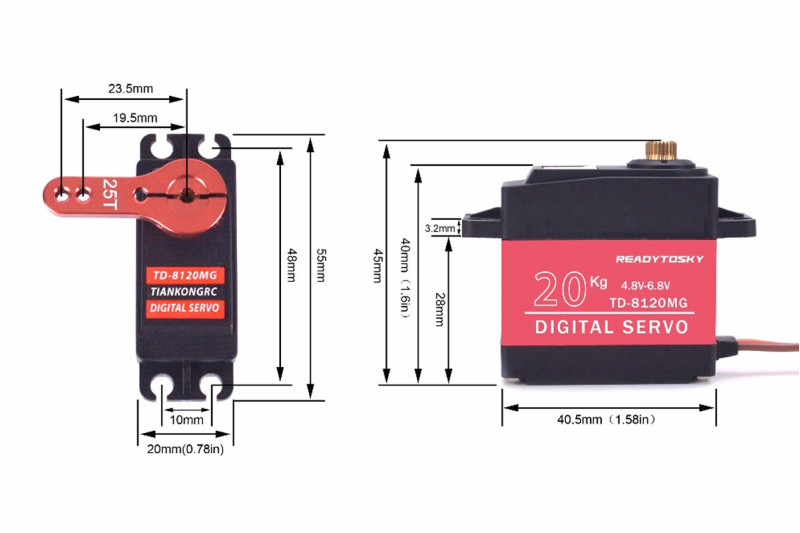

• Dimensions:  20mm x 40mm x 54mm
• Weight: 65gr ( 85gr )

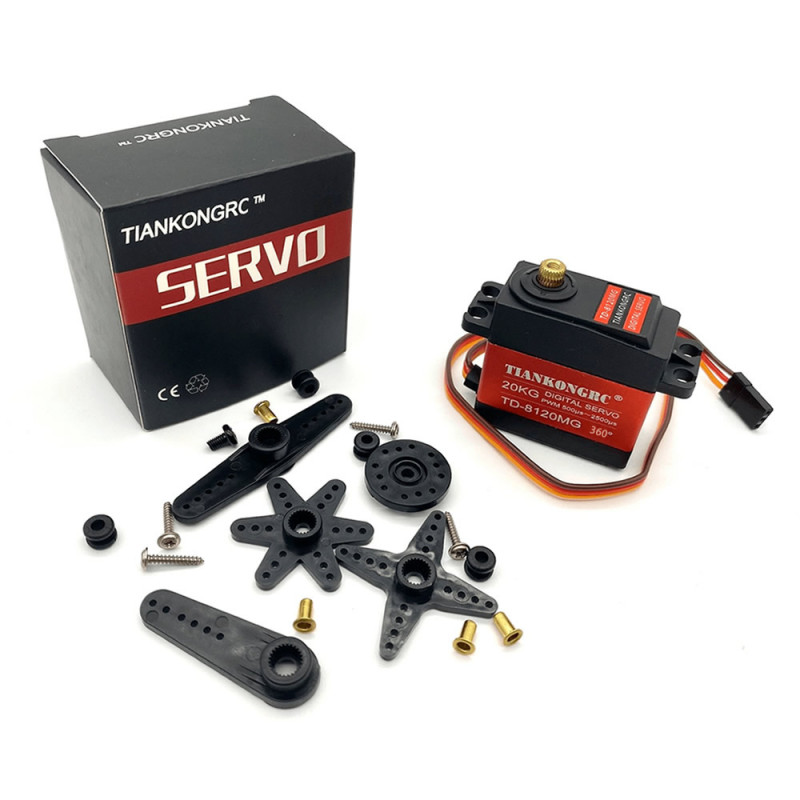

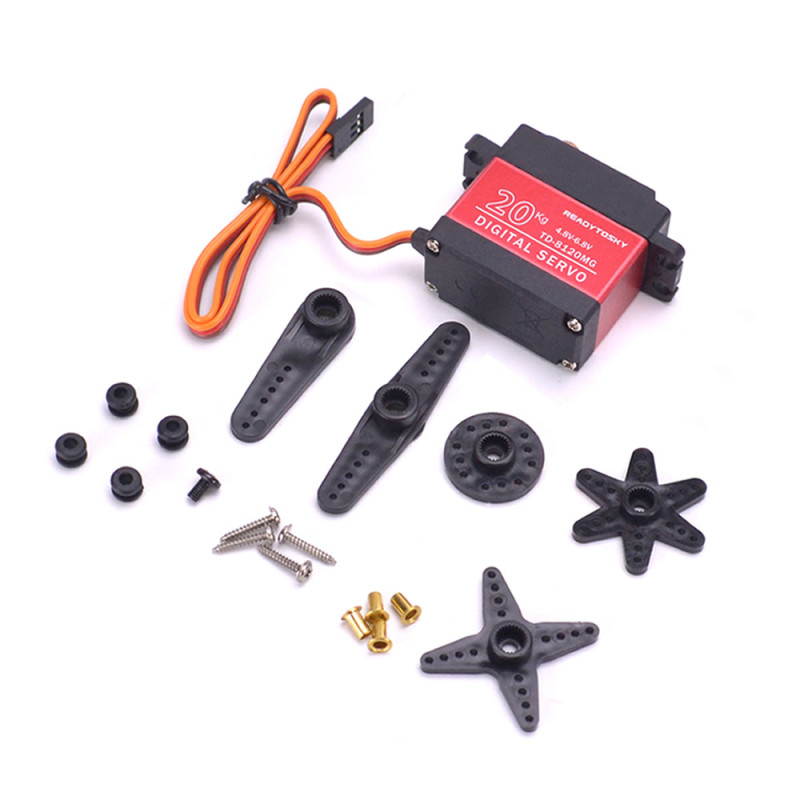

Package Contents:

• 1 Piece TD-8120MG 360 Degree Metal Gear Servo

.
