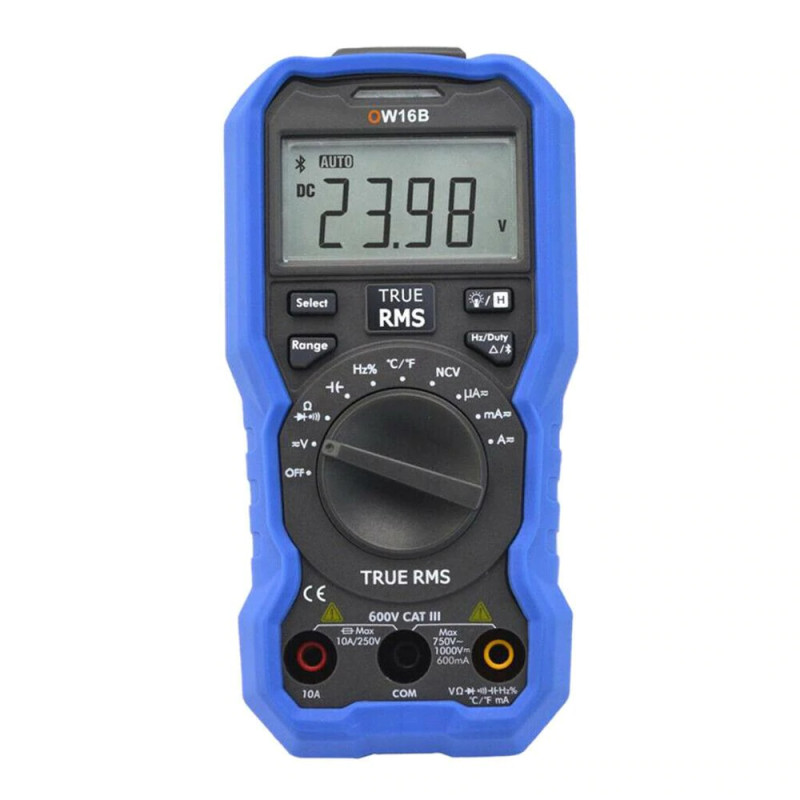

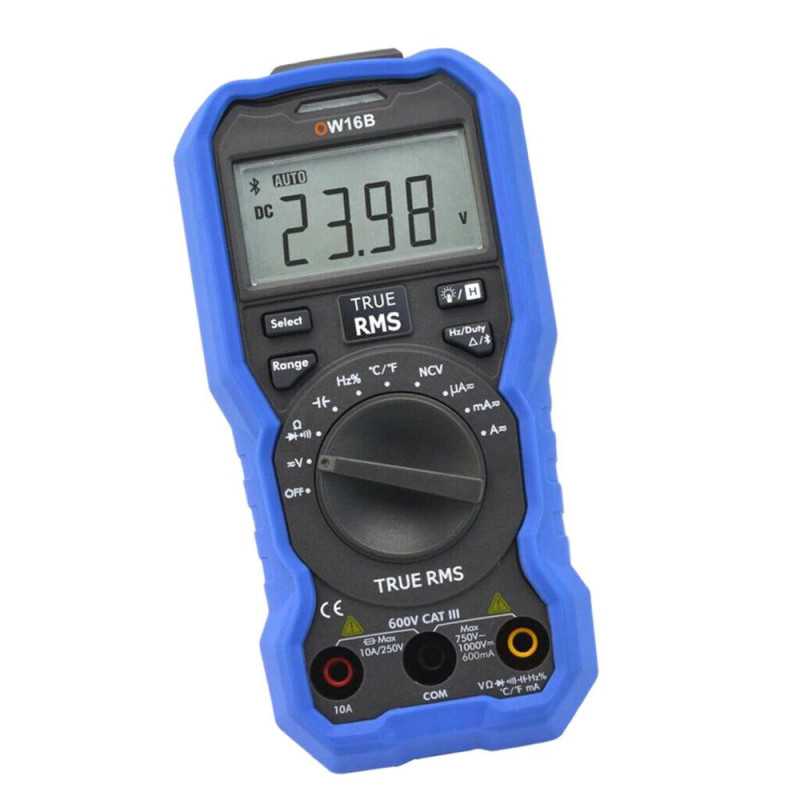

OW16B Bluetooth True RMS Multimeter
2,880.00TL
Ex Tax: 2,400.00TL
- Stok Durumu: Stok Var
- Marka: OWON
- Model: OW16B Multimetre
- SKU: RBZ.200.088

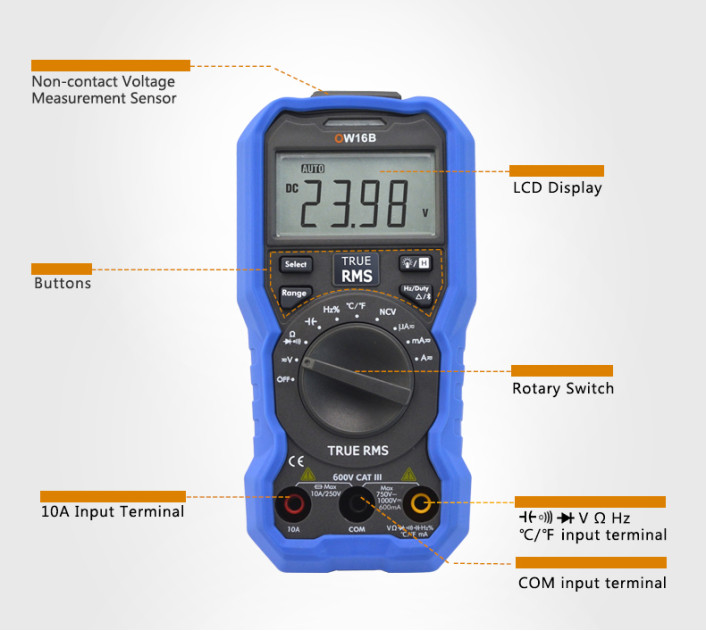

OWON OW16B Bluetooth True RMS Digital Multimeter
Bluetooth Data Logger
Features:
- This product has chart and diagram mode which can help to analyze the data tendency.
- Measures AC/DC voltage, current, resistance, frequency, temperature, diode test, duty cycle, hFE, NCV, capacitance, etc.
- This digital multimeter supports NCV non-contact voltage sense.
- Large high-definition LCD display, maximum display: 5999.
- LCD backlight, you can read it clearly even in the sunny day.
- Sleep mode, if you choose the sleep mode, it will not disturb you during this time.
- Auto power-off, data hold and LCD backlight function.
- Low-battery indicator. When the power is low, it will remind you.
- Multifunctional digital multimeter, it can be data logger, multimeter and thermometer.
- Applied to electronic circuit debugging, circuit testing, design and manufacture education and training , automobile maintenance and testing, etc.
- Support continuity buzzer and low voltage indication.

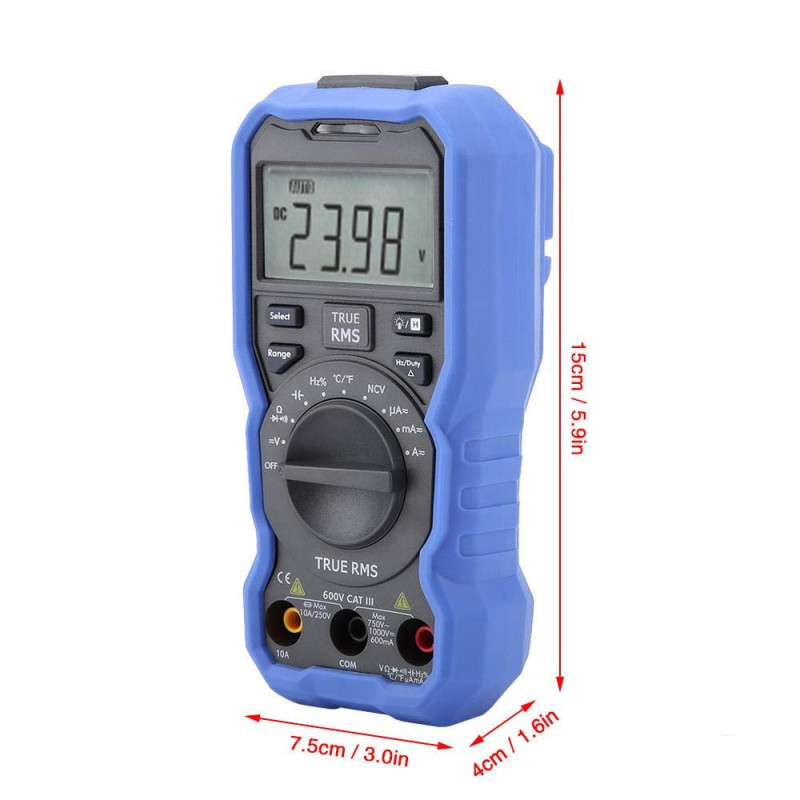

- Compact size make it lightweight and portable..
Function:
- 3 5/6 bit resolution
- Data Logger + Multimeter + Thermometer
- Chart and Diagram mode helps to analyze the data tendency
- Support NCV non-contact voltage sense
- True RMS test supported

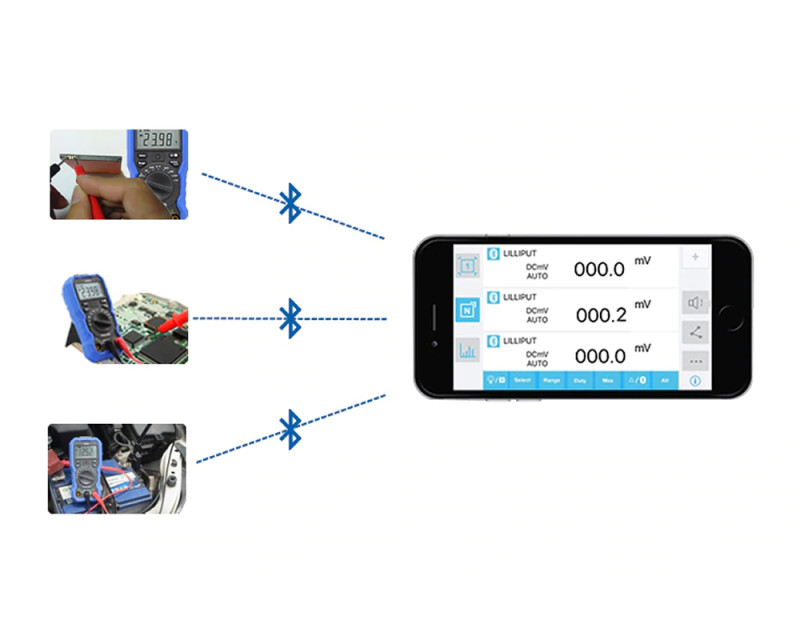

- BLE 4.0 wireless transmission, more stable, less power consumption
- Widely supported on Android, iOS
- Build-in offline record function
| Auto ranging | √ | Data Hold | √ |
| Auto/Manual Scale Switch | √ | Bluetooth Module | Only for OW16B |
| LCD Backlight | √ | ||
| Diode Test | √ | True RMS | √ |
| Sleep Mode | √ | Input Protection | √ |
| Auto Power-off | √ | Input Impedance | 10Mohm and above |
| Continuity Test | √ | Battery | 3V (1.5V x 2) AA |
| Low-battery Indicator | √ | Relative Measurement | √ |
| Measurement Range | Resolution | Accruacy | ||
|---|---|---|---|---|
|
DC Voltage |
6.000V/60.00V/600.0V | 0.1mV | ±(0.5%+2 dig) | |
| 1000V | 1 V | ±(0.8%+2 dig) | ||
|
AC Voltage (V) |
6.000V/60.00V/600.0V | 0.1mV | ±(0.8%+3dig) | |
| 750V | 1V | ±(1%+3dig) | ||
|
DC Current (A) |
uA |
600.0uA/6000uA ( EU ) | 0.1uA | ±(0.8%+2dig) |
|
mA |
60.00mA/600.0mA | 0.01mA | ||
|
A |
10.00A | 0.01A | ±(1.2%+3dig) | |
|
AC Current (A) |
uA |
600.0uA/6000uA (EU) | 0.1uA | ±(1%+3dig) |
|
mA |
60.00mA/600.0mA | 0.01mA | ||
|
A |
10.00A |
0.01A |
±(1.5%+3dig) | |
| Resistance (ohm) | 600.0ohm/6.000kohm/60.00kohm/600.0kohm/6.000Mohm | 0.1ohm | ±(0.8%+2dig) | |
| 60.00Mohm | 0.01Mohm | ±(2%+3dig) | ||
| Capacitance (F) | 60.00nF/600.0nF/6.000uF/60.00uF | 0.01nF | ±(3%+3dig) | |
| 600.0uF/6.000mF/60.00mF | 0.1uF | ±(3%+5dig) | ||
| Frequency | 9.999Hz/99,99Hz/999.9Hz/9.999kHz/ 99.99kHz/999.9kHz/9.999MHz |
0.001Hz | ±(0.8%+2dig) | |
| Duty Ratio (%) | 0.1% to 99.9%(typical value: Vrms=1V,f=1kHz) | 0.1% | ±(1.2%+3dig) | |
| 0.1% to 99.9%(1kHz and above) | ±(2.5%+3dig) | |||
| Temperature (C/F) | '-50C to 400C | 1C | ±(2.5%+3dig) | |
| '-58F to 752F | 1F | ±(4.5%+5dig) | ||
| Display | 5999 | |||
| Frequency Response | (40 - 1000) Hz | |||
| Shift Rate | 3 times/s | |||

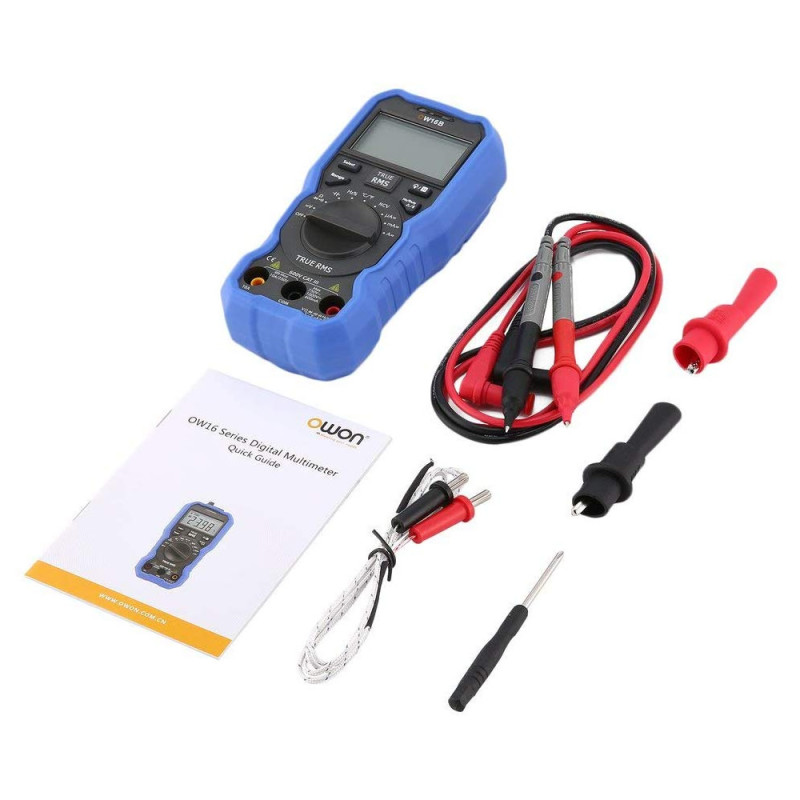

Package Contents:
- 1 x OW16B Multimeter

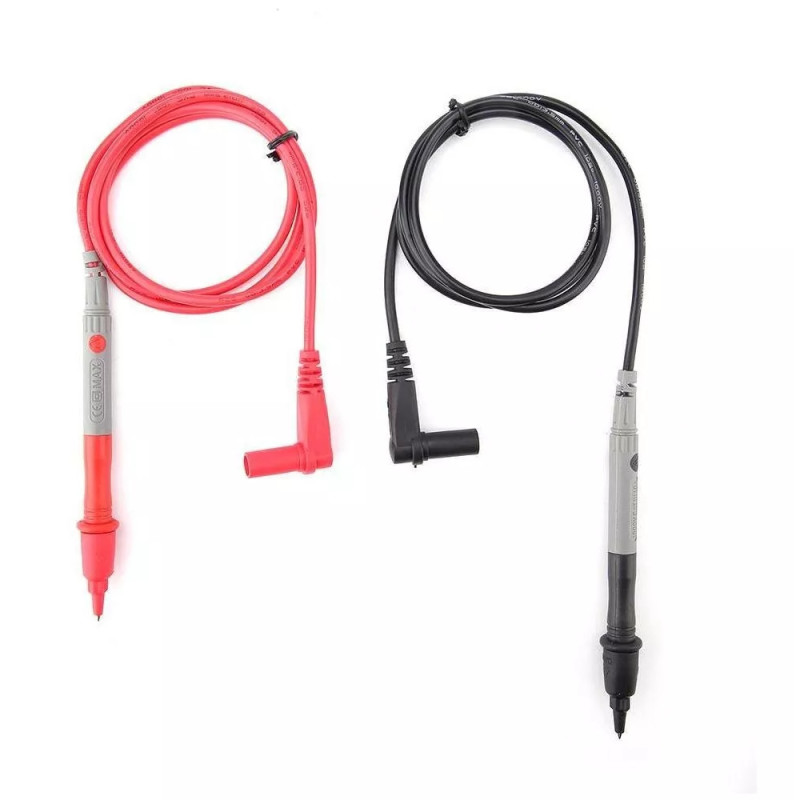

- 2 x Probe
- 2 x Alligator clip probe tip
- 1 x K-type Thermocouple
- 1 x Screwdriver
