5.8Ghz Circular SMA Male Antenna
382.20TL
318.50TL + KDV
10 or more 324.87TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.100.542

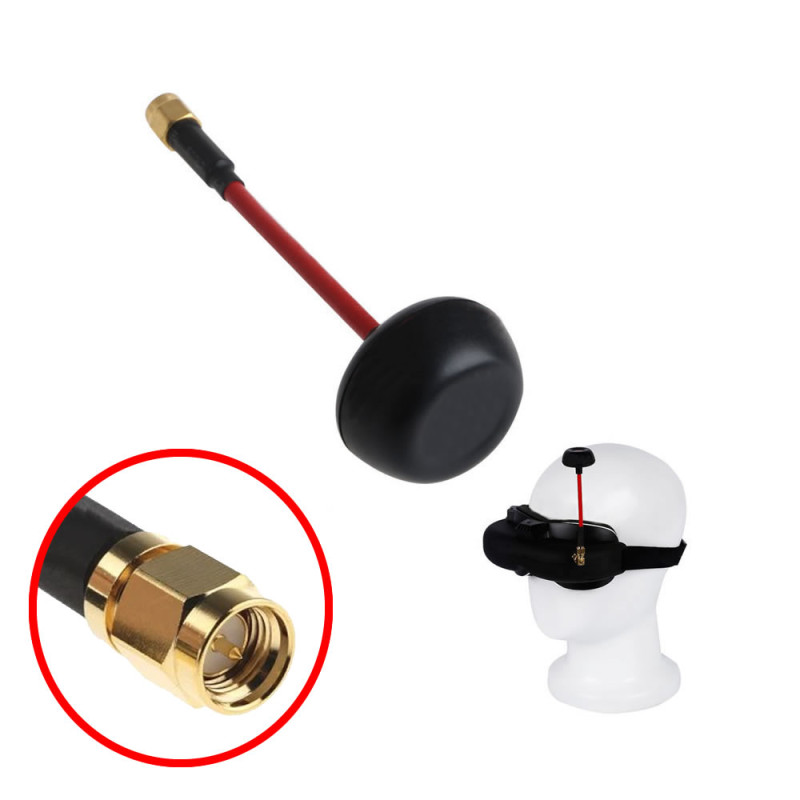

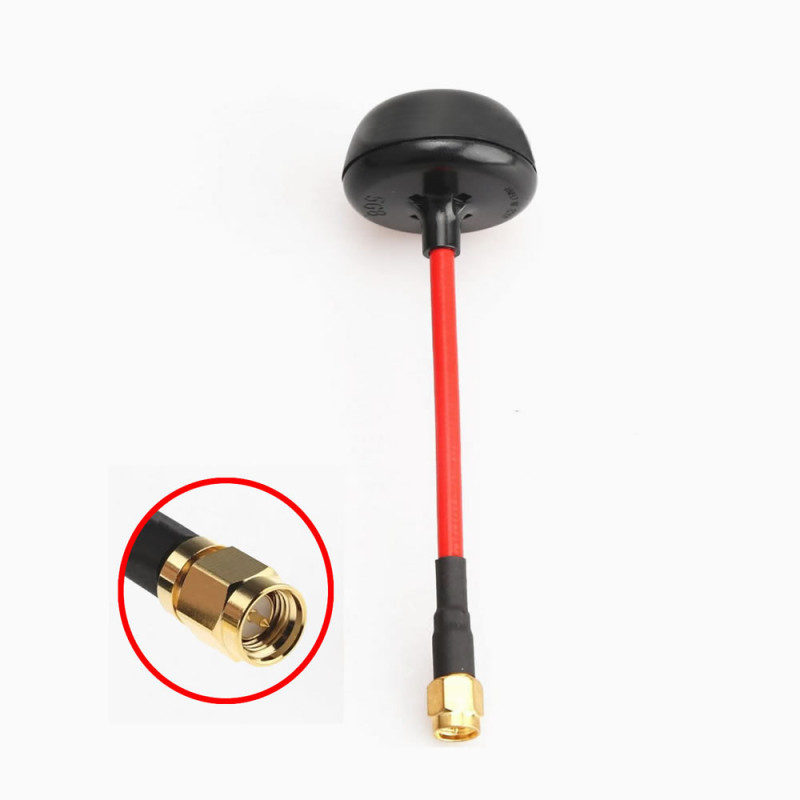

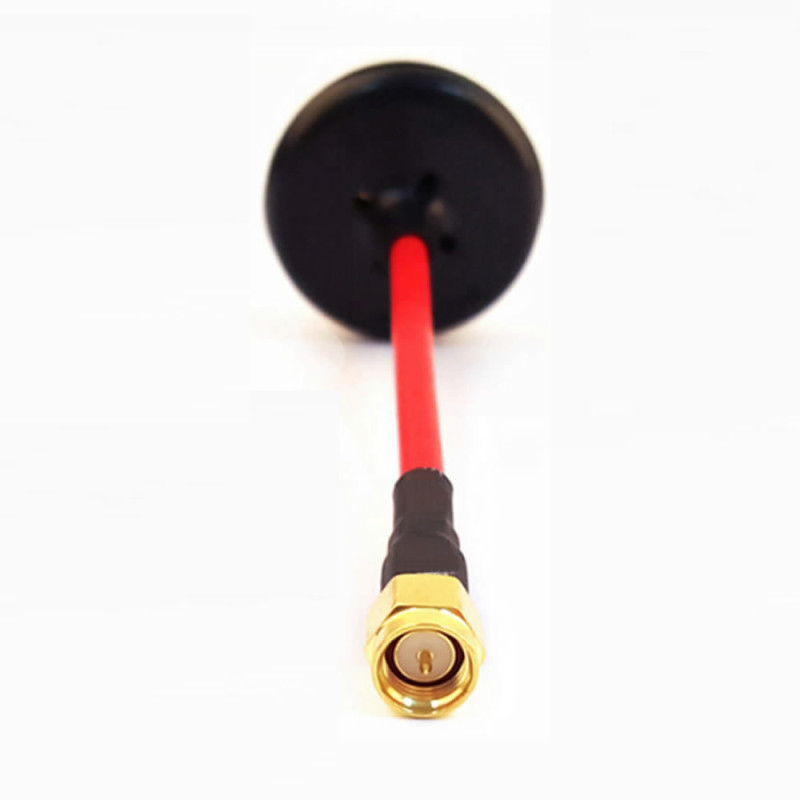

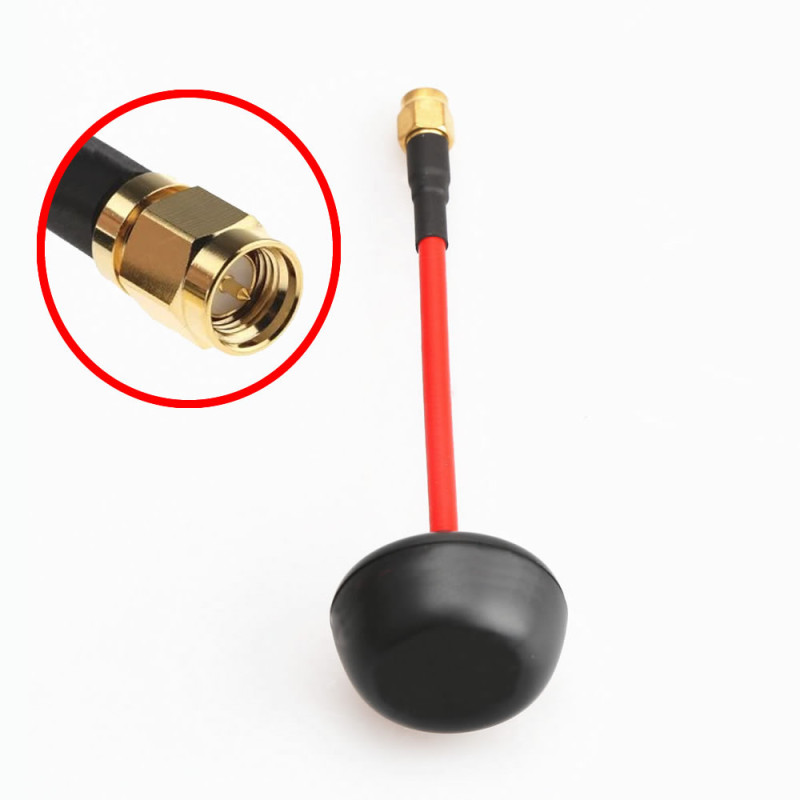

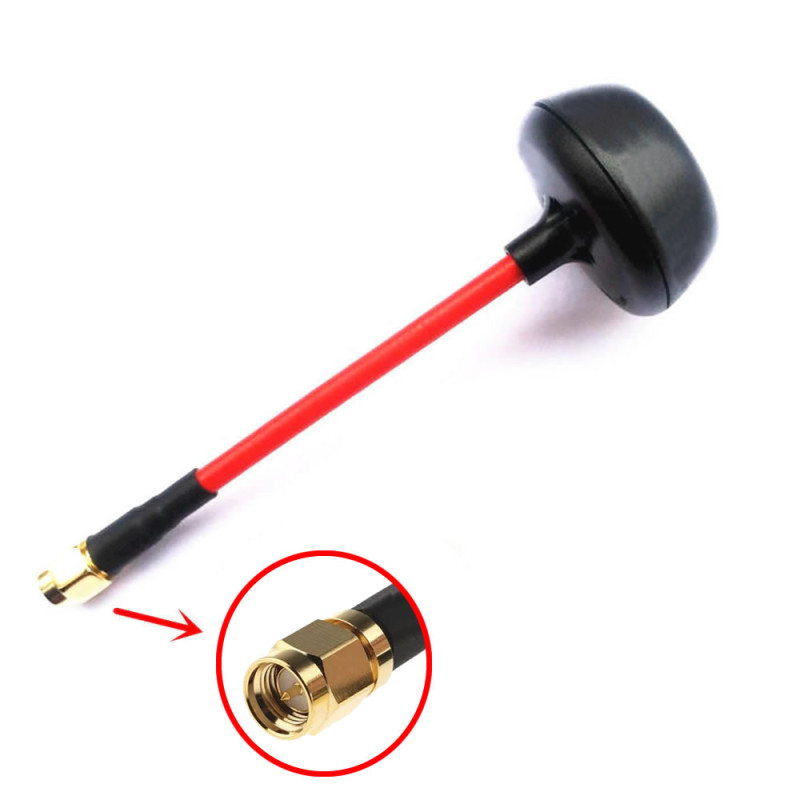

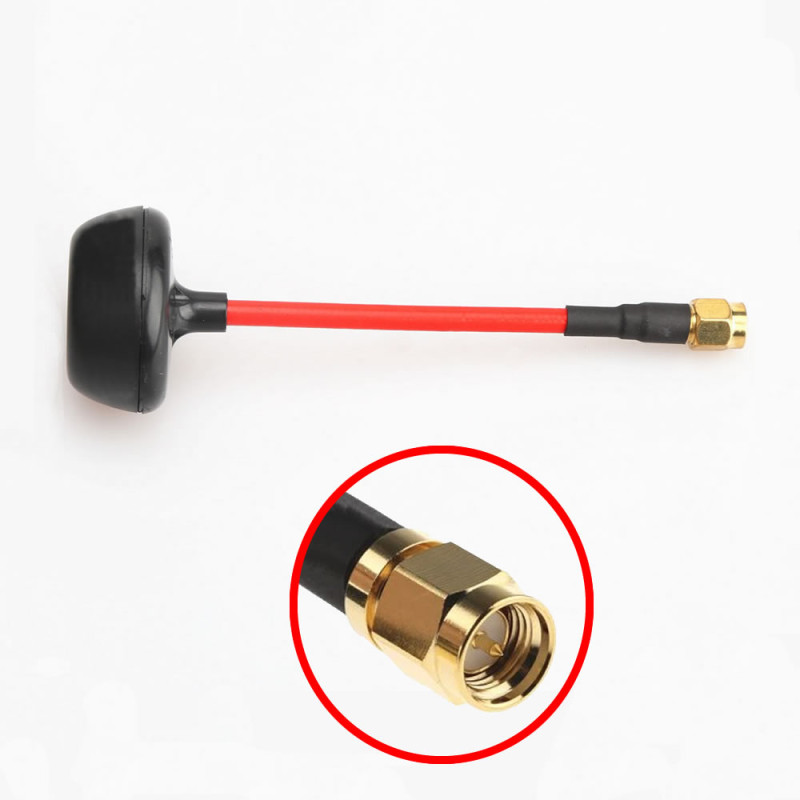

5.8Ghz Sma Male Antenna
Flexible Circular Polarized Omni Mushroom Antenna RC FPV Drone Multicopter Quadcopter Camera Video Telemetry DJI Phantom
5.8Ghz transceiver antenna. It has an SMA male type socket structure. It can be used together with products that have a female type socket. It is circular polarized and 10cm in size. It has been newly designed and optimized. It offers communication from a longer distance and the ability to communicate from any direction.

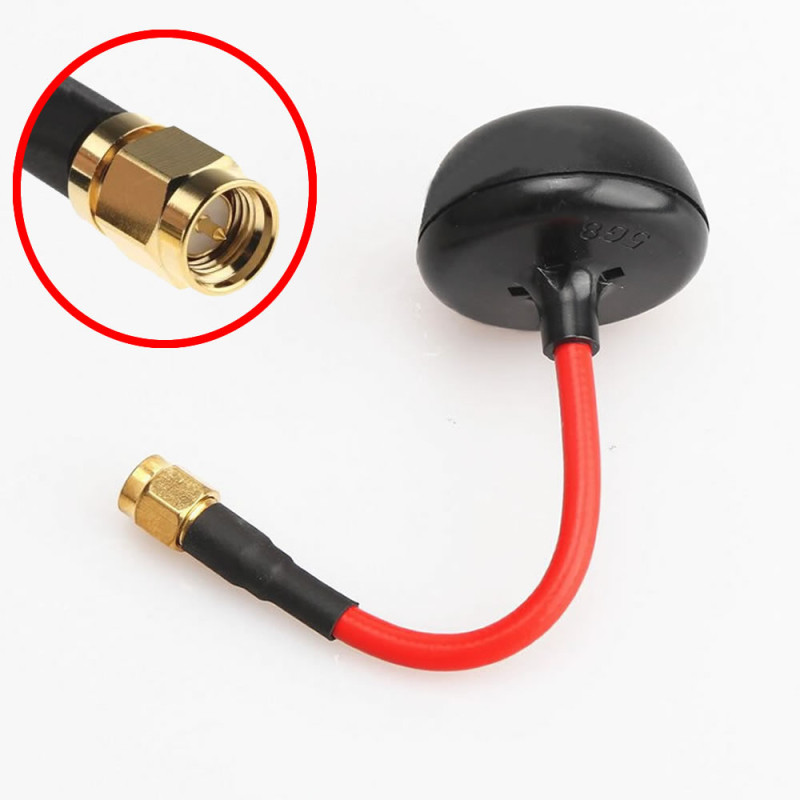

It has a flexible and durable cable structure. It allows bending but is not damaged. It is suitable for use at the 5.8Ghz frequency.
Features:
- Center frequency: 5.8GHz ( 5.55Ghz / 6.05GHz)
- Bandwidth: 500MHz
- SMA male socket
- Gain 3db
- Horizontal: 360C
- Vertical: 120C
- Maximum power: 50W
- Radiation efficiency: 95%
- Resistance: 50ohm
- Antenna type: receiver / transmitter
- Material: ABS / Metal
- Thanks to its flexible cable structure it can be directed to a certain direction.
- Color: red black

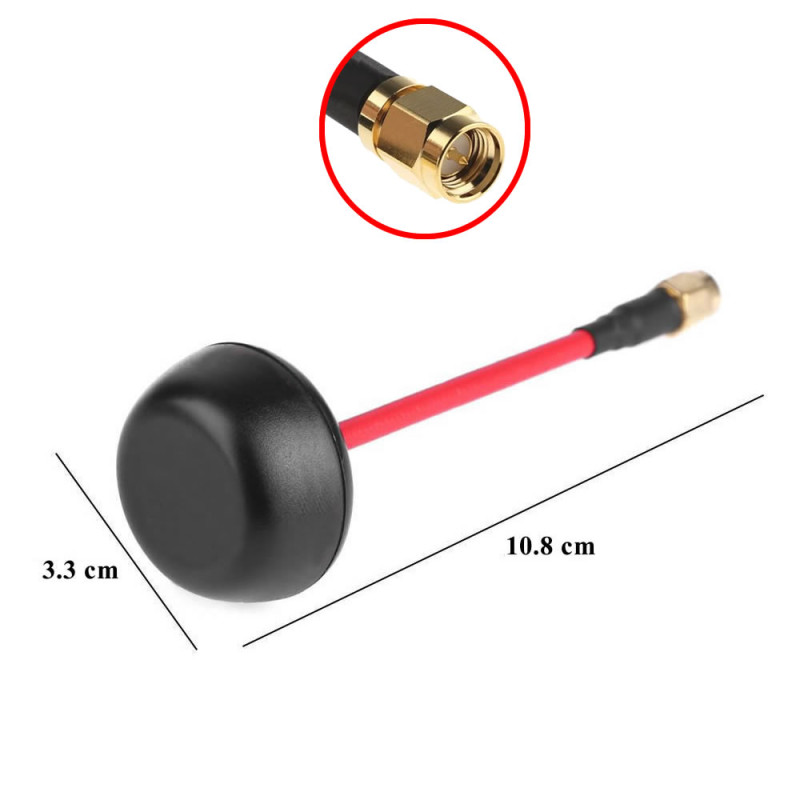

- Antenna dimensions: 17mm x 33,5mm
- Length: 110mm
- Weight: 13.5gr
Package Contents :
- 1 Piece 5.8Ghz SMA male omnidirectional antenna
.
