Battery Capacity Indicator with Voltmeter

Battery Capacity Indicator with Voltmeter

Compatible with 12V / 24V / 36V / 48V / 60V Lead Acid Battery and 2S Lithium Batteries Car Electric Bicycle Scooter Solar 0.56 Panel Box

     It is a high precision indicator with dual display designed for you to monitor the capacity and instantaneous voltage value of your lead acid batteries. One of the displays is a 3 digit voltmeter. The other display shows the battery capacity. It automatically detects the batteries according to the voltage level and shows the charge level of the battery on the 8 step bar led section according to this level. Of the bar leds, 2 are red and 6 are green. It is fully compatible with 12V, 24V, 36V, 48V and 60V lead acid battery groups.

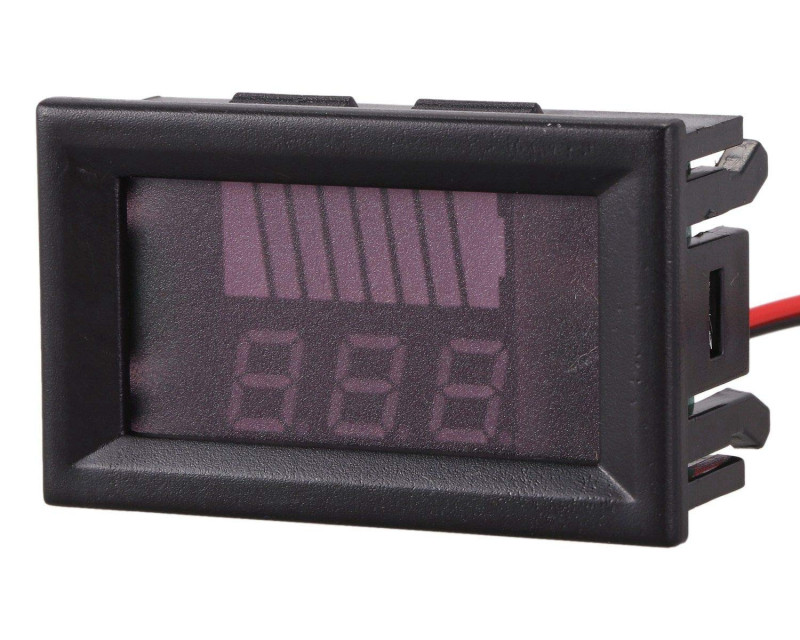

     The product can also be used for 2S lithium batteries. The capacity bar section is also active between 5.7V / 6.8V. It comes in a 0.56 inch panel type mountable plastic box.

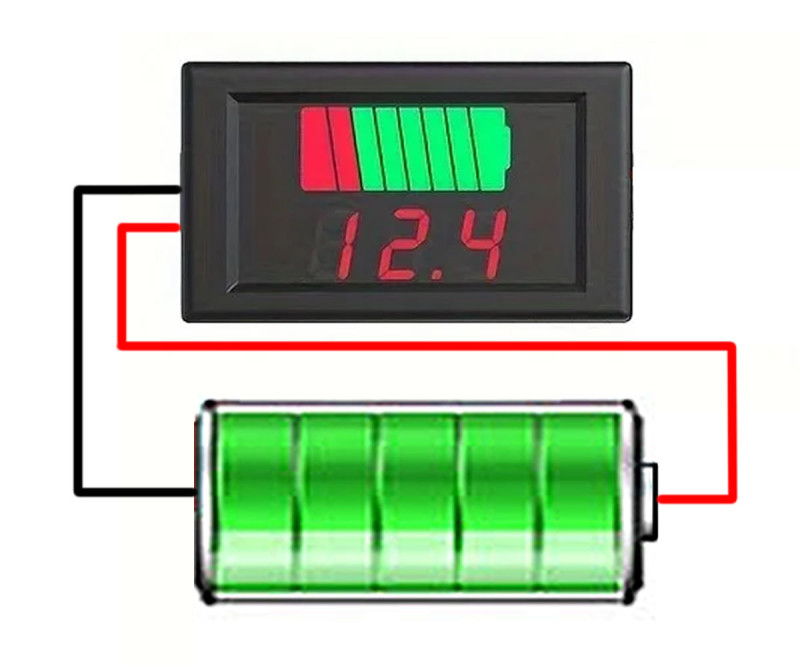

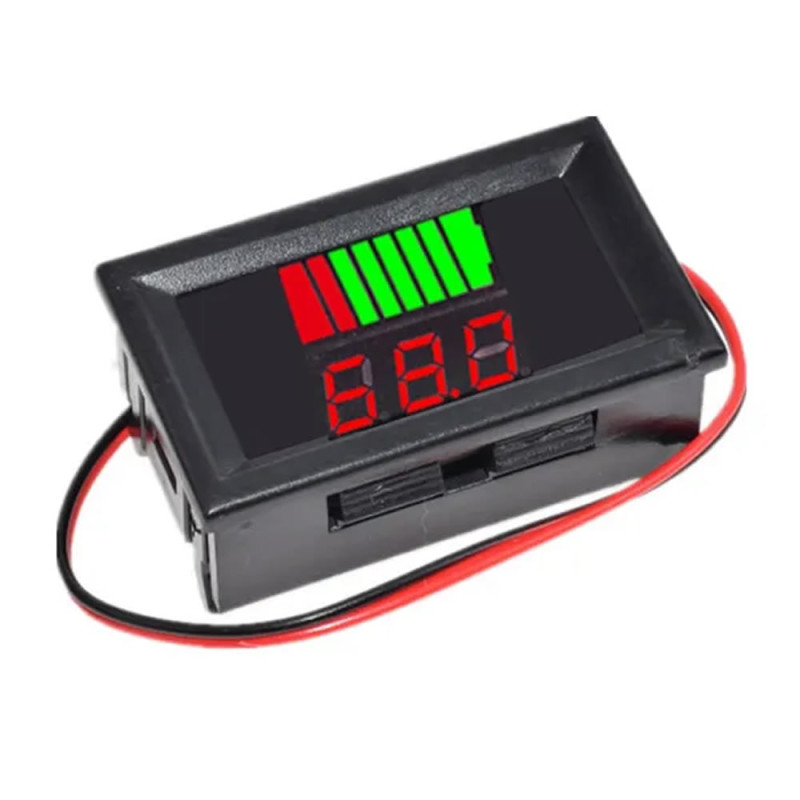

     There is a 3 digit digital voltmeter on the module. In this way you can monitor the instantaneous battery voltage value. With its compact design and reverse connection protection, it can be used safely in automobiles, boats, solar energy systems and hobby projects.

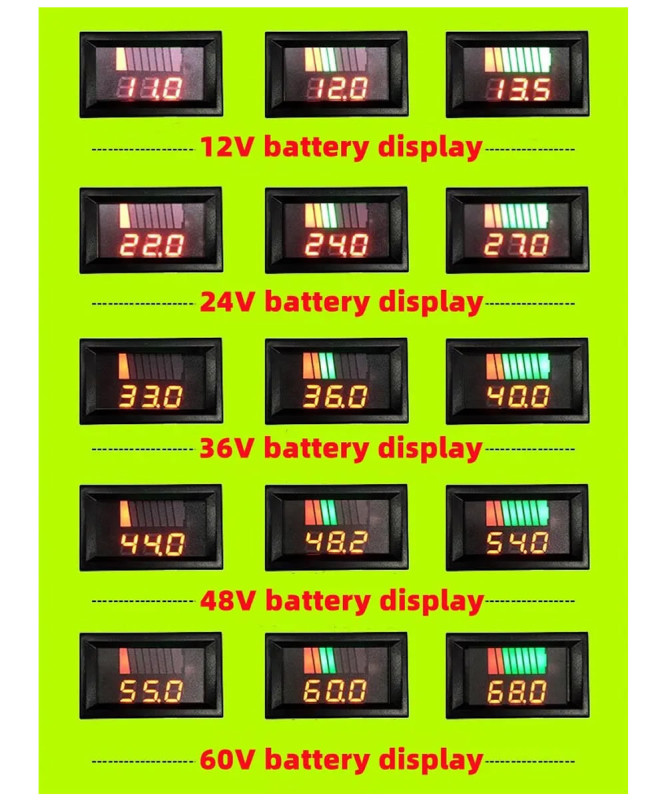

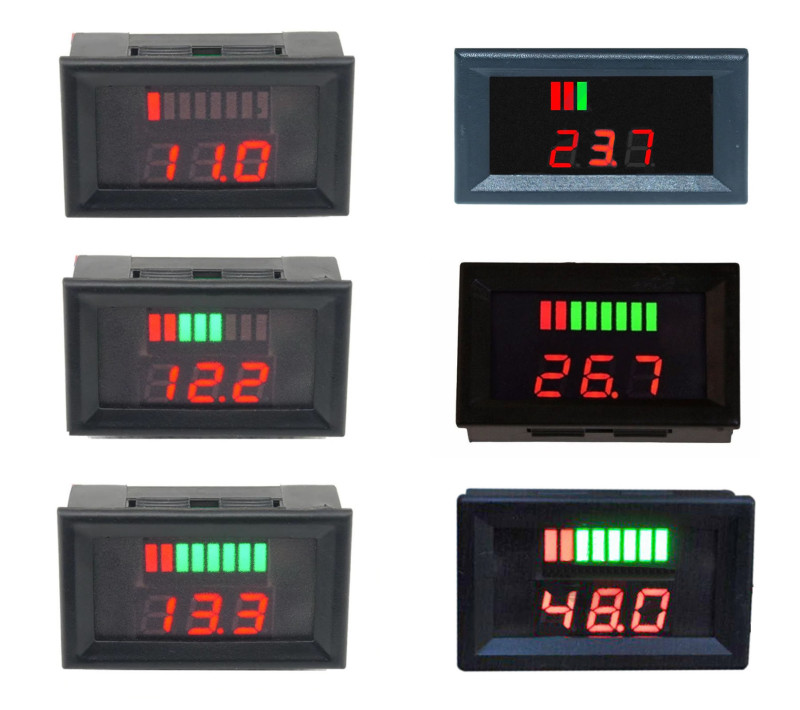

     The voltage equivalents of the capacity leds for 12V batteries are as follows.

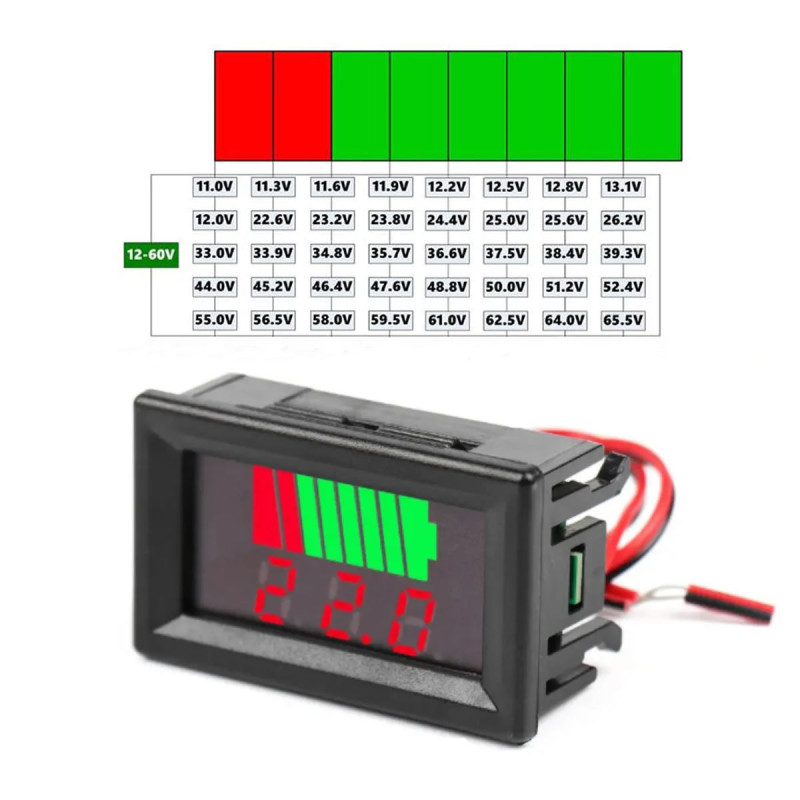

       1 Bar led : Battery Voltage 11.1V   10%
       2 Bar led : Battery Voltage 11.3V   25%
       3 Bar led : Battery Voltage 11.6V   40%
       4 Bar led : Battery Voltage 11.9V   50%
       5 Bar led : Battery Voltage 12.2V   60%
       6 Bar led : Battery Voltage 12.5V   75%
       7 Bar led : Battery Voltage 12.8V   90%
       8 Bar led : Battery Voltage 13.1V   100%

     In batteries, capacity is evaluated according to a narrow voltage range. Depending on their type, batteries drop suddenly to the 0V level after a certain voltage level. You should avoid this situation. Complete zeroing of the voltage physically damages the batteries.

     It can automatically detect and display the status of 1 or 5 batteries connected in series, being 12V, 24V, 36V, 48V and 60V. While it shows the status of 1 battery around 12V, the bar indicator turns off completely at 14V. At 22V the battery capacity bar led group becomes active again. The device automatically understands how many batteries are connected according to the voltage levels. This automatically shows the capacity of the batteries connected in series.

Highlighted Features:

•     Dual display with clear voltage reading: The dual display design of the lithium battery capacity meter tester allows you to see both battery levels and voltage values intuitively and clearly, making power management easier.
•     8 Segment battery level indicator: With the 2 red and 6 green bars located at the top, you can quickly evaluate the remaining battery capacity. The lower section shows the precise battery voltage; the decimal point is adjusted automatically for increased accuracy.
•     Wide application range: This voltage indicator is suitable for lithium battery packs, lead-acid batteries, vehicle batteries, electric vehicle batteries and many more battery types and electrical devices.
•     Automatic voltage detection: The device automatically detects voltage levels and provides protection against reverse polarity connection. In this way, the device is not damaged even if incorrect wiring is done.
•     Practical and reliable: While it offers easy installation and portability thanks to its compact size, its design provides durability and long life.

Features:

•      Operating voltage: DC 5.5V /  60V
•      It has reverse supply connection protection.
•      Operating current: 5-15mA
•      Battery capacity display with 8 Bar led indicator
•      Automatic battery capacity ranges: DC 12V 24V 48V 60V
•      Voltmeter range: DC 5.5V / 60V
•      Voltmeter color: Red
•      Refresh rate: 300ms
•      Voltmeter accuracy: 1%
•      Operating temperature:  -10C /  +65C
•      Box material: Plastic
•     0.56 inch panel type mountable plastic box
•      Cable length:  15cm

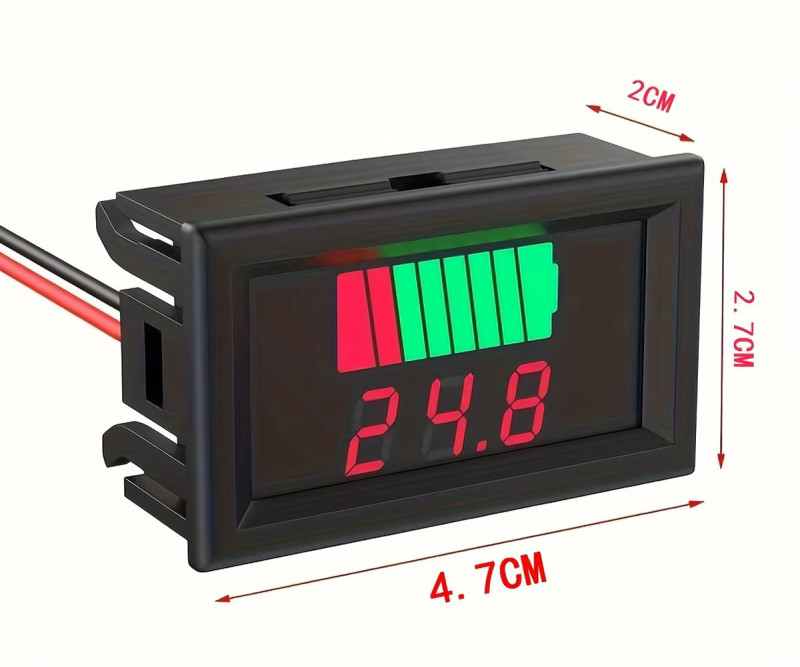

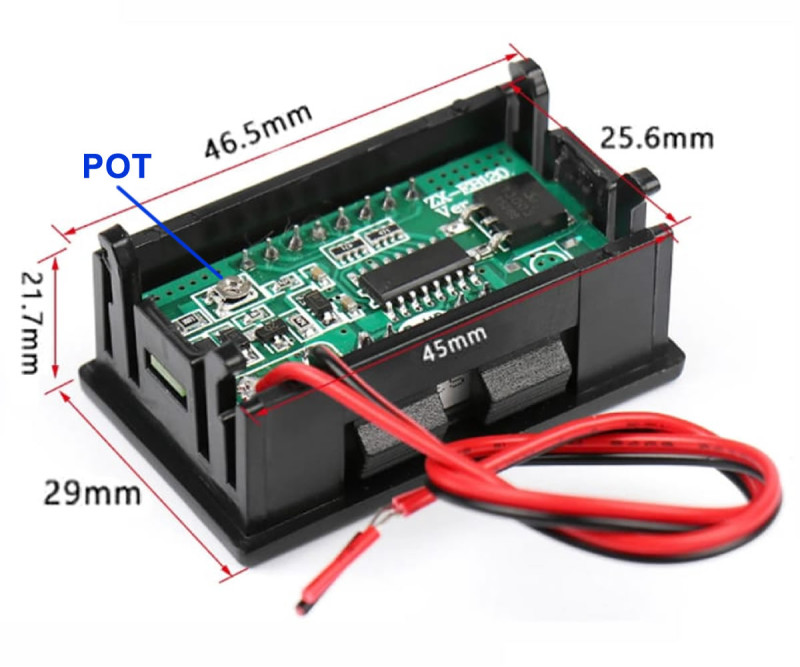

•      Dimensions: 27mm x 47mm x 20mm
•      Weight: 15gr

Application Areas:

•     Electric vehicles: Monitor the battery levels of electric scooters, e-bikes or vehicles.
•     Solar energy systems: Track the energy storage in solar energy batteries.
•     Portable electronics: Check the remaining battery capacity in powerbanks, drones or cameras.
•     Diy power Projects: Integrate into custom built battery packs or stm based electronic systems.

Package contents:

•     1 Piece  Battery Capacity Indicator with Voltmeter

.
