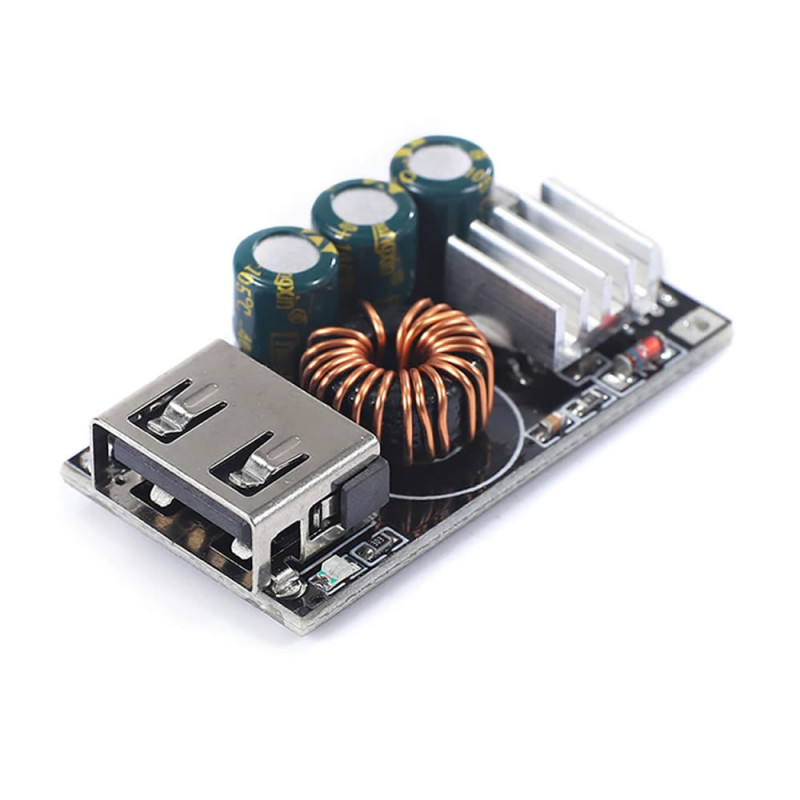

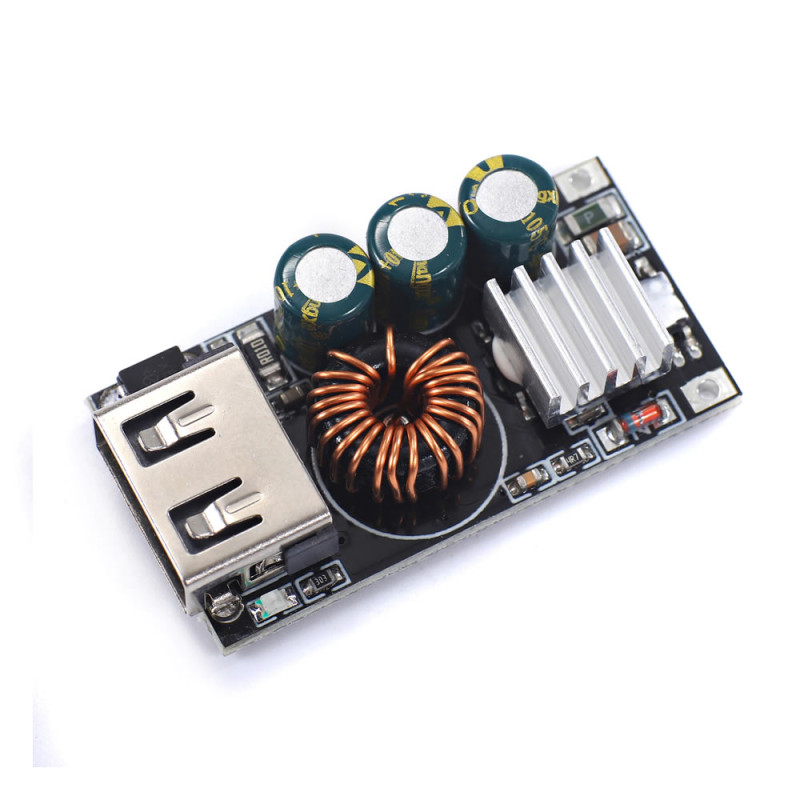

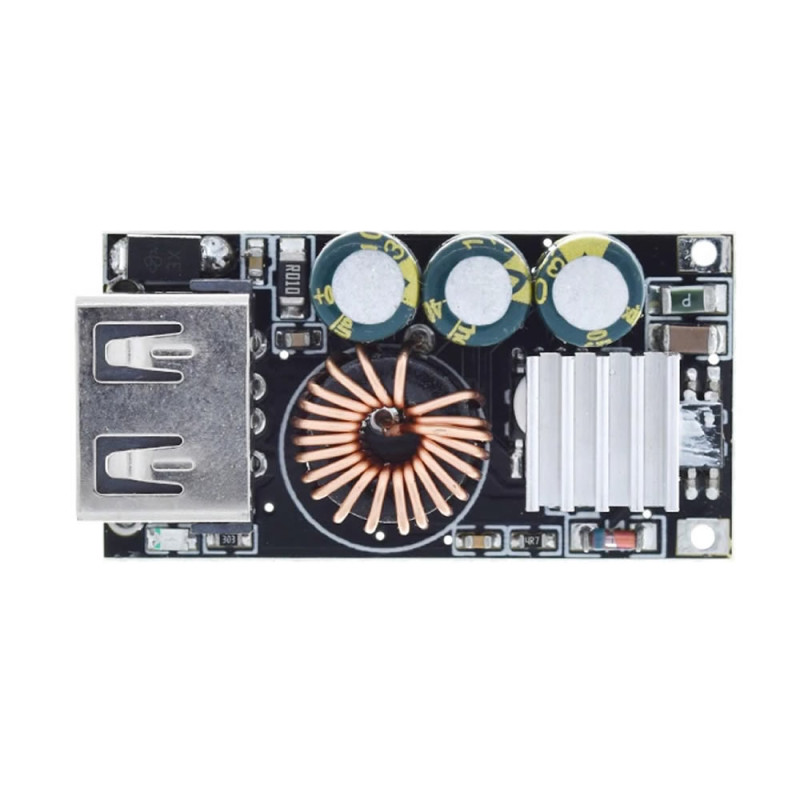

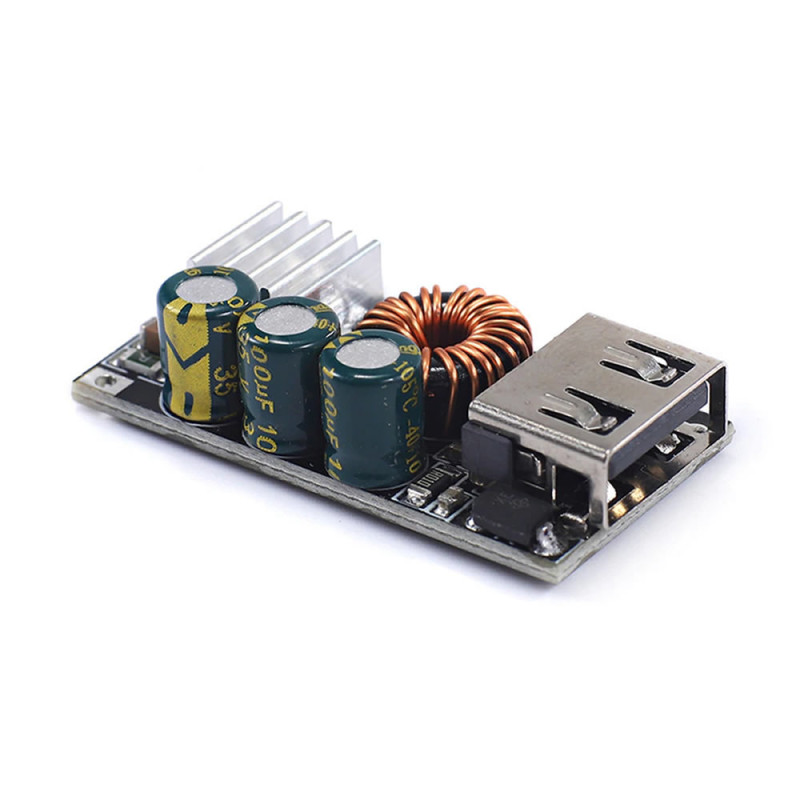

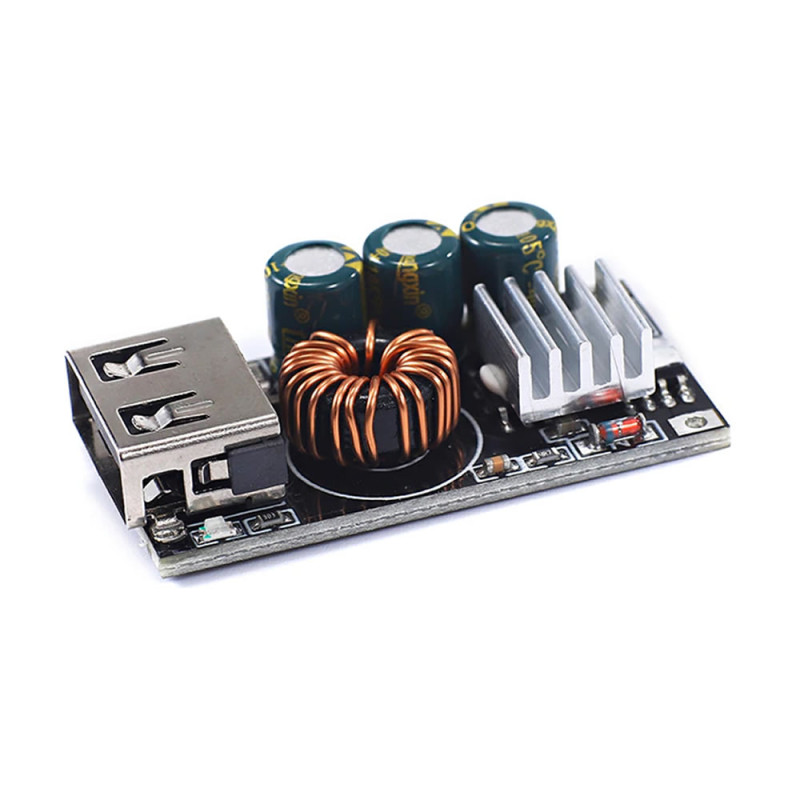

QC3 Fast Charge Module

QC3 Fast Charge Module

DC 10-32V 24W to 5V Usb Voltage Step Down Mobile Phone Apple Android Huawei MTK Samsung

     It is a charge module that supports many fast charge standards. It supports common charge standards such as QC3.0, AFC, SCP, FCP, MTK PE, VIVO, Apple ( you can look at the support list ). It has a DC 10V/32V voltage input range. It steps the voltage at the input down to the 5V level and makes it available for the use of various devices with the usb output socket on it. It is suitable for use in usb output applications at a maximum of 24W power. The power of the source to be used at the product input must be higher than the output power. We recommend that you supply it with sources of 25W and above.

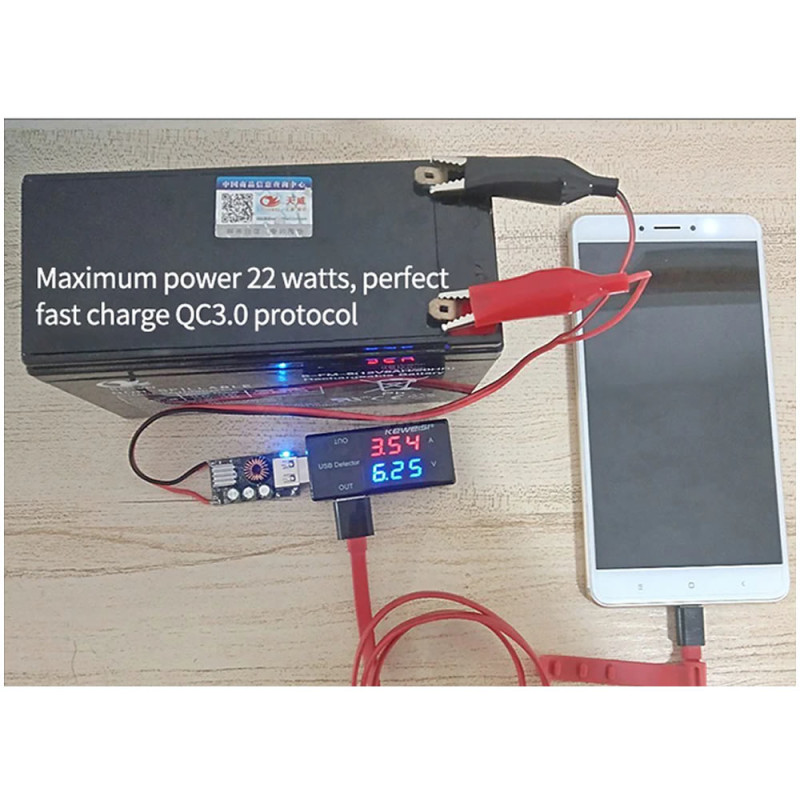

     It allows you to create a fast charge usb port by using power sources found in various applications. Many applications can be made such as solar cells, creating usb charging points in cars and homes.

Features:

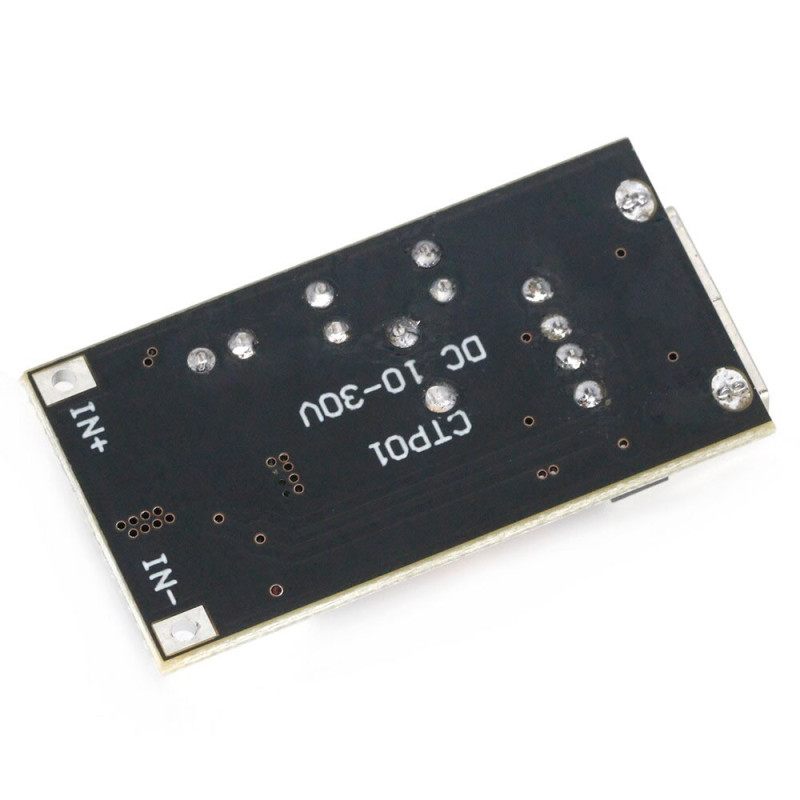

• Input voltage: 10V-32V
• Voltage output: DC 5V ( DC 3-12V The voltage changes automatically during the fast charge process.)
• Output power: Maximum 24W (5V@3.4A, 9V@2.5A, 12V@2A, etc.)
• Efficiency:  It is above 90%.

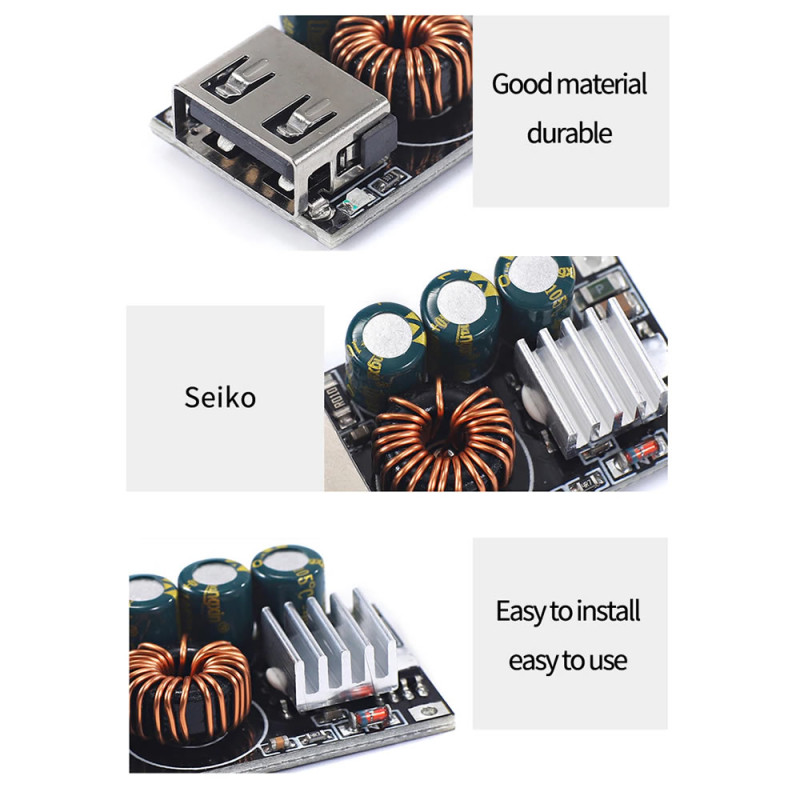

• High quality materials. Use of quality coil and capacitor.
• Supported protocols: Apple, QC3.0, AFC, SCP, FCP, MTK PE
• Reverse connection protection
• High voltage and low voltage protection at the input.
• Input high current protection.
• Output high current and short circuit protection.
• High temperature protection
• The charge ics are cooled with an aluminum heatsink plate.

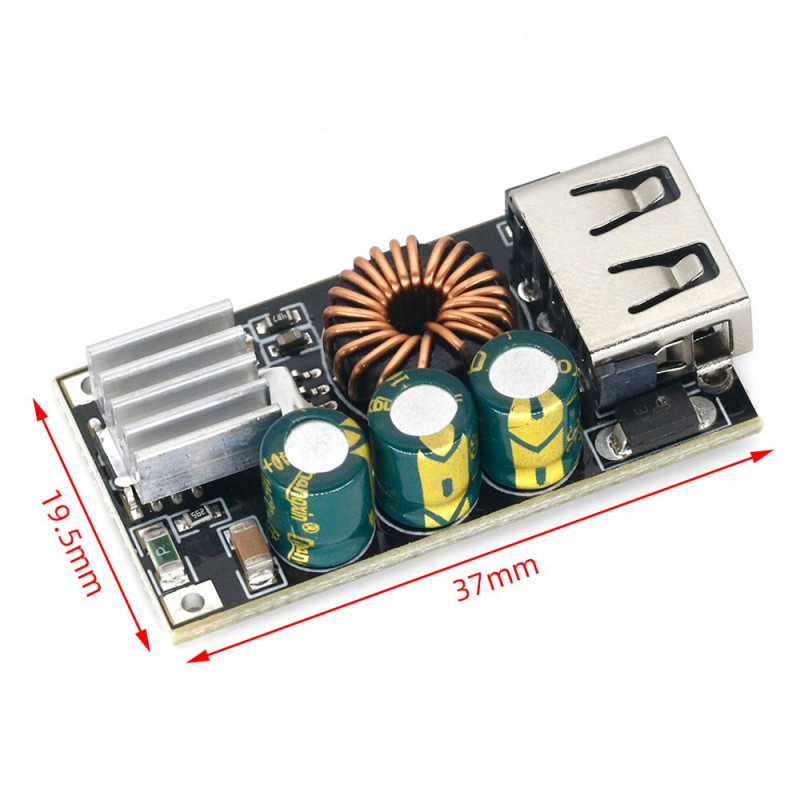

• Measurements: 19.5mm x 39mm x 10mm
• Weight: 8gr

Protocols It Supports:

• QC3.0: Android  Qualcomm
• SCP/FCP: HUAWEI HONOR
• Apple: Apple 5V 2.4A Quick charge
• AFC: Samsung
• MTK PE: Media Tek
• VIVO 9V 2A

Package Contents

•      1 Piece QC3 Fast Charge Module
