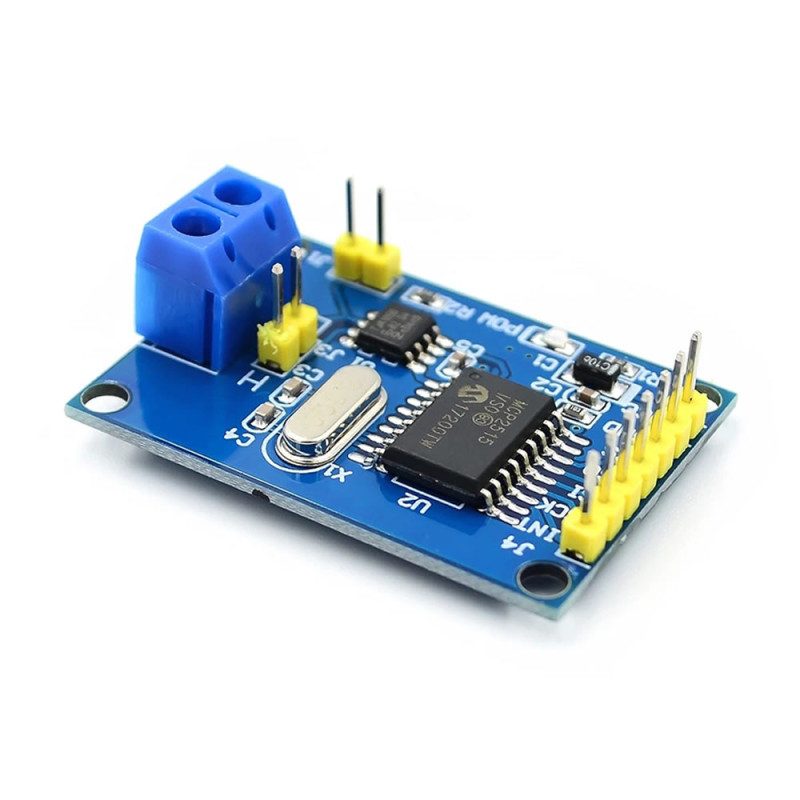

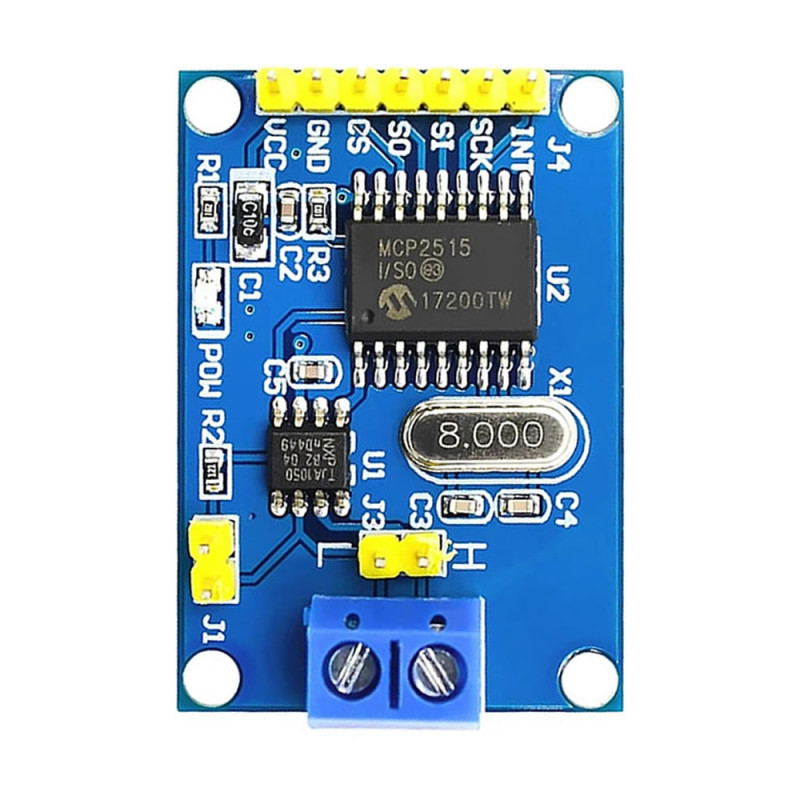

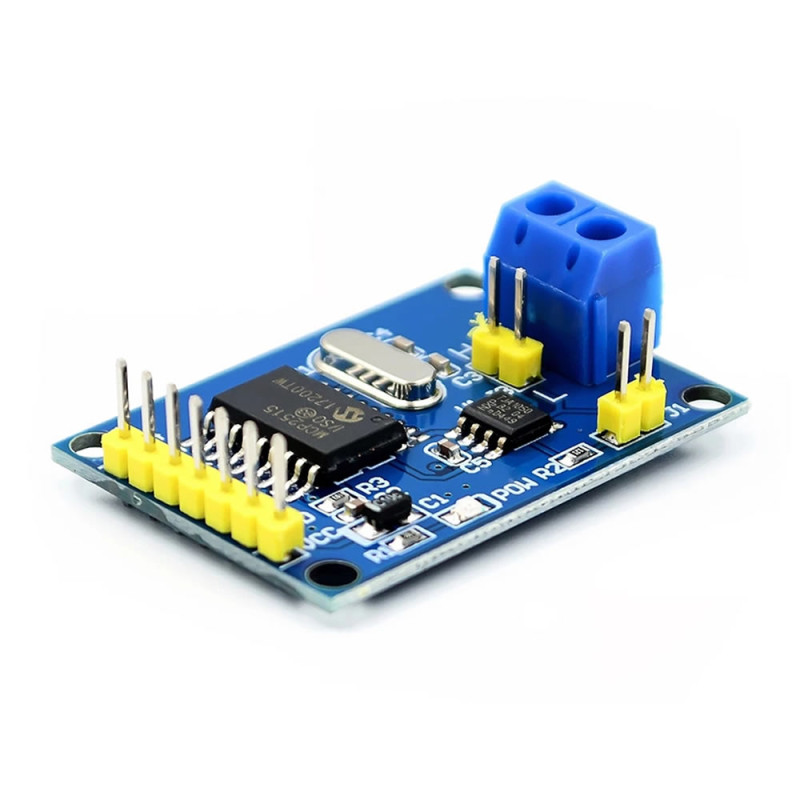

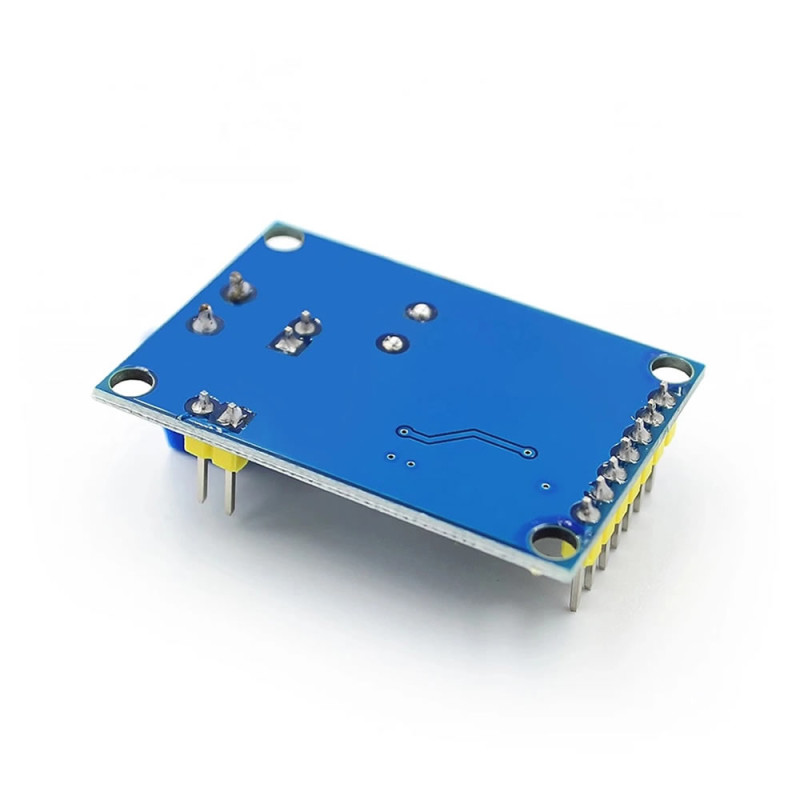

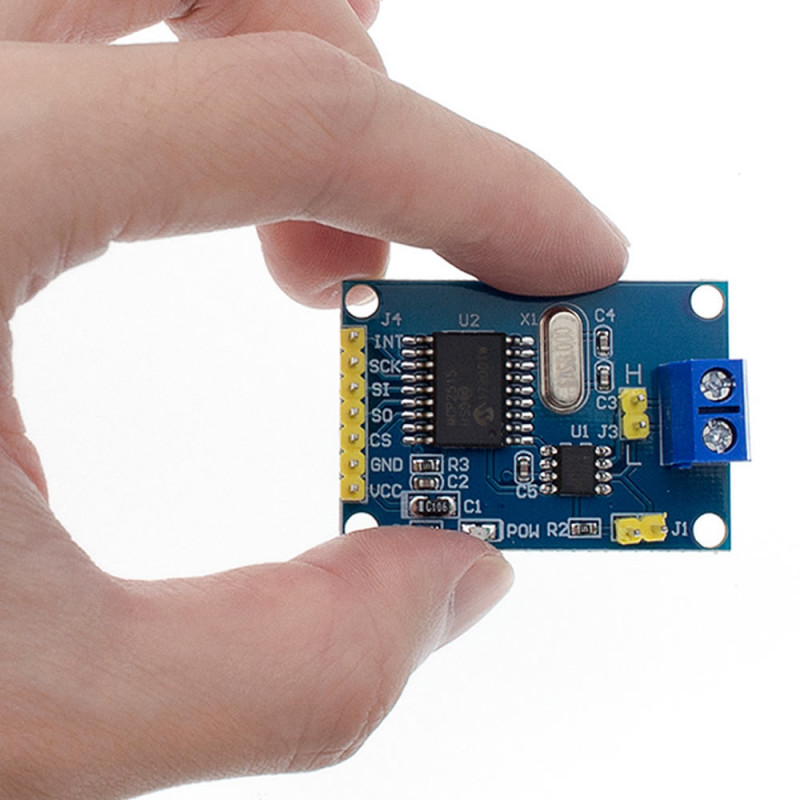

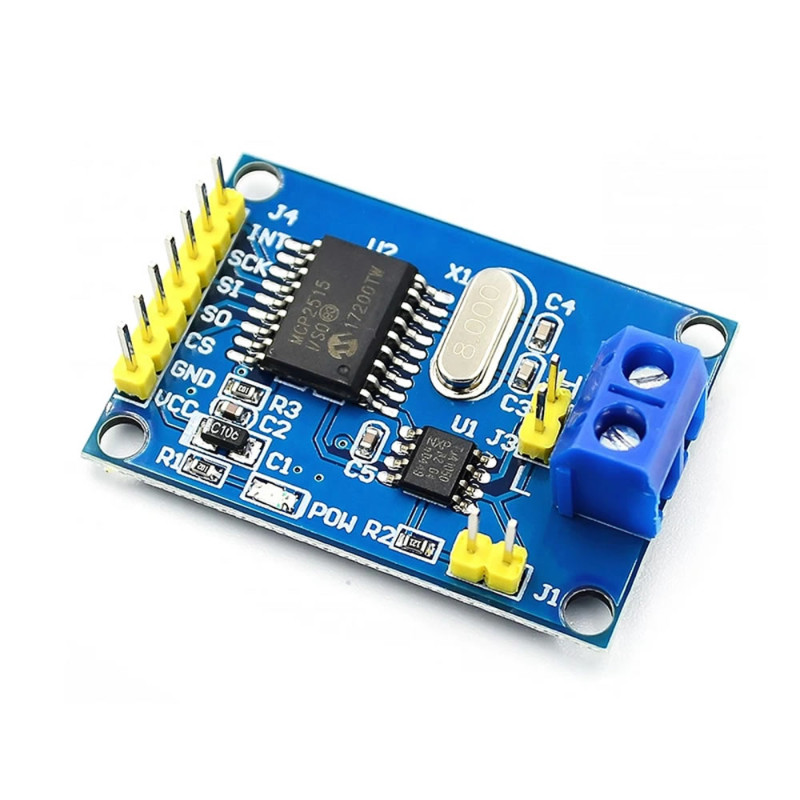

MCP2515 CAN Module
129.36TL
107.80TL + KDV
10 or more 109.96TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.101.235
MCP2515 Can Network Communication Module
Can Network Transceiver Terminal Block Sockets Car Automation Control Systems Sensors Motor Control
This module lets you connect to Can communication networks. The Can network stands out with its high reliability and long communication distance features. It is widely used in industrial systems and in automotive. In this module Microchip's MCP2515 can control IC is used. Communication with the module is over the spi port. The physical can connection is made through the TJA1050 IC.
Features:
- IC: MCP2515 / TJA1050
- Operating voltage: Dc 2.7V / 5V

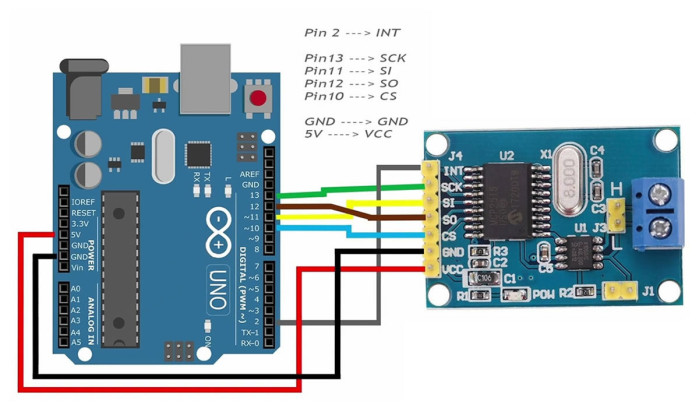

- Communication: Spi
- Communication distance: 1000 meters
- Data rate: maximum 1 Mbps
- Esd protection: -+16kV
- High temperature protection
- Open circuit fault reporting
- Supports Can V2.0B
- Power indicator led.
- Color: Blue
- Operating temperature: -20C / 85C
- J1 120ohm termination resistor control jumper
- 7 Pin male header connection socket
- J3 2 Pin male can network connection socket
- 2 Pin male terminal block can network connection socket
- 4 Pcs mounting holes

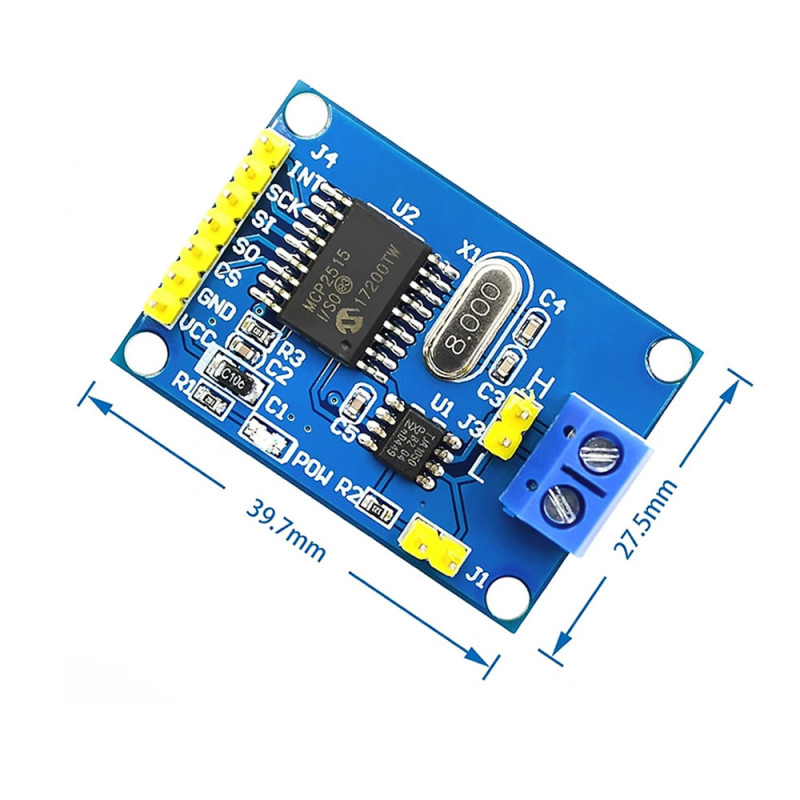

- Dimensions: 27mm x 40mm
- Weight: 7gr
Package Contents :
- 1 Pcs MCP2515 CAN Module
.
