A2212 2450KV Brushless Motor

A2212 2450KV Brushless Motor

2S/ 3S Lipo RC Model Airplane Helicopter Multicopter Drone Quadcopter Fpv Racing High Power Bldc Lipo

     The A2212 2450KV brushless motor is a powerful motor offering high speed and efficiency. It is designed for use in hobby projects such as drones, RC airplanes and helicopters. Thanks to its brushless structure, it produces less heat and provides long-lasting performance. With its lightweight and compact structure, it is ideal for small sized model vehicles. The 2450KV motor is an excellent choice for applications requiring high speed. Thanks to its balanced rotor design, it reduces vibration to a minimum level, thus offering a trouble-free usage experience. When operated together with a suitable esc driver, it provides superior control.



Features:

• A2212 2450KV Brushless Motor
• Speed (KV): 2450 KV
• Maximum power: 280W
• Operating voltage:   7.4V  /  11.1V
• Battery cell count: 2S / 3S Li-Po
• Current:  25A  (Requires a heatsink in long term use)
• No-load current:  10V 0.5A
• Maximum thrust:  700/900gr  (3S)
• Efficiency:   80%
• Connection type: 3 phase cable ( banana connector compatible )
• Application area: RC drone, airplane and helicopter projects
• Material: aluminum alloy body
• Operating temperature: -10C /  50C
• Color:  Metallic gray / Gold
• Mounting holes: Standard cross mounting (25mm x 25mm)
• Dimensions: 27.5mm x 30mm
• Shaft diameter: 3.17mm
• Color:Yellow
• Weight: 54gr  ( 67gr including accessories )

Package contents:

•    1 Piece A2212 2450KV Brushless Motor
•    4 Pieces Screw

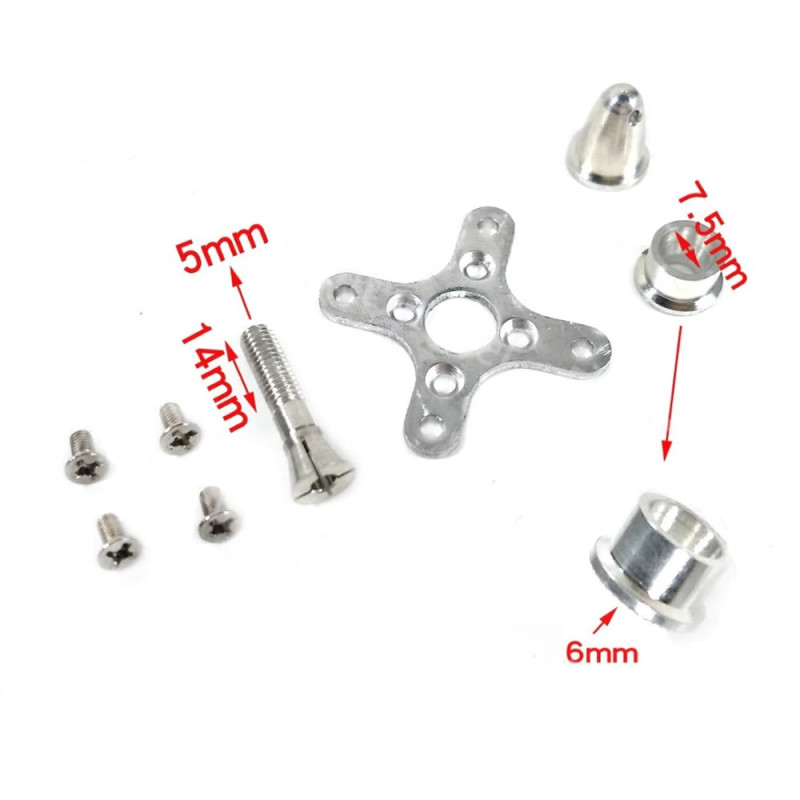

•    Various motor parts ( Picture 4 )
