2.13" OPM021B1 Paper Lcd

2.13” OPM021B1 Paper Lcd

Price Tag Advertising Indicator Paper Display 250x122 Resolution Low Power Consumption Spi Ebook Thermostat

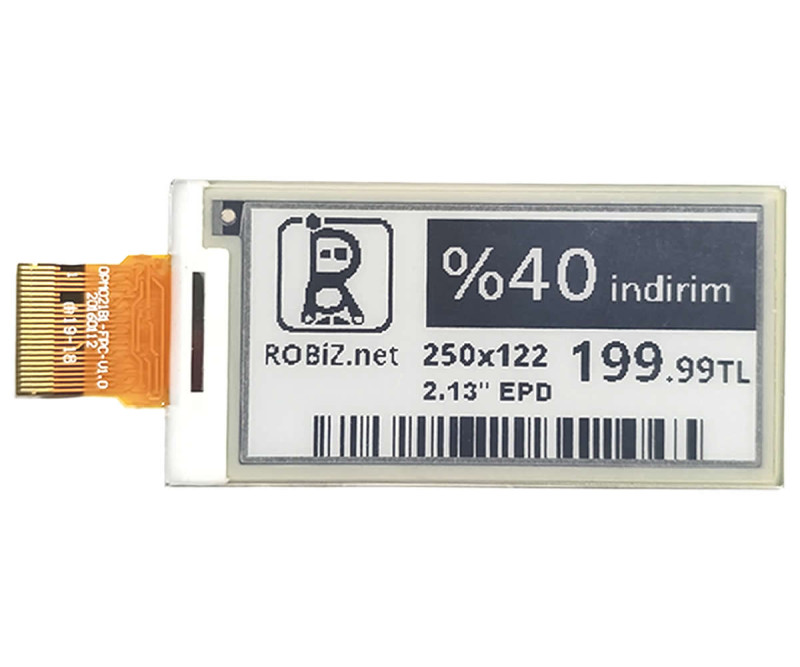

The product has been tested and the Robiz logo and texts have been loaded onto it. These texts show that the product works. In case of return, it must be reprogrammable.

     The 2.13” OPM021B1 Paper lcd is manufactured with innovative e-paper (electronic paper) technology. It is a display that offers very low (0.003mW) power consumption and a high contrast ratio. It is ideal for dynamic and energy saving display solutions in electronic devices. The image can remain fixed for a long time without disappearing and without consuming energy. This makes it a perfect option for portable devices, IoT applications and energy efficient projects.

     The display can be easily integrated with Arduino, Raspberry Pi and other microcontrollers thanks to the spi interface. You can display various graphic and text contents sharply with low energy consumption. The non-reflective display structure offers perfect visibility even in direct sunlight.

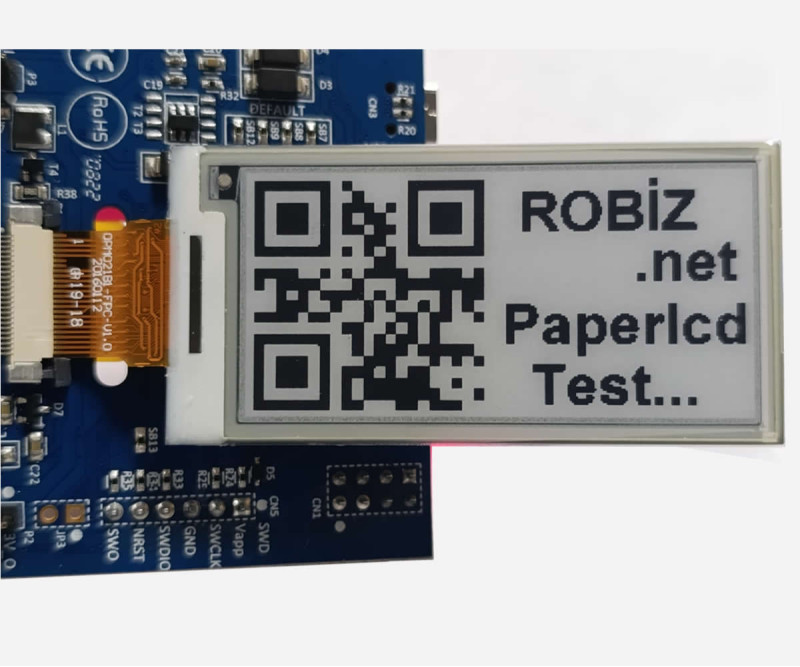

Test: The product has been tested with the STM32L0538-DISCO development board. It was plugged directly into the socket and run with new software. Lcds are shipped with robiz test software: It is followed by eye that the product works and is programmed in this way.

Features:

•     2.13” OPM021B1 Paper Lcd
•     Operating voltage: DC 3.3V
•     Standby power consumption:  0.003mW
•     Refresh power consumption:  10.5mW
•     Operating current:  3mA
•     Standby current:  2uA
•     Display size: 2.13 inch
•     Resolution: 250x122 pixels
•     Full update:  4sec
•     Partial update:  0.4sec
•     Display technology: E-Paper (Electronic Paper)
•     Driver:  IL3895
•     Interface: Spi
•     Lcd color: Black and white
•     Reflectance:   %35
•     Energy efficiency: Does not consume power on static images
•     Lifetime:   5 Years   1 Million refreshes   ( 5C / 39C )
•     Operating temperature: -10C / 50C

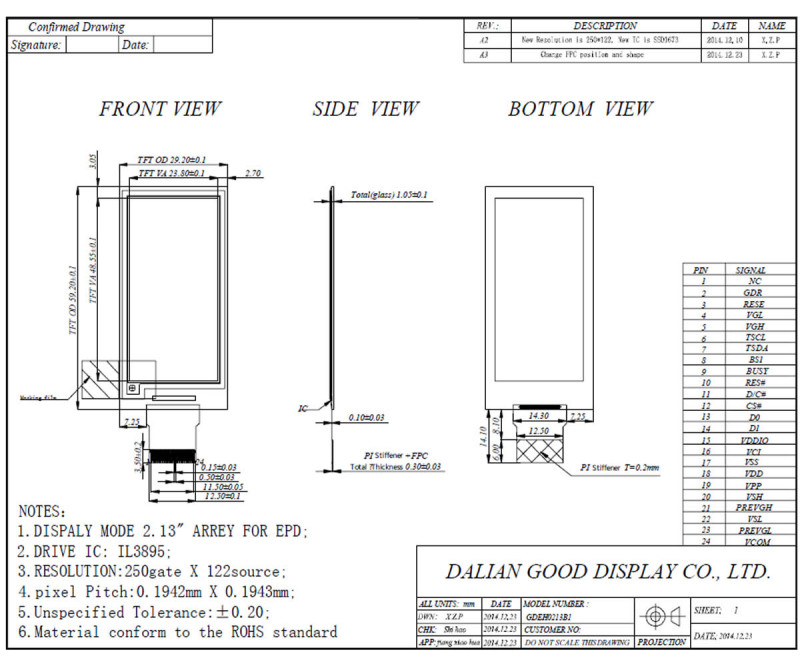

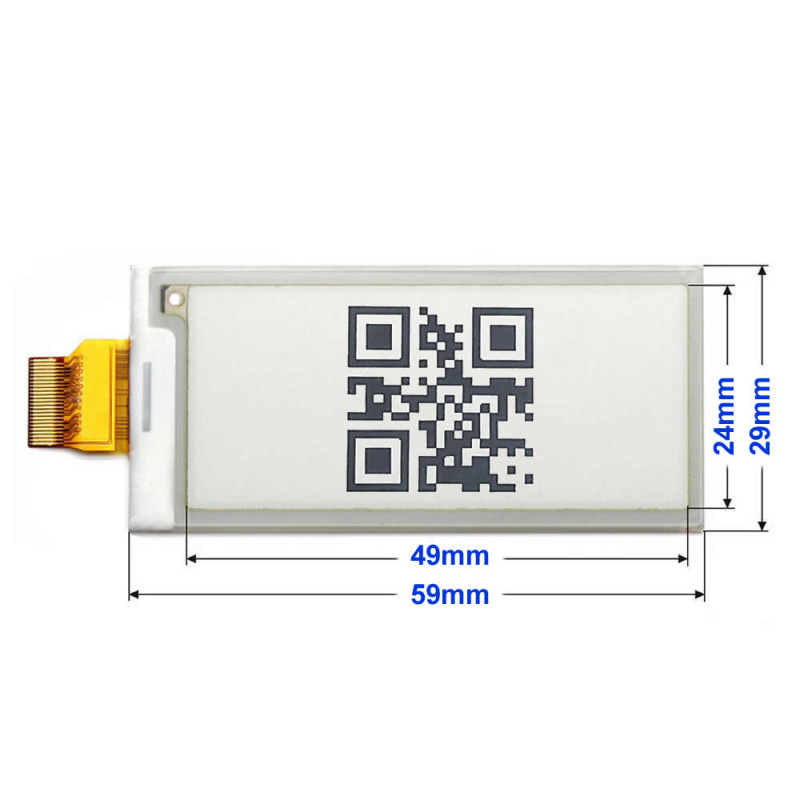

•     Dimensions: 29mm x 59mm x 0.98mm

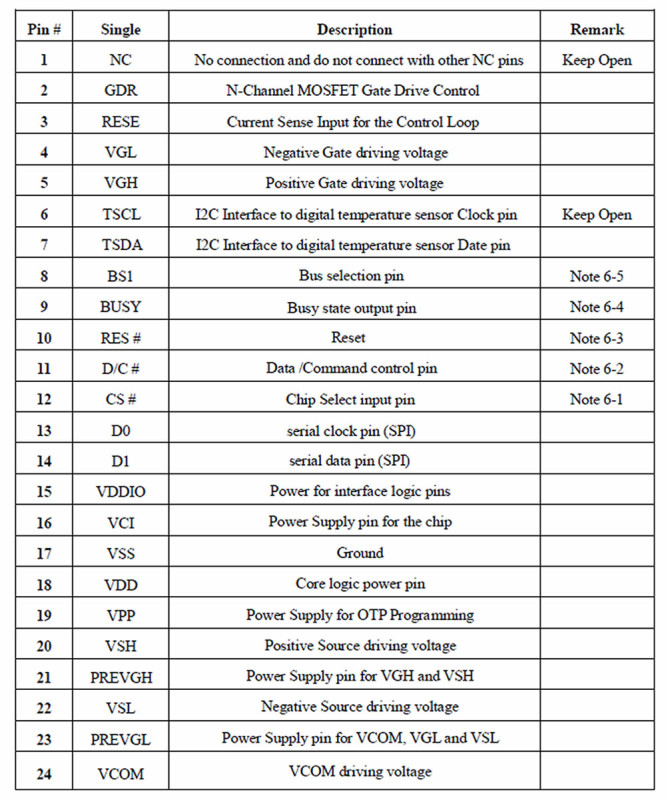

•     Connection connector:   24 Pin Fpc  0.5mm
•     Weight:  3gr

Package contents:

• 1 Piece 2.13 OPM021B1 Paper Lcd

.
