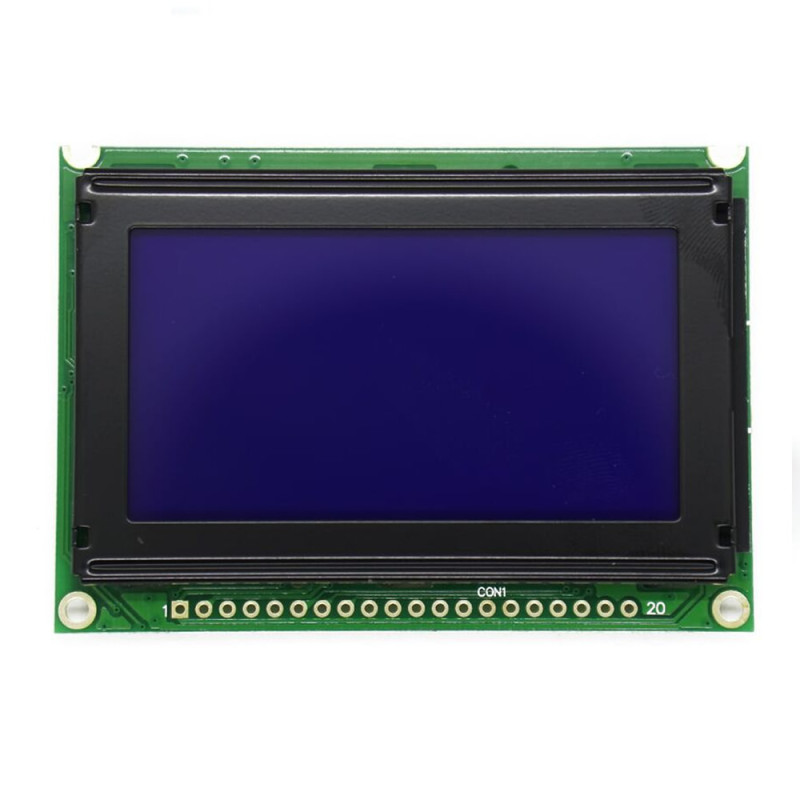

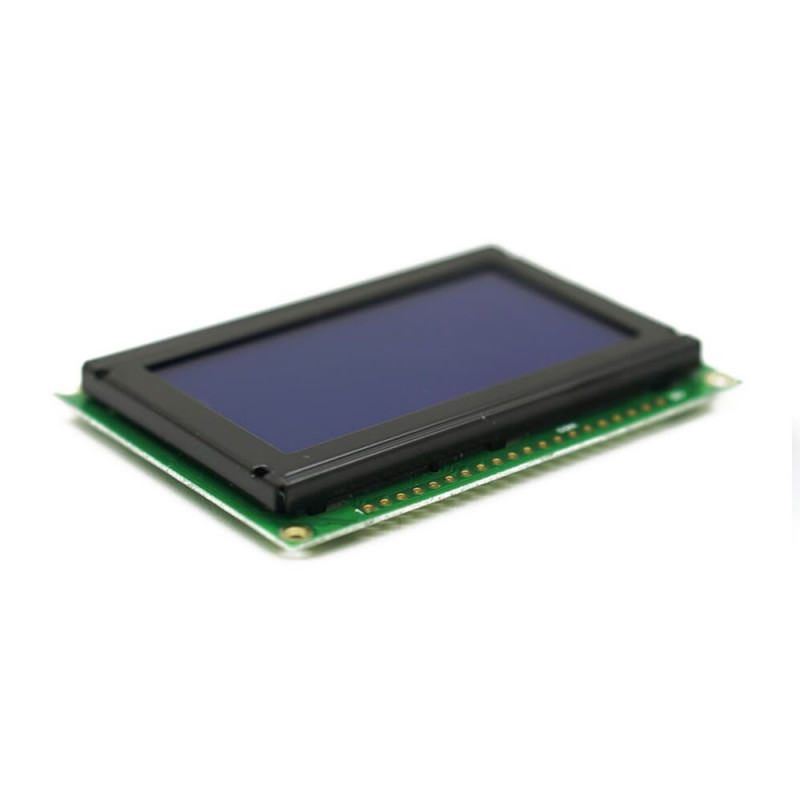

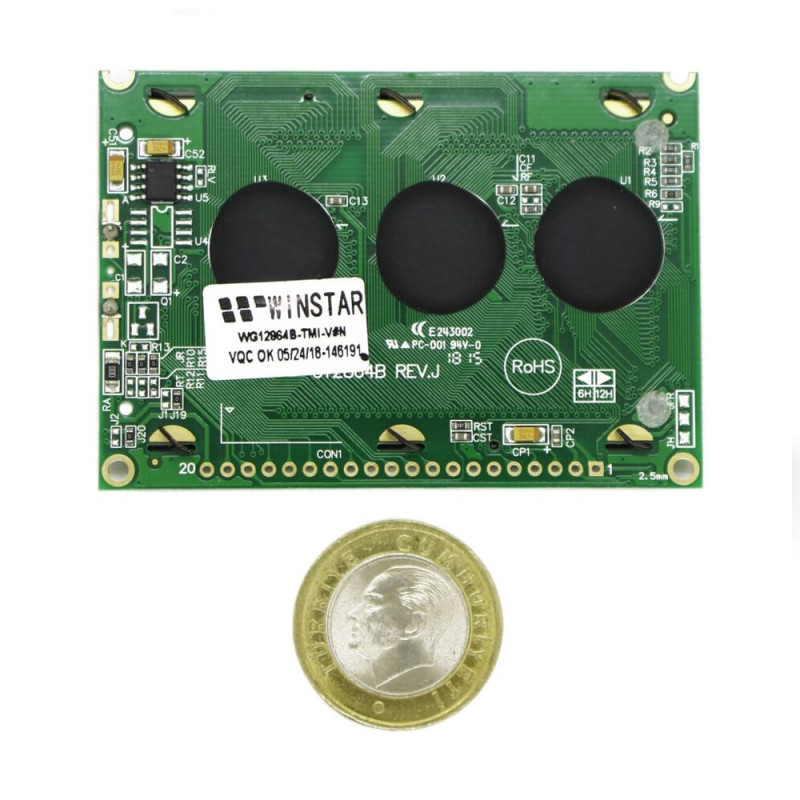

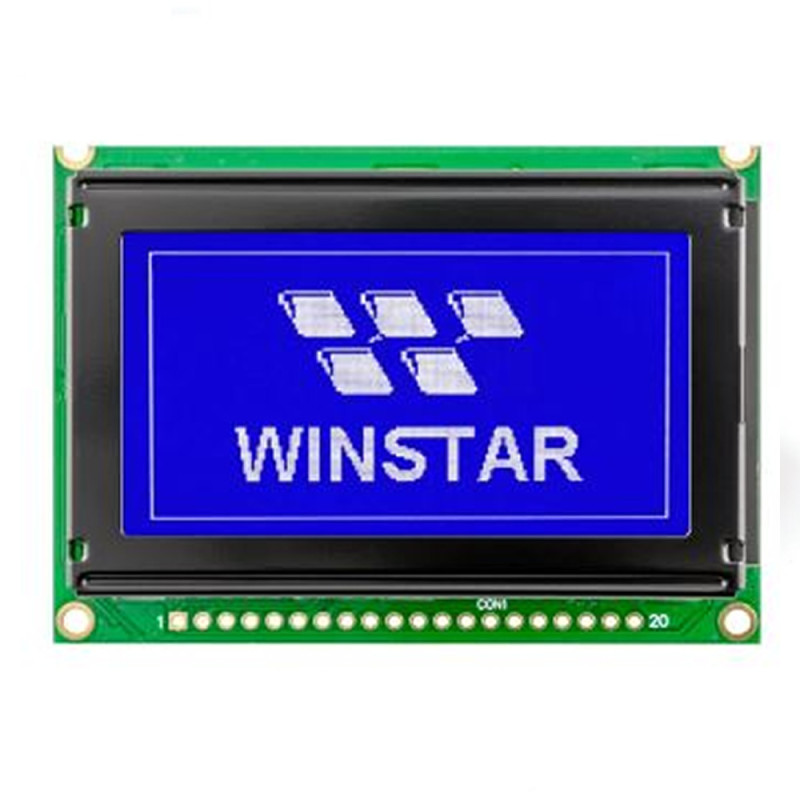

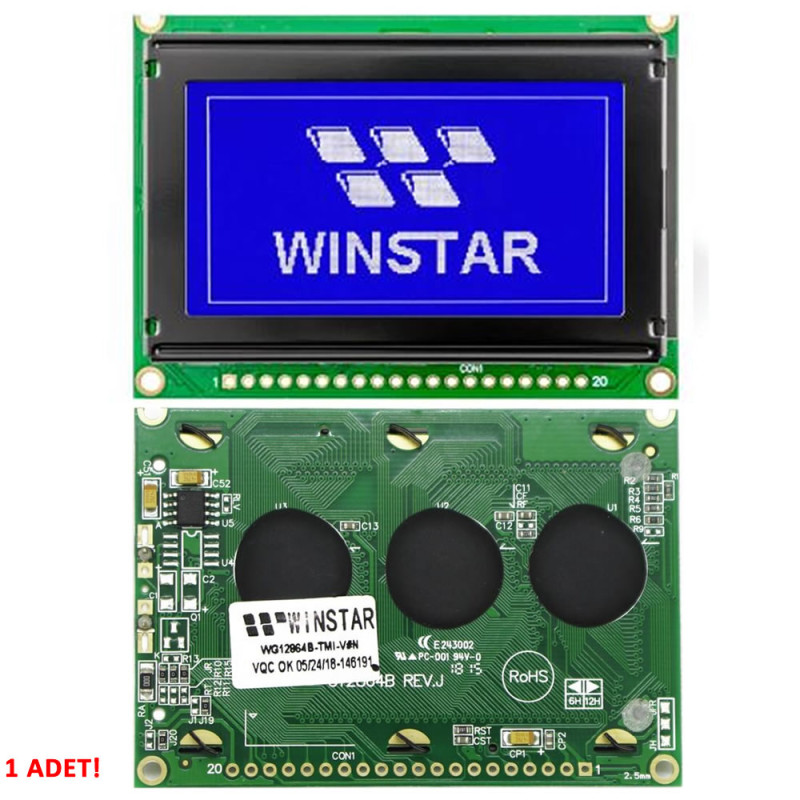

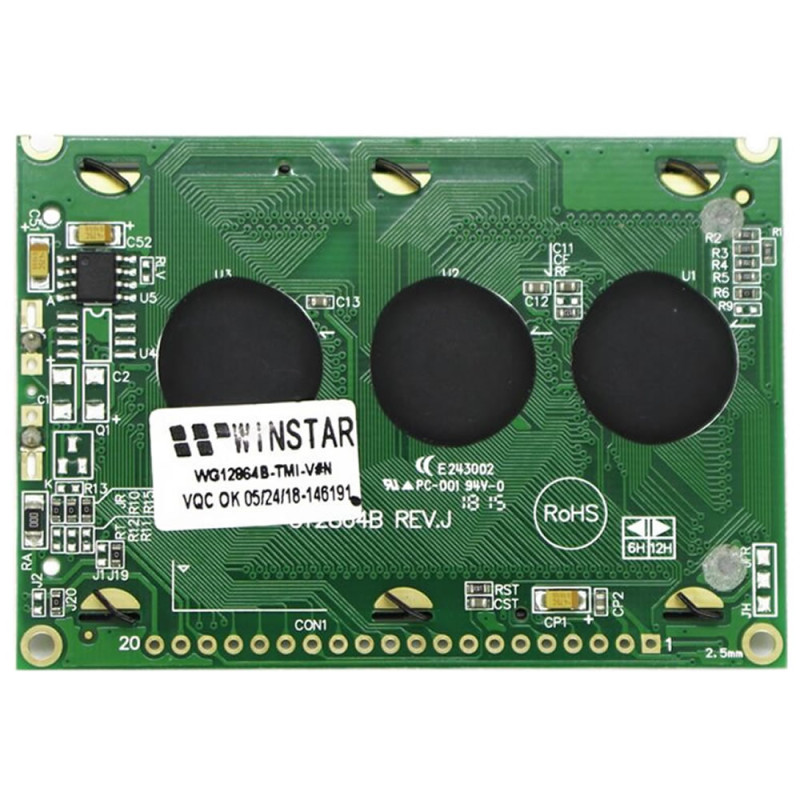

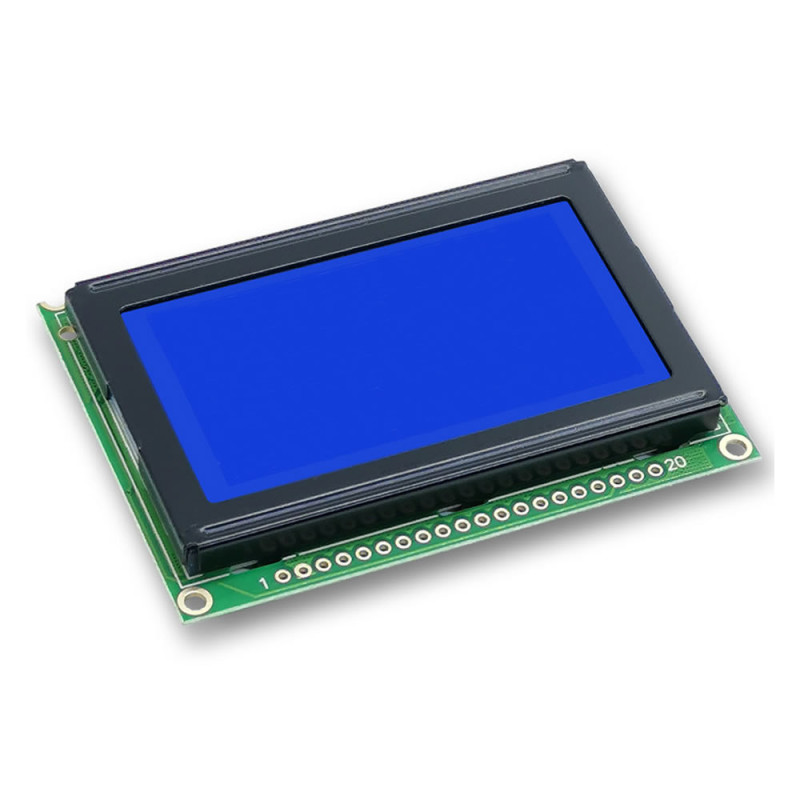

WG12864B Blue Graphic Lcd Module

Winstar 2.4 Inch WG12864B-TMI-V#N Blue Glcd Module

5V 128x64 Pixel Graphic Lcd Display Screen Indicator

     Winstar wg12864b blue graphic lcd module. It is a 2.4 inch lcd screen with 128 column 64 row resolution. It is ideal for applications requiring visual output as text and images. It is white on a blue background. With its thin and small structure it takes up little space in circuits. It can operate in a wide temperature range. It has low power consumption. It can operate with DC  5V supply. It is easily used with Arduino and many microcontrollers.

Features:

• Manufacturer: Winstar
• Model: WG12864B-TMI-V#N
• Operating voltage: DC 5V
• Communication: 6800 8 bit Parallel
• Driver: NT7108 Compatible
• Column count: 128
• Row count: 64
• Lcd color. Blue
• Text color: White
• Operating temperature: -20C / +70C

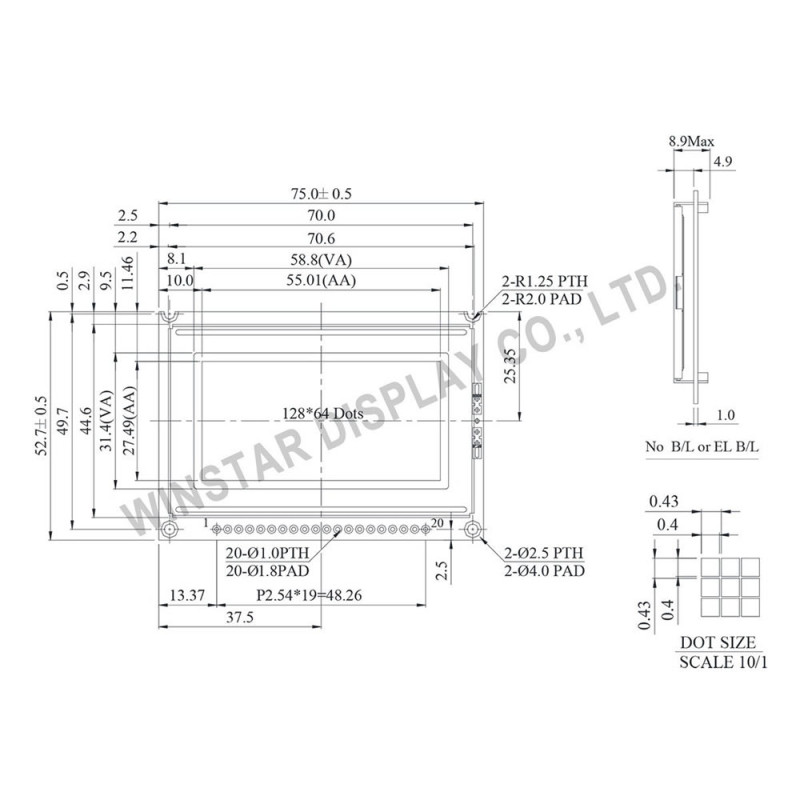

• Dimensions:  52,7mm x 75mm
• Weight:  35gr

Pin Description:

Package Contents:

• 1 Piece WG12864B-TMI-V#N Graphic Lcd Module

winstar.com.tw/products/graphic-lcd-display-module/128x64-graphic.html
