Mini L293D Motor Module

Mini L293D Motor Module

Arduino Mini L293D Module - 4 Piece DC Motor Driver - Stepper Motor Driver

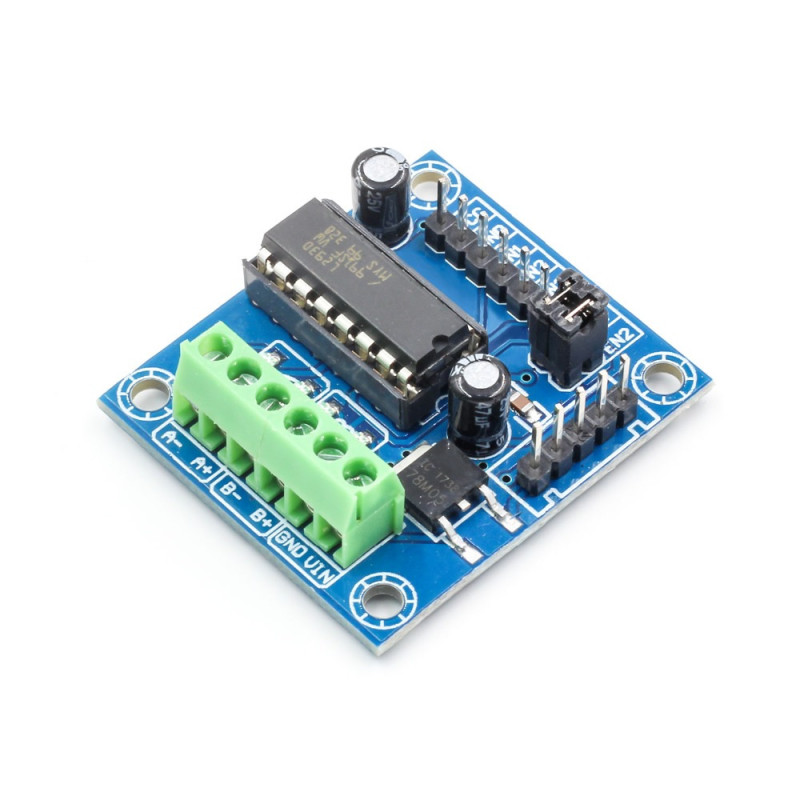

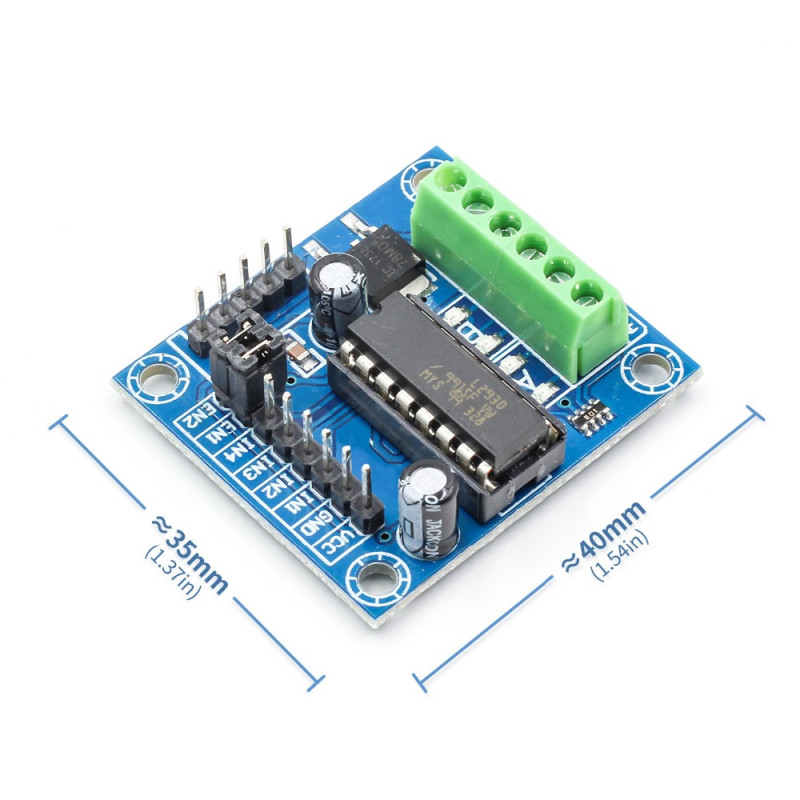

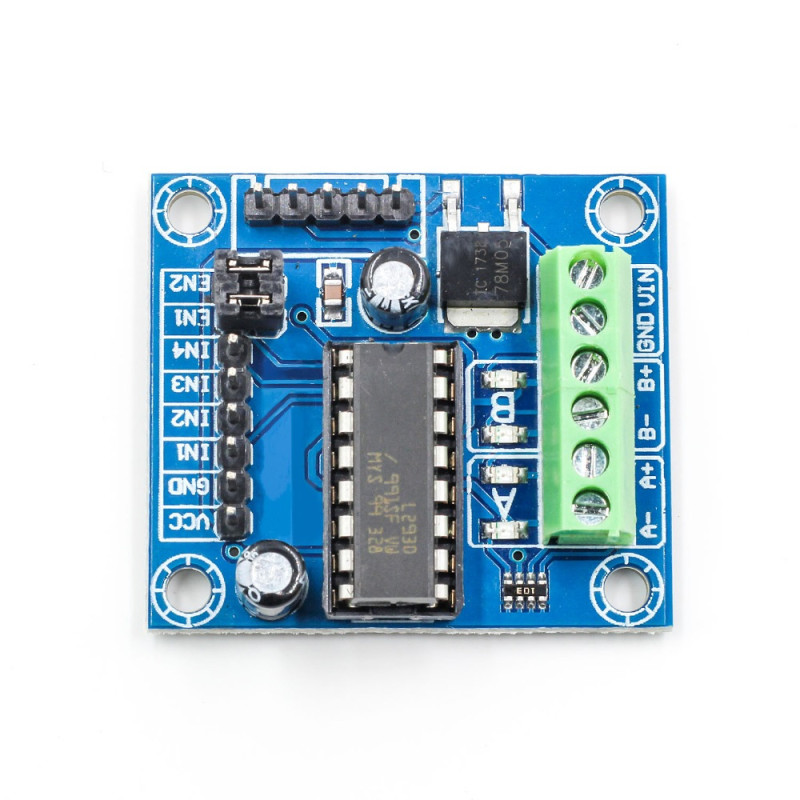

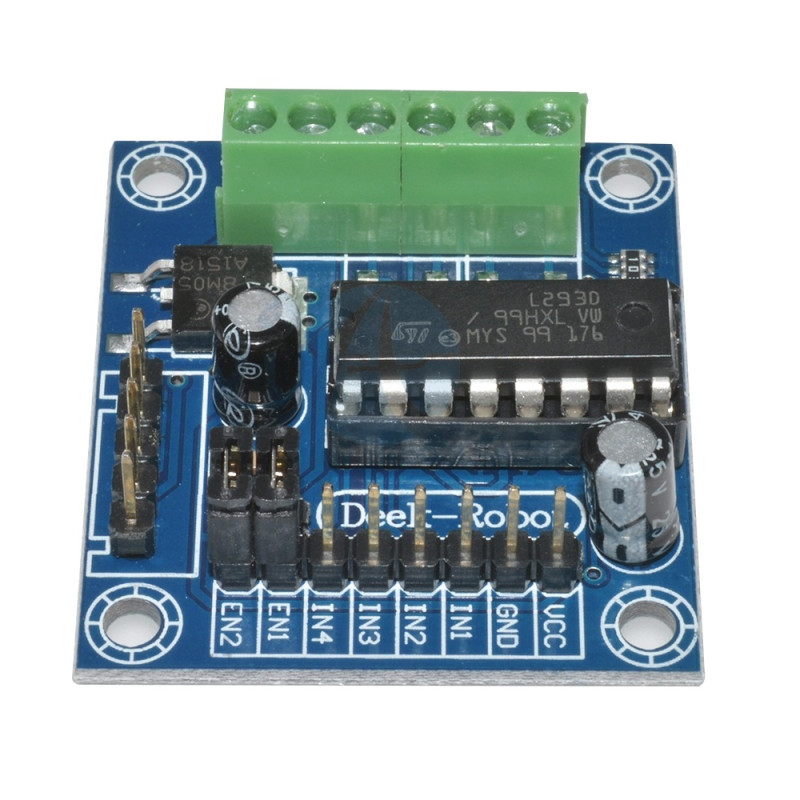

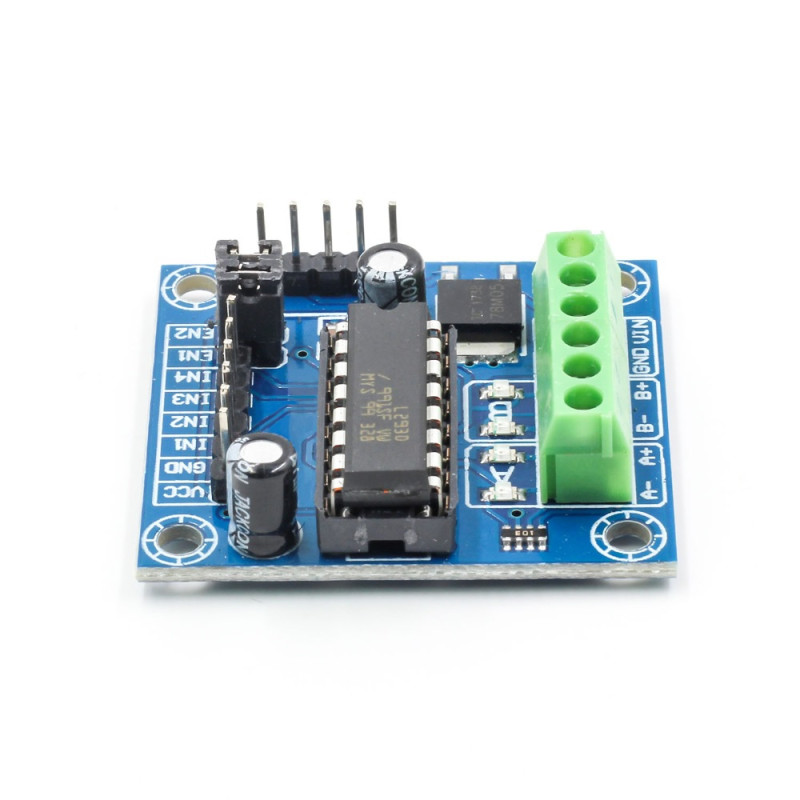

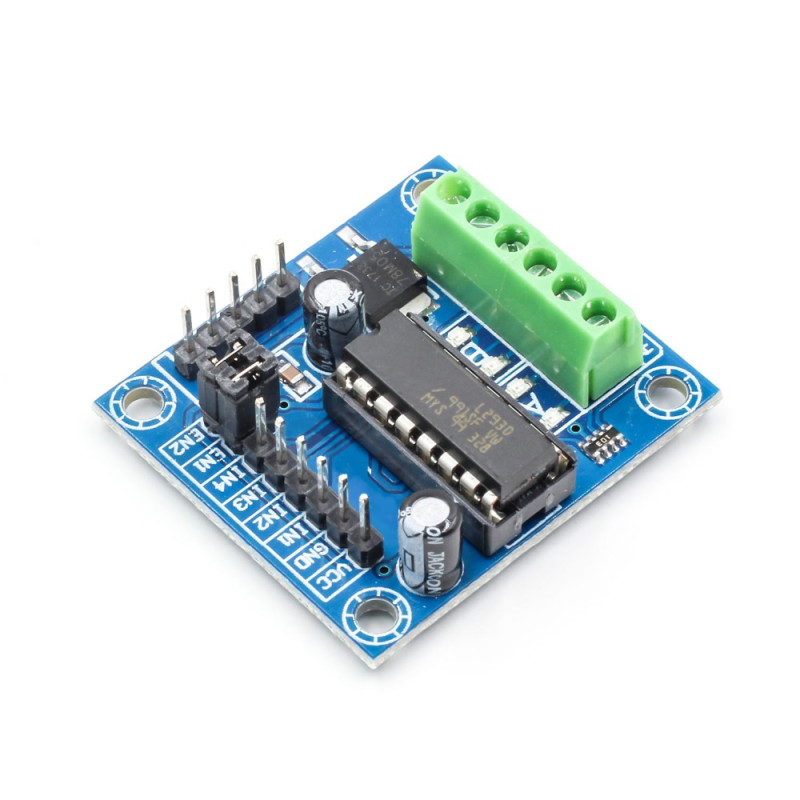

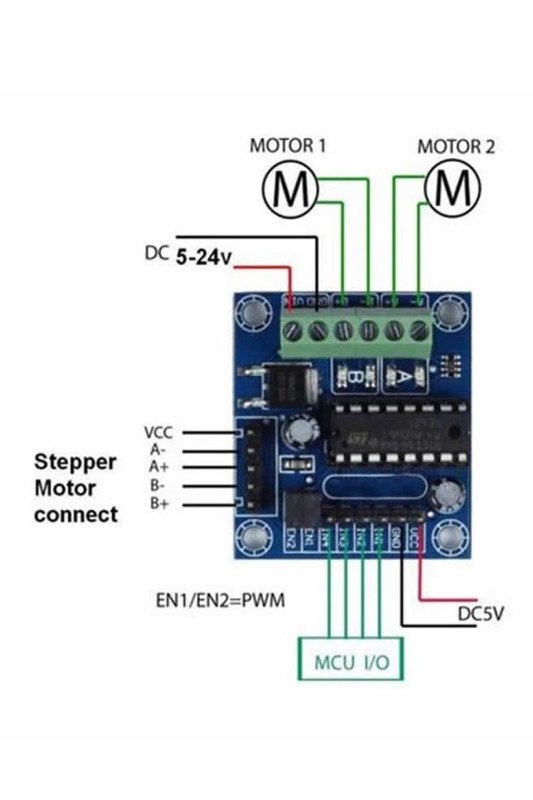

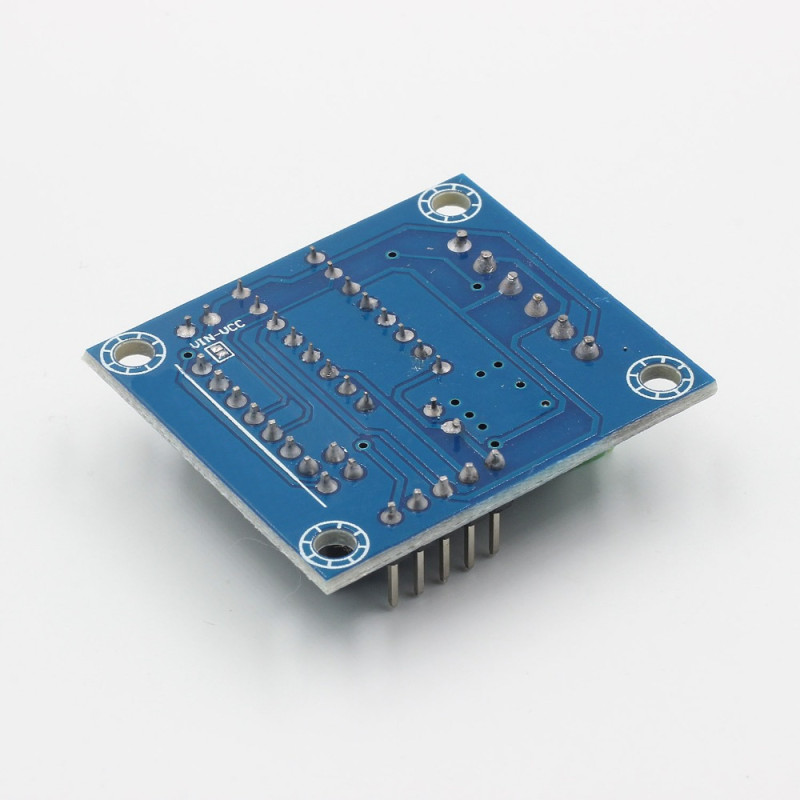

     It is a motor driver board built using the L293D integrated circuit.  It has the capability of driving 4 DC motors. In addition, a stepper motor can be driven.
     The DC Motor Driver Module works fully compatible with Arduino and Raspberry Pi boards.

Technical Specifications
Operating Voltage Range: 4.5V - 36V
Maximum output current for a single motor : 600mA
Instantaneous maximum output current for a single motor : 1.2A


•  Wide Supply-Voltage Range: 4.5 V to 36 V
•  Separate Input-Logic Supply
•  Internal ESD Protection
•  High-Noise-Immunity Inputs
•  Output Current 0.6A Per Channel
•  Peak Output Current 1.2 A Per Channel
•  Output Clamp Diodes for Inductive Transient Suppression

Package contents :

•        1 Piece Mini L293D Motor Module
