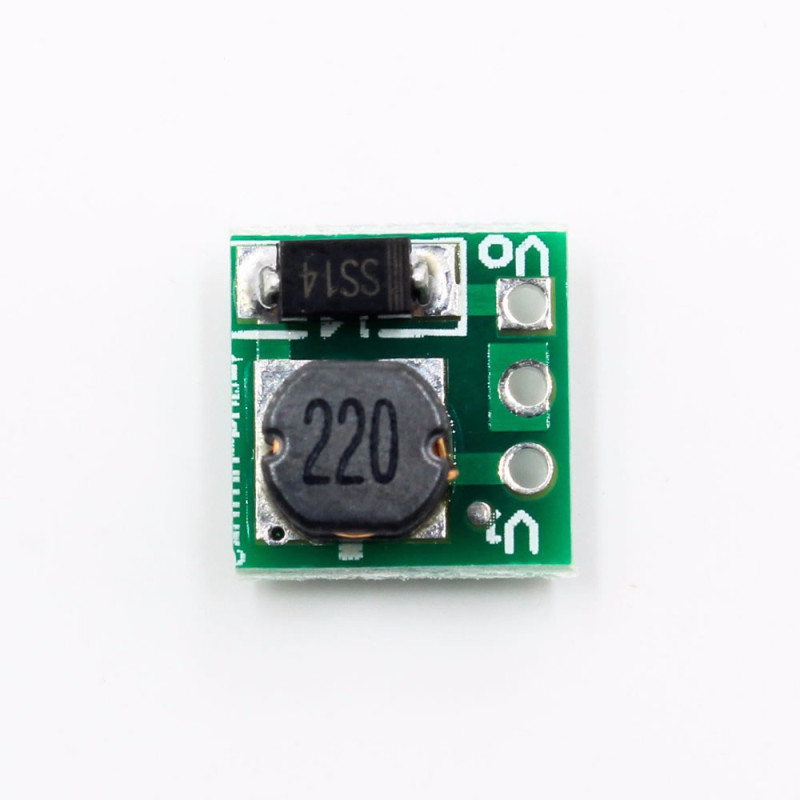

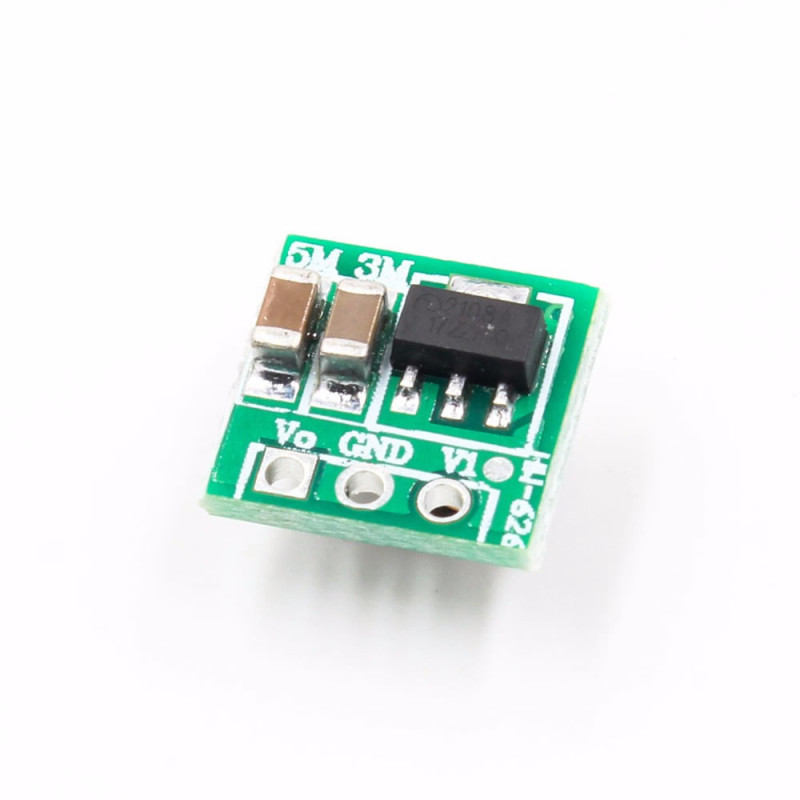

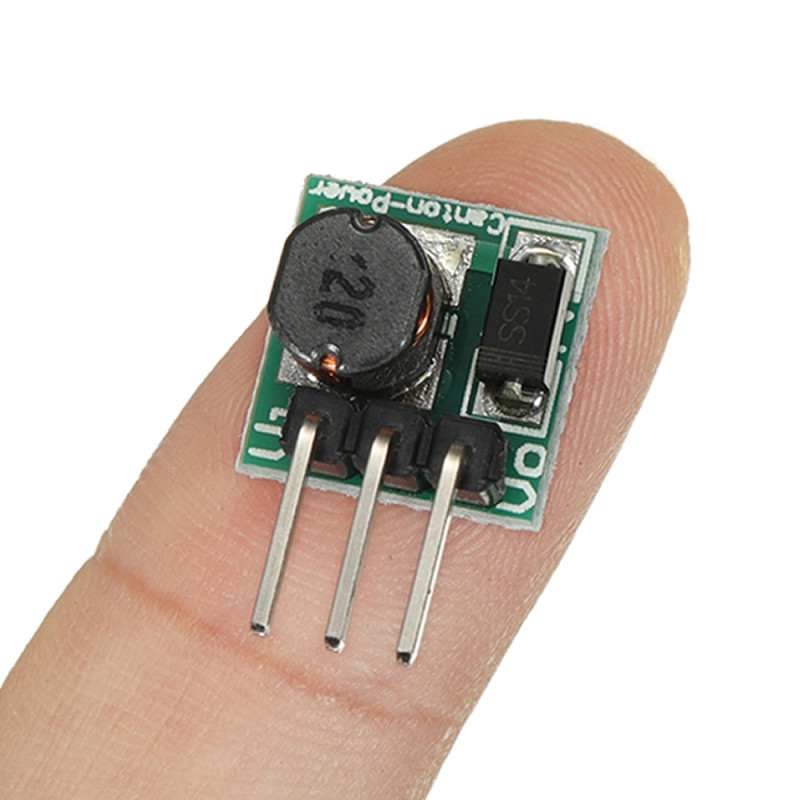

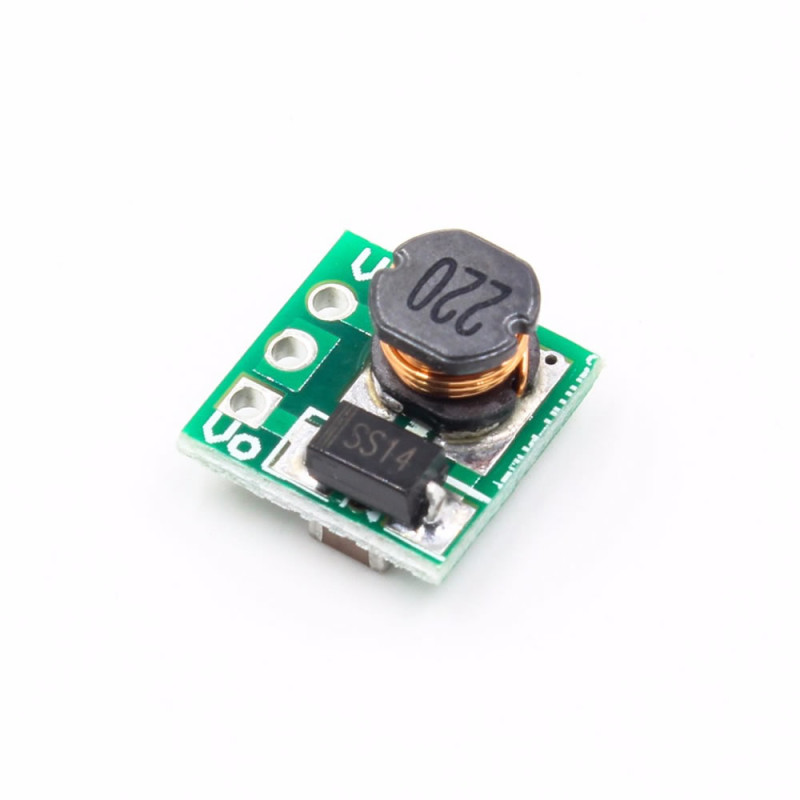

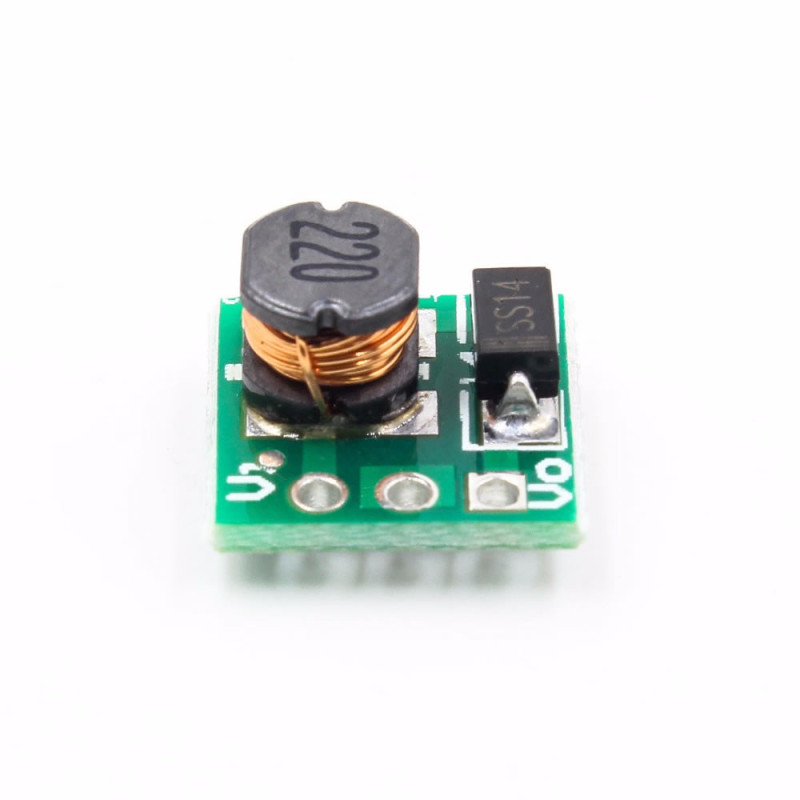

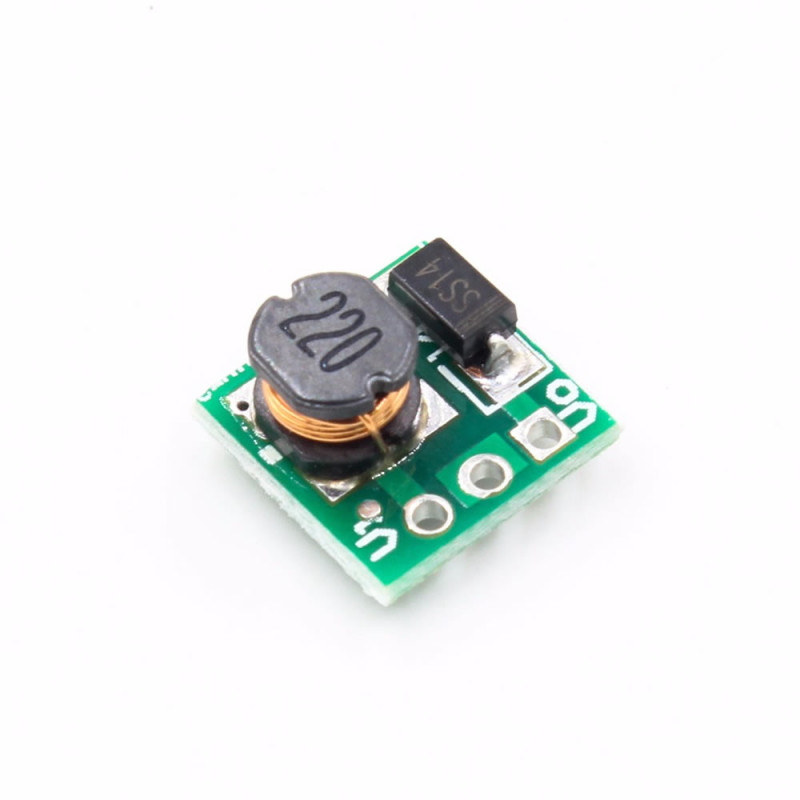

3.3V Boost Module

0.8V to 3.3V Voltage Booster Module

Mini Step Up Boost Maximum 500mA 150khz 85% Efficiency Power Supply Mp3 Mp4 Battery Pda Led

The input voltage cannot be greater than 3.3v. The product will be damaged.

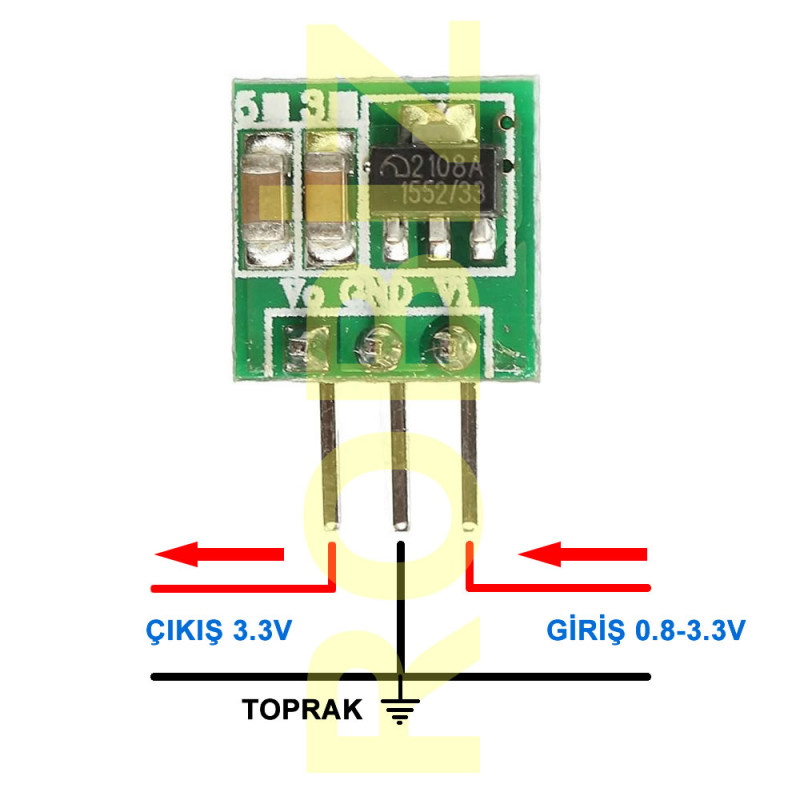

     It boosts the input voltage between 0.8V-3.3V to a 3.3V output voltage. The input voltage cannot be higher than 3.3V. The output power cannot be higher than 500mA. When more power is required, the voltage will drop. Long-term use with high current can damage the product. The input power must always be higher than the output power.

Features:

• Input voltage:DC  0.8-3.3 V
• Output voltage: DC 3.3 V
• Maximum load current: 500mA
• DC 0.8 V current:  10mA
• DC 1V-1.5V current:   50-110mA
• DC 1.5-2 V  current:  110-160mA
• DC 2-3 V  current: 160-400mA
• Greater than DC 3V  current:   400-500mA
• Operating frequency: 150 kHz
• Efficiency: 85%
• Pin pitch: 2.54mm

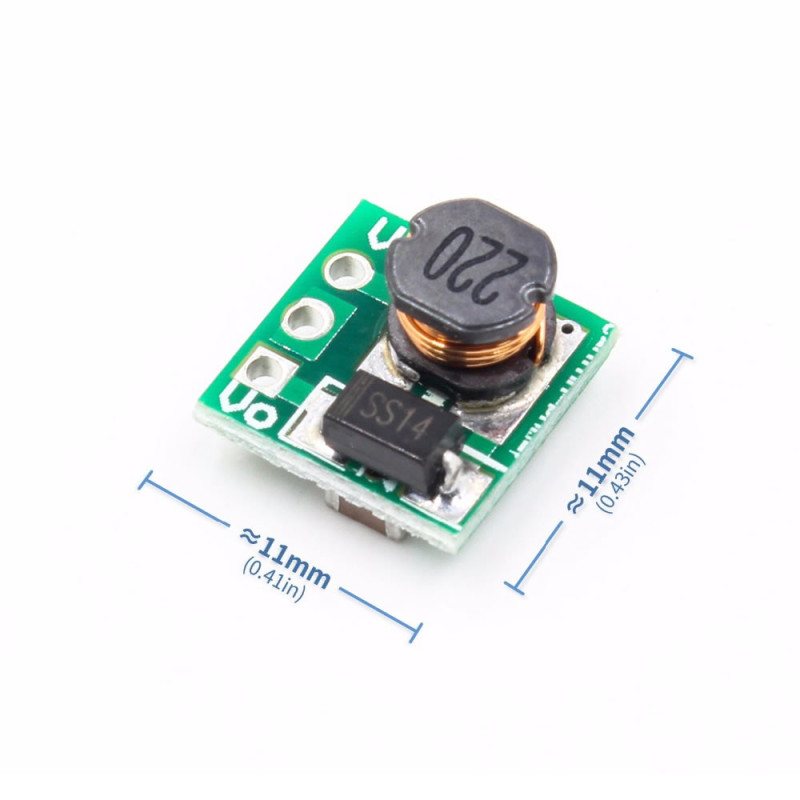

• Dimensions:  11mm x 11mm
• Weight:  2gr

Package Contents

•      1 pcs 3.3V Boost Voltage Booster Module

.
