MP2482 Module

MP2482 Module 24V to 5V 5A Step Down Module

6 Channel Servo Motor Driver Regulator Power Supply Board RC Servo Robot Airplane

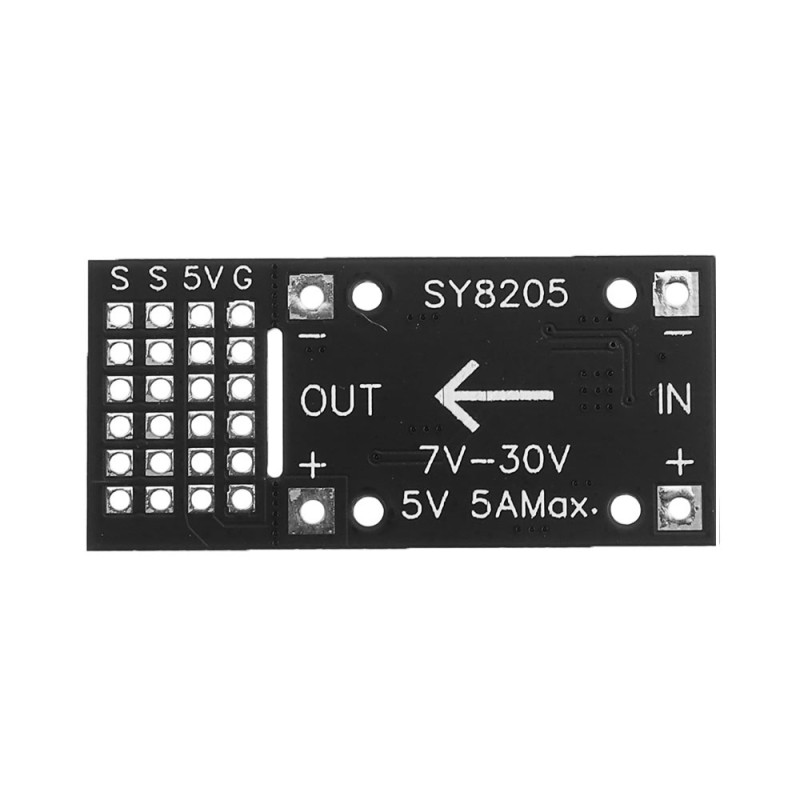

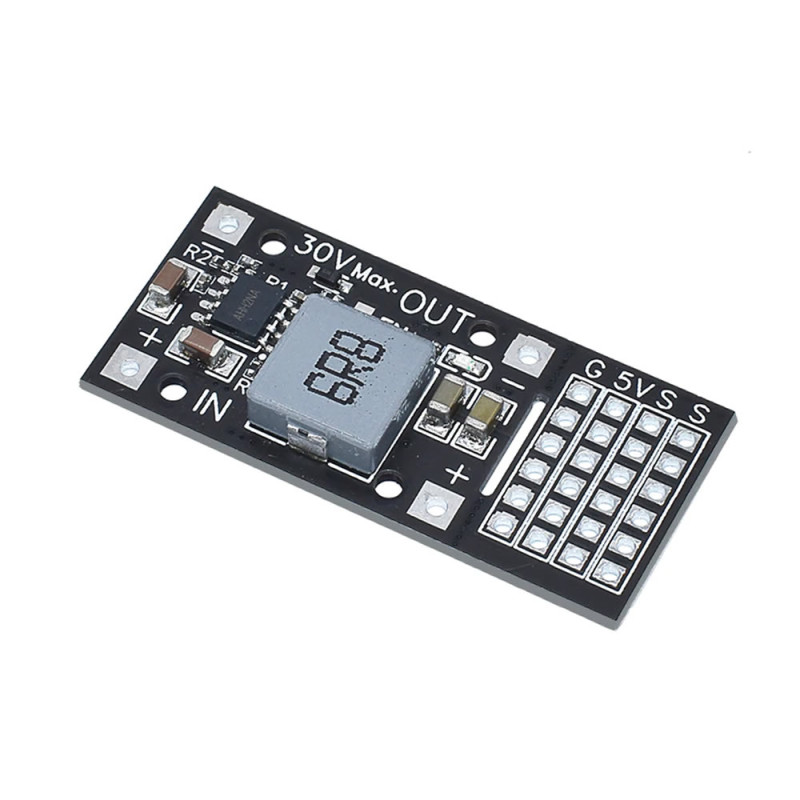

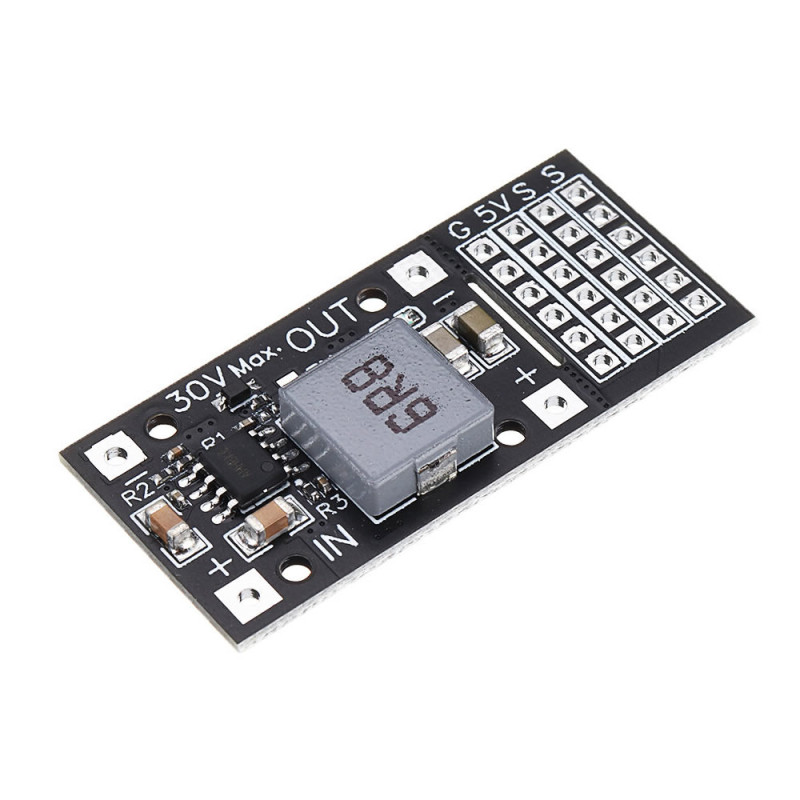

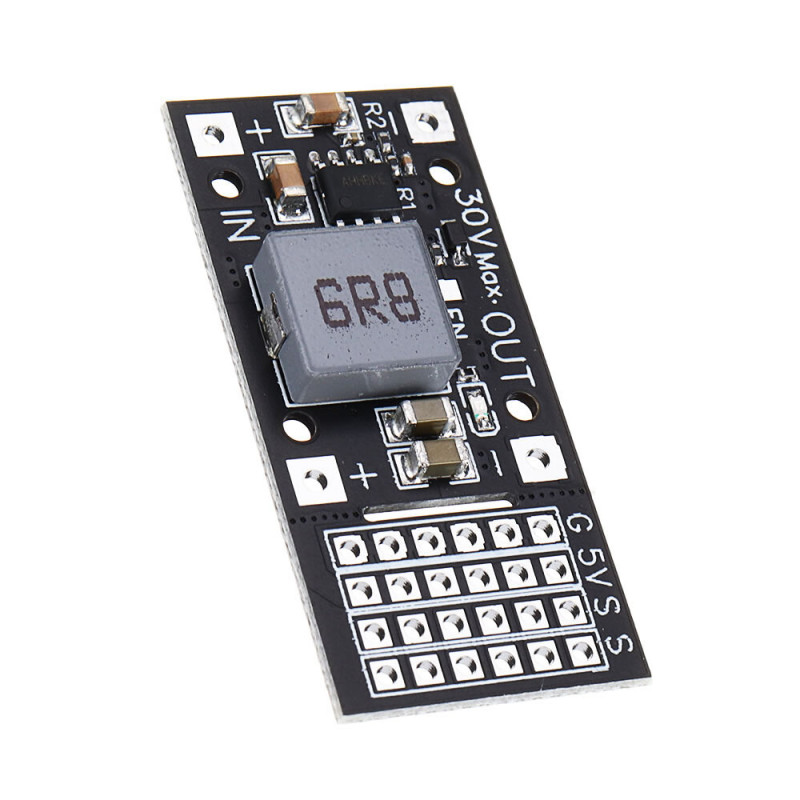

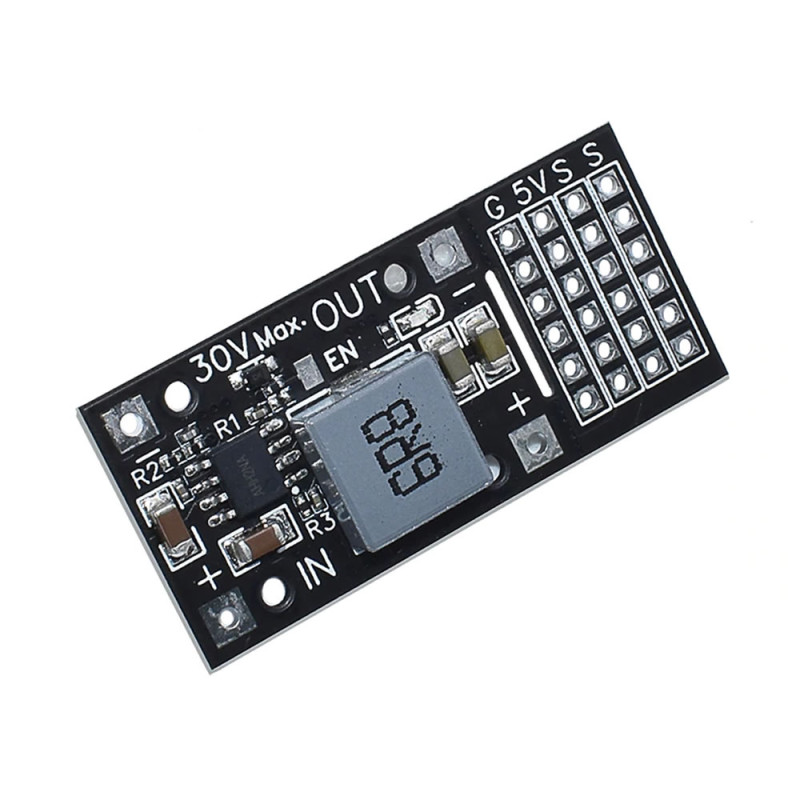

     It is a step down board made with the Mp2482 IC. The output voltage is a fixed 5V. It comes with a pcb circuit with 6 channel output sockets. This section can be broken off and also used separately.

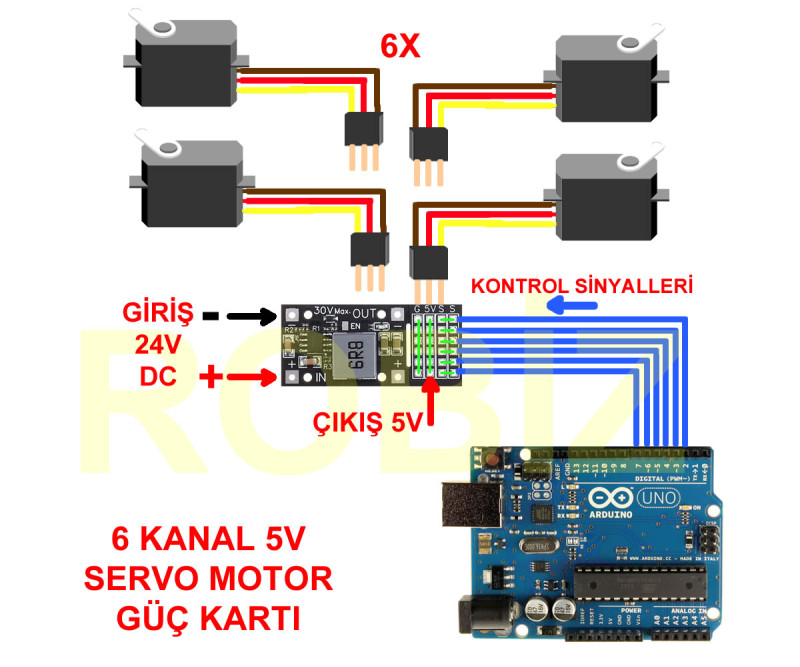

     This additional board has been developed for 6 channel servo motor connection. The output power of boards such as Arduino is not sufficient to drive many motors. For this reason, this type of motor needs to be powered by external supply sources. 6 servos are connected to this section of the board. The control signals can also be connected from external boards. The socket structure is suitable for the connection of servo motors.

Features :

• IC: MP2482
• 6 Servo connection sockets
• Input voltage: 7V-30V  ( Using 24V is recommended. )
• Output voltage: 5V
• Output current: 5A maximum ( If it is used at 5A full load for a long time, the IC heats up and burns out. A heatsink must be used. )
• You can break off the connection socket section and use it separately.
• Supply indicator led.
• Smd coil that can carry high current
• High efficiency
• High temperature protection
• Operating temperature:   -10C  /  +80C
• Color: Black
• 4 Mounting holes

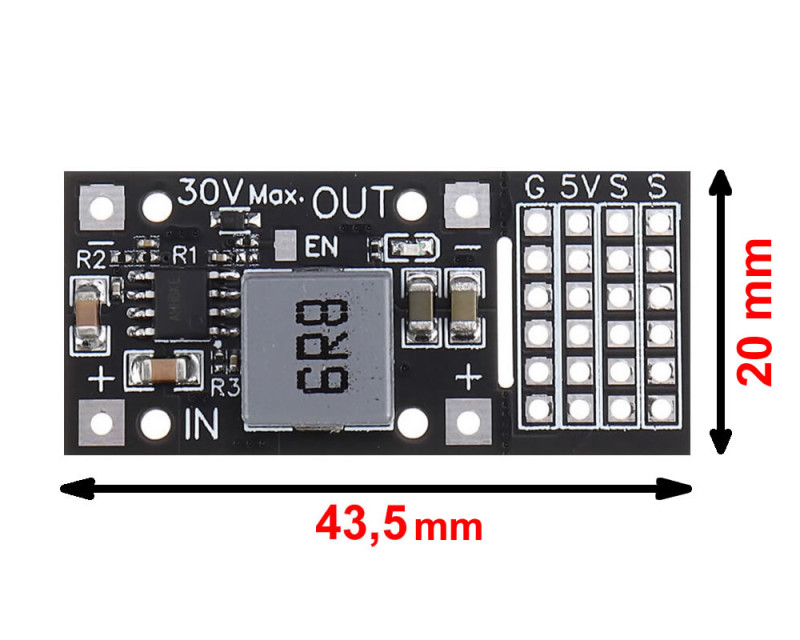

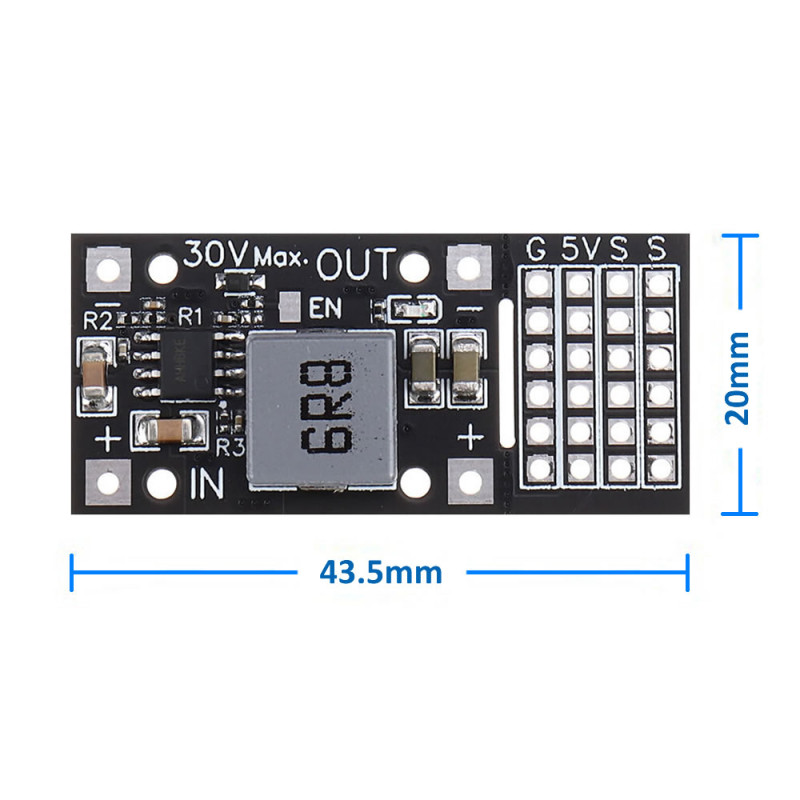

• Dimensions: 20mm x 43mm
• Weight:  5gr

Connection descriptions:

• G: Servo motor ground connection output
• 5V: Servo motor 5V connection output
• S : Servo motor control signal output
• S : Servo motor control signal input.

Package contents :

•     1 Piece 5V 5A Step Down MP2482
