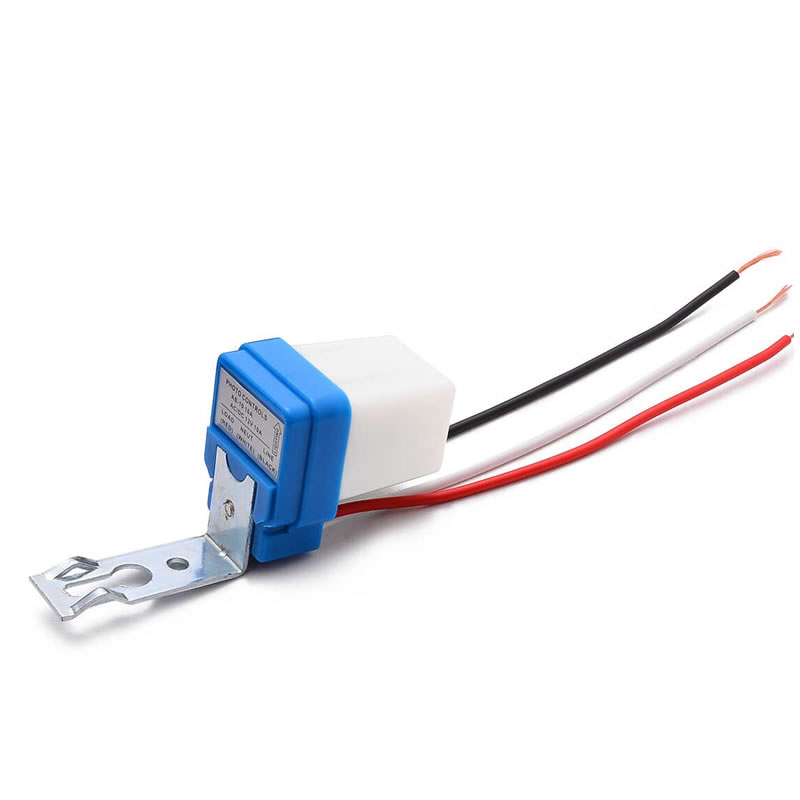

ASO-AS-10 Street Lamp Photocell - 12V

ASO-AS-10 Photocell Module DC 12V

Street Garden Park Lamp Lighting Light Controlled Relay Automatic Control Board Switch

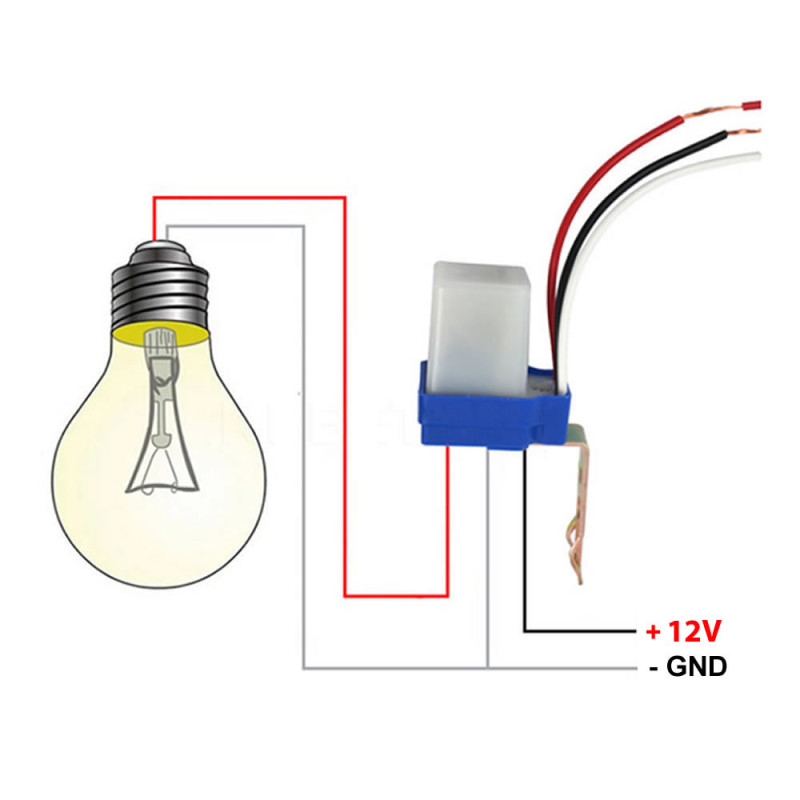

Make the supply and lamp connection according to the listing pictures and the diagram below. It has a connection different from the standard color coding. We can have customers who connect without paying attention to the colors and return it thinking it does not work. Be sure to pay attention to this.

     It detects sunlight and turns the relay at its output on and off. It operates with a 12V supply voltage. It automatically activates when it gets dark, and automatically goes to the off position during the day. It can be widely used in street lamps, garden lighting, farms, parks, schools, factories etc.places.

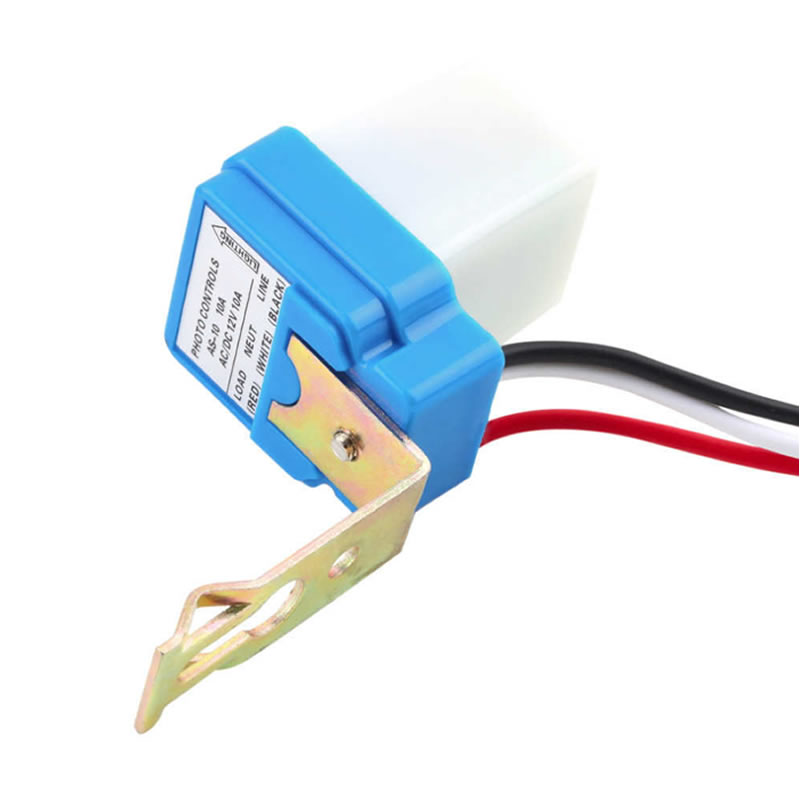

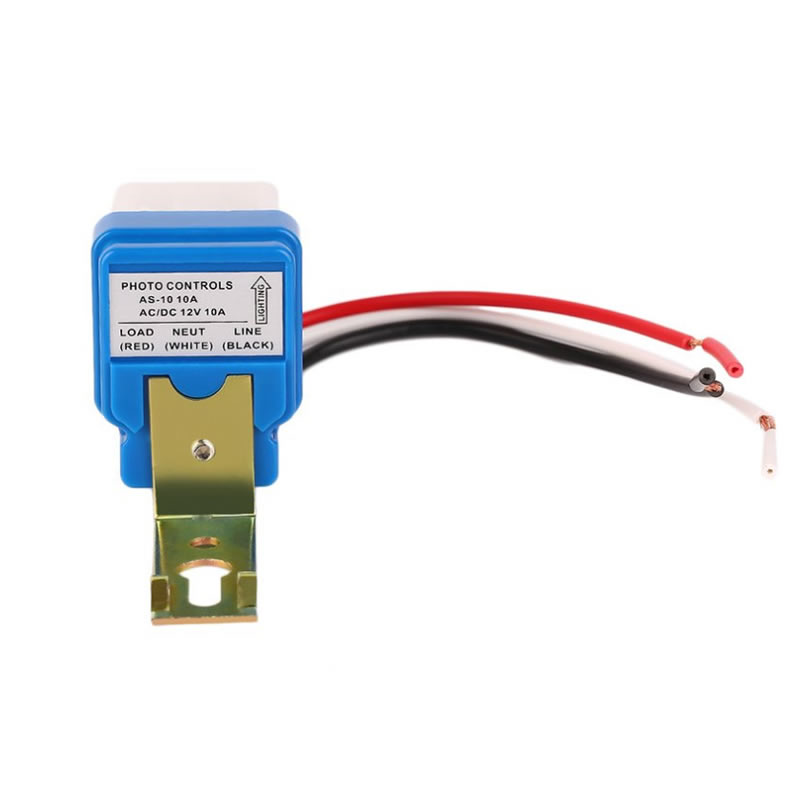

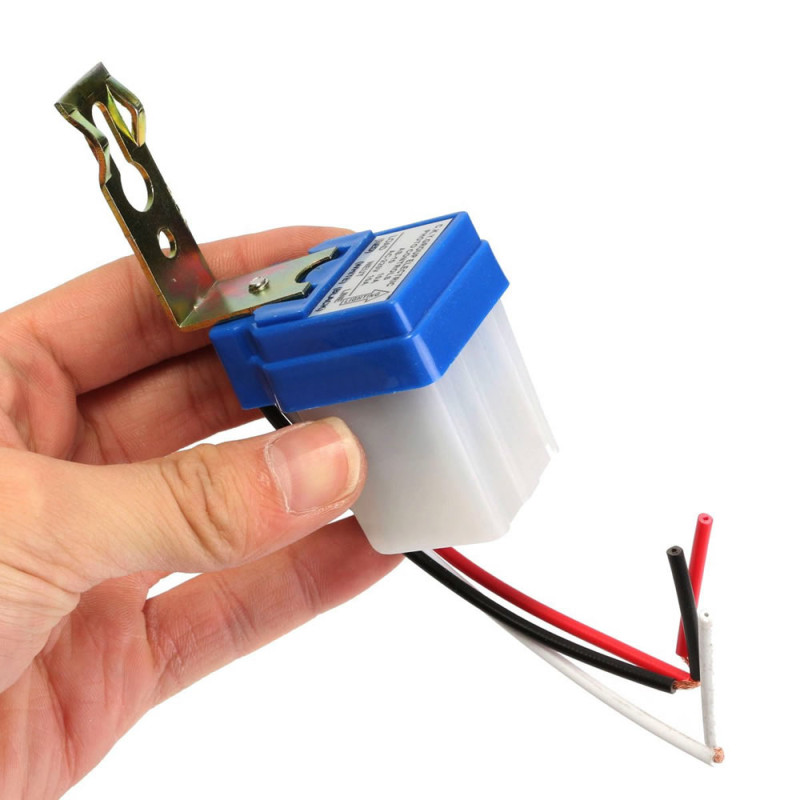

     There is a tiny hole on top of the white plastic part. It performs light detection through this hole. If little light reaches the place where you mount it, you should turn this hole towards the side that receives light. The metal mounting bracket has a hole for fixing. It also has a hole structure that allows you to hang and remove it without permanent fixing. The 12v supply connections are shown in the picture below. Black color is the + supply connection. Since this  is different from the known color coding, make the connection paying attention to this.

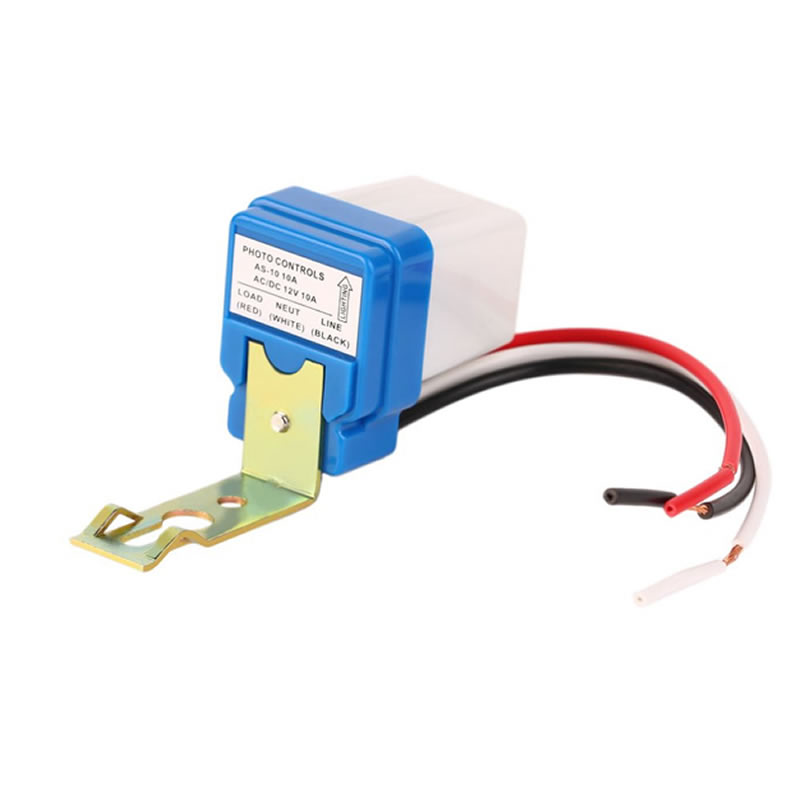

Cable Description:

• Black: Supply + Cable DC 12V
• White: Supply - Cable   0V
• Red: Load Supply + Cable

Features:

•  Operating voltage:  DC 12V
•  Operating current: 10A  ( for long term use we recommend not exceeding 7A.
•  Power: 120W
•  Easy installation and ease of use
•  Delay time: 2sec
•  Color: Blue / White
•  Operating temperature:  -10C  / 80C

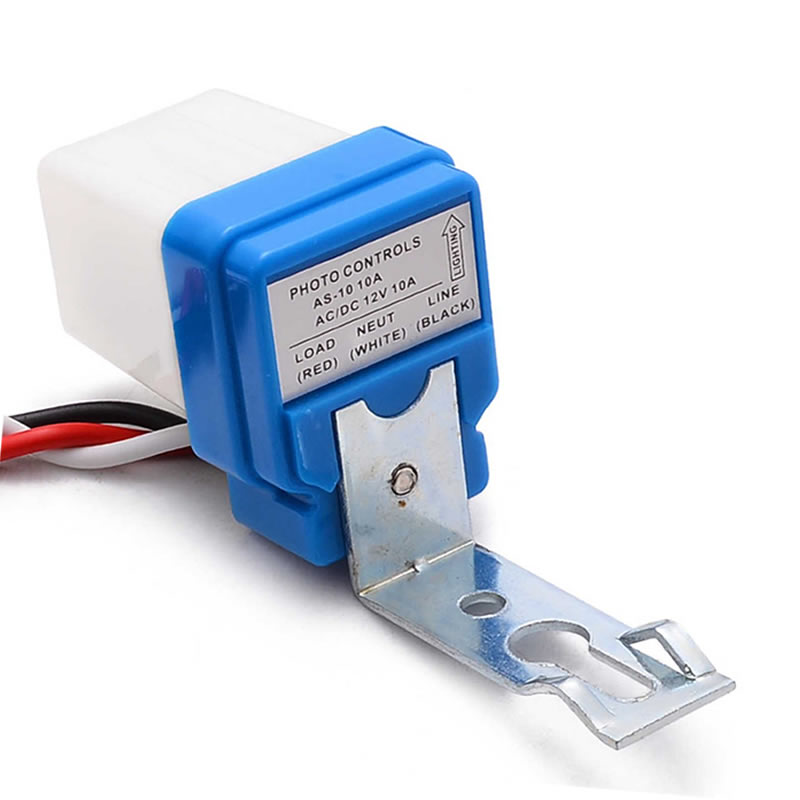

•  Light detection hole on the white plastic part
•  Metal mounting bracket: 18mm x 45mm
•  4.5mm fixing hole on the mounting bracket
•  Easily attachable removable hanging type hole on the mounting bracket

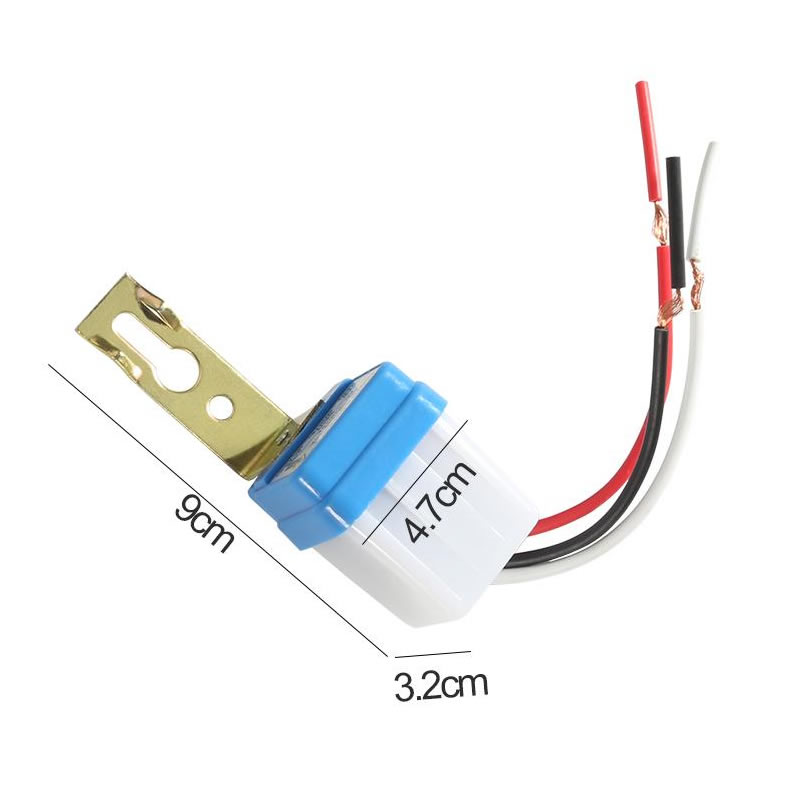

•  Size:  35mm x 48mm x 52mm
•  Weight:  45gr

Package Contents :

• 1 Piece 12V Photocell

.
