HZ-1050 125 kHz RFID Reader

HZ-1050 125 kHz RFID Reader

     It consists of a very easy to use 125khz RFID reader module and 1 piece of 125Khz RFID key fob. The reader module operates at 125 kHz frequency. The module, which provides output in Wiegand format, can easily perform readings through many microcontroller platforms, primarily Arduino, and systems such as Raspberry. The communication speed can be set as 9600 and 19200 baudrate. There is a connector on the product antenna and it can be easily connected onto the board.

Features:

•     Read only rfid cards ( EM4100 4001, etc. )
•     Card frequency: 125Khz
•     Reading distance: 3-10cm
•     Reading time: <0.2s
•     Output port: Serial port UART output, TTL level .
•     Wigan 26/34 selection jumpers.
•     Indicator led.
•     Boudrate adjustable. 9600 - 19200
•     Power: 3.3-5.5V
•     Operating temperature: -55 to +125C
•     Humidity: 20-90% RH for operation, 10-90% for storage
•     Pressure: 86-106Kpa

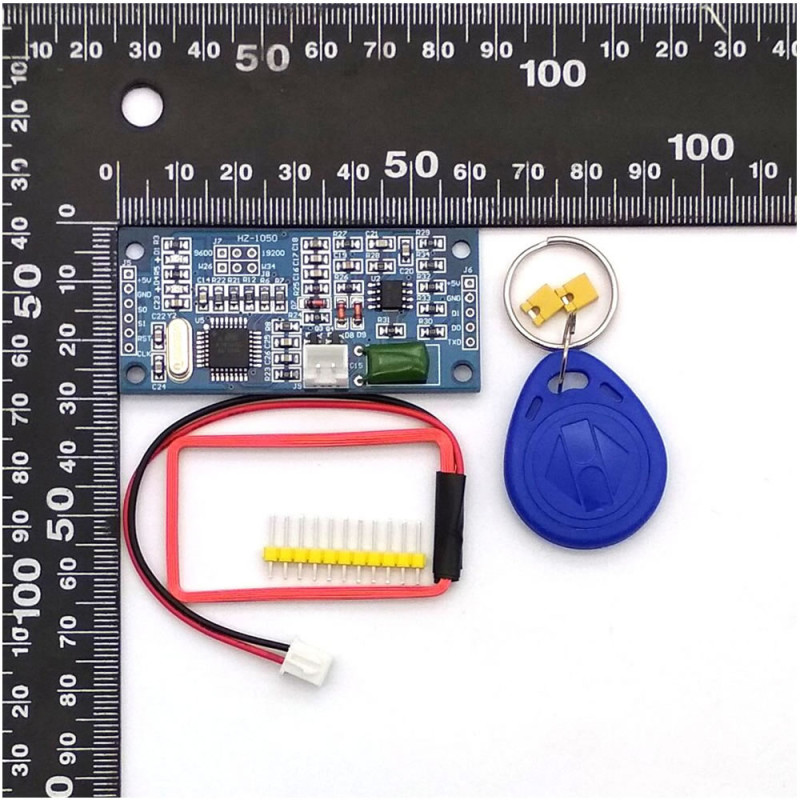

•     Size: 29*62mm
•     Cable: 35*54mm
•     Extension cable: 10cm

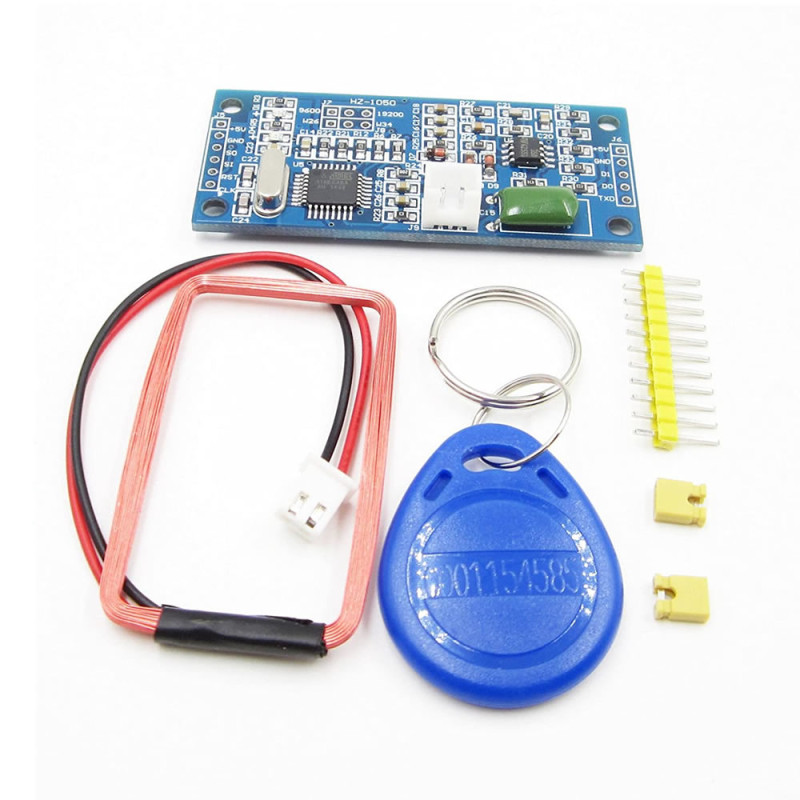

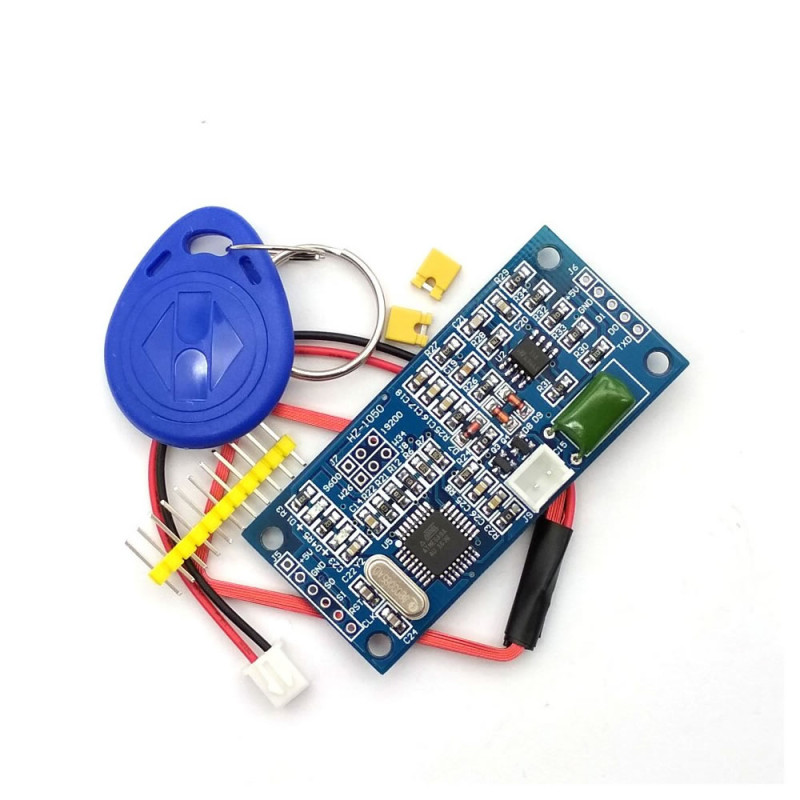

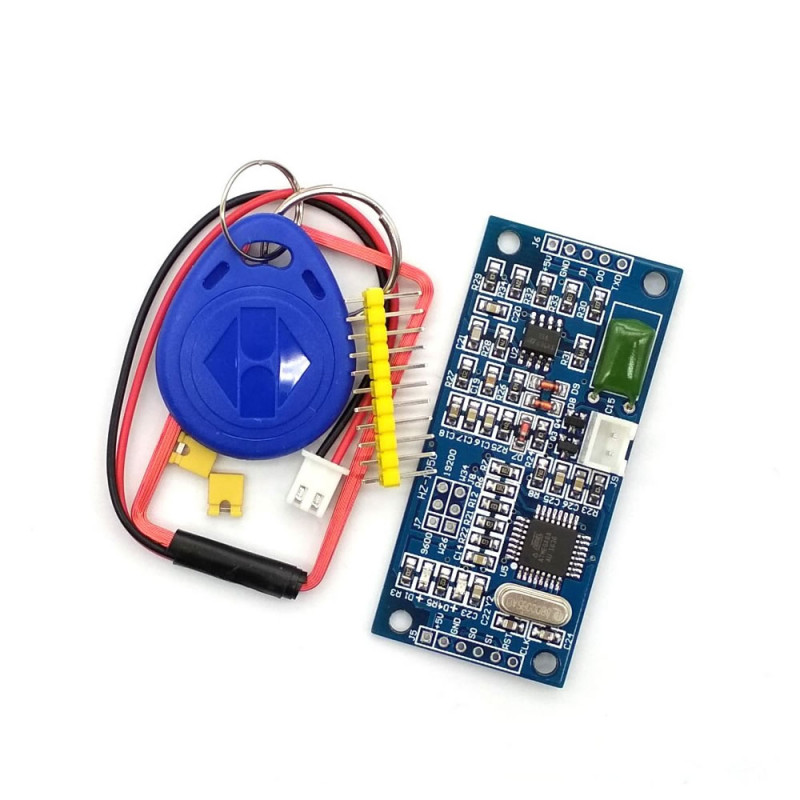

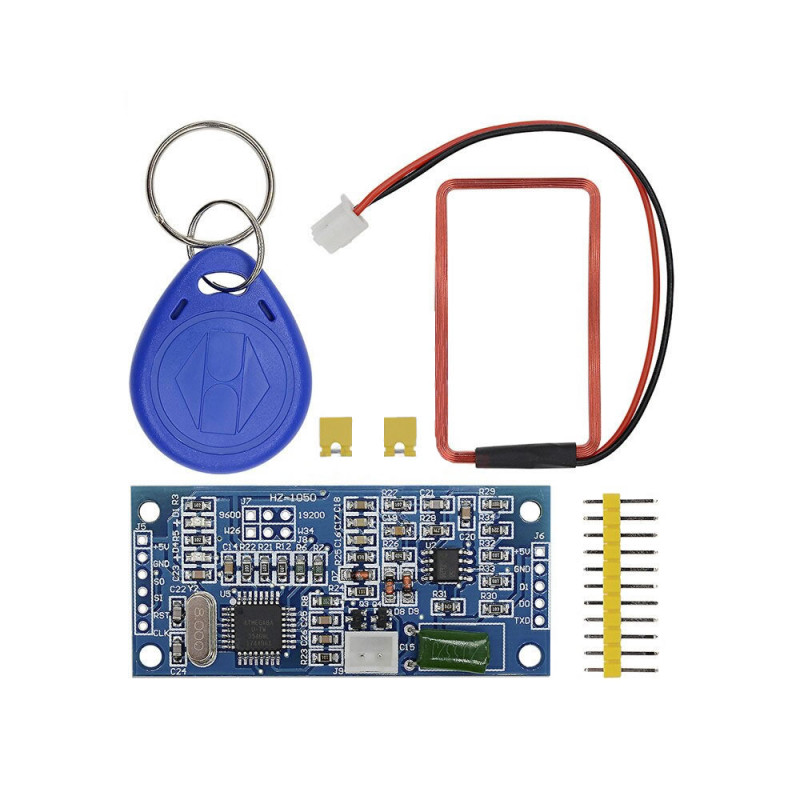

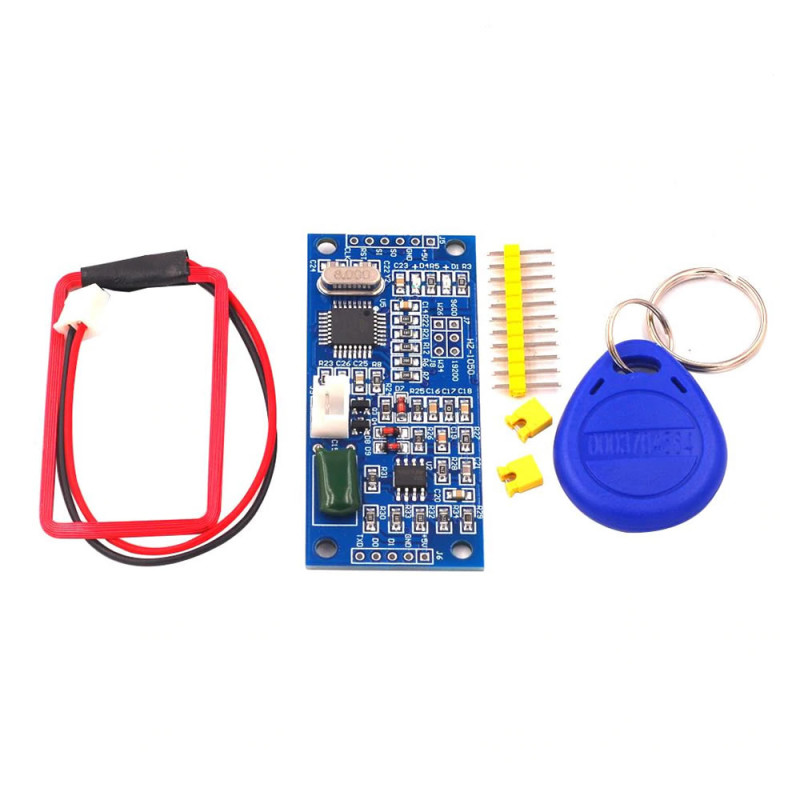

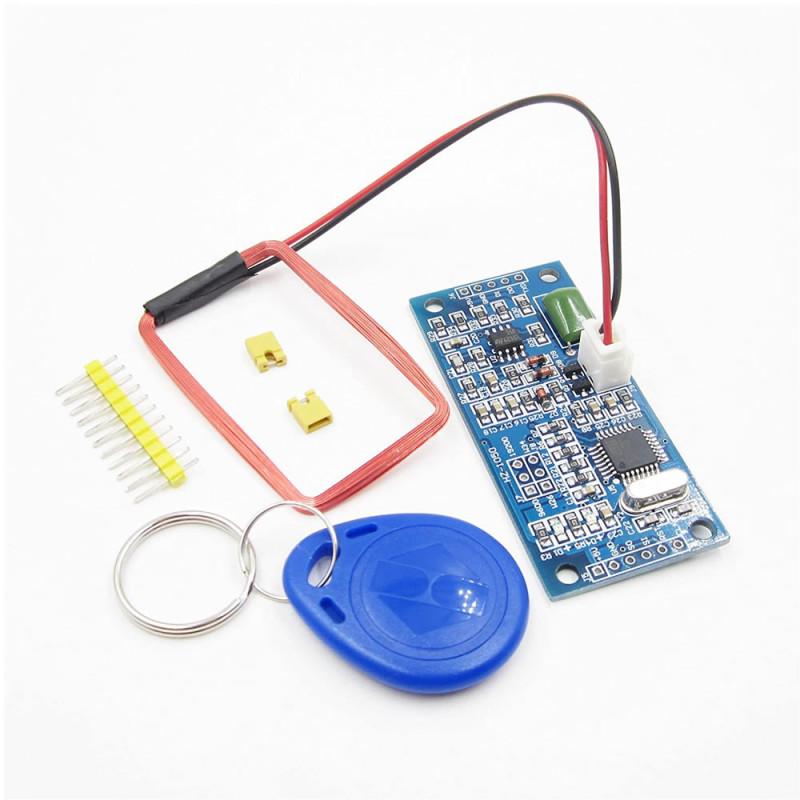

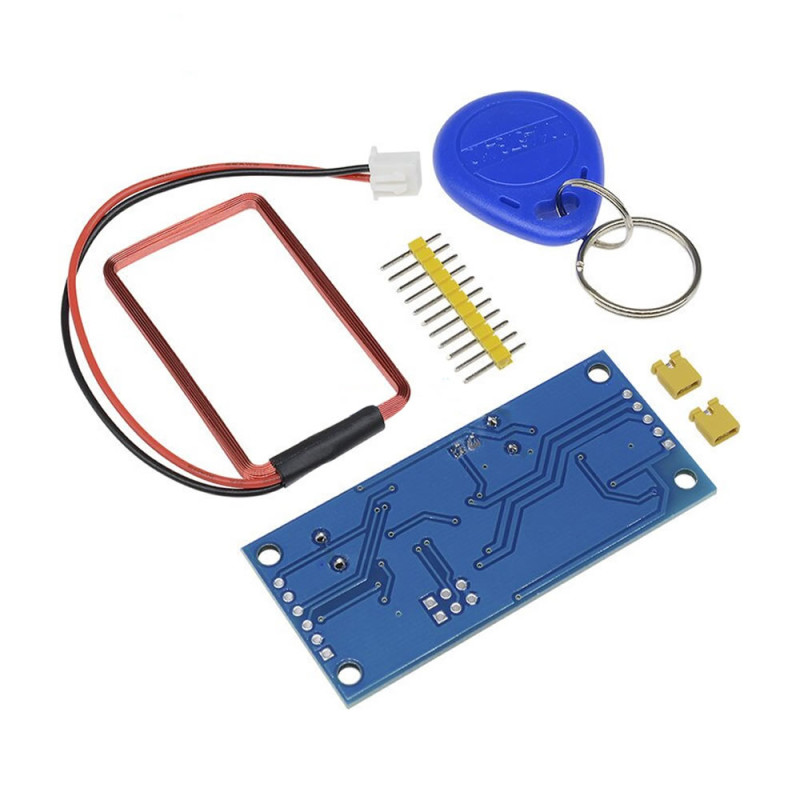

Package Contents:

•        1 Piece HZ-1050  125kHz RFID Module
•        1 Piece RFID Key Fob
