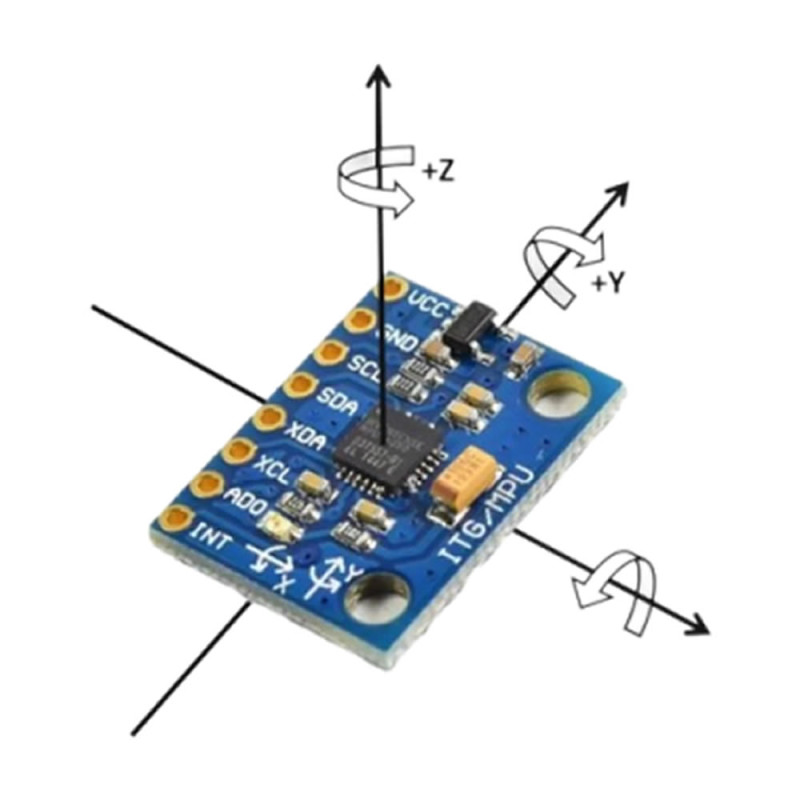

     The MPU-6050 is a high-performance Inertial Measurement Unit (IMU) sensor module, ideal for all your projects that require motion detection and orientation measurement. With an on-board 3-axis gyroscope and 3-axis accelerometer, it provides a total of 6 axes (6 DOF) of precise motion data. The built-in Digital Motion Processor processes the sensor data and runs MotionFusion algorithms to perform angular position calculations on the sensor itself. This significantly reduces the processing load on the main microcontroller.

     This sensor is a fundamental component for applications requiring motion tracking, balance control and stabilization. The module comes on a GY-521 board that provides ease of use and can be easily integrated with microcontrollers. Basic communication is done over i2c; acceleration, angular velocity and temperature data can be read.

Features:

•     IC:   MPU-6050 (3-Axis Gyroscope, 3-Axis Accelerometer)
•     Operating voltage:  DC 3.0V-5.0V DC
•     Communication:   Standard I2C (Two-wire) Interface 0x68 or 0x69 with the AD0 pin
•     Resolution:  16bit adc for each axis
•     Gyroscope range:  Selectable  -+250, -+500, -+1000, -+2000 dps
•     Accelerometer range: Selectable  -+2g, -+4g, -+8g, -+16g
•     Built-in digital motion processor (DMP)
•     Digital temperature sensor
•     Compatible platforms    Arduino, raspberry pi, stm32, esp32 etc.
•     FIFO: 1024 byte buffer memory
•     Built-in ldo (ultra low noise)
•     Power led
•     Operating temperature:  -20C  / 65C
•     Color: Blue
•     8 Pin connection socket. 2.54mm pin pitch

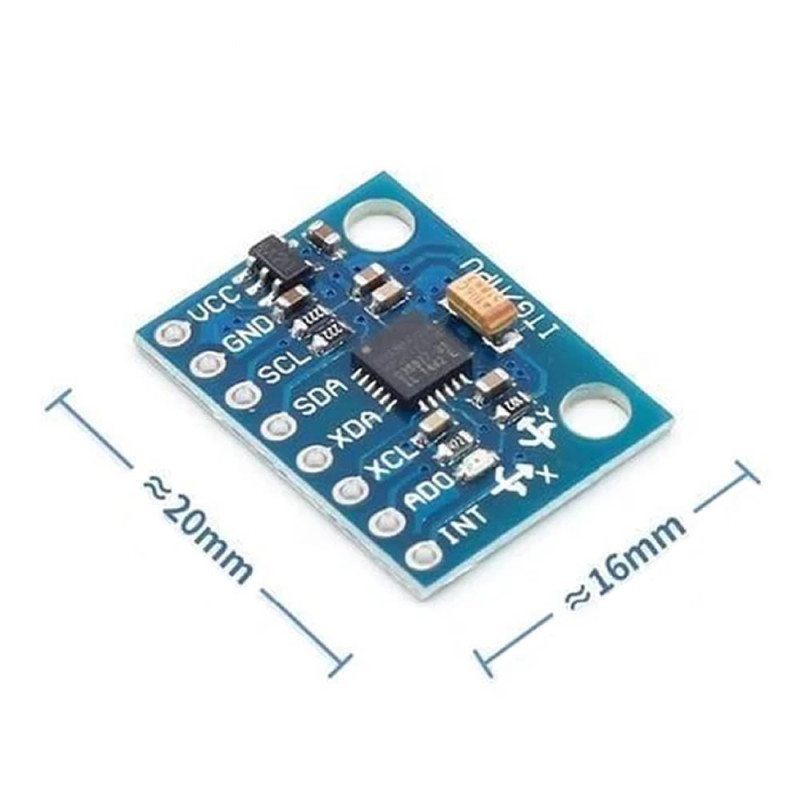

•     Dimensions:  16mm  x  20mm
•     Weight:  3gr

Areas of use:

•     Drone and Multicopter stabilization and flight control systems
•     Balancing robots and autonomous vehicles
•     Virtual reality (VR) and augmented reality (AR) devices
•     Motion detection and gesture control applications
•     Wearable technology and sports equipment

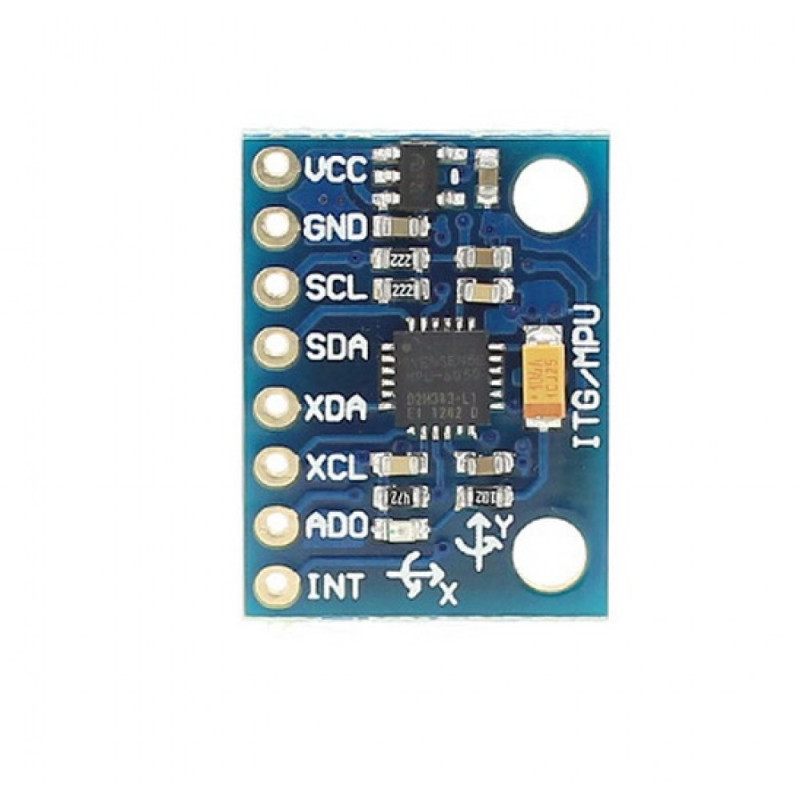

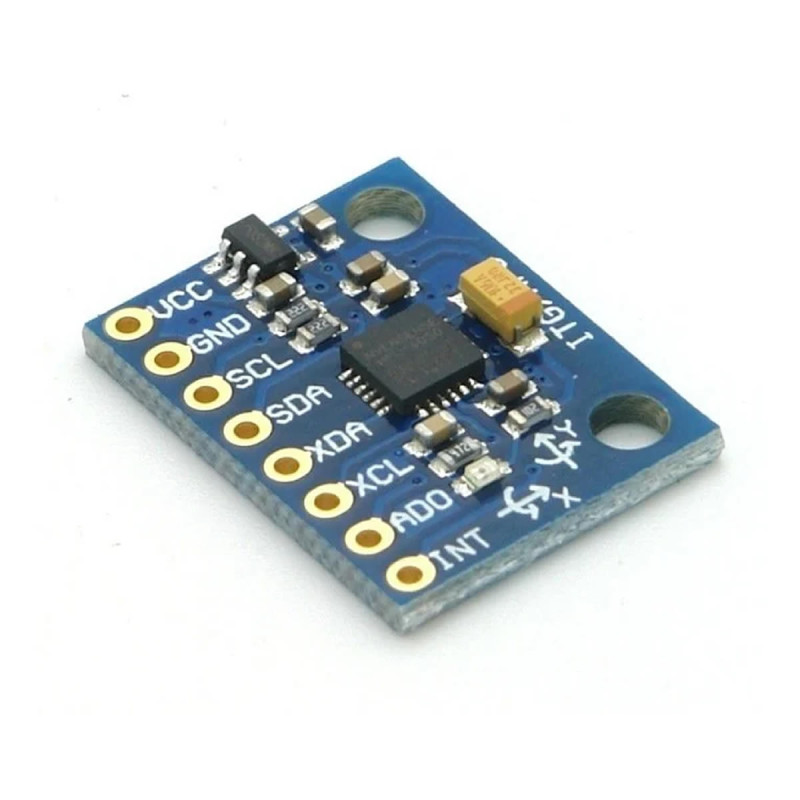

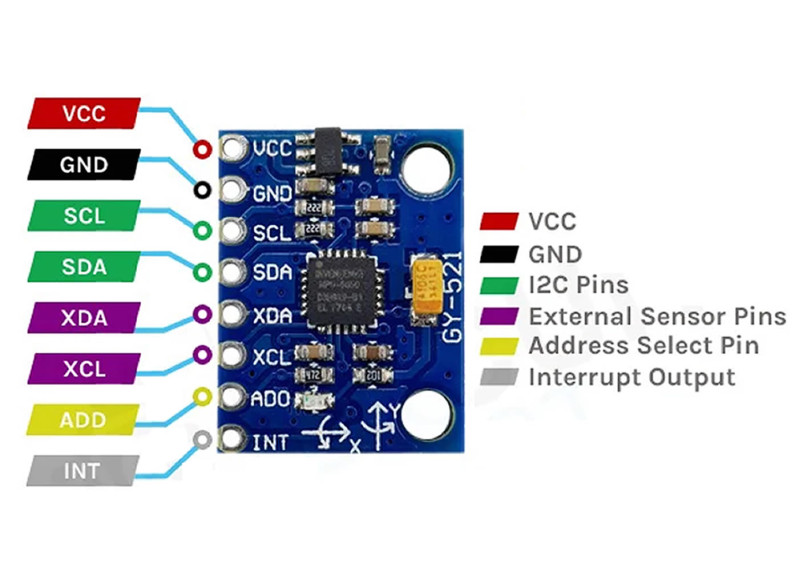

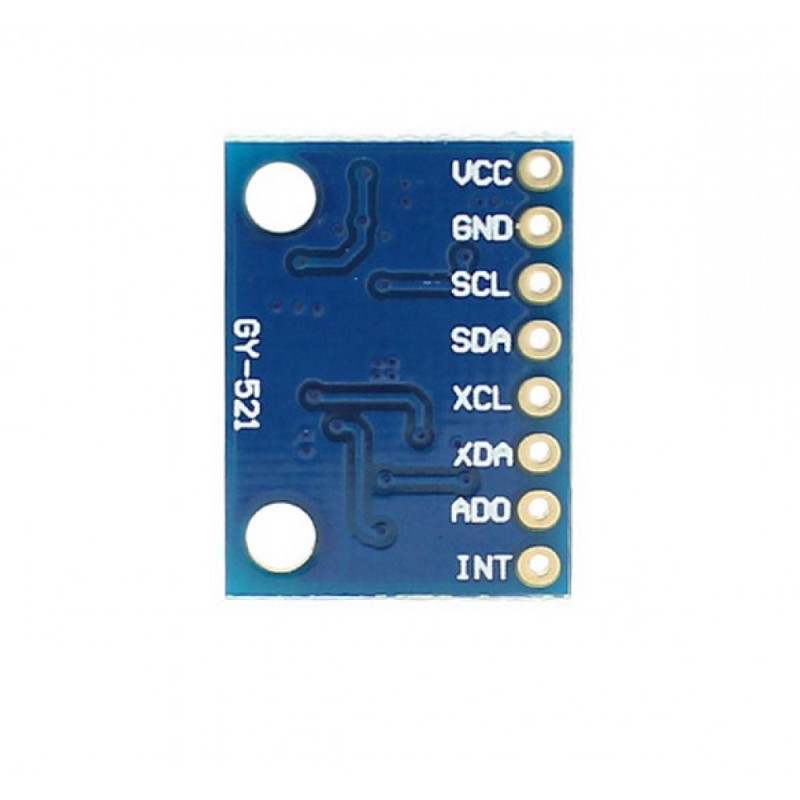

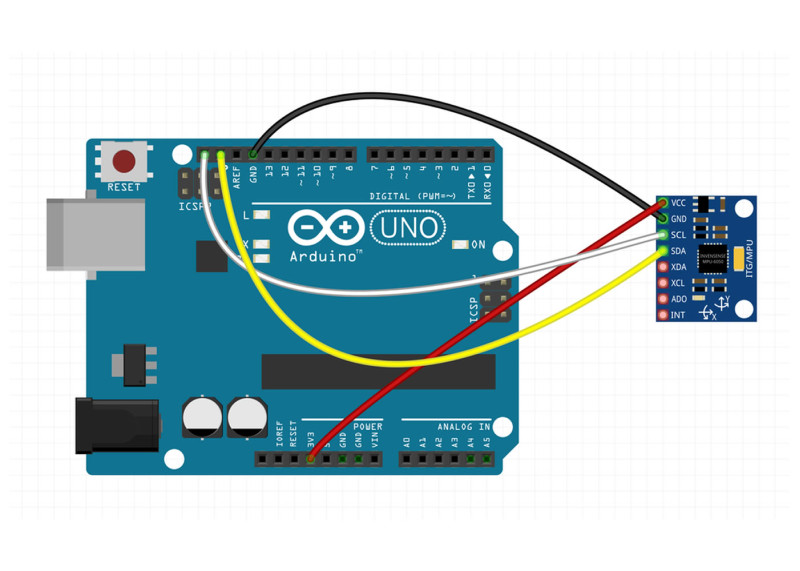

  Pin description:

• VCC:   Power input
• GND:   Ground
• SDA:    i2c data line
• SCL:    i2c clock line
• XDA:   Auxiliary i2c data (for external sensors)
• XCL:   Auxiliary i2c clock (for external sensors)
• AD0:   i2c address selection 0x68 or 0x69
• INT:     Interrupt output (can be used for motion detection etc.)

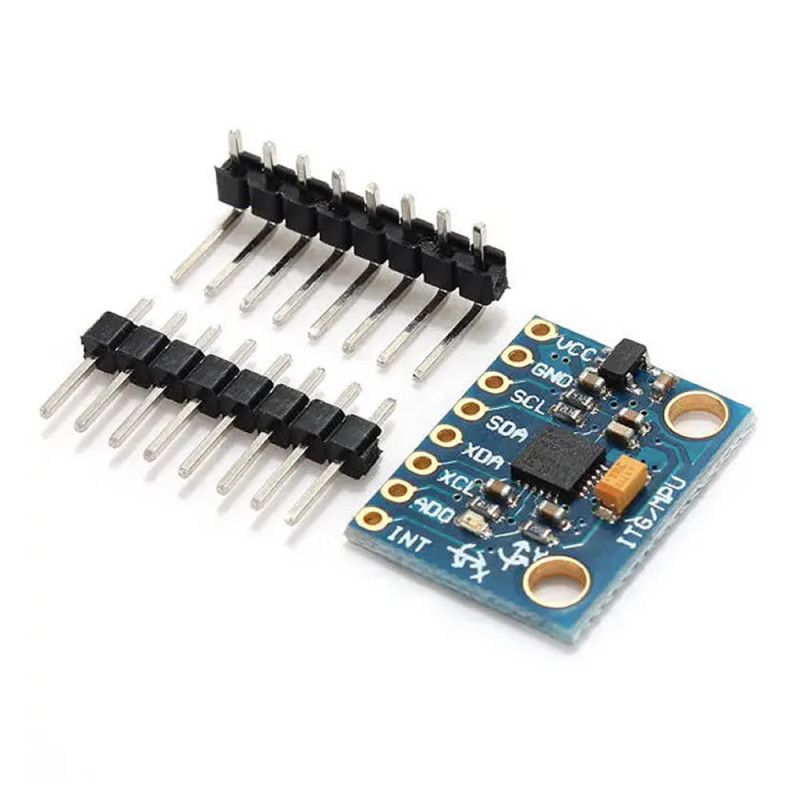

Package contents:

•     1 Piece MPU-6050 module
•      8 Pin male connection socket
