RPI-1031 Angle Sensor
126.72TL
Ex Tax: 105.60TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: RPI-1031 Açı Sensörü
- SKU: RBZ.100.249
RPI-1031 Angle Sensor
4 Direction Position Rotation Tilt Optical 4DOF Motion Detector Arduino Digital Industrial Automation Robot Motor Control
RPI-1031 is a sensor module based on optical principles for detecting direction. It contains 1 led and 2 photosensitive receivers and metal balls. With the movement of the metal balls, it blocks the passage of light in certain parts. The angle is calculated accordingly. This module can be used in industrial, robotics and automation applications, as it provides precise detection of both rotary and tilt movements.
Features:
- Integrated RPI-1031
- Operating voltage: DC 5V
- Color: Blue
- Operating temperature: -20C / 80C
- Mounting hole
- 4 Pin connection male header socket

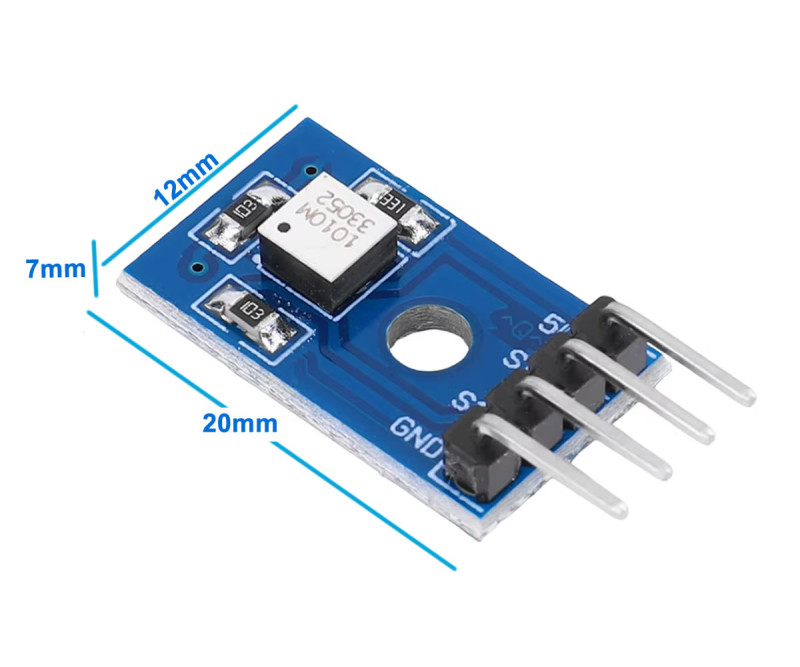

- Dimensions: 12mm x 20mm x 7mm
- Weight: 3gr
Package contents:
- 1 Piece RPI-1031 Angle Sensor
