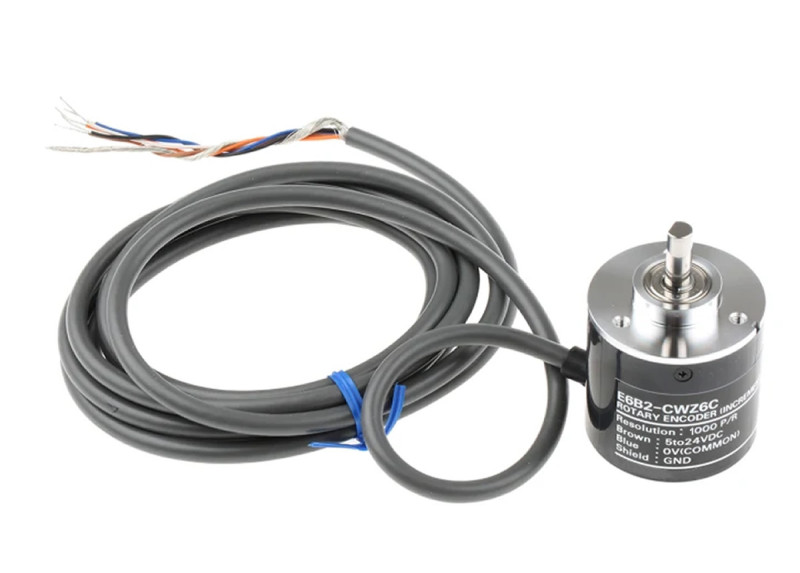

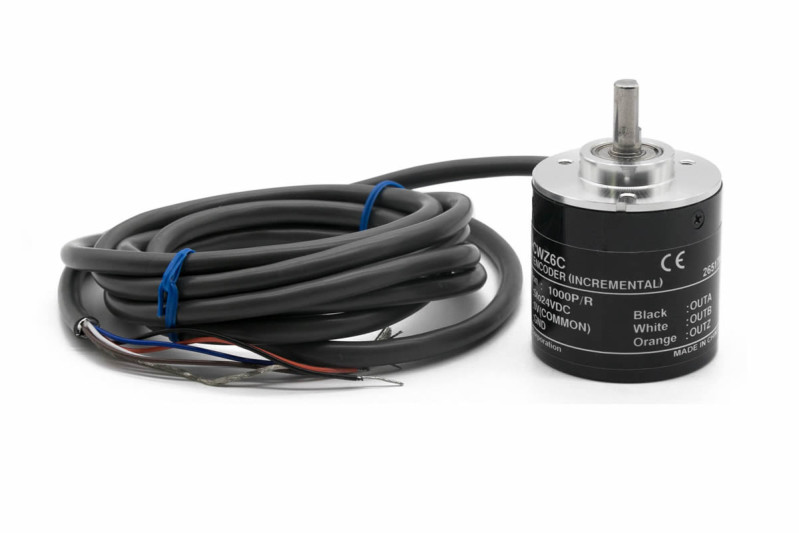

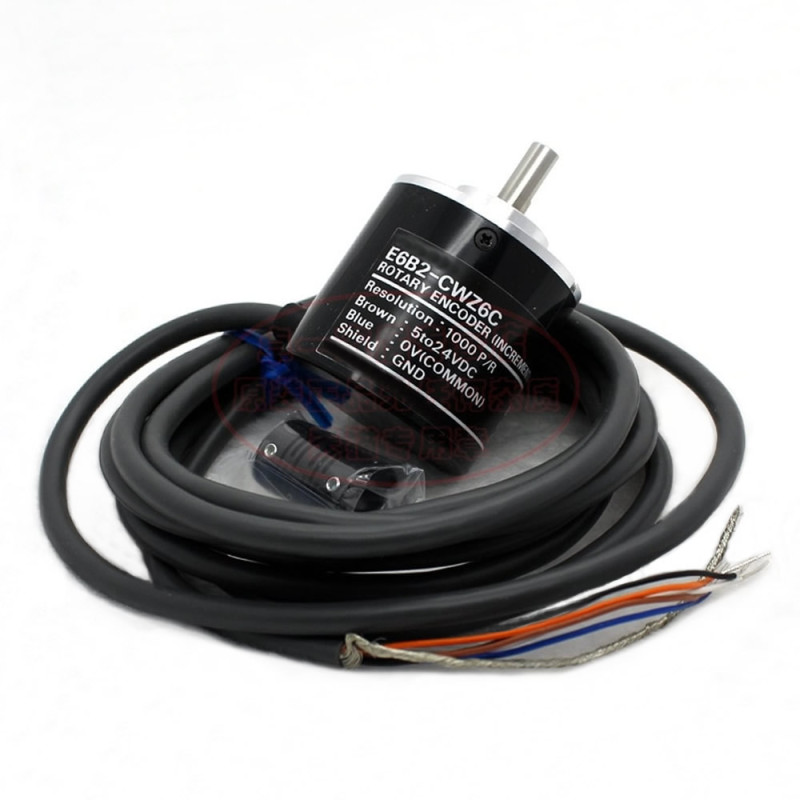

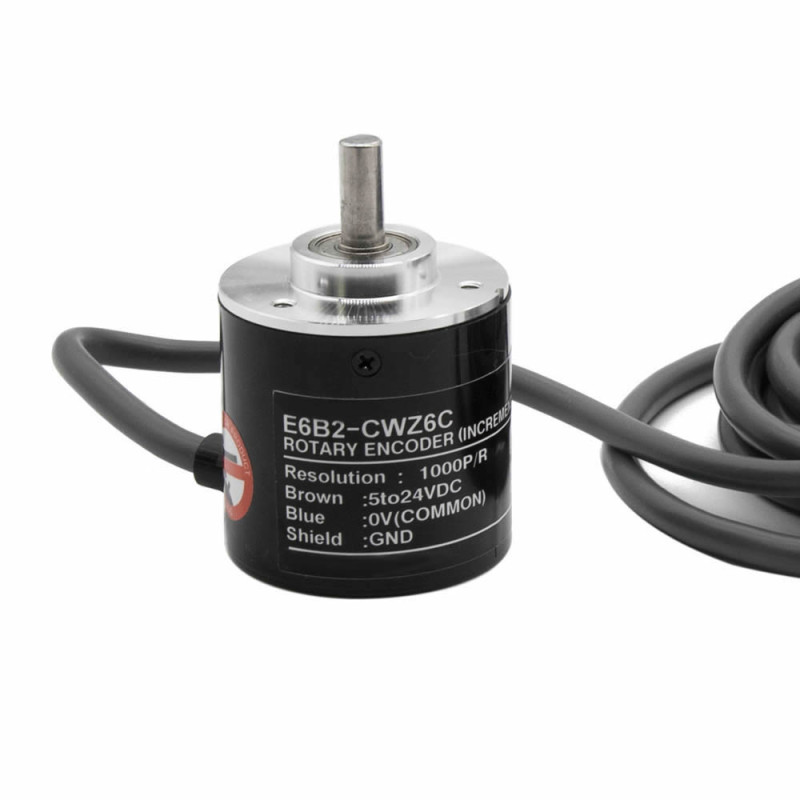

E6B2-CWZ6C Encoder 1000 Pulses

E6B2-CWZ6C 1000 Pulse Optical Rotary Encoder

DC 5V/24V Rotary Encoder A B Z 3 Phase Motor Rotation Speed Direction Angle Distance Position Measurement Sensor NPN

If the A and B phase lines are connected directly to VCC, the product will be damaged. Read the pin description and make the connections.

     It is an optical sensor that produces 1000 pulses per full revolution. It is used for measuring parameters such as rotation speed, direction, angle, acceleration and travel distance. Based on this information we can perform various control operations precisely. It is used to understand the speed of moving systems and where the system is.

     It can operate with DC 5-24V supply. The signals generated as the encoder shaft turns are counted with a microprocessor kit or circuit such as arduino and the number of rotations is found. The outputs are used by connecting them to an mcu pin with a pull up resistor. If the encoder ends are floating, you may not be able to measure properly with an oscilloscope. It would be appropriate to connect 2 pull up resistors to the supply and measure with the scope.

Features:

•     A, B and Z three phase optical rotary encoder
•     Operating voltage: DC 5V / 24V
•     Operating current: 80mA
•     Load current:   35mA Maximum
•     Load resistance: 1Kohm  ( A 10kohm resistor is connected between the phase and Vcc and the signal is monitored with the scope )
•     NPN type open collector
•     Number of signals: 1000 pulses / revolution
•     Phase difference:  90C +-45C
•     Maximum mechanical speed: 6000 rpm
•     Response frequency:  100KHz Maximum
•     Supply reverse connection protection
•     Operating temperature: -10C  /  70C

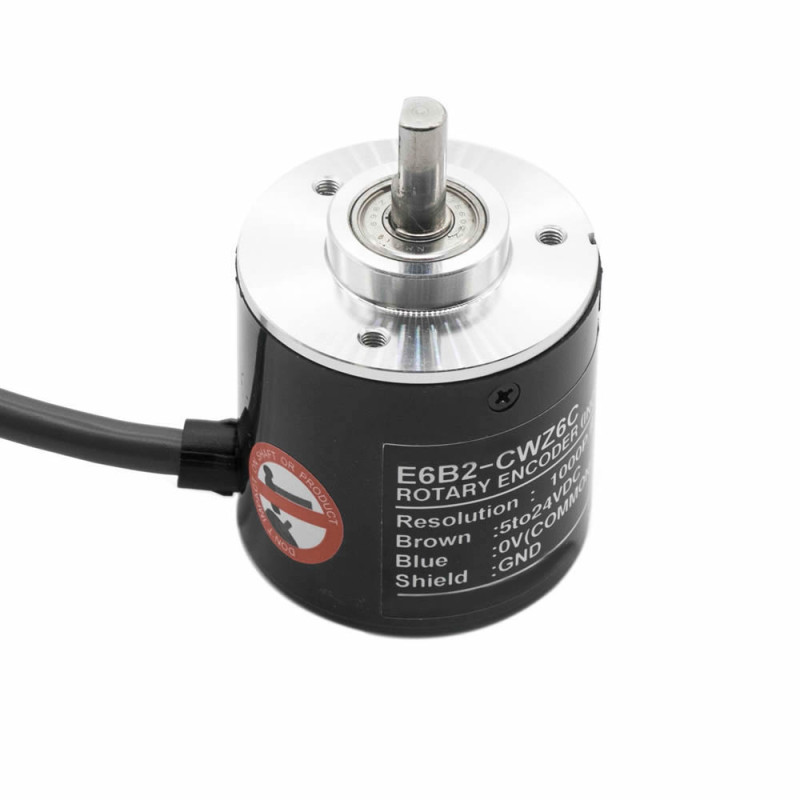

•     D type shaft 6mm x 13mm
•     M3 fixing screw holes
•     Cable length: 2meters
•     Height: 38mm( 43,5mm)
•     Diameter:  40mm
•     Weight: 130gr

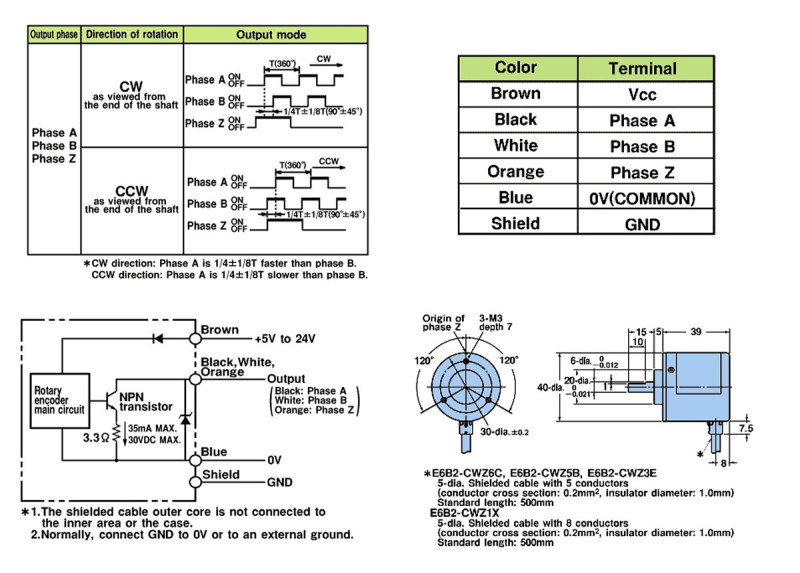

Cable Connection Description

•     Brown  = VCC Supply + pin
•     Black =  A phase
•     White = B phase
•     Orange = Z phase
•     Blue = Ground Gnd
•     Shield = Ground Gnd

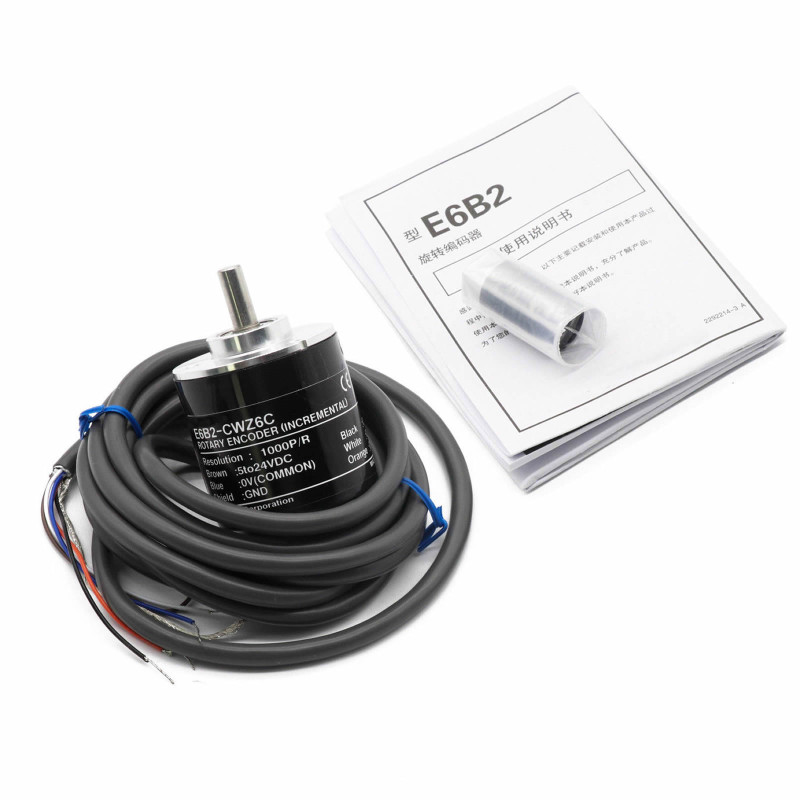

Package contents:

• 1 Piece E6B2-CWZ6C Encoder 1000 Pulses

.
