ATX Power Supply Voltage Output Board

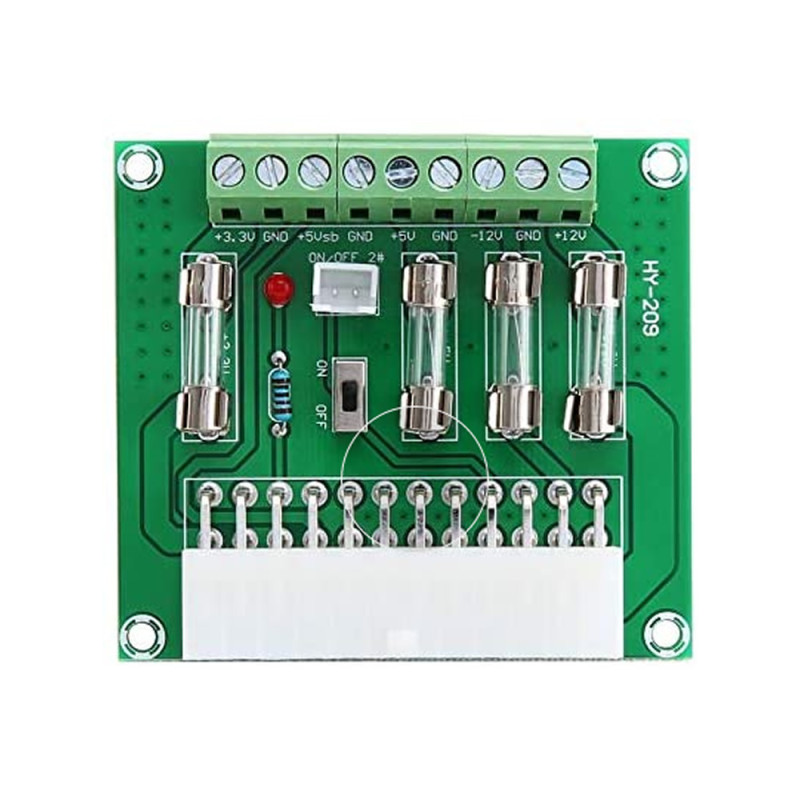

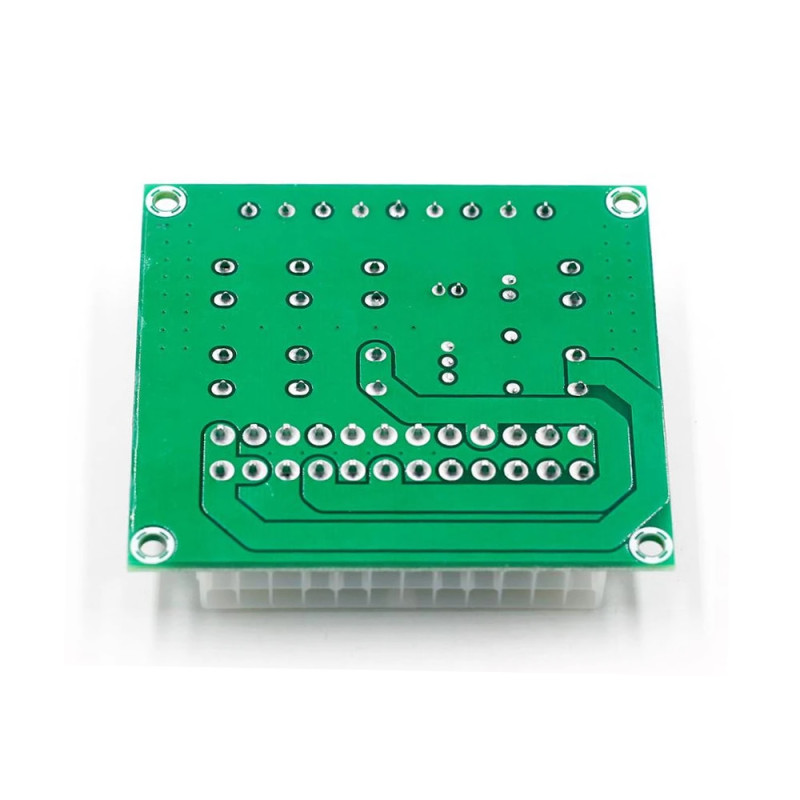

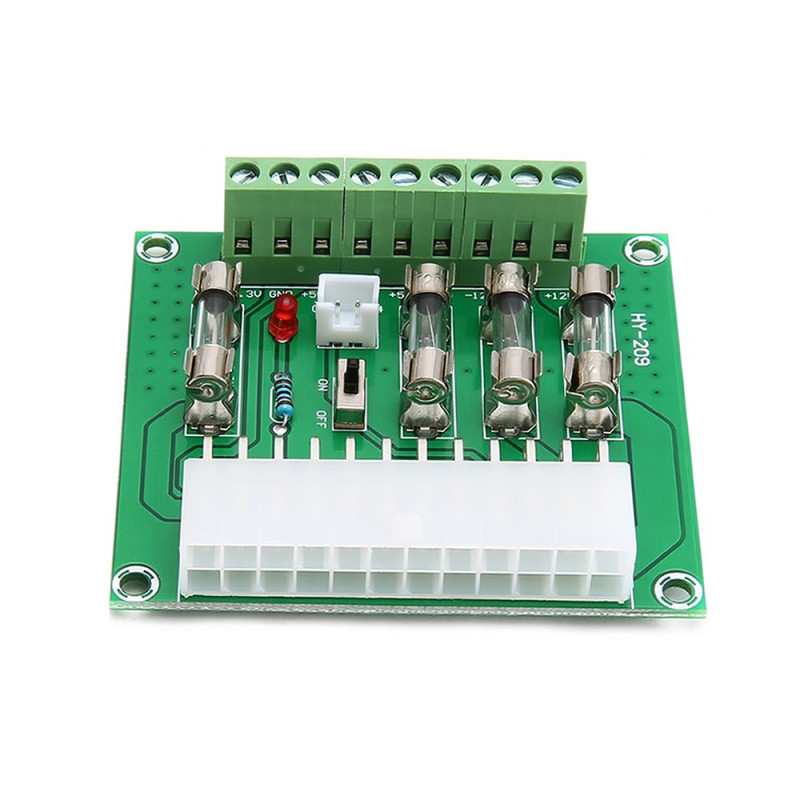

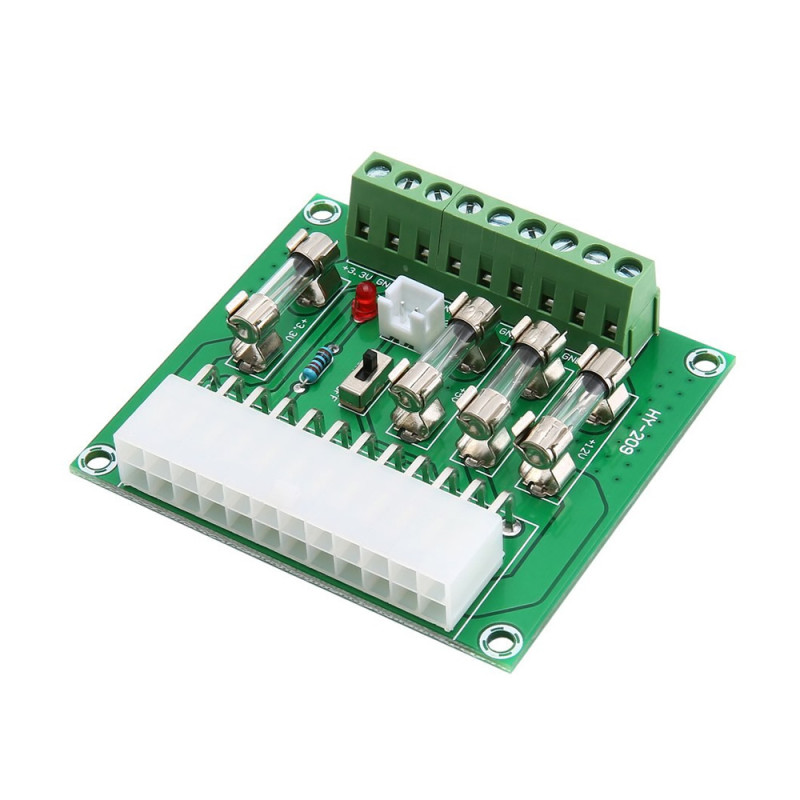

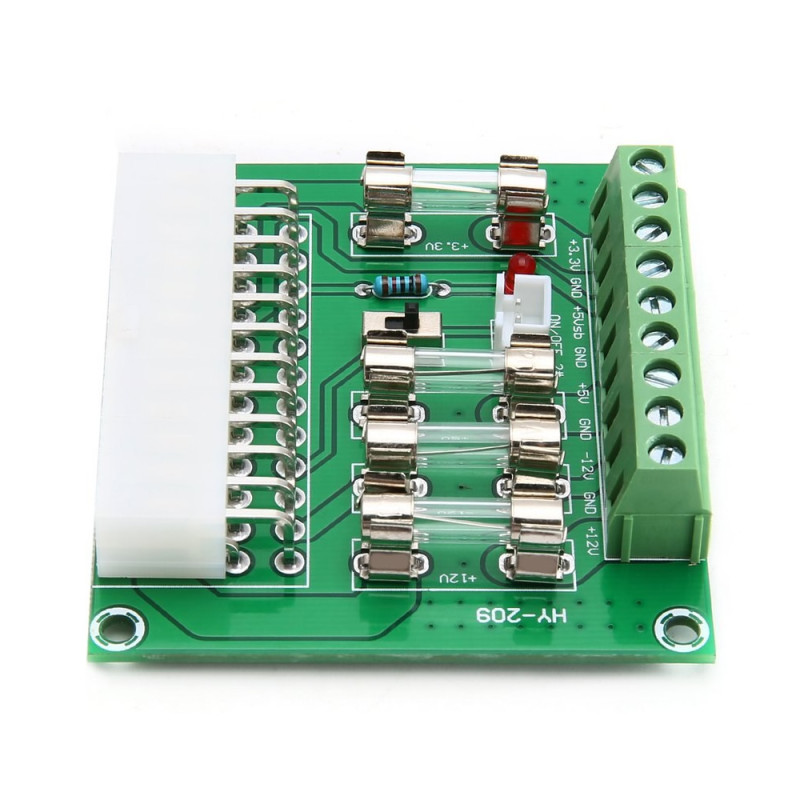

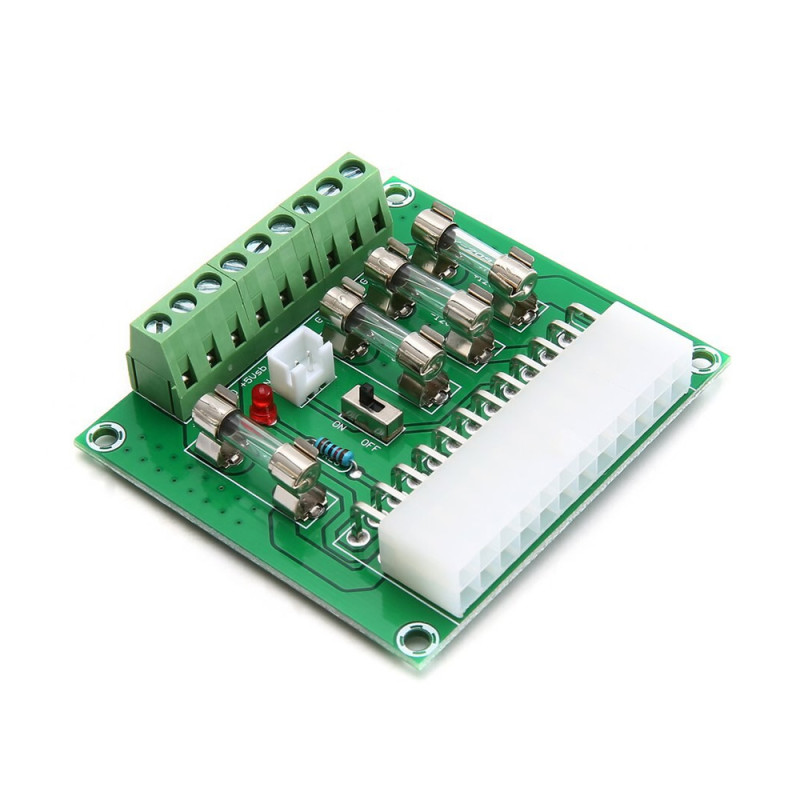

ATX Power Supply Voltage Output Distribution Board HY-209


     ATX power supplies are used in computers. ATX power supplies have become a standard product that is widespread and produced by many companies. This board was developed to allow these power supplies to be used in applications other than computers. It provides easy access to the output voltages available on the power supply.  It can be used with 24/20 pin ATX supplies.

     The product is shipped fully assembled. You can plug your ATX supply into the product and start using it by setting the on/off button on the product to the on position. In the Off  position the power supply turns off. In the On position the power supply runs. And the indicator led on the board lights up to inform the user. Supply outputs are made through terminal block sockets. You can use it by connecting suitable cables to the sockets.

     The fixed output voltage levels are -12V, +12V, +5V and +3.3V. There is a fuse on each channel for safety. Still, we recommend that you pay attention to situations such as incorrect connection and short circuit.

Technical Specifications:

•     Model: HY-209
•     Works with ATX power supply ( partial compatibility with BTX supplies)
•     24/20 pin power supply connection socket.
•     On/off switch
•     9 Pin 5.08mm terminal block sockets.
•     Easy connection, portable.
•     Output voltage levels:  -12V, +12V, +5V and +3.3V
•     Separate glass fuse protection for each voltage output
•     High quality pcb
•     Color: Green
•     Mounting hole distances: 62.8mm x 56.6mm

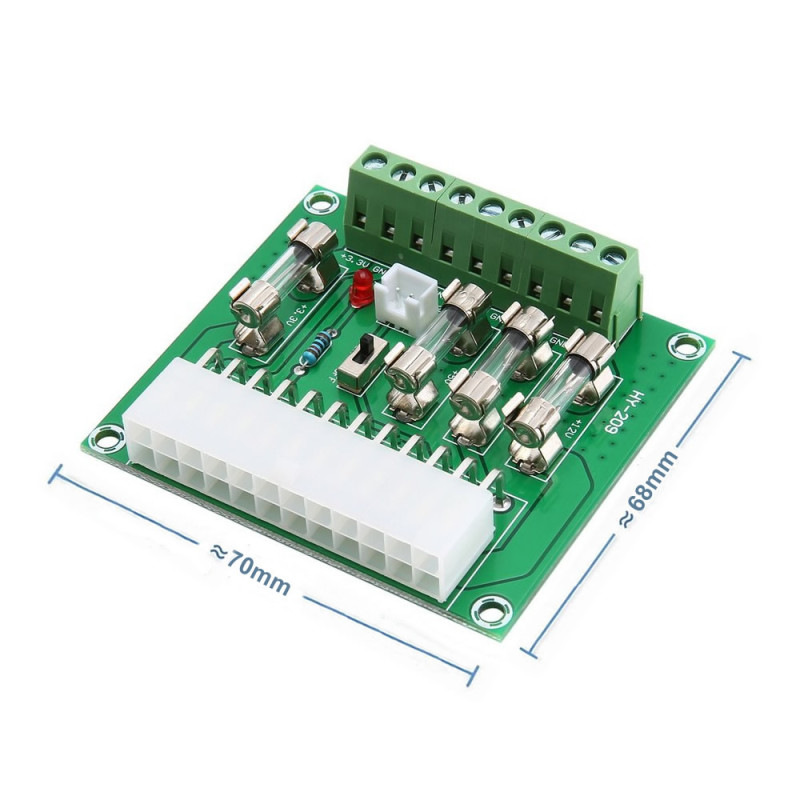

•     Dimensions: 7 cm x 6.8 cm x 1.6cm
•     Weight: 39gr

Package Contents:

•     ATX Power Supply Voltage Output Board HY-209
